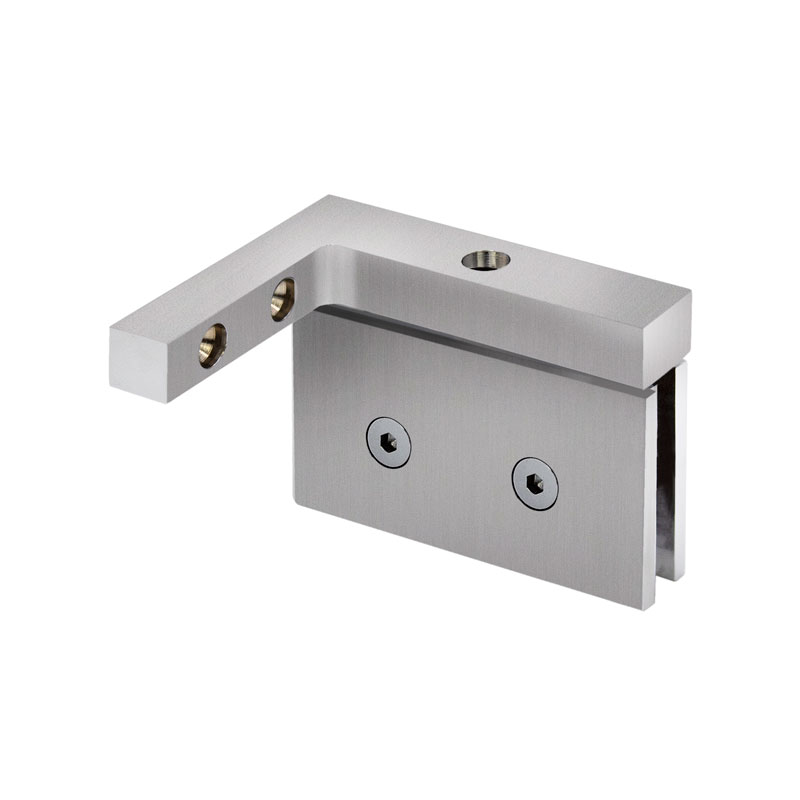

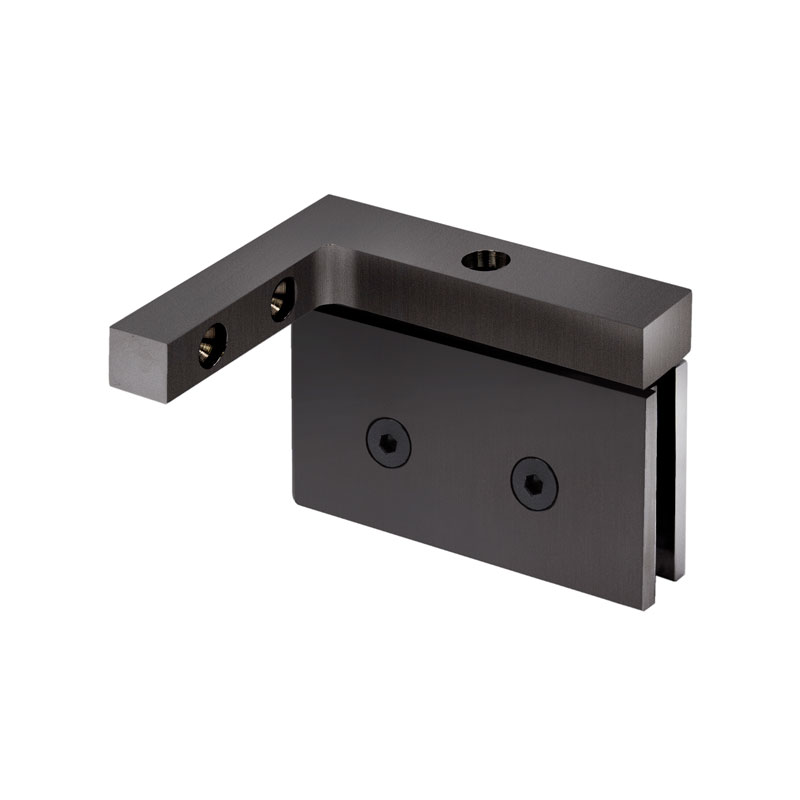

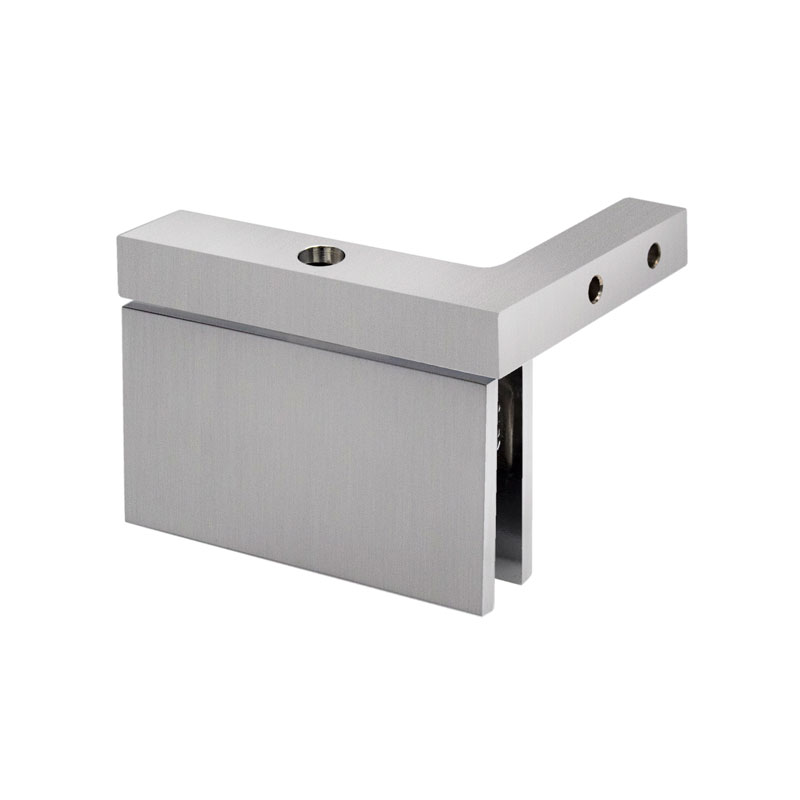

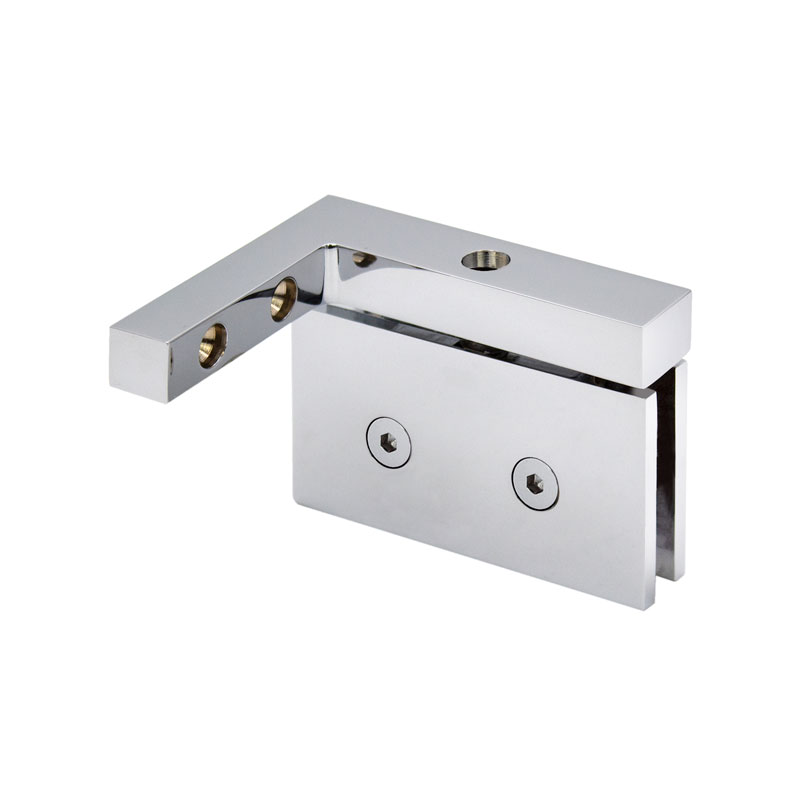

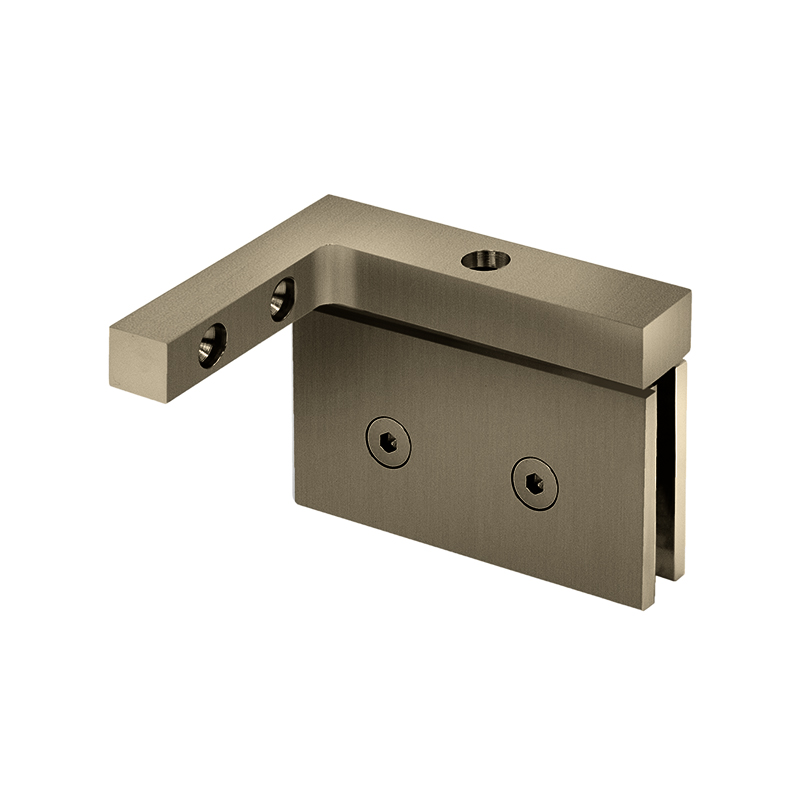

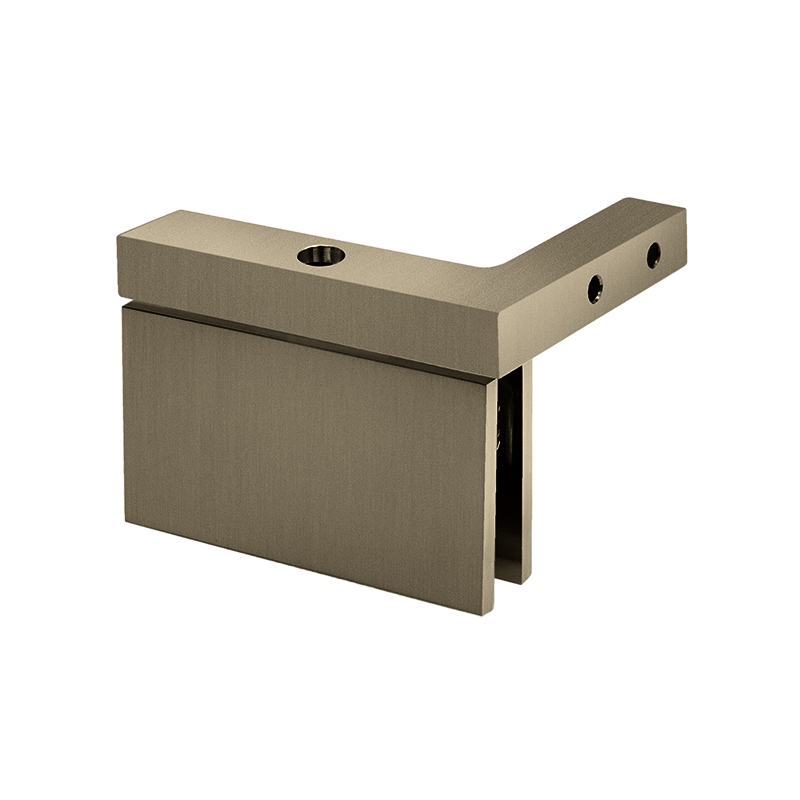

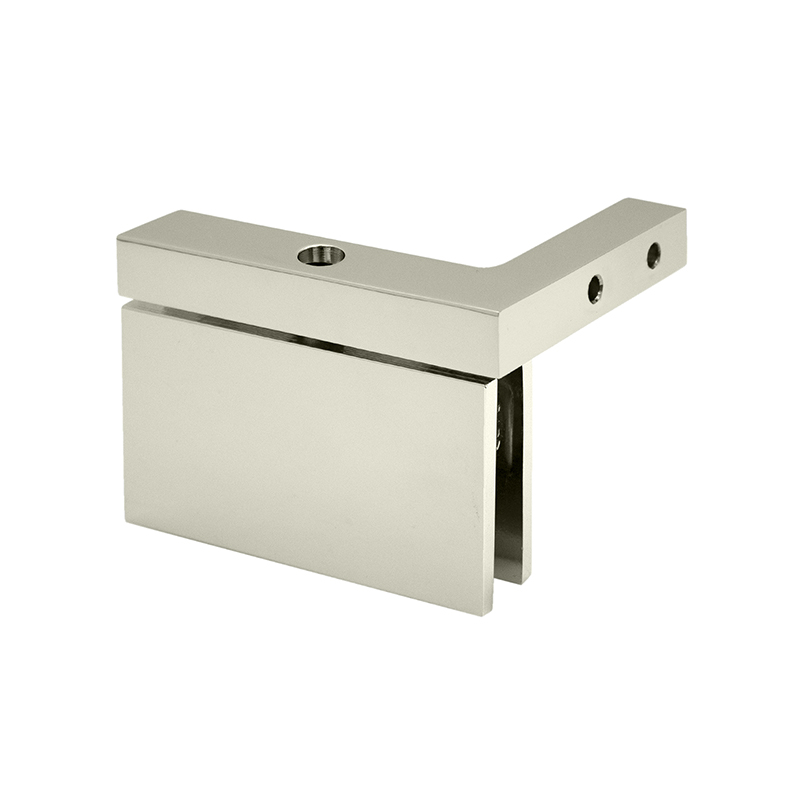

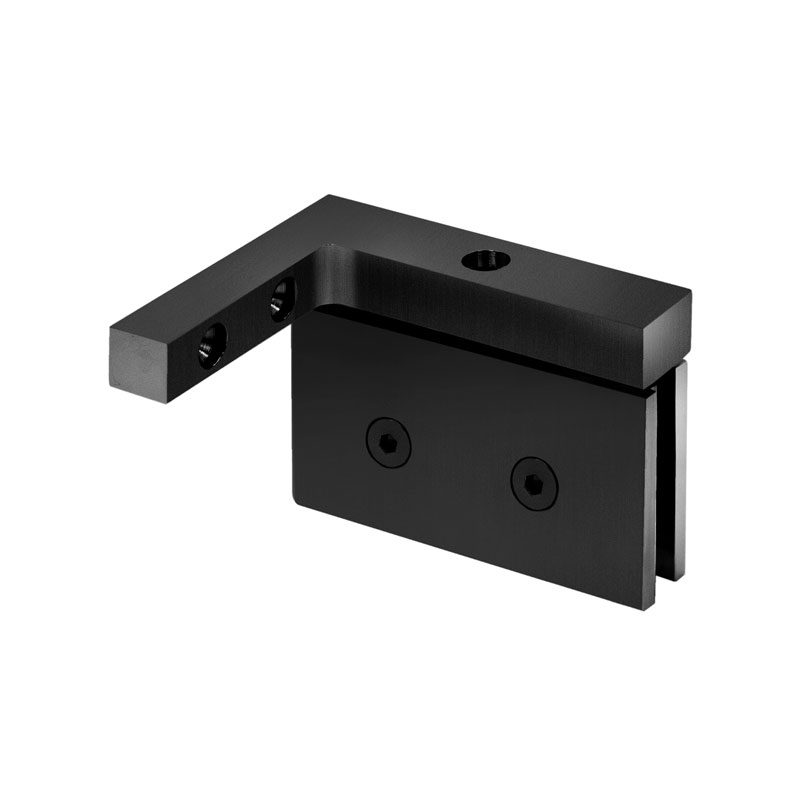

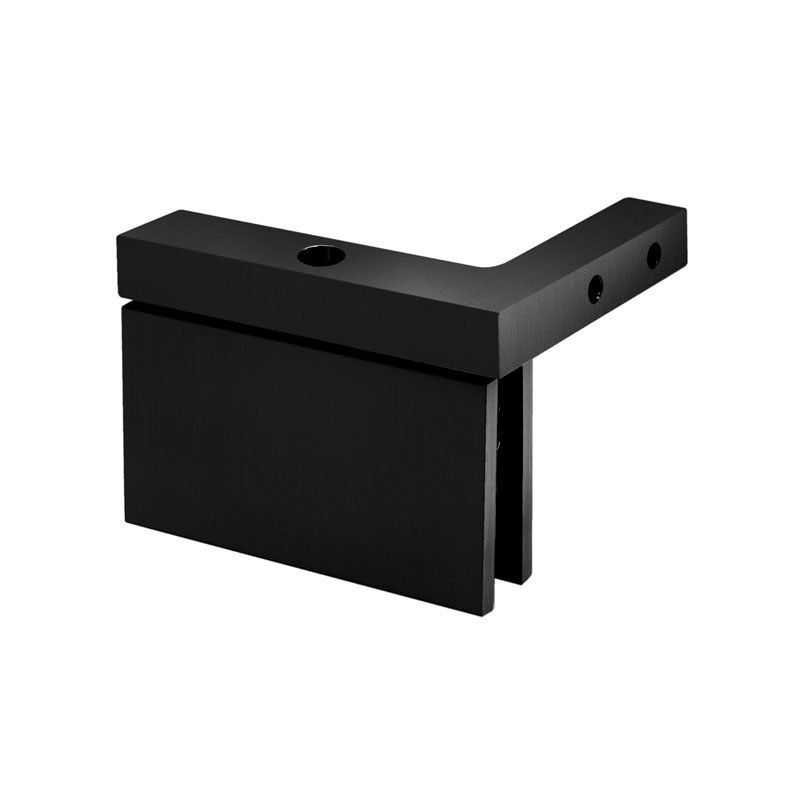

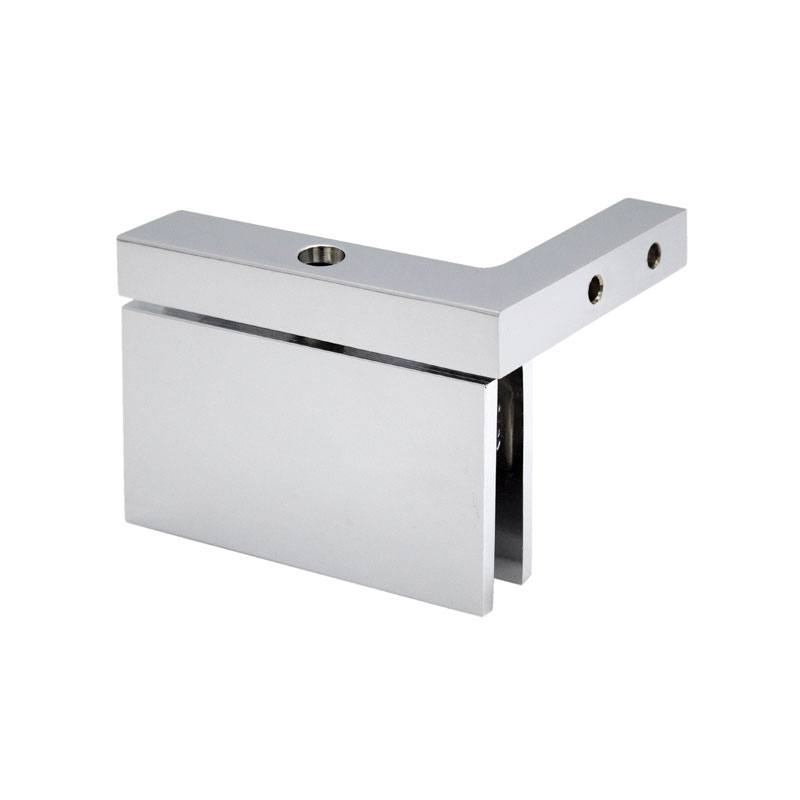

DT Cambria Square Pivot Hinge L-Wall Mount 3/8″ Glass

Name: DT Cambria Square Pivot Hinge L-Wall Mount 3/8" Glass | Daltex Glass
SKU: CAM90
Availability: InStock

SKU: CAM90

10 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Track or off orders

Additional information

Weight	N/A
Select Your Color/Finish	Brushed Bronze, Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Chrome, Polished Nickel, Satin Brass
Case Quantity	20
Catalog Page	FSH24 p. 36
Compare To	CAR05R0RB, CAR05RBBRZ, CAR05RBN, CAR05RCH, CAR05RMBL, CAR05RPN, CAR05RSB
Item No	CAM90, CAM900RB, CAM90BBRZ, CAM90BN, CAM90CH, CAM90MB, CAM90PN, CAM90SB
Product Name	DT Cambria Square Pivot Hinge L-Wall Mount 3/8″ Glass, DT Cambria Square Pivot Hinge L-Wall Mount 3/8″ Glass – Brushed Bronze, DT Cambria Square Pivot Hinge L-Wall Mount 3/8″ Glass – Brushed Nickel, DT Cambria Square Pivot Hinge L-Wall Mount 3/8″ Glass – Matte Black, DT Cambria Square Pivot Hinge L-Wall Mount 3/8″ Glass – Oil Rubbed Bronze, DT Cambria Square Pivot Hinge L-Wall Mount 3/8″ Glass – Polished Chrome, DT Cambria Square Pivot Hinge L-Wall Mount 3/8″ Glass – Polished Nickel, DT Cambria Square Pivot Hinge L-Wall Mount 3/8″ Glass – Satin Brass
Weight	2.1

Description

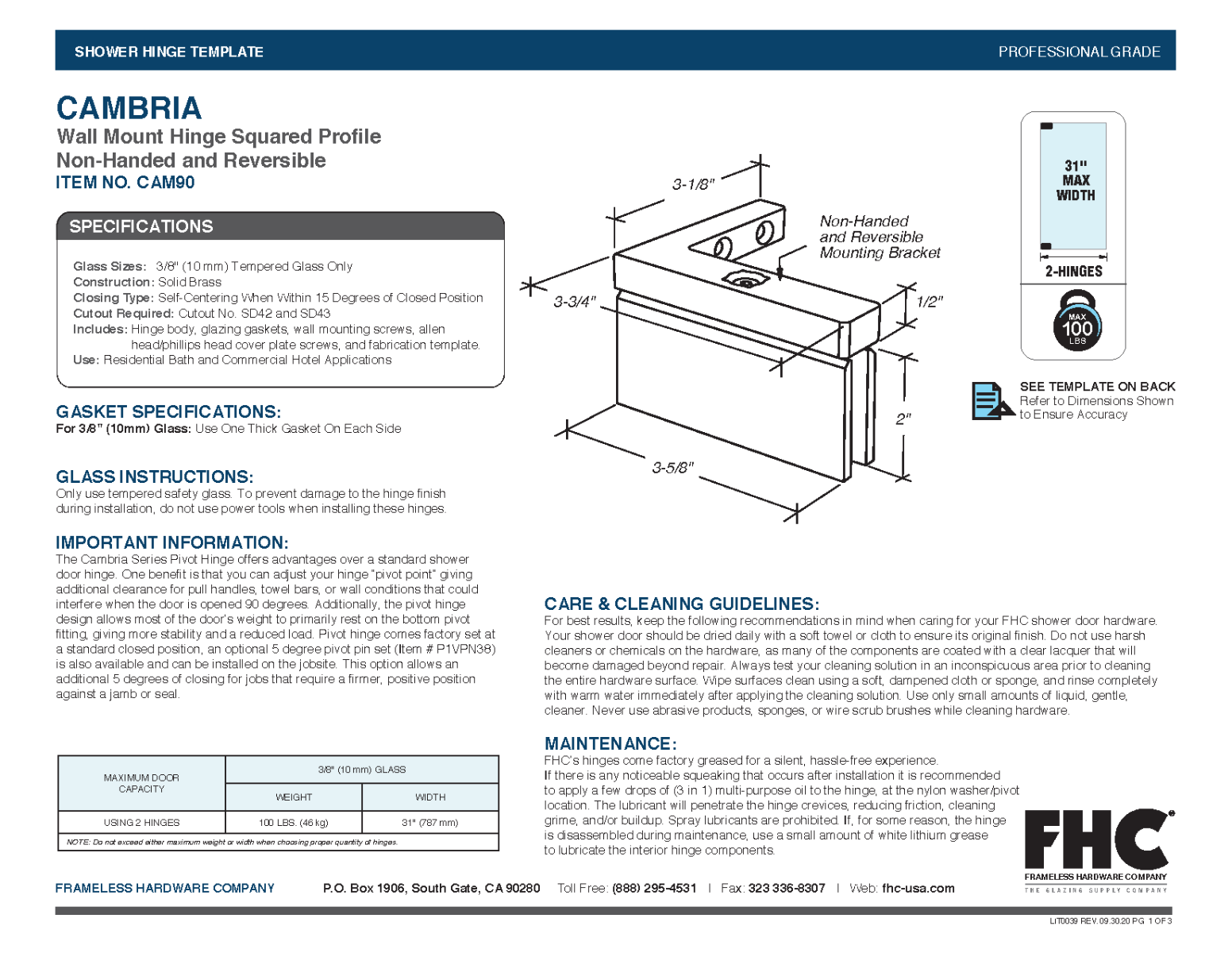

Glass Specifications

MAXIMUM DOOR CAPACITY	3/8″ (10 mm) GLASS Approx. 5 lb./ft²
MAXIMUM DOOR CAPACITY	DOOR WEIGHT	DOOR WIDTH
Using 2 Hinges	100 LBS (66 kg)	31″ (787 mm)

NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
