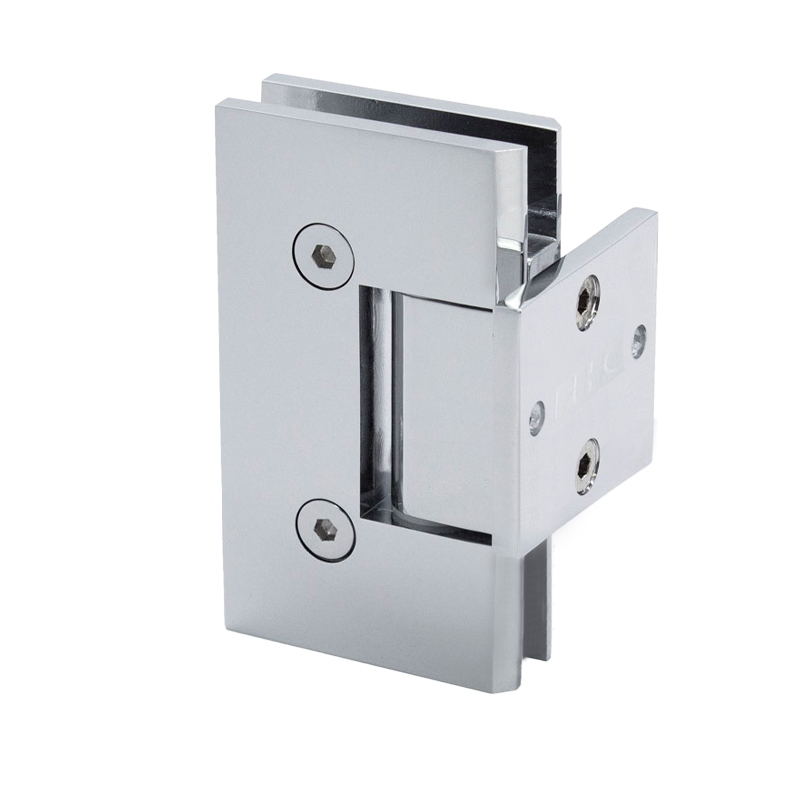

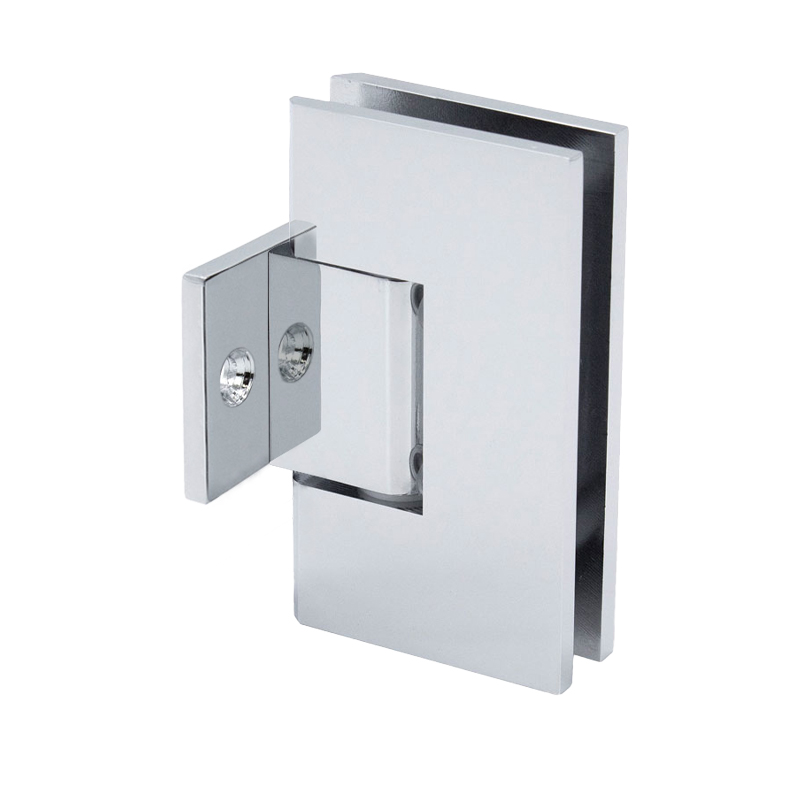

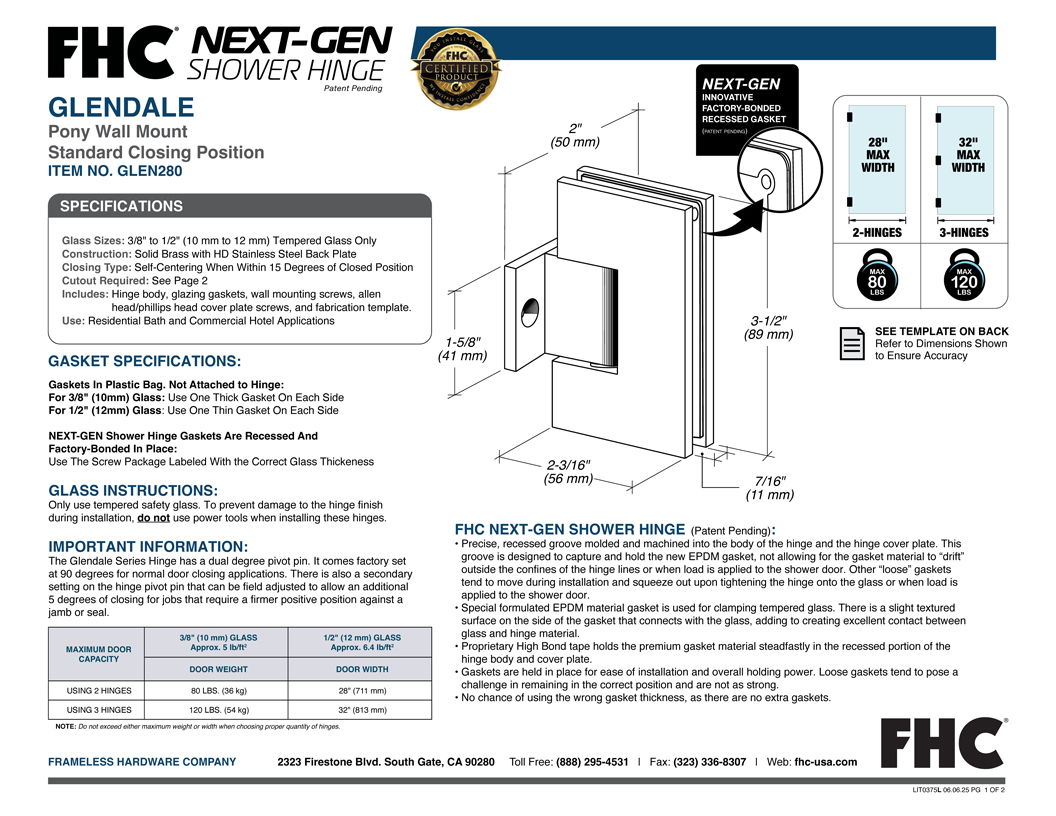

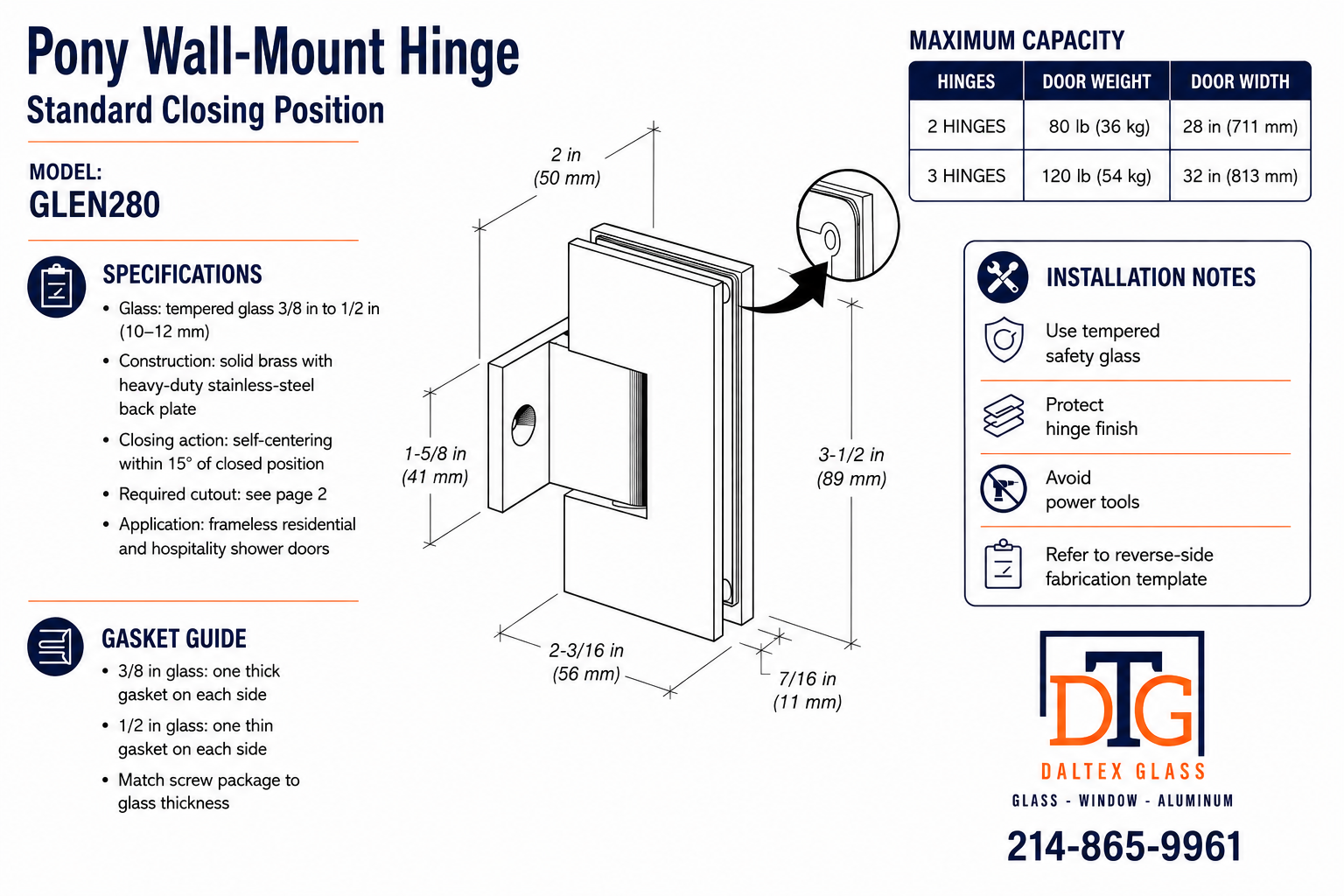

DT Glendale 180 Degree Pony Wall Mount Hinge
17
People watching this product now!
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Additional information
| Weight | N/A |
|---|---|

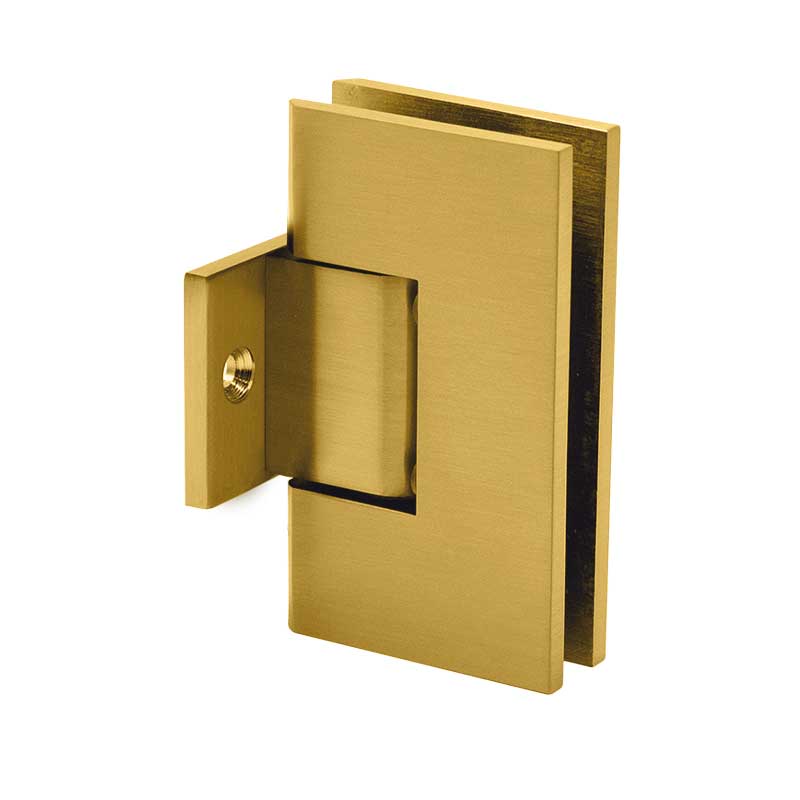

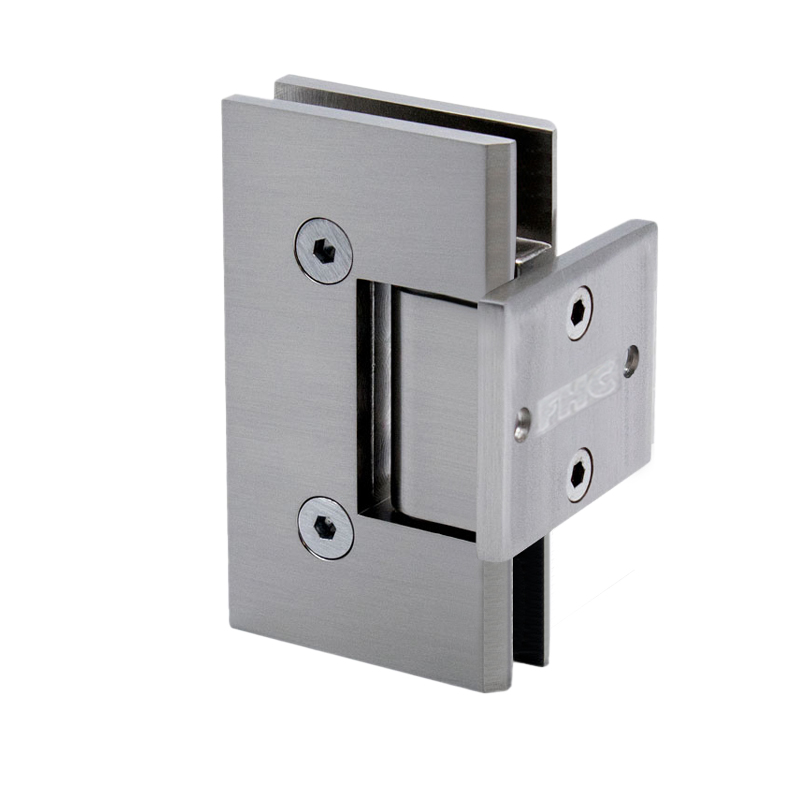

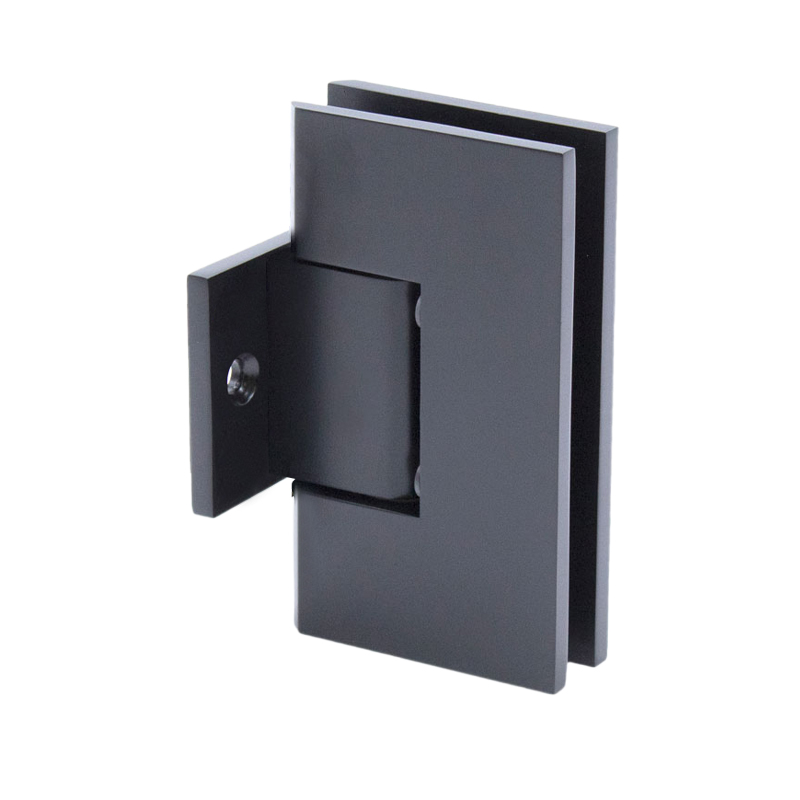

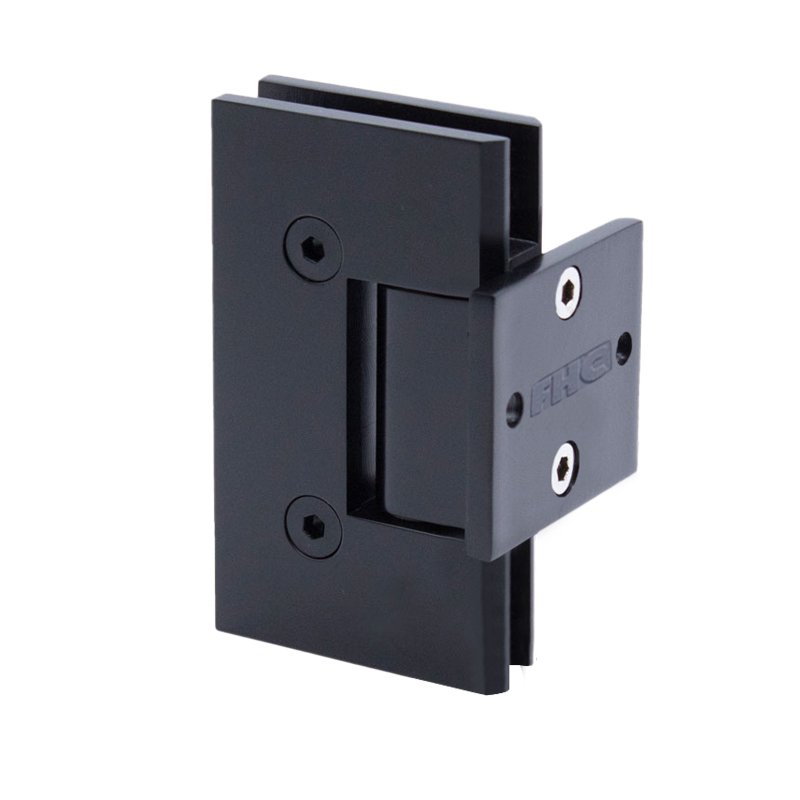

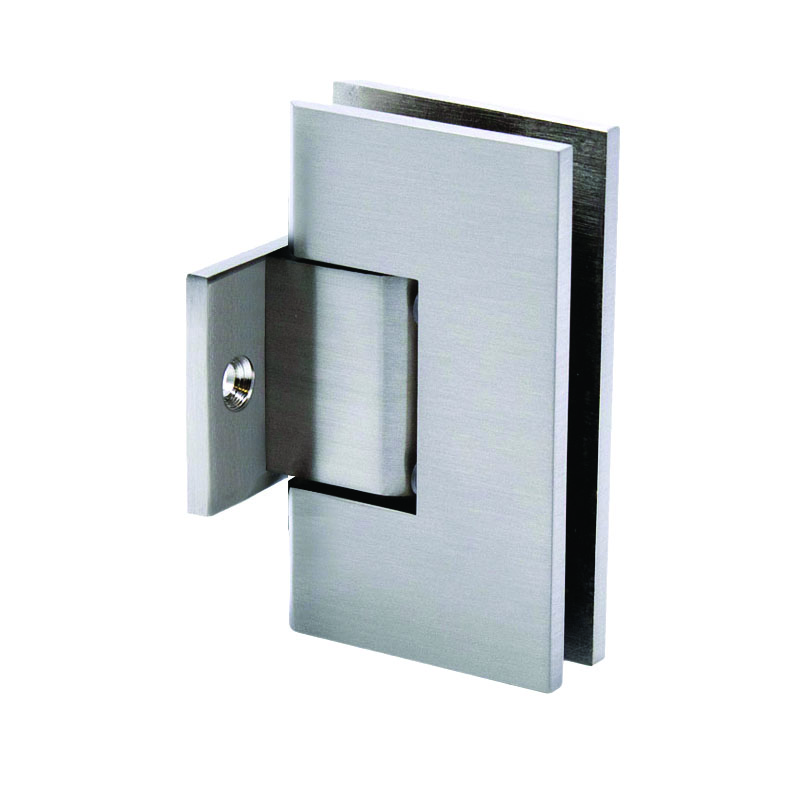

| Select Your Color/Finish | Brushed Nickel, Matte Black, Polished Chrome, Satin Brass |
| Case Quantity | 20 |
| Catalog Page | FSH24 p. 16 |
| Compare To | GEN280, GEN280BN, GEN280CH, GEN280MBL, GEN280SB |
| Construction | Solid Brass with Stainless Steel Plate |

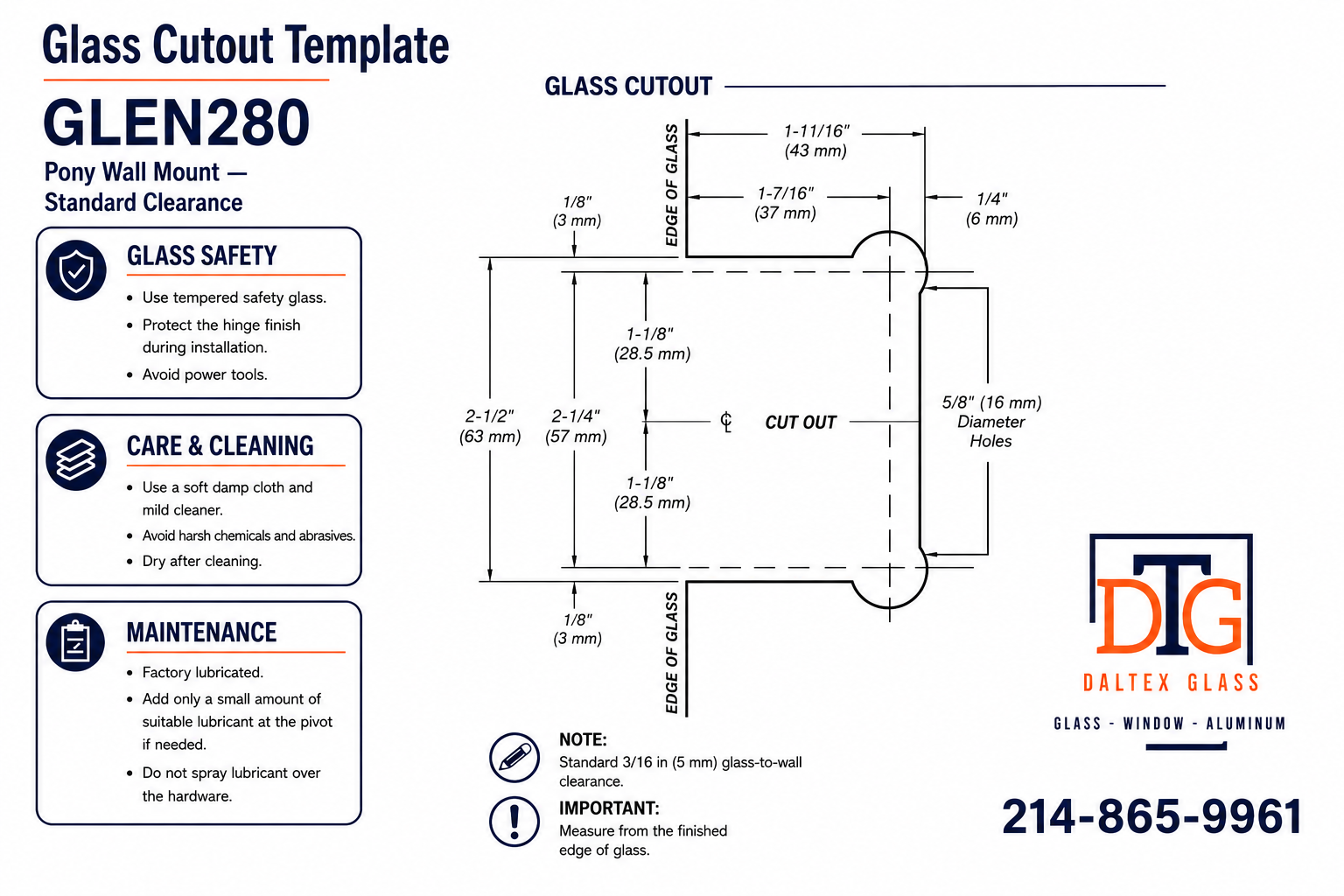

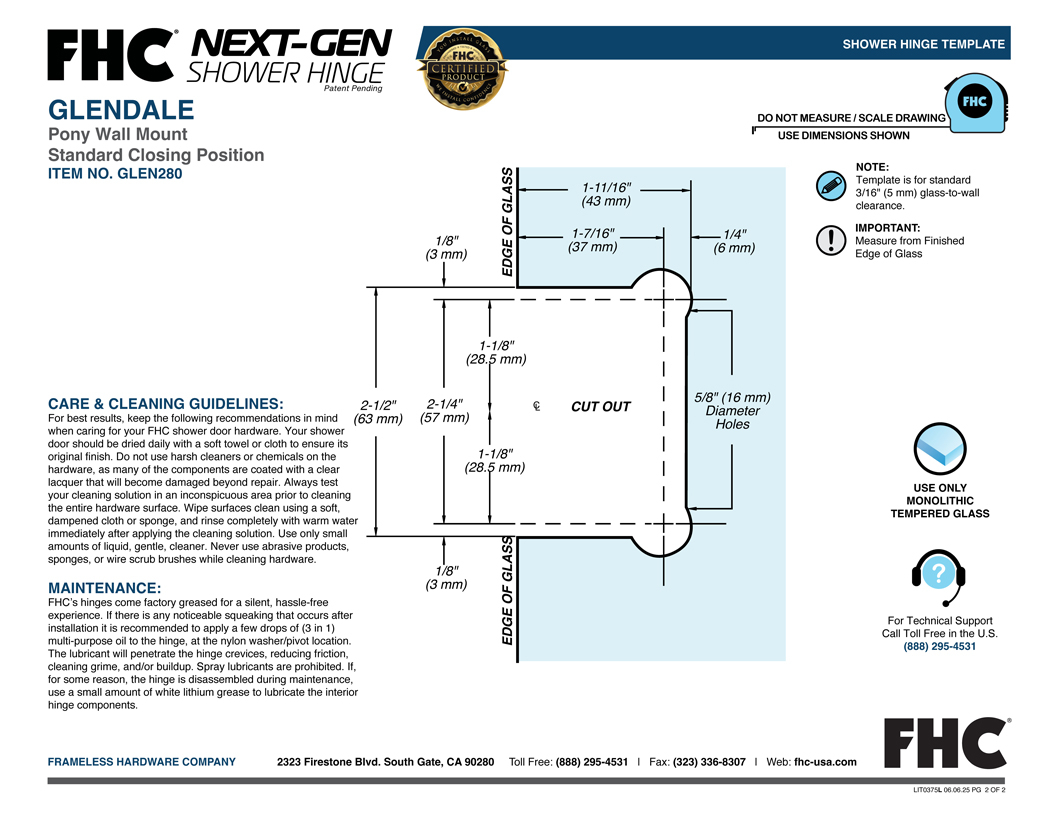

| Glass Fabrication | See Template PDF for Glass Cutouts |
| Glasss Pecifications | Tempered Glass Only |
| Glass Thickness | 3/8″ to 1/2″ |
| Item No | GLEN280, GLEN280BN, GLEN280CH, GLEN280MB, GLEN280SB |
| Maximum Door Weight | 2 Hinges/80 lb, 3 Hinges/120 lb |
| Maximum Door Width | 28″ (2 Hinges), 32″ (3 Hinges) |
| Mounting Type | Wall Mounted |
| Plate Type | Short Back Plate |
| Product Height | 3-1/2″ |
| Product Name | DT Glendale 180 Degree Pony Wall Mount Hinge, DT Glendale 180 Degree Pony Wall Mount Hinge – Brushed Nickel, DT Glendale 180 Degree Pony Wall Mount Hinge – Matte Black, DT Glendale 180 Degree Pony Wall Mount Hinge – Polished Chrome, DT Glendale 180 Degree Pony Wall Mount Hinge – Satin Brass |
| Product Width | 2-3/16″ |
| Profile | Square |
| Ship Via | Ships UPS |
| Ships Air | Ships Air |
| Warnings | Not for use with Laminated Glass |
| Weight | 1.6 |
