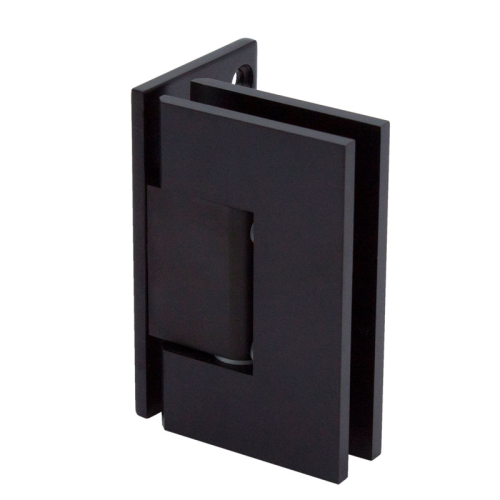

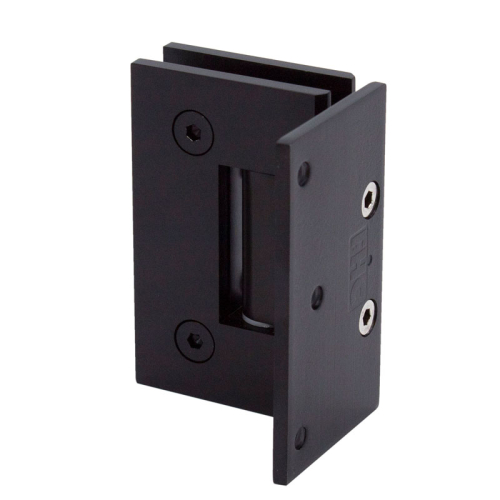

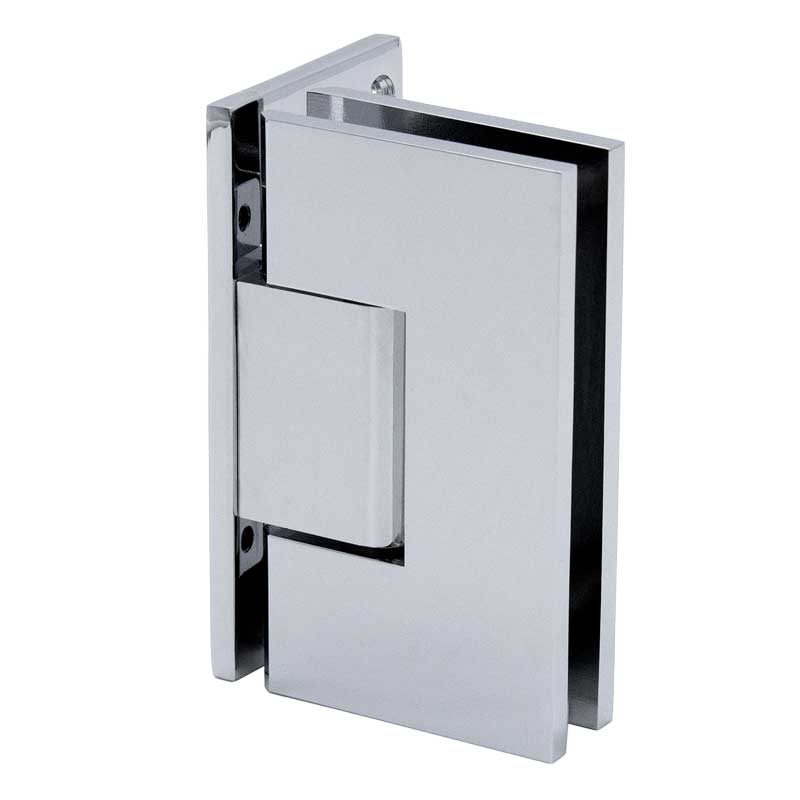

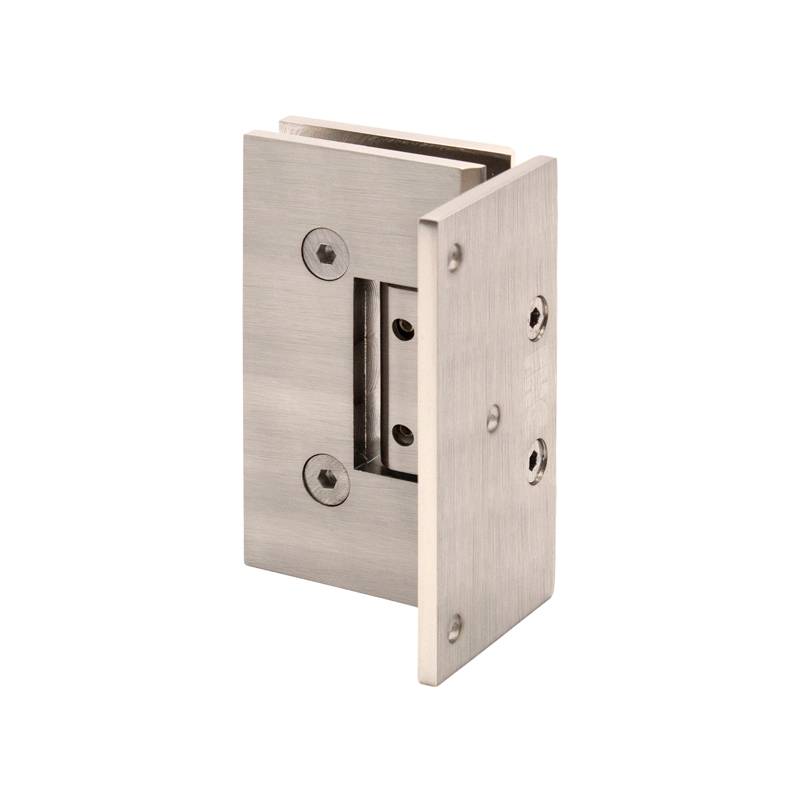

DT Glendale Adjustable Square Wall Mount Hinge Full Offset Back Plate

Name: DT Glendale Adjustable Square Wall Mount Hinge Full Offset Back Plate
SKU: GLENA05

SKU: GLENA05

19 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Track or off orders

Additional information

Weight	N/A

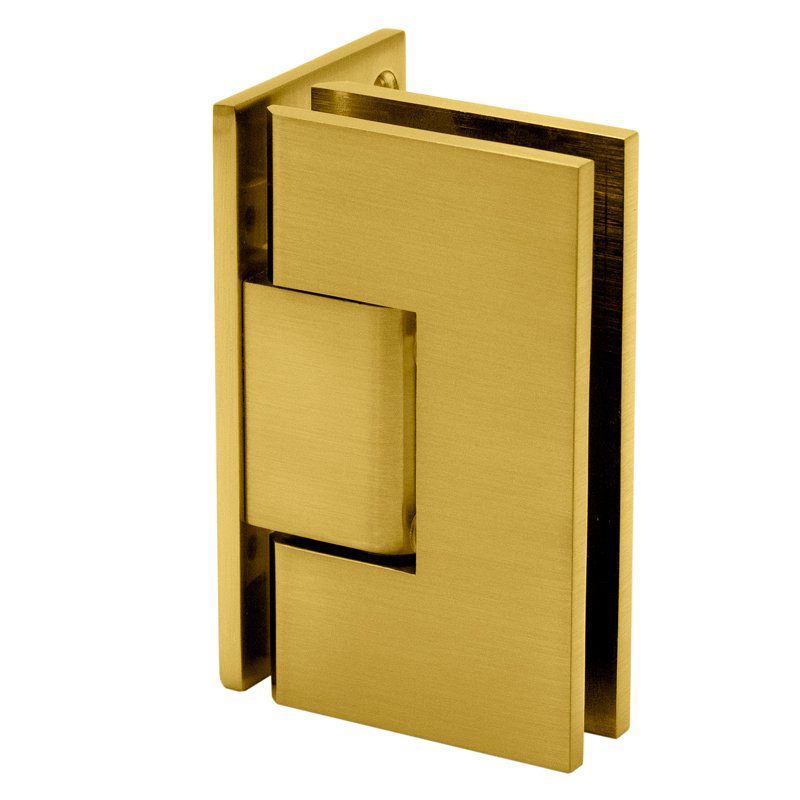

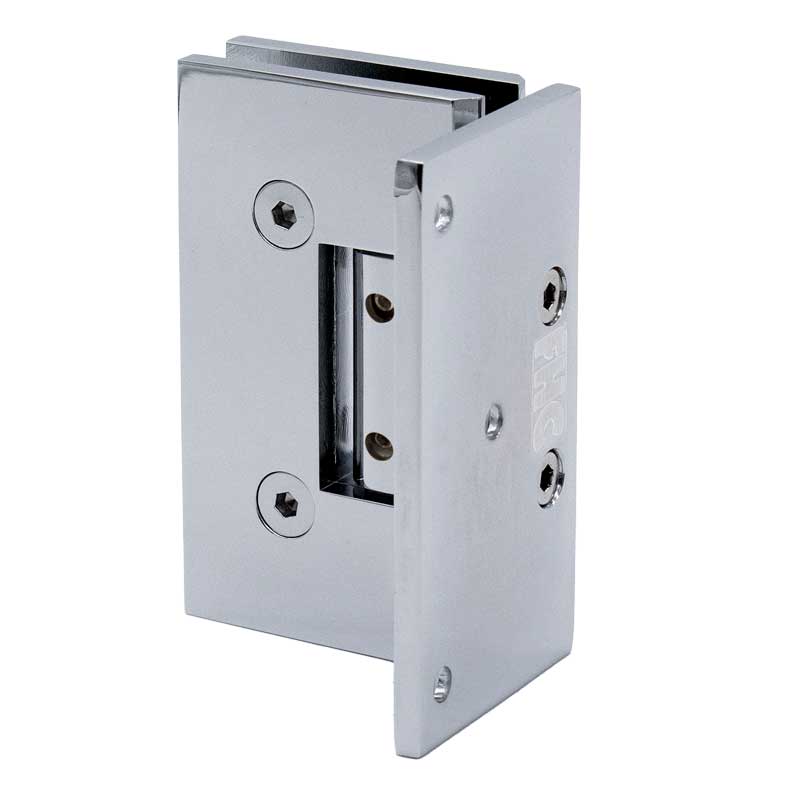

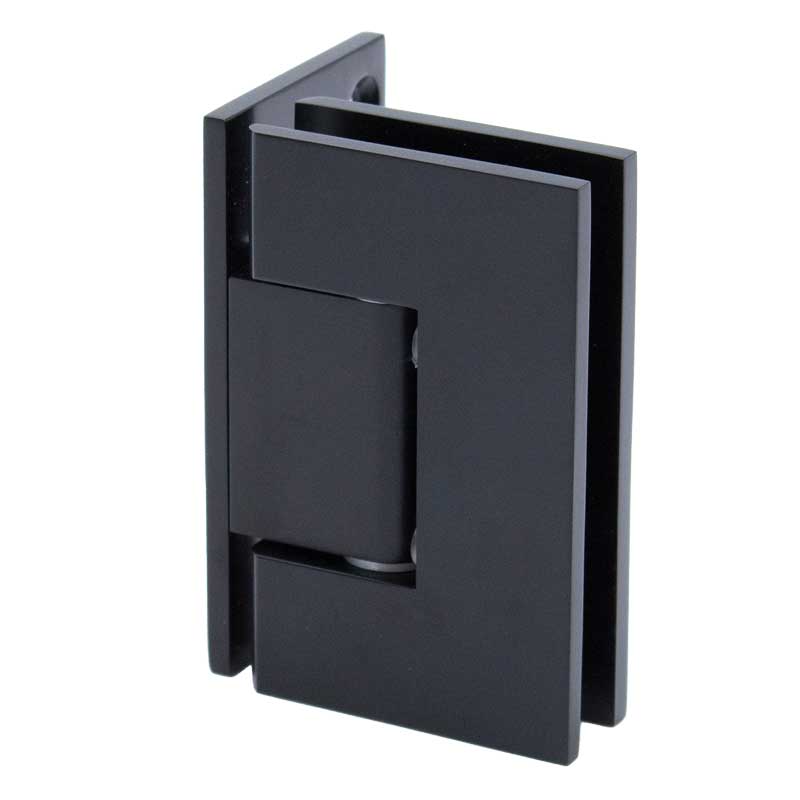

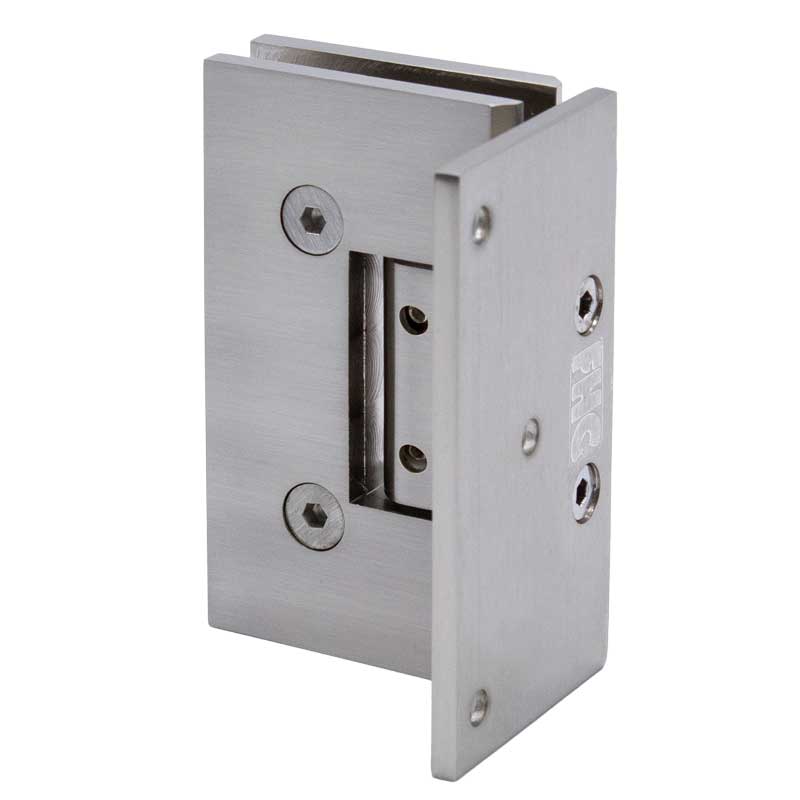

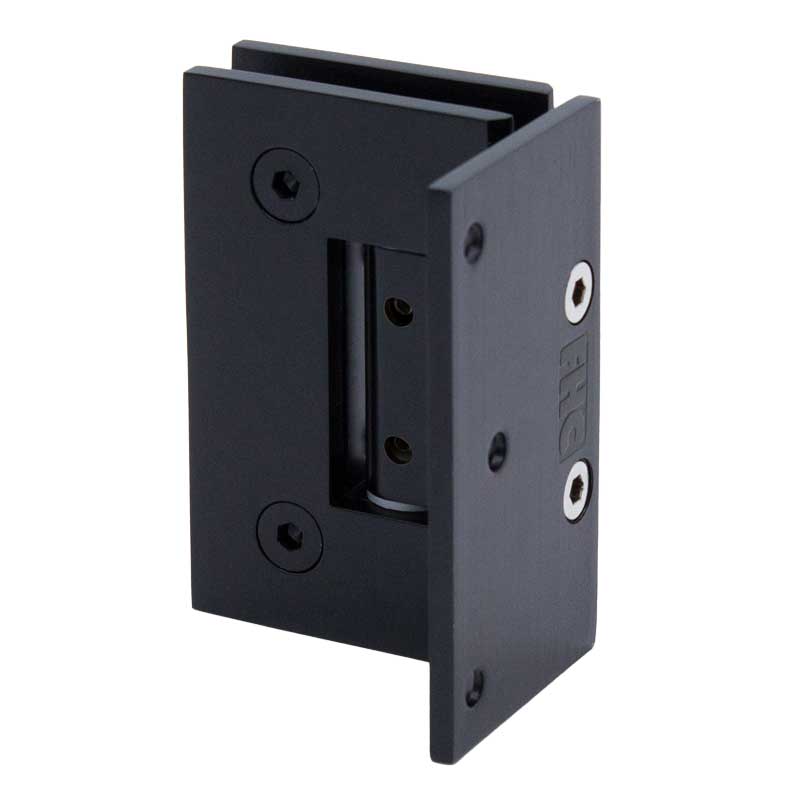

Select Your Color/Finish	Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Chrome, Satin Brass
Case Quantity	20
Catalog Page	FSH24 p. 16
Compare To	GEN3440RBHGTWA0P0B, GEN344BNHGTWA0PBN, GEN344CHHGTWA0PC, GEN344MBLHGTWA0PMB, GEN344SBHGTWA0PSB
Construction	Solid Brass with Stainless Steel Plate

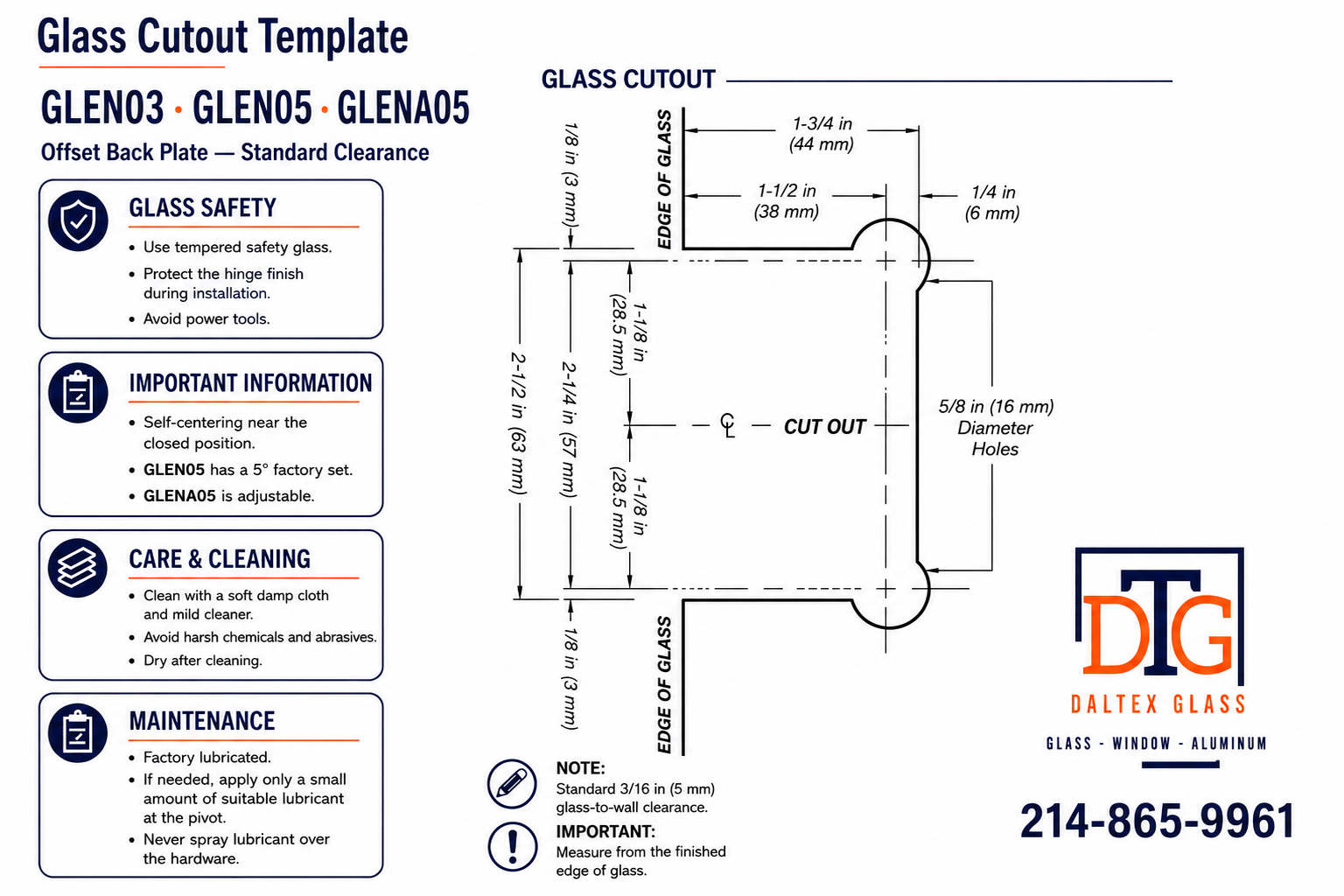

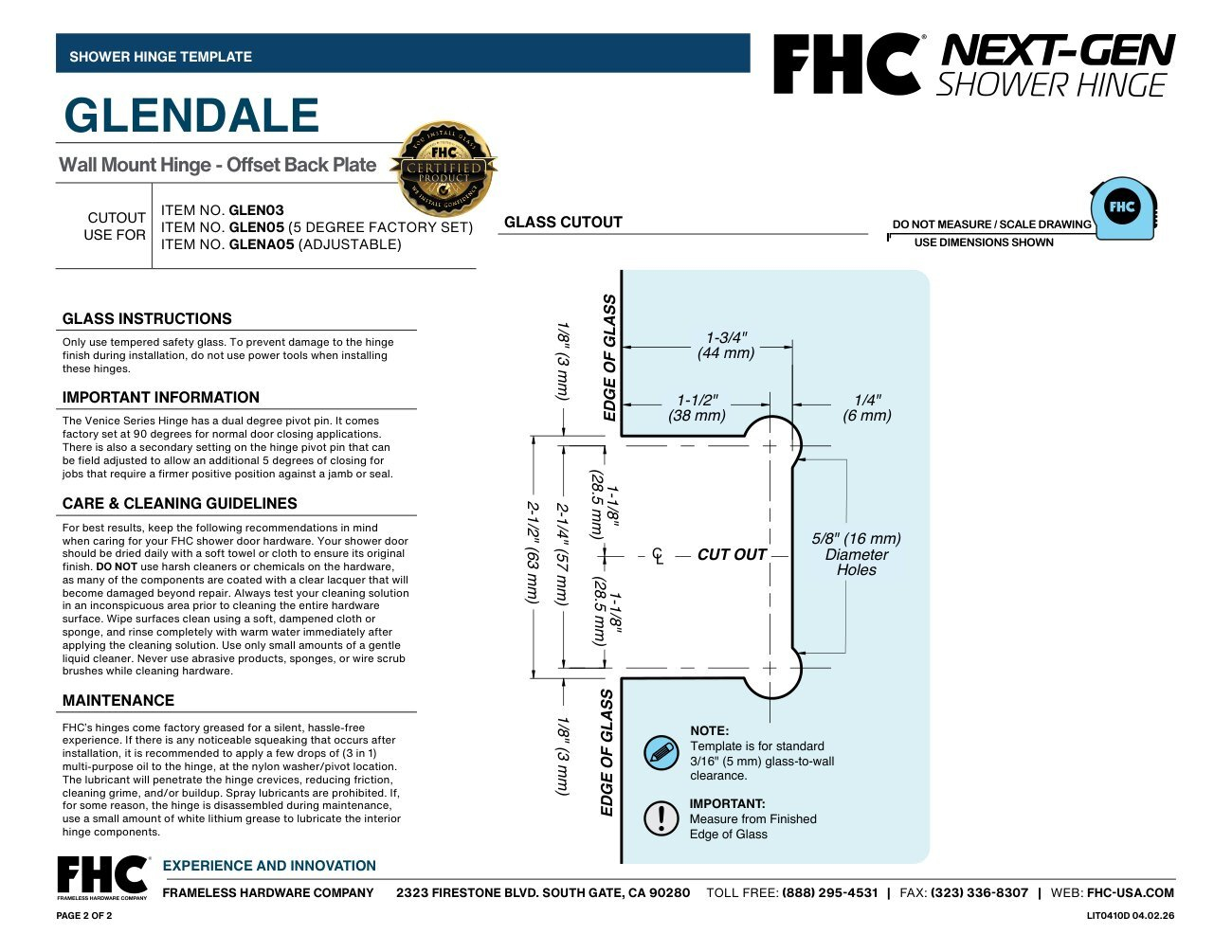

Glass Fabrication	See Template PDF for Glass Cutouts
Glasss Pecifications	Tempered Glass Only
Glass Thickness	3/8″ to 1/2″
Item No	GLENA05, GLENA050RB, GLENA05BN, GLENA05CH, GLENA05MB, GLENA05SB
Maximum Door Weight	2 Hinges/80 lb, 3 Hinges/120 lb
Maximum Door Width	28″ (2 Hinges), 32″ (3 Hinges)
Mounting Type	Wall Mounted
Plate Type	Offset Full Back Plate
Product Height	3-1/2″
Product Name	DT Glendale Adjustable Square Wall Mount Hinge Full Offset Back Plate, DT Glendale Adjustable Square Wall Mount Hinge Full Offset Back Plate – Brushed Nickel, DT Glendale Adjustable Square Wall Mount Hinge Full Offset Back Plate – Matte Black, DT Glendale Adjustable Square Wall Mount Hinge Full Offset Back Plate – Oil Rubbed Bronze, DT Glendale Adjustable Square Wall Mount Hinge Full Offset Back Plate – Polished Chrome, DT Glendale Adjustable Square Wall Mount Hinge Full Offset Back Plate – Satin Brass
Product Width	2-3/16″
Profile	Square
Ship Via	Ships UPS
Ships Air	Ships Air
Warnings	Not for use with Laminated Glass
Weight	1.6

Description
