DT Glendale Square 5 Degree Positive Close Glass To Glass 135 Degree Hinge
17
People watching this product now!
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Additional information
| Weight | N/A |
|---|---|
| Select Your Color/Finish | Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Chrome |
| Case Quantity | 10 |
| Catalog Page | FSH24 p. 16 |
| Compare To | GEN5450MBL, GEN5450RB, GEN545BNH135GTG5BN, GEN545CHH135GTG5C |
| Degree | 135 Degree |
| Glass Thickness | 3/8″ or 1/2″ |
| Item No | GLEN535, GLEN5350RB, GLEN535BN, GLEN535CH, GLEN535MB |
| Material | Solid Brass |
| Maximum Door Width | 28″ (2 Hinges), 32″ (3 Hinges) |
| Product Height | 3-1/2″ |
| Product Name | DT Glendale Square 5 Degree Positive Close Glass To Glass 135 Degree Hinge, DT Glendale Square 5 Degree Positive Close Glass To Glass 135 Degree Hinge – Brushed Nickel, DT Glendale Square 5 Degree Positive Close Glass To Glass 135 Degree Hinge – Matte Black, DT Glendale Square 5 Degree Positive Close Glass To Glass 135 Degree Hinge – Oil Rubbed Bronze, DT Glendale Square 5 Degree Positive Close Glass To Glass 135 Degree Hinge – Polished Chrome |
| Product Width | 2-9/16″ (Sidelite), 2-3/16″(Door) |
| Profile | Square |
| Weight | 2.5 |
| Weight Capacity | 2 Hinges/80 lb, 3 Hinges/120 lb |
Description
Description

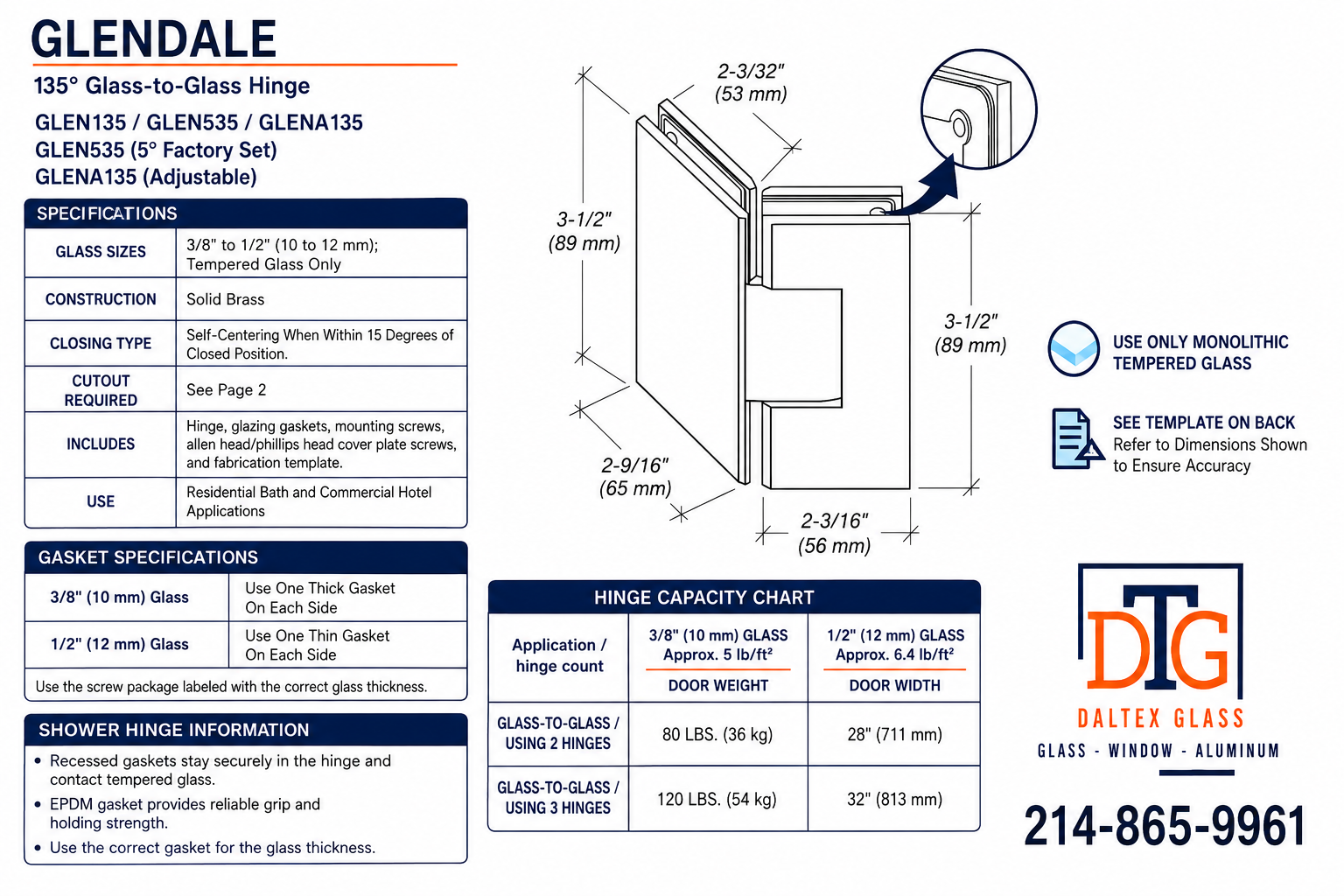

Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8″ (10 mm) GLASS Approx. 5 lb./ft² |
1/2″ (12 mm) GLASS Approx. 6.4 lb./ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 80 LBS (36 kg) | 28″ (711 mm) |
| Using 3 Hinges | 120 LBS. (54 kg) | 32″ (813 mm) |
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
