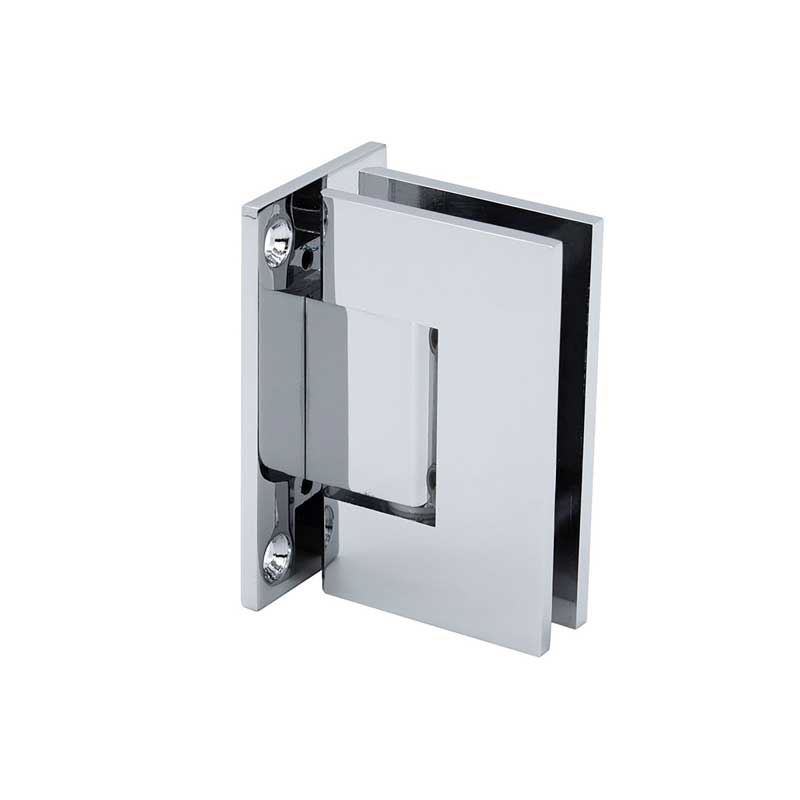

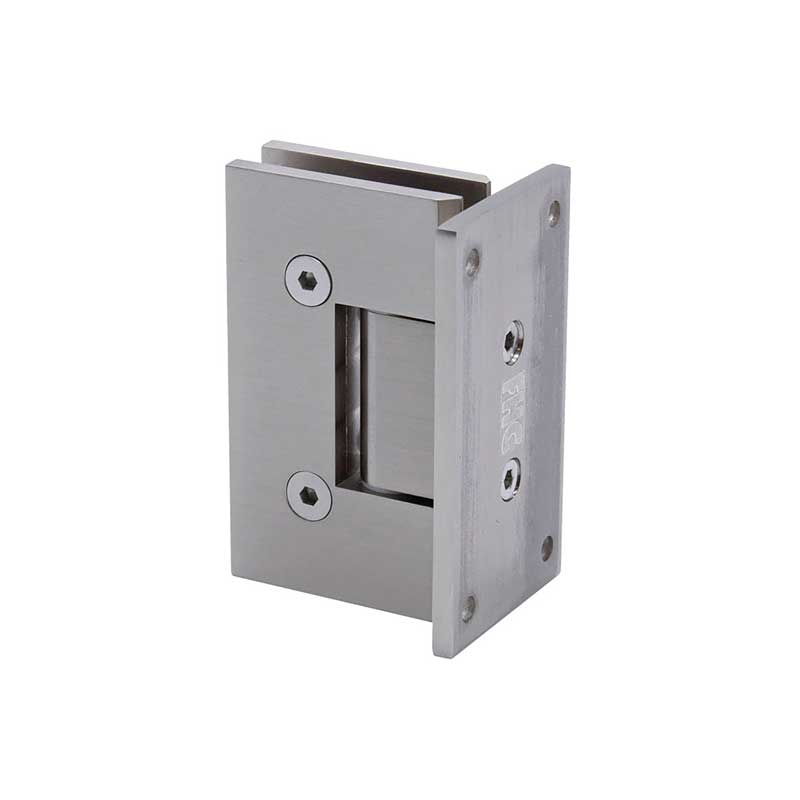

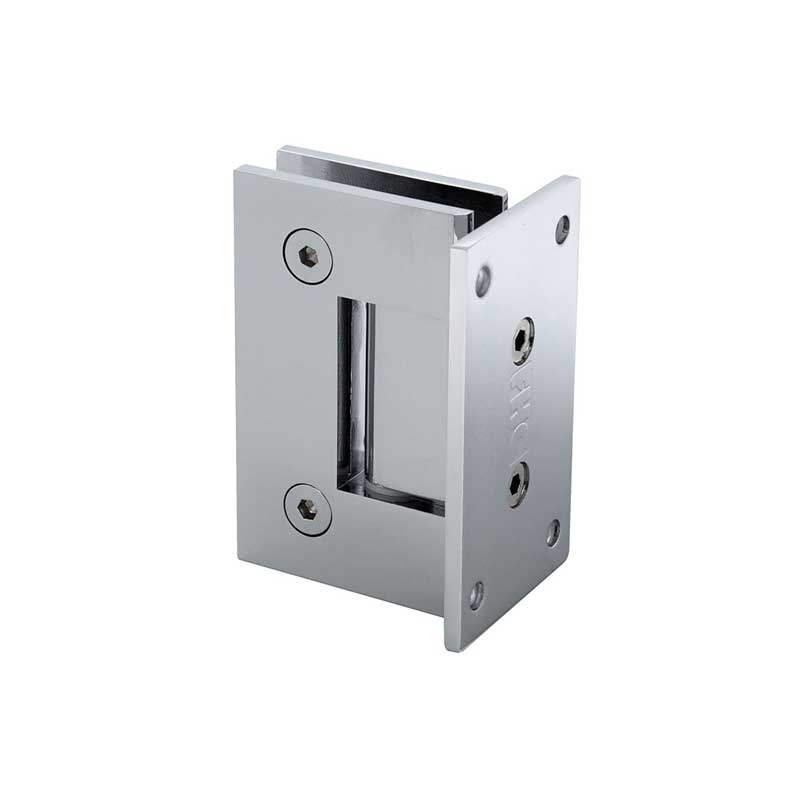

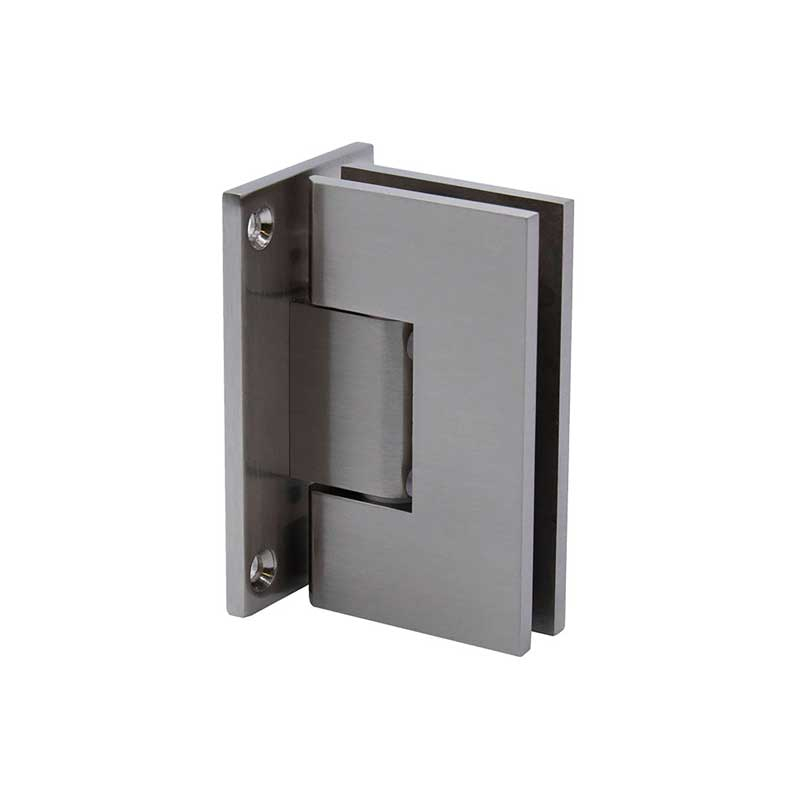

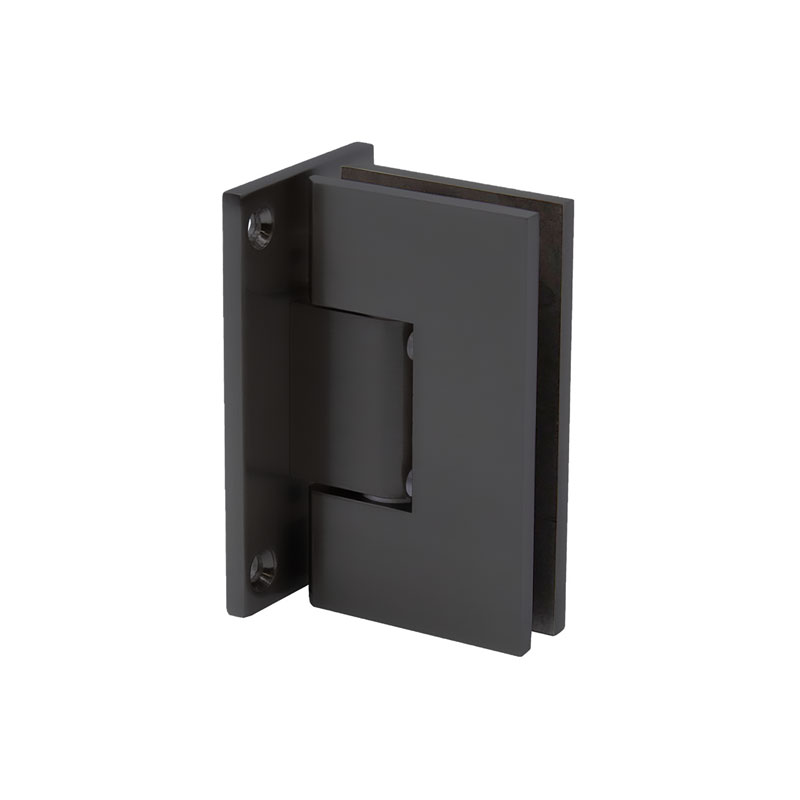

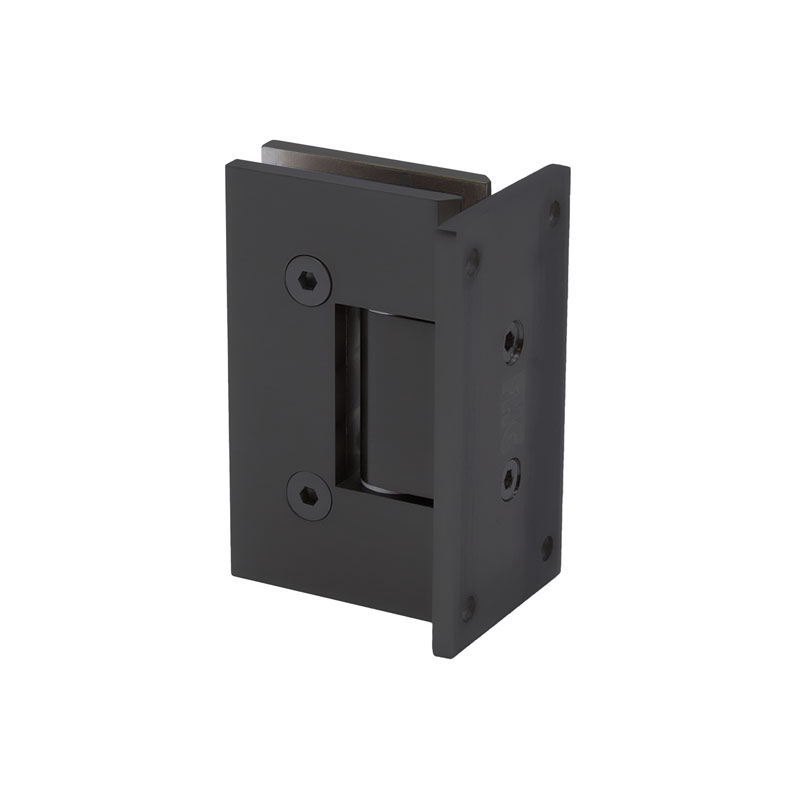

DT Junior Glendale Square 5 Degree Wall Mount Hinge Full Back Plate

Name: DT Junior Glendale Square 5 Degree Wall Mount Hinge Full Back Plate
SKU: JRGLENF5

SKU: JRGLENF5

15 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Track or off orders

Additional information

Weight	N/A
Select Your Color/Finish	Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Chrome
Case Quantity	20
Catalog Page	FSH24 p. 17
Compare To	JRG5370RBC5000150RB, JRG537BNC500015BRN, JRG537CHC500015BLY, JRG537MBLC500015BLK
Construction	Solid Brass

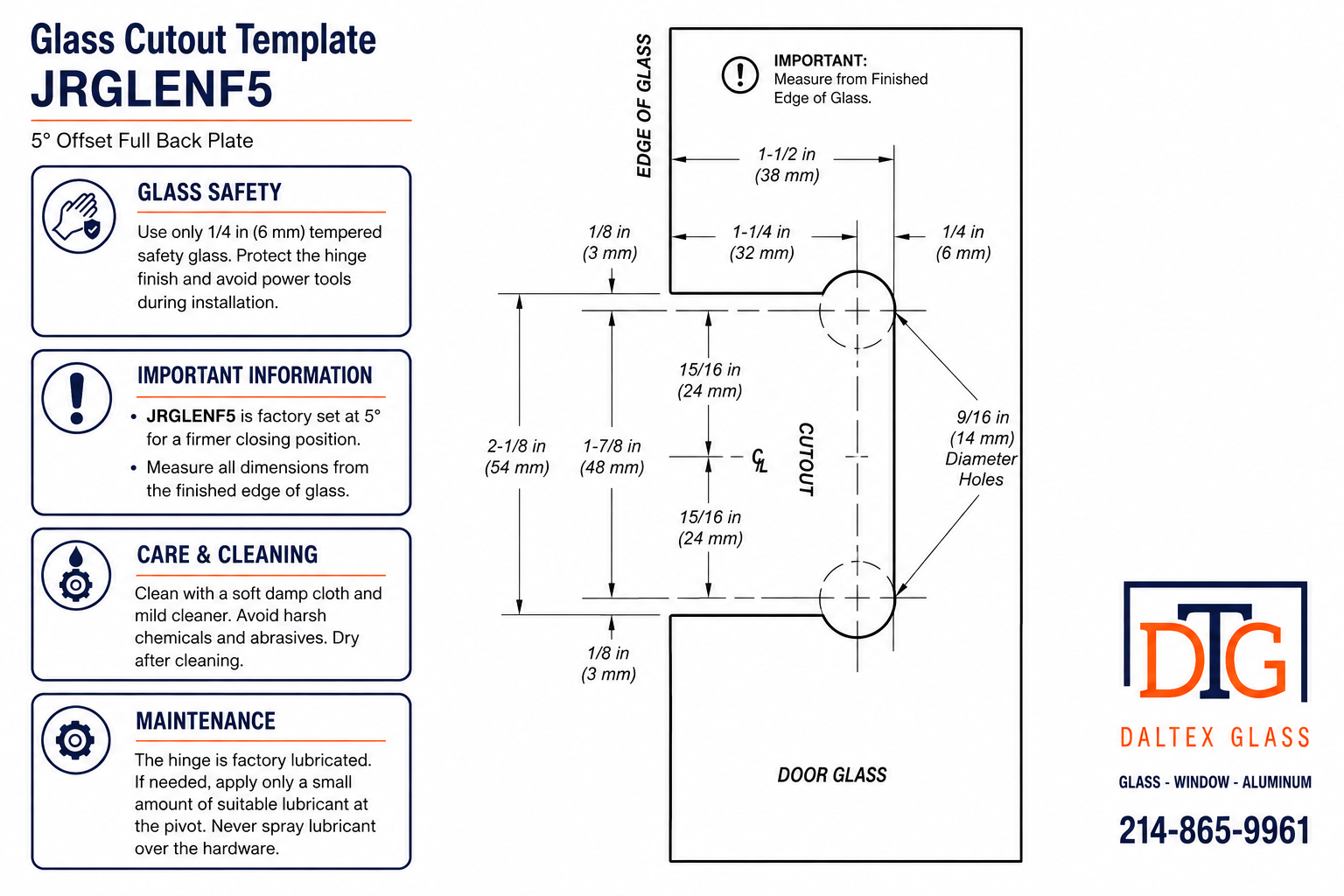

Glass Fabrication	See Template PDF for Glass Cutouts
Glasss Pecifications	Tempered Glass Only
Glass Thickness	1/4″ (6 mm)
Item No	JRGLENF5, JRGLENF50RB, JRGLENF5BN, JRGLENF5CH, JRGLENF5MB
Maximum Door Weight	2 Hinges/55 lb, 3 Hinges/85 lb
Maximum Door Width	32″ (2 Hinges), 36″ (3 Hinges)
Mounting Type	Wall Mounted
Plate Type	Full Back Plate
Product Height	3″
Product Name	DT Junior Glendale Square – 5 Degree Wall Mount Hinge Full Back Plate – Oil Rubbed Bronze, DT Junior Glendale Square 5 Degree Wall Mount Hinge Full Back Plate, DT Junior Glendale Square 5 Degree Wall Mount Hinge Full Back Plate – Brushed Nickel, DT Junior Glendale Square 5 Degree Wall Mount Hinge Full Back Plate – Matte Black, DT Junior Glendale Square 5 Degree Wall Mount Hinge Full Back Plate – Polished Chrome
Product Width	1-13/16″
Profile	Square
Ship Via	Ships UPS
Ships Air	Ships Air
Warnings	Not for use with Laminated Glass
Weight	1

Description
