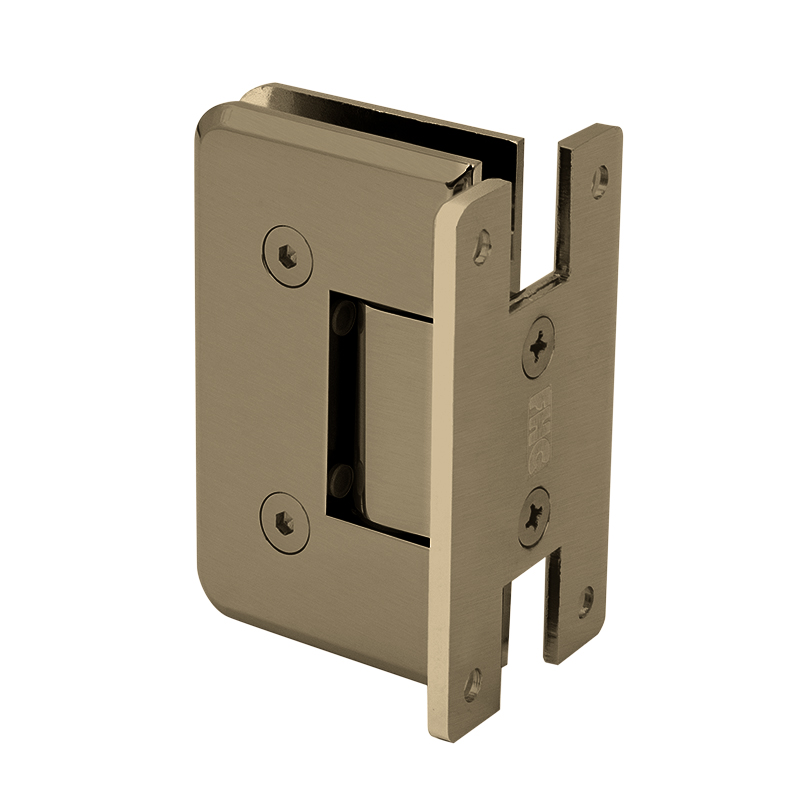

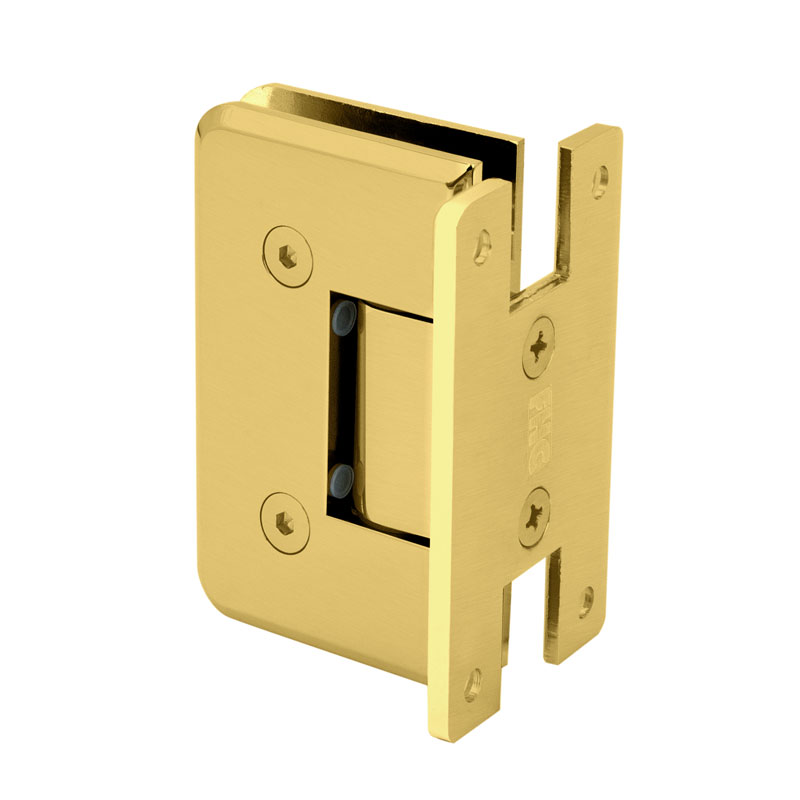

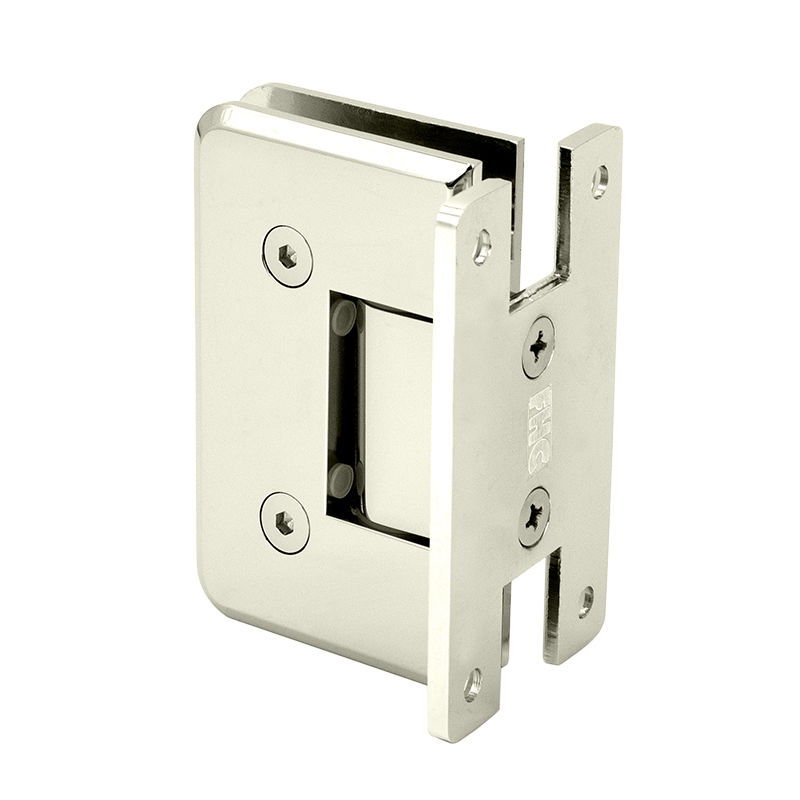

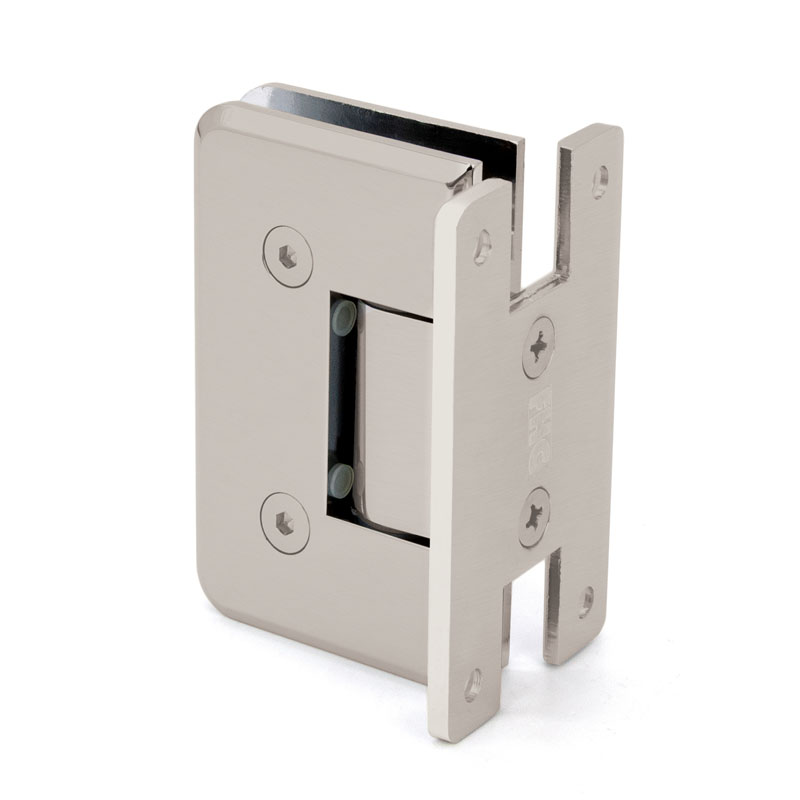

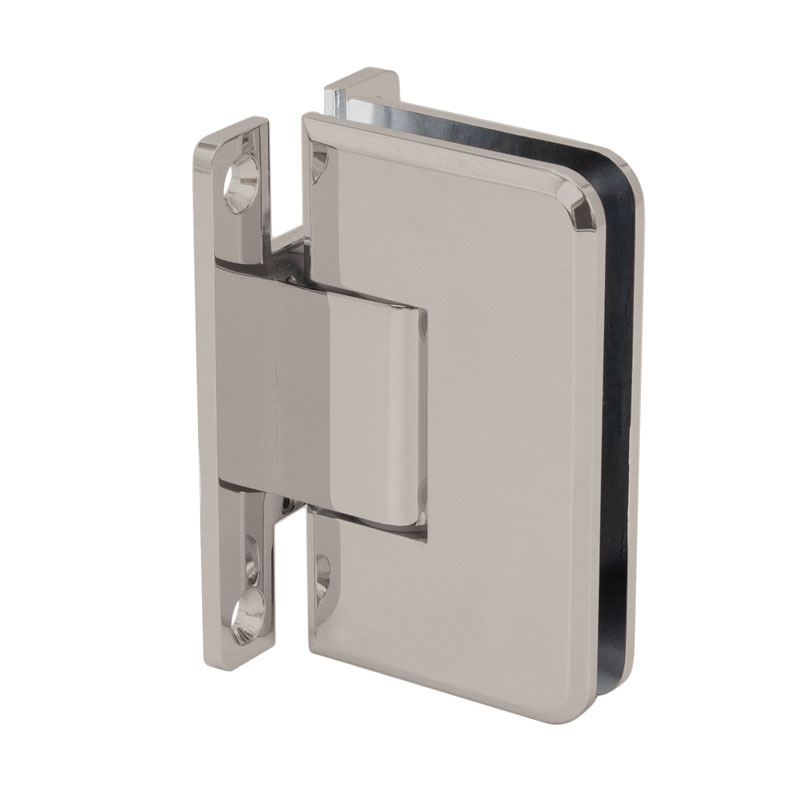

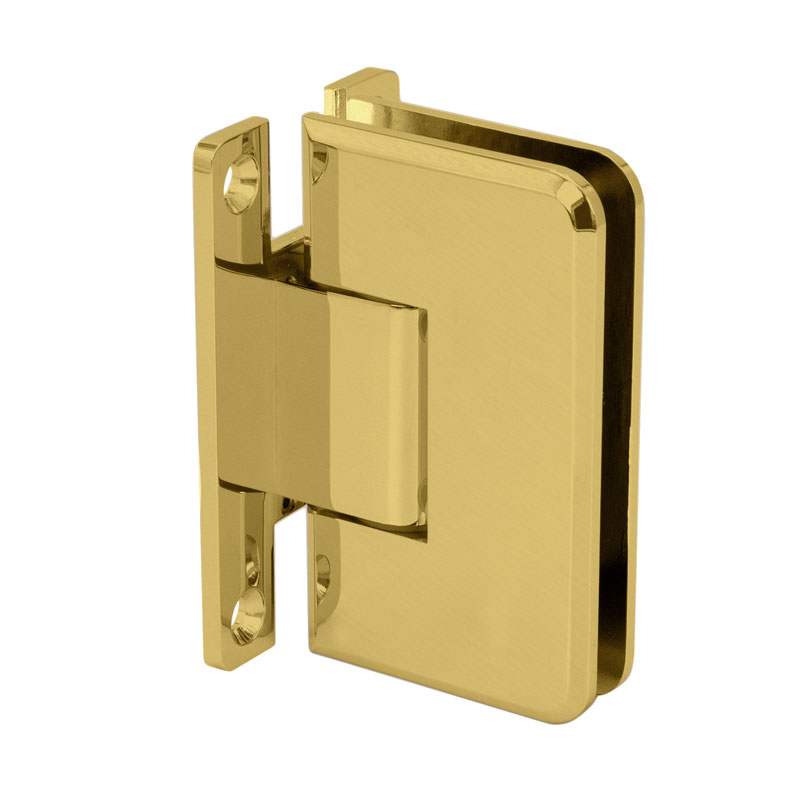

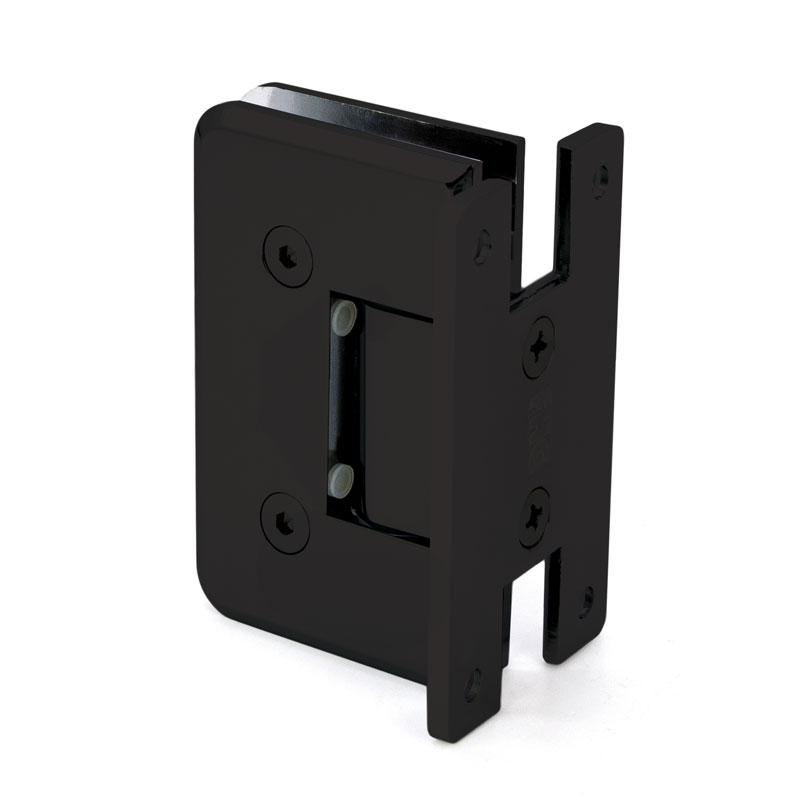

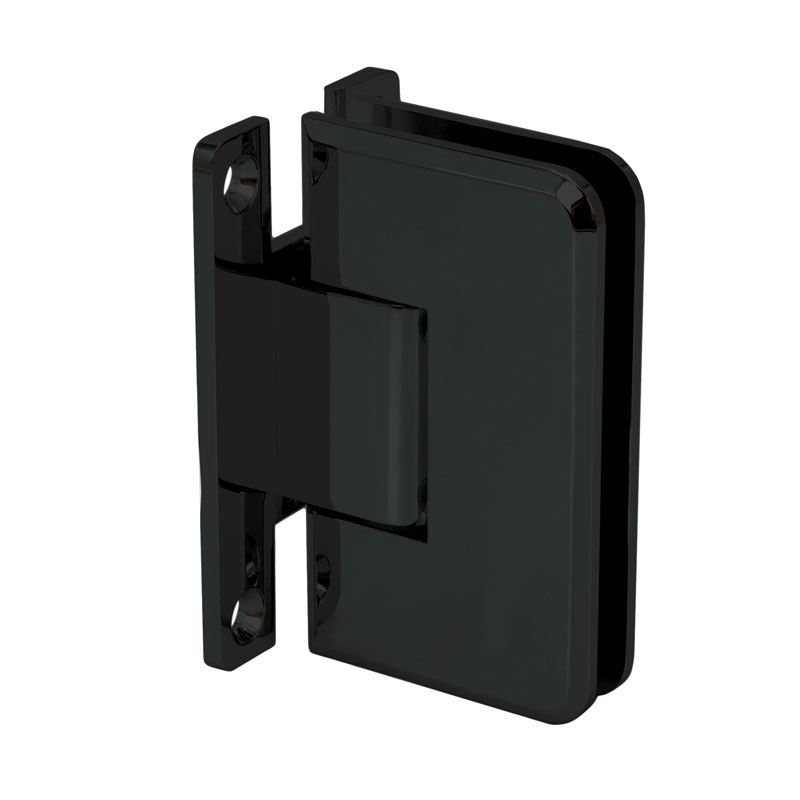

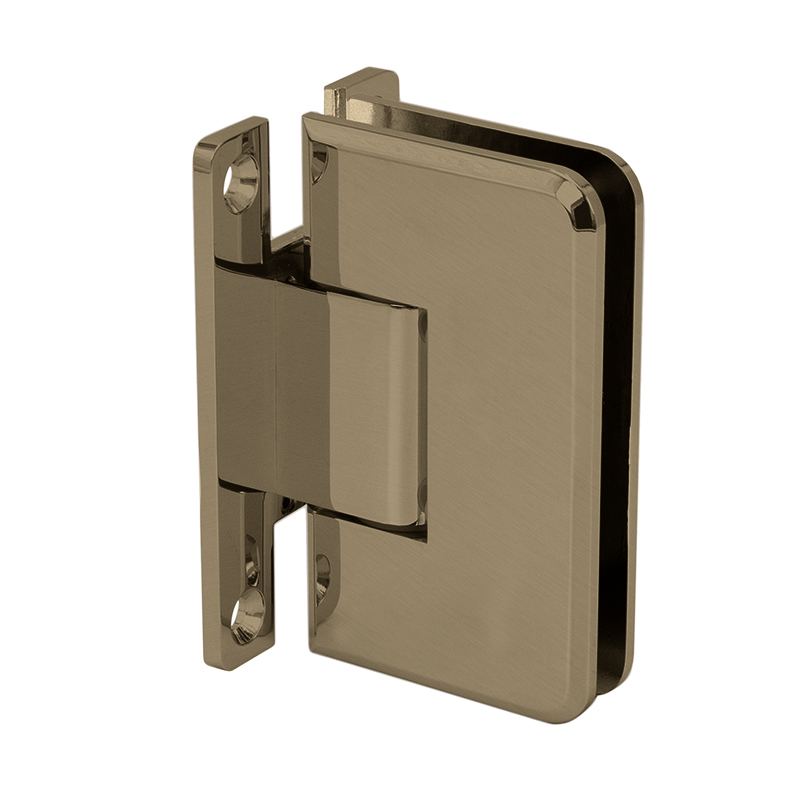

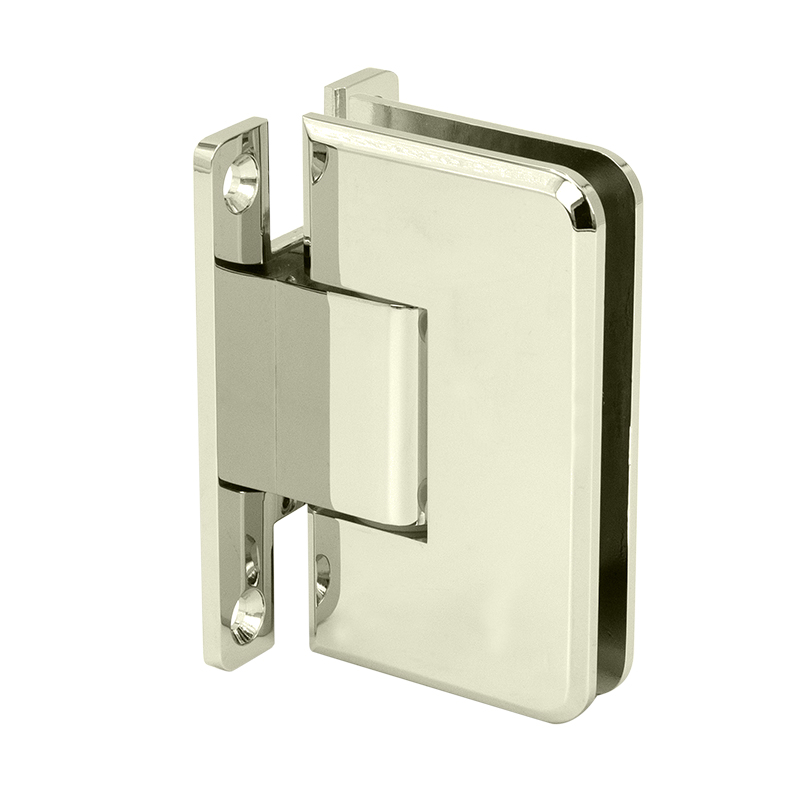

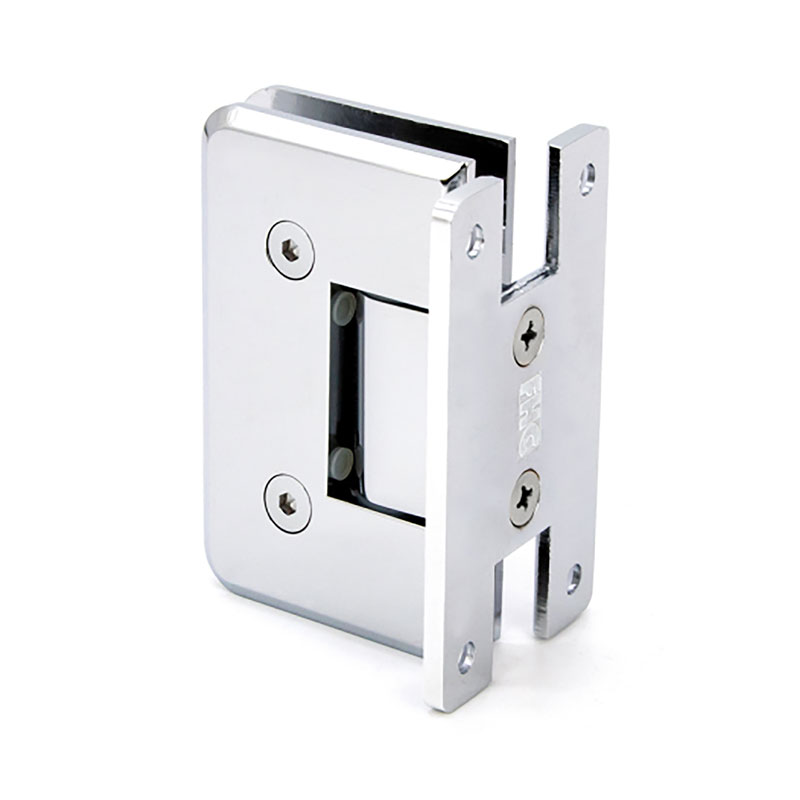

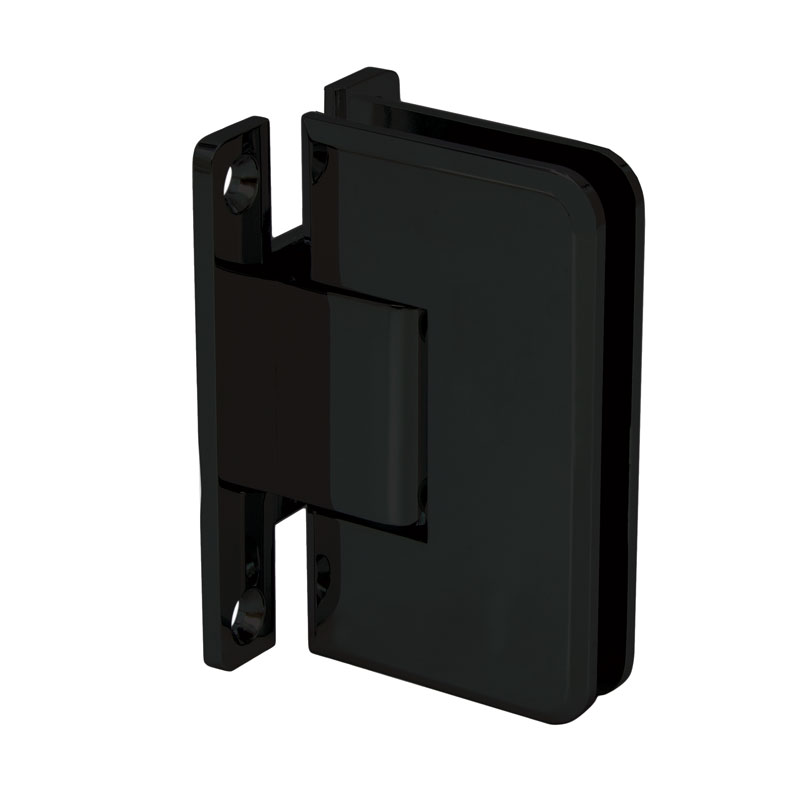

DT Pasadena HD Wall Mount Hinge – H Back Plate

Name: DT Pasadena HD Wall Mount Hinge - H Back Plate
SKU: PASF1

SKU: PASF1

19 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Track or off orders

Additional information

Weight	N/A
Select Your Color/Finish	Brushed Bronze, Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Chrome, Polished Nickel, Satin Brass
Case Quantity	20
Catalog Page	FSH24 p. 33
Compare To	PLY0370RB, PLY037BBRZ, PLY037BN, PLY037CH, PLY037MBL, PLY037PN, PLY037SB
Construction	Solid Brass

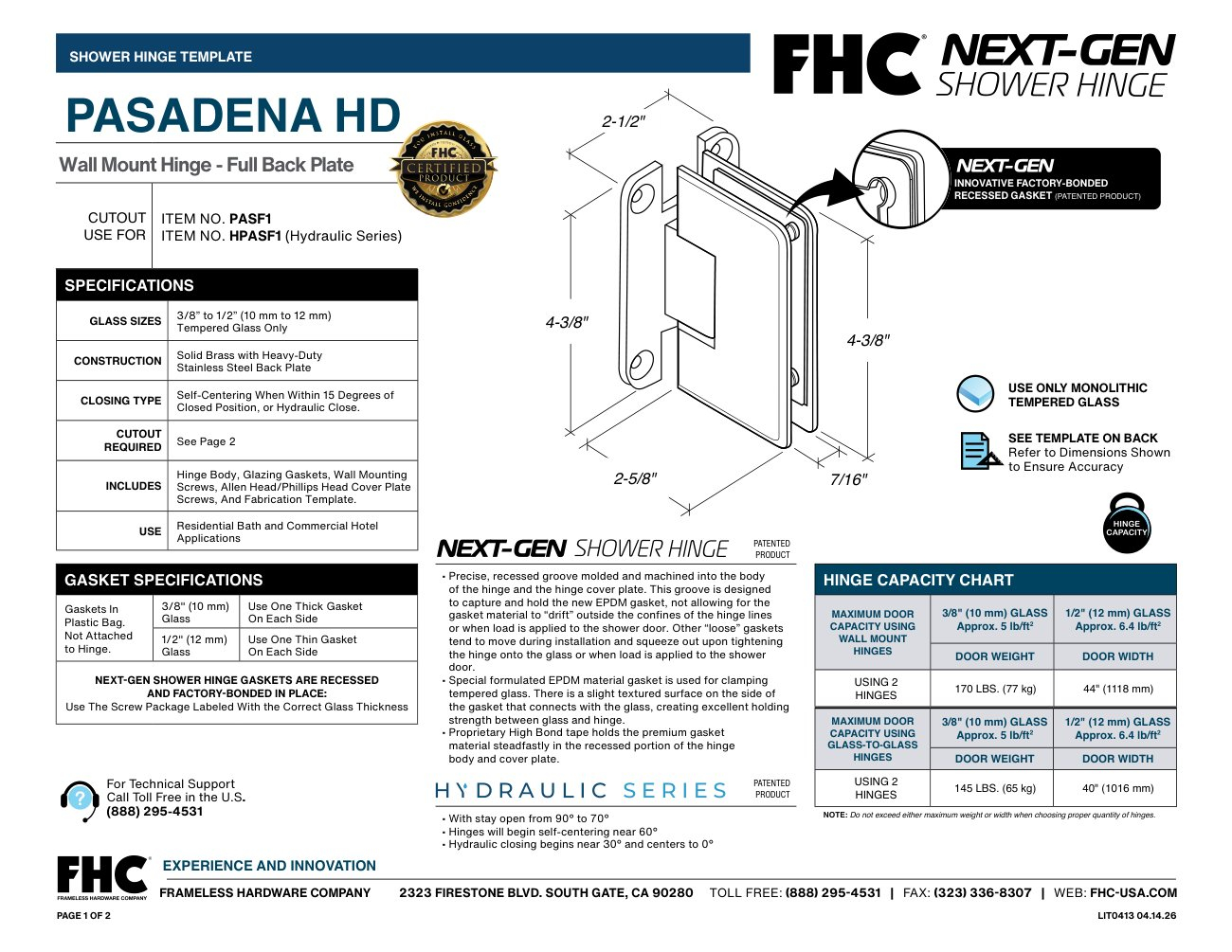

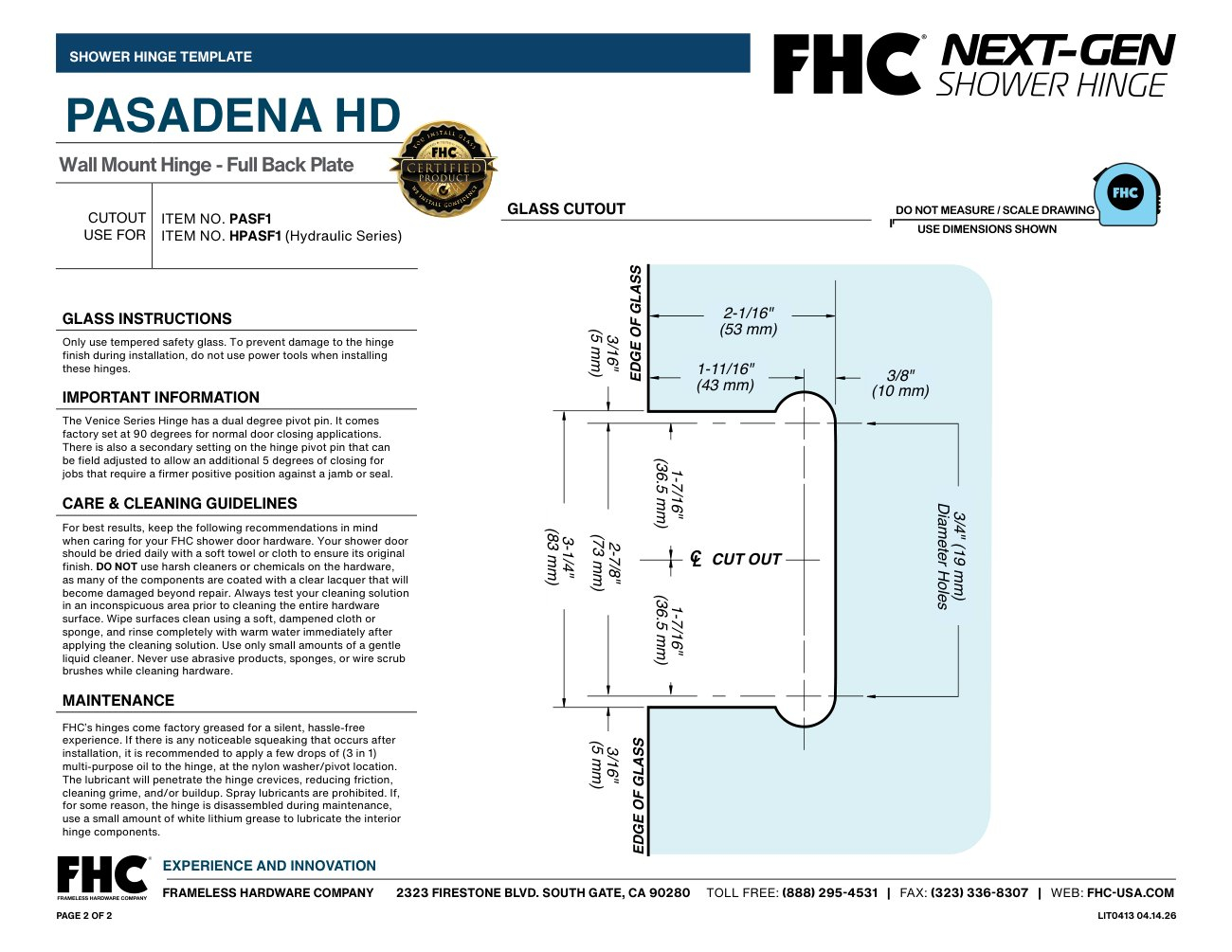

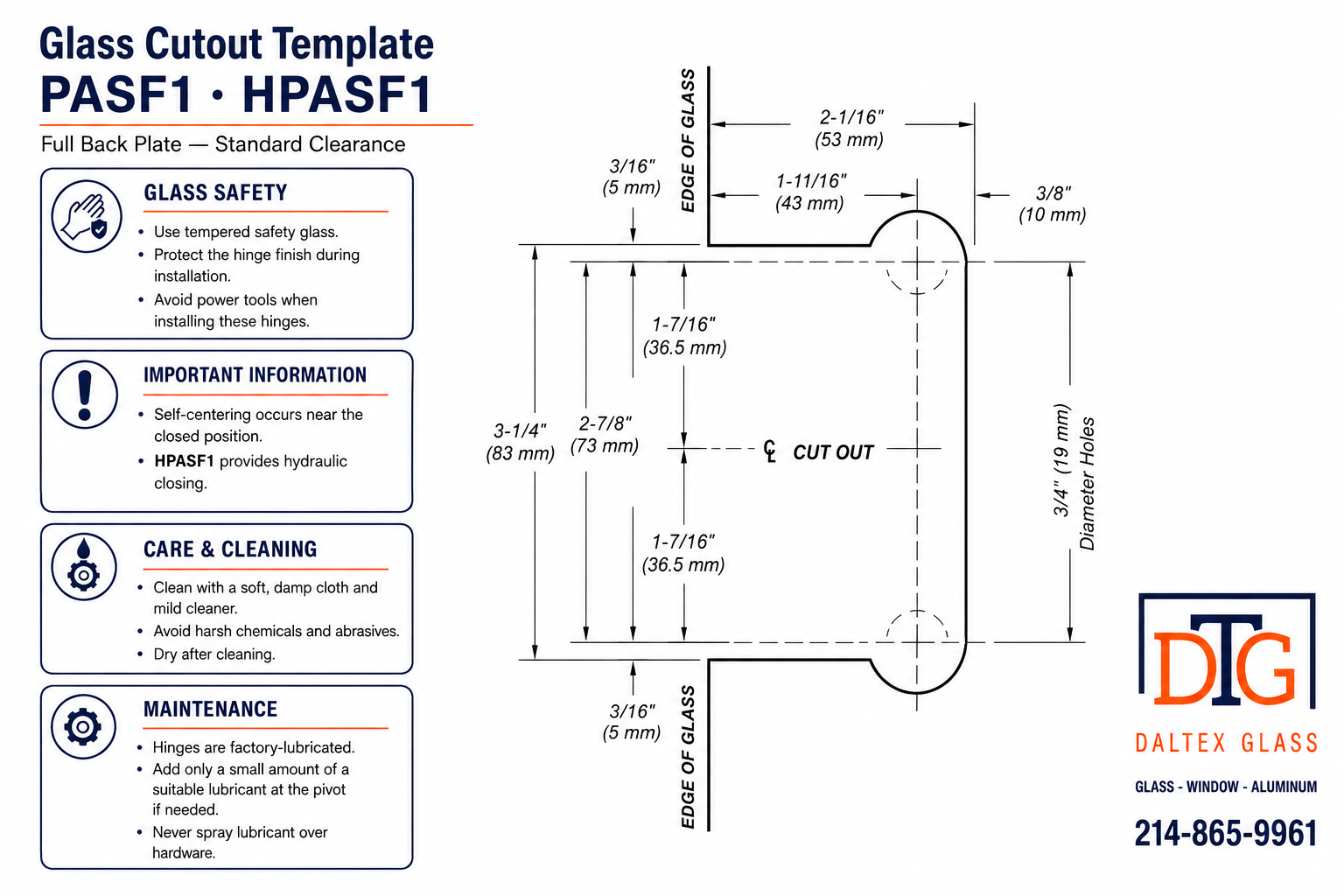

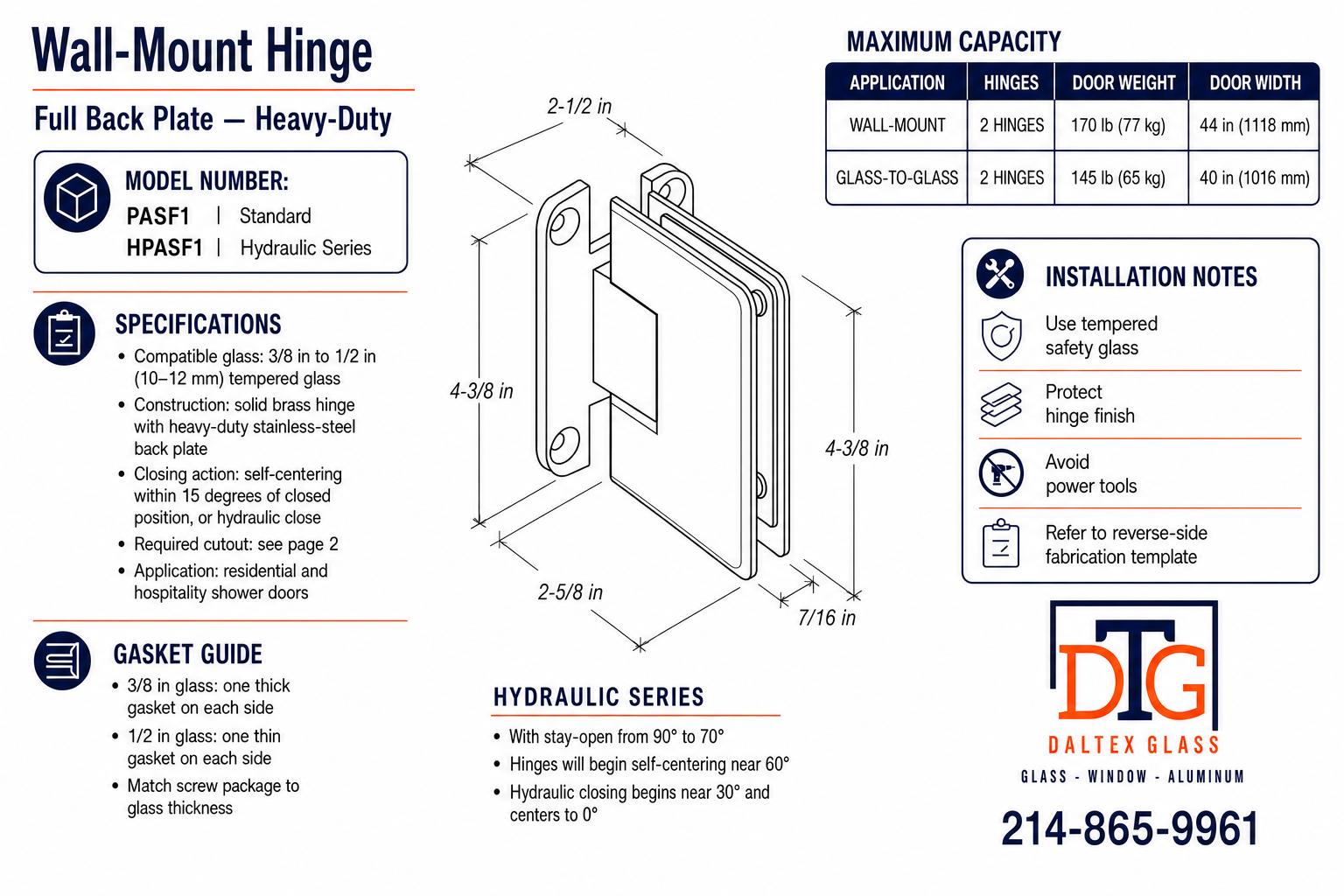

Glass Fabrication	See Template PDF for Glass Cutouts
Glasss Pecifications	Tempered Glass Only
Glass Thickness	3/8″ or 1/2″ (10 or 12 mm)
Item No	PASF1, PASF10RB, PASF1BBRZ, PASF1BN, PASF1CH, PASF1MB, PASF1PN, PASF1SB
Maximum Door Weight	2 Hinges/145 lb
Maximum Door Width	40″ (2 Hinges)
Mounting Type	Wall Mounted
Plate Type	Full Back Plate
Product Height	4-3/8″
Product Name	DT Pasadena HD Wall Mount Hinge – H Back Plate, DT Pasadena HD Wall Mount Hinge – H Back Plate – Brushed Bronze, DT Pasadena HD Wall Mount Hinge – H Back Plate – Brushed Nickel, DT Pasadena HD Wall Mount Hinge – H Back Plate – Matte Black, DT Pasadena HD Wall Mount Hinge – H Back Plate – Oil Rubbed Bronze, DT Pasadena HD Wall Mount Hinge – H Back Plate – Polished Chrome, DT Pasadena HD Wall Mount Hinge – H Back Plate – Polished Nickel, DT Pasadena HD Wall Mount Hinge H Back Plate – Satin Brass
Product Width	2-5/8″
Profile	Beveled
Ship Via	Ships UPS
Ships Air	Ships Air
Warnings	Not for use with Laminated Glass
Weight	2.9

Description

Glass Specifications

MAXIMUM DOOR CAPACITY	3/8″ (10 mm) GLASS Approx. 5 lb./ft²	1/2″ (12 mm) GLASS Approx. 6.4 lb./ft²
MAXIMUM DOOR CAPACITY	DOOR WEIGHT	DOOR WIDTH
Using 2 Hinges	145 LBS (50 kg)	40″ (914 mm)

NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
