DT Patriot Grande L-Wall Mount Pivot Hinge Left or Right for 1/2″ Glass

Heavy-Duty L-Wall Pivot Hinge for 1/2-Inch Glass

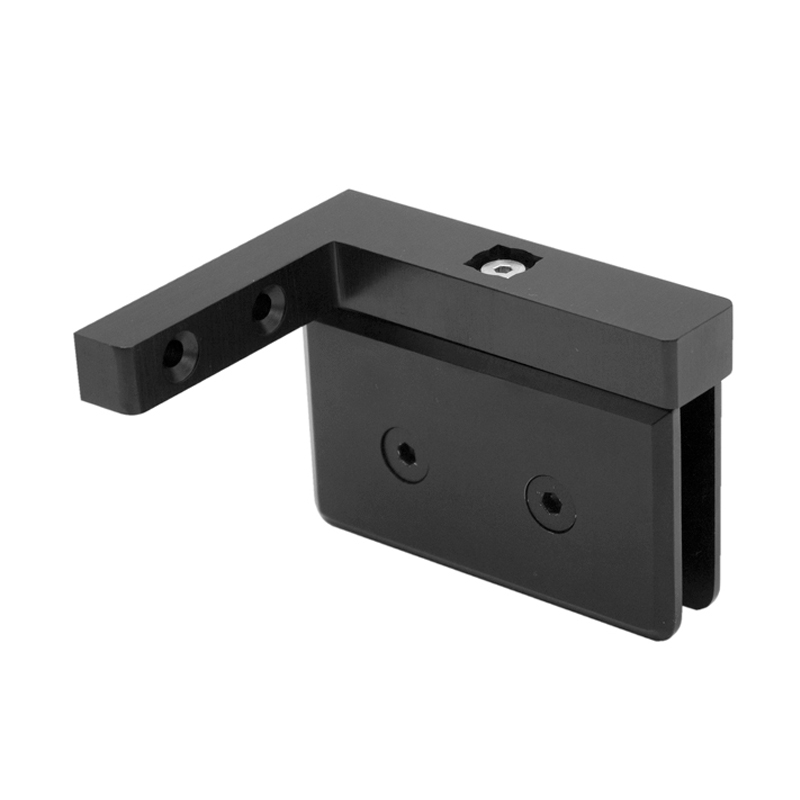

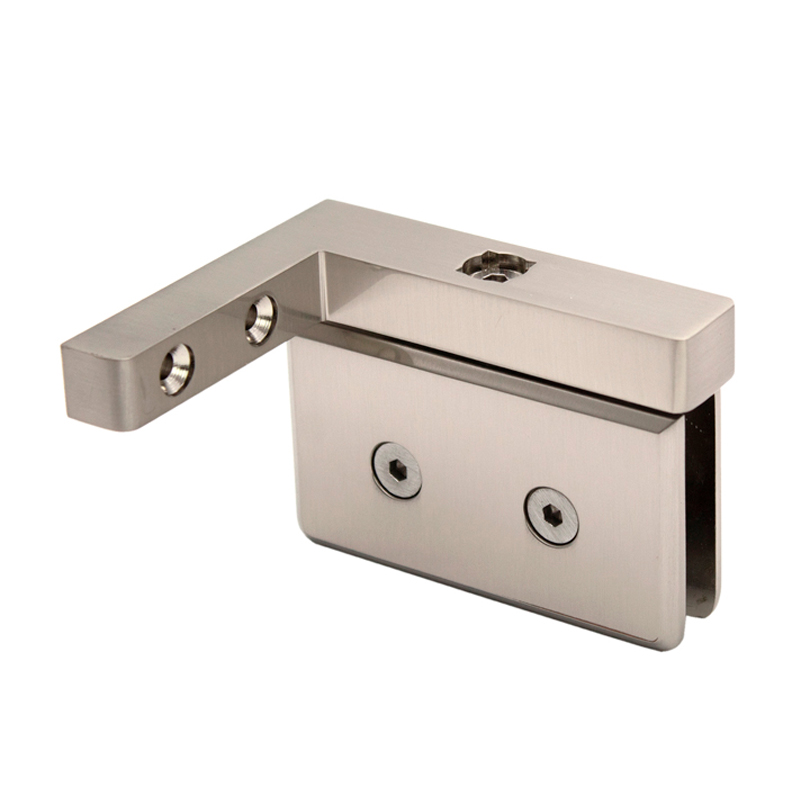

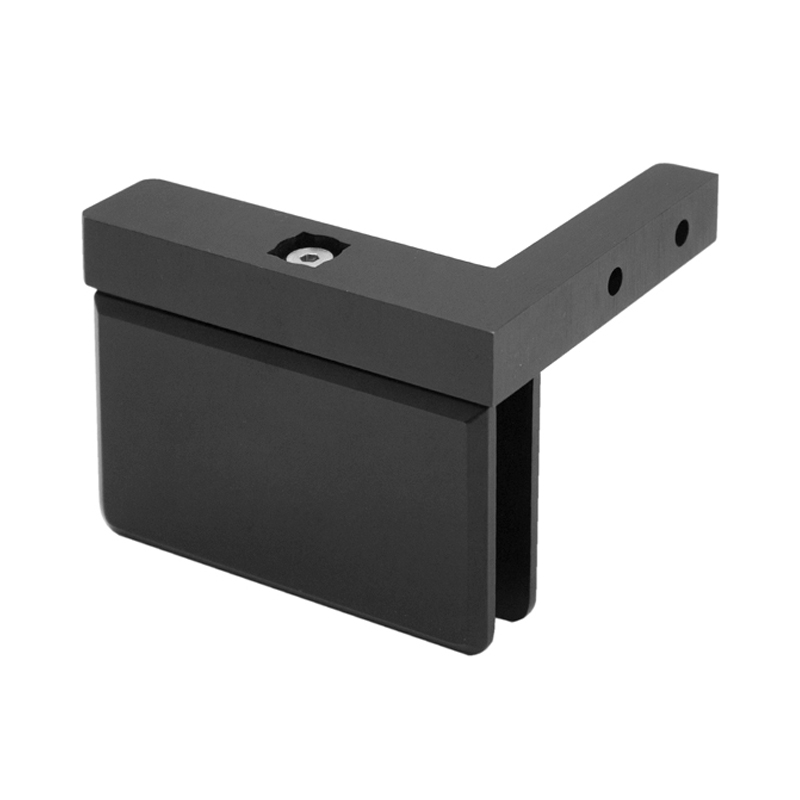

This DT Patriot Grande pivot hinge (item PATGS90SB) mounts a 1/2-inch glass door to a wall with an L-shaped base. The Grande body is built for the weight of thicker 1/2-inch panels, and the design works on a left or right mount.

Use it where a heavier 1/2-inch glass door hangs off a wall rather than another panel. The L-wall base spreads the load into the wall to support the thicker glass.

Key Product Features

• Patriot Grande L-wall pivot hinge
• Built for heavier 1/2-inch glass
• Left or right mount
• L-shaped wall base
• Satin Brass finish
• Item number PATGS90SB

Finish

Satin Brass keeps the Grande hinge in line with matching Patriot handles and clamps.

Ordering and Shipping

Listed on page 42 of the FSH24 catalog. Sign in to see current pricing.
