DT Square 90 Degree Glass Clamp
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| Weight | 2 lbs |
|---|---|
| Select Your Color/Finish | Brushed Bronze, Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Chrome, Polished Nickel, Satin Brass |
| Case Quantity | 50 |
| Catalog Page | FSH24 p. 83 |
| Compare To | SGC90, SGC900RBC900BC5000400RB, SGC90BBRZ, SGC90BNC90BNC500040BRN, SGC90CHC90CC500040BLY, SGC90MBLC90MB, SGC90PNC90PN, SGC90SBC90SB |

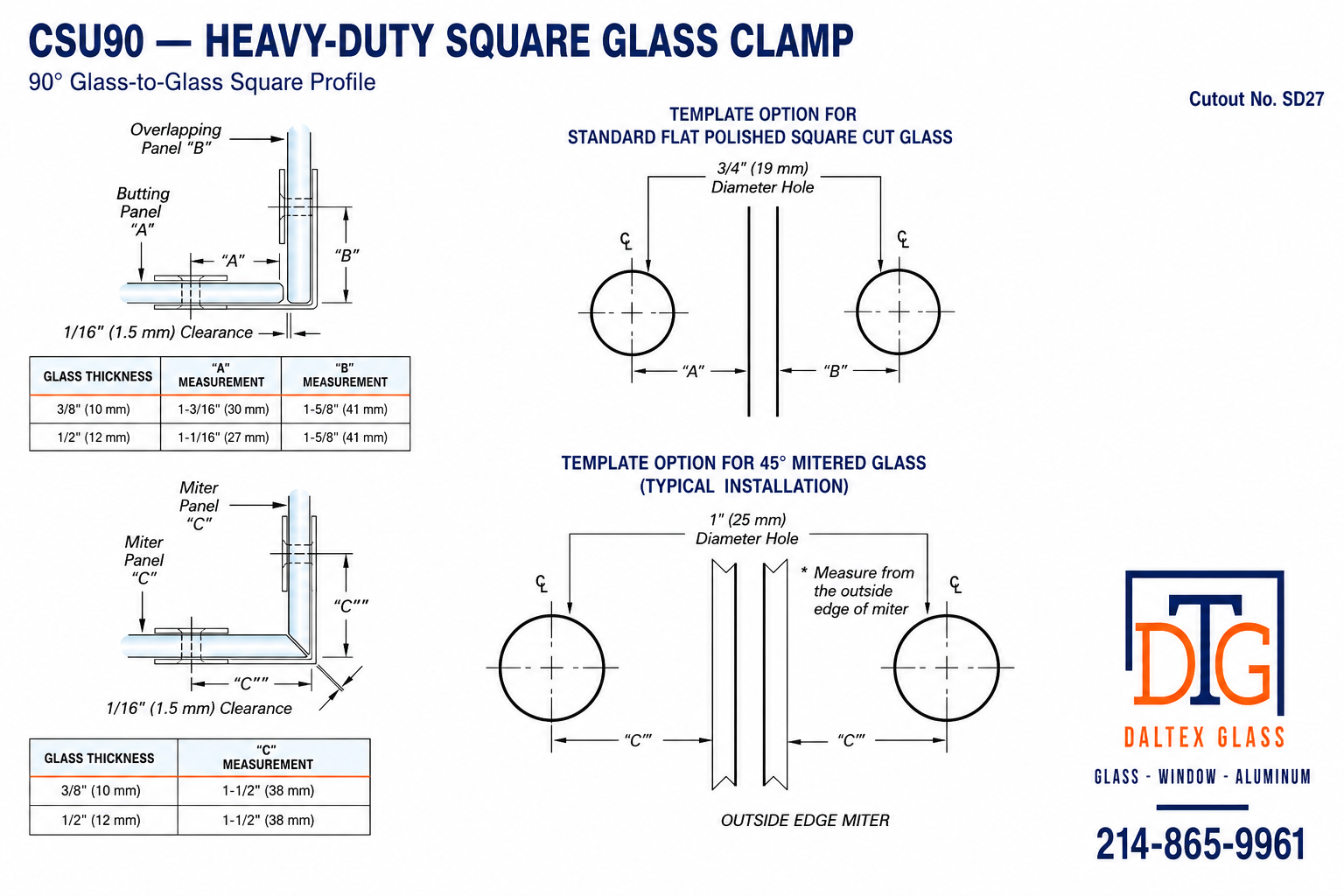

| Glass Fabrication | Use DT Template SD27 For Glass Fab Template |
| Item No | CSU90, CSU900RB, CSU90BBRZ, CSU90BN, CSU90CH, CSU90MB, CSU90PN, CSU90SB |
| Product Height | 2″ |
| Product Name | DT Square 90 Degree Glass Clamp, DT Square 90 Degree Glass Clamp – Brushed Bronze, DT Square 90 Degree Glass Clamp – Brushed Nickel, DT Square 90 Degree Glass Clamp – Matte Black, DT Square 90 Degree Glass Clamp – Oil Rubbed Bronze, DT Square 90 Degree Glass Clamp – Polished Chrome, DT Square 90 Degree Glass Clamp – Polished Nickel, DT Square 90 Degree Glass Clamp – Satin Brass |
| Product Weight | 10 oz |
| Product Width | 2-1/2″ |
| Ship Via | Ships UPS |
| Ships Air | Ships Air |
| Warnings | Not for use with Laminated Glass |
| Weight | 1, 2 |
Description
Description
Glass Instructions
Only use tempered safety glass. To prevent damage to the hinge finish during installation, do not use power tools when installing these hinges.
Overview
DT 90 Degree Glass to Glass Square Profile Clamps are designed for corner fixed glass panel conditions. Allow a 1/16 (1.5mm) clearance between the glass edges per the provided glass fabrication template. Use DT Tru-Clear silicone to provide a water-tight seal after clamp installation.
Care & Cleaning Guidelines
For best results, keep the following recommendations in mind when caring for your DT shower door hardware. Your shower door should be dried daily with a soft towel or cloth to ensure its original finish. Do not use harsh cleaners or chemicals on the hardware, as many of the components are coated with a clear lacquer that will become damaged beyond repair. Always test your cleaning solution in an inconspicuous area prior to cleaning the entire hardware surface. Wipe surfaces clean using a soft, dampened cloth or sponge, and rinse completely with warm water immediately after applying the cleaning solution. Use only small amounts of liquid, gentle, cleaner. Never use abrasive products, sponges, or wire scrub brushes while cleaning hardware.
Material/Construction
High Quality Plated Solid Brass
