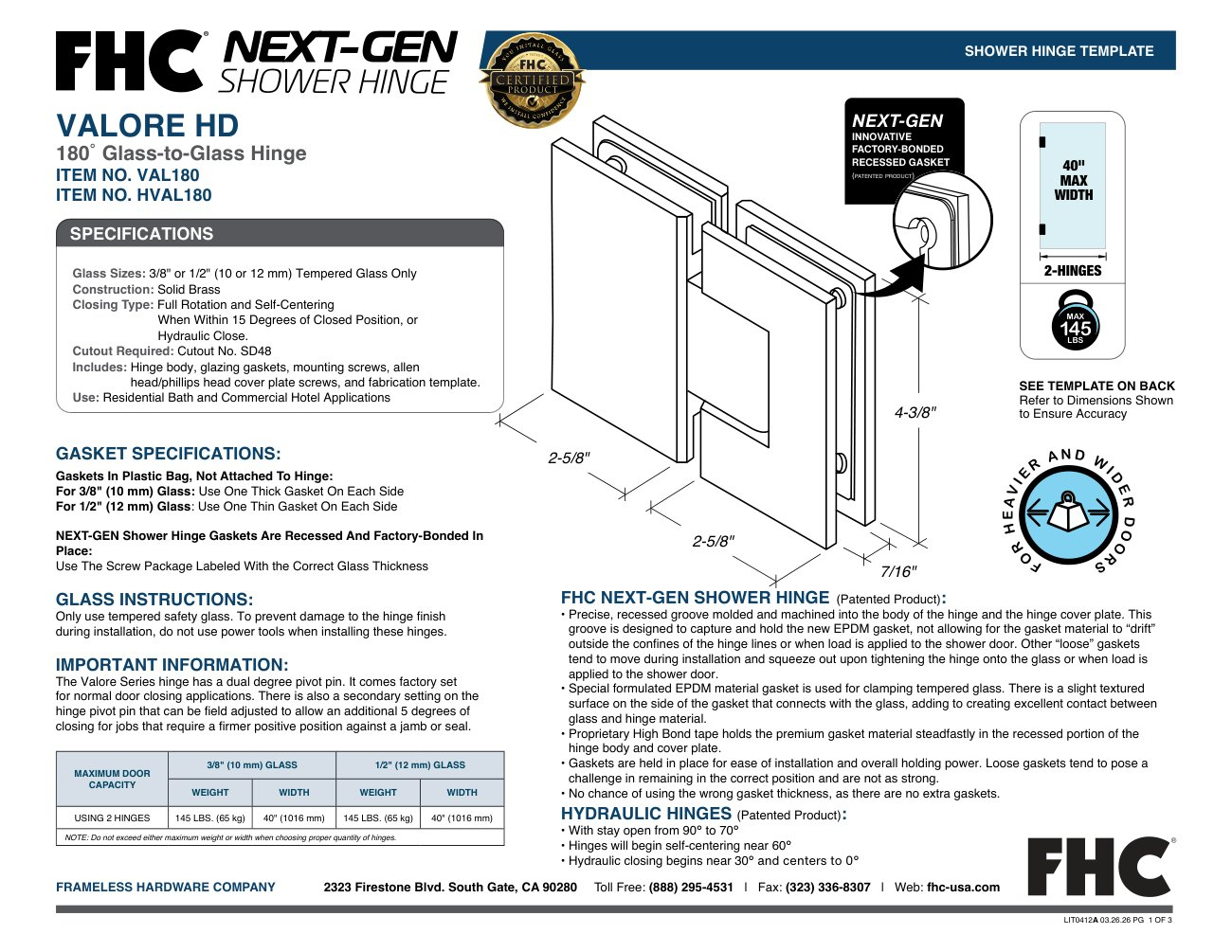

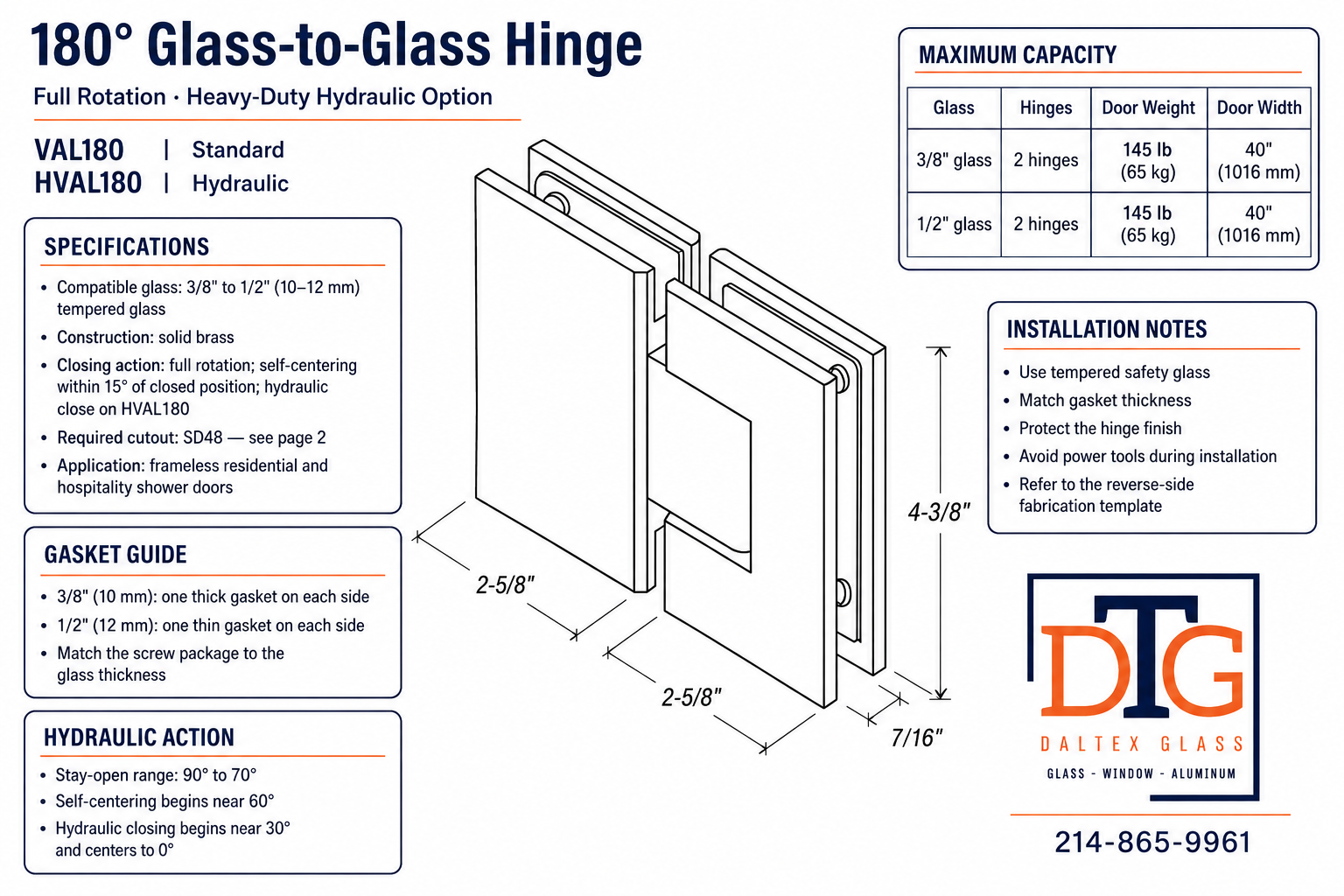

DT Valore HD Square Glass To Glass 180 Degree Hinge

Glass Specifications

NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.

Gasket Specifications

For 3/8″ (10 mm) Glass: Use One Thick Gasket On Each Side. For 1/2″ (12 mm) Glass: Use One Thin Gasket On Each Side

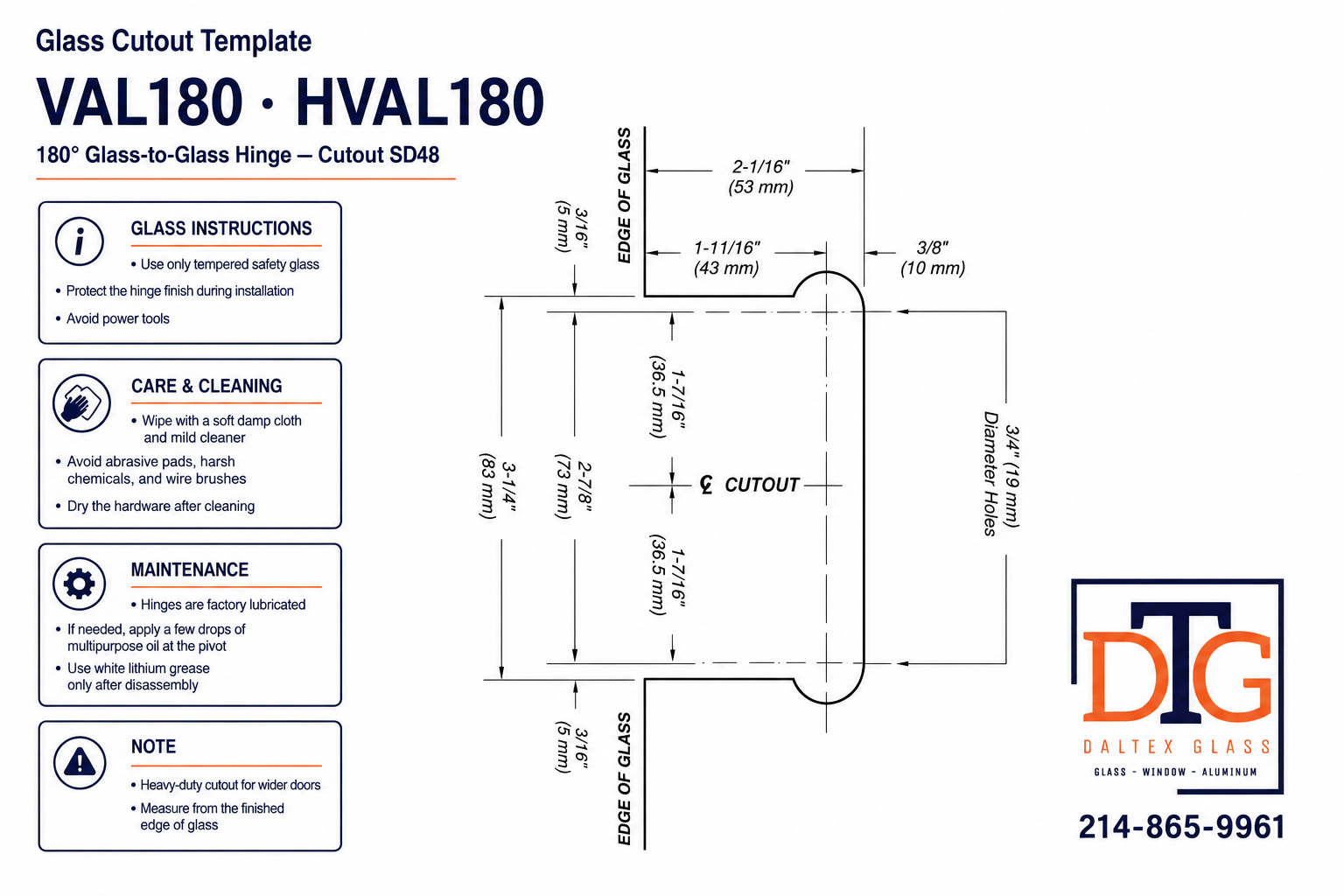

Glass Instructions

Only use tempered safety glass. To prevent damage to the hinge finish
during installation, do not use power tools when installing these hinges.

Overview

The Valore Series hinge has a dual degree pivot pin. It comes factory set
at 90 degrees for normal door closing applications. There is also a secondary
setting on the hinge pivot pin that can be field adjusted to allow an additional
5 degrees of closing for jobs that require a firmer positive position against a
jamb or seal.

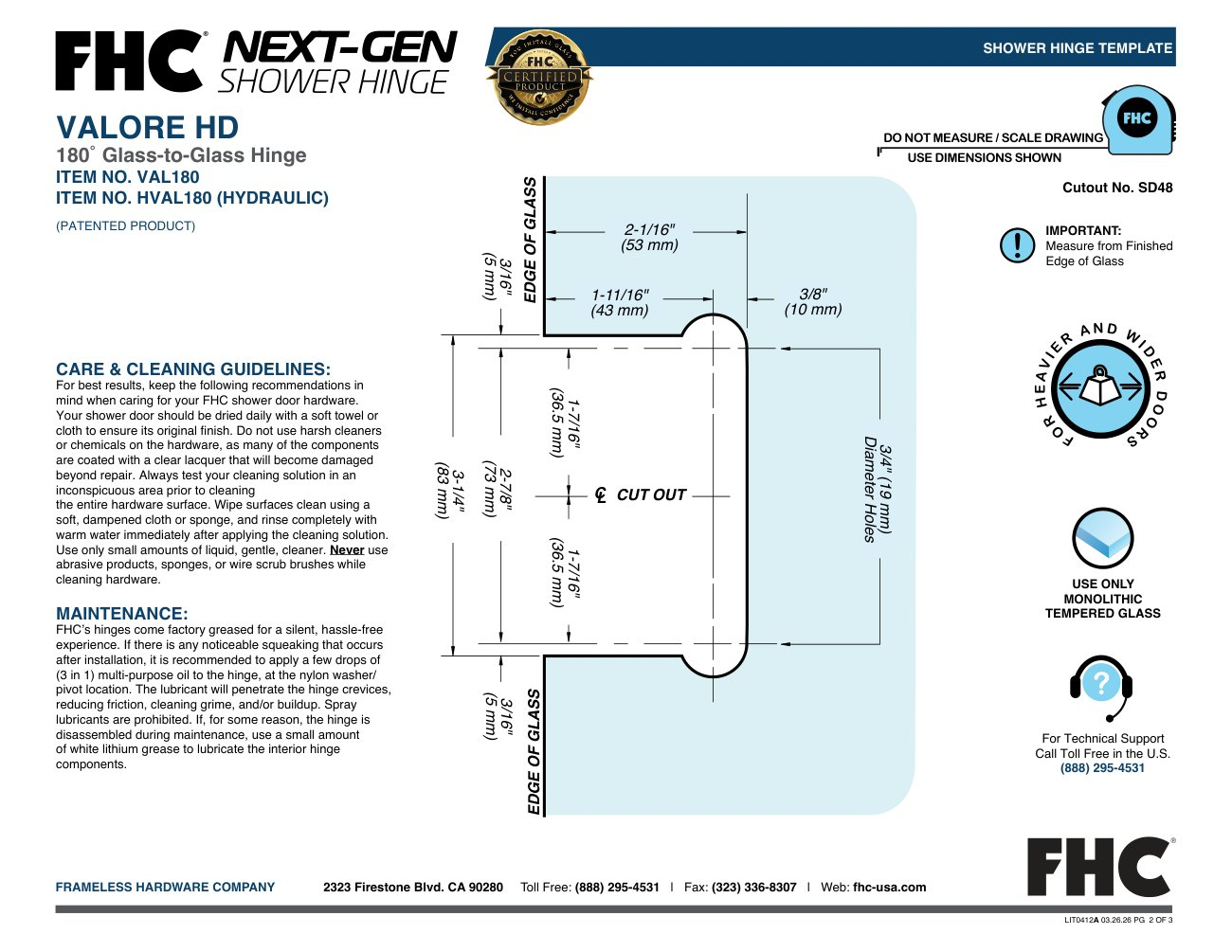

Care and Cleaning Guidelines

For best results, keep the following recommendations in mind when caring for your DT shower door hardware.
Your shower door should be dried daily with a soft towel or cloth to ensure its original finish. Do not use harsh
cleaners or chemicals on the hardware, as many of the components are coated with a clear lacquer that will
become damaged beyond repair. Always test your cleaning solution in an inconspicuous area prior to cleaning
the entire hardware surface. Wipe surfaces clean using a soft, dampened cloth or sponge, and rinse completely
with warm water immediately after applying the cleaning solution. Use only small amounts of liquid, gentle,
cleaner. Never use abrasive products, sponges, or wire scrub brushes while cleaning hardware.

Maintenance

DT™s hinges come factory greased for a silent, hassle-free experience.
If there is any noticeable squeaking that occurs after installation it is recommended
to apply a few drops of (3 in 1) multi-purpose oil to the hinge, at the nylon washer/pivot
location. The lubricant will penetrate the hinge crevices, reducing friction, cleaning
grime, and/or buildup. Spray lubricants are prohibited. If, for some reason, the hinge
is disassembled during maintenance, use a small amount of white lithium grease
to lubricate the interior hinge components.
