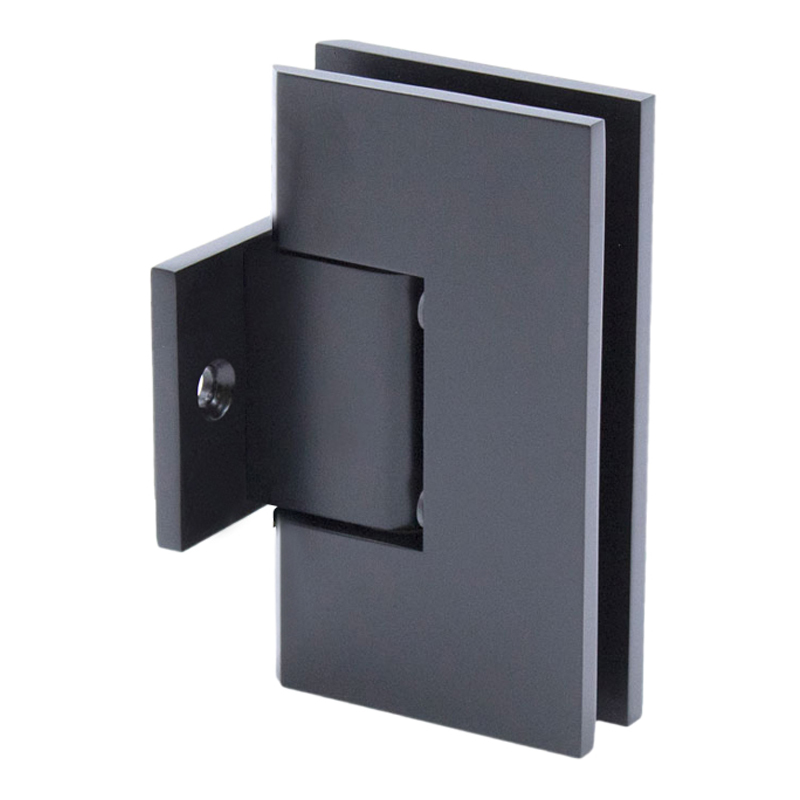

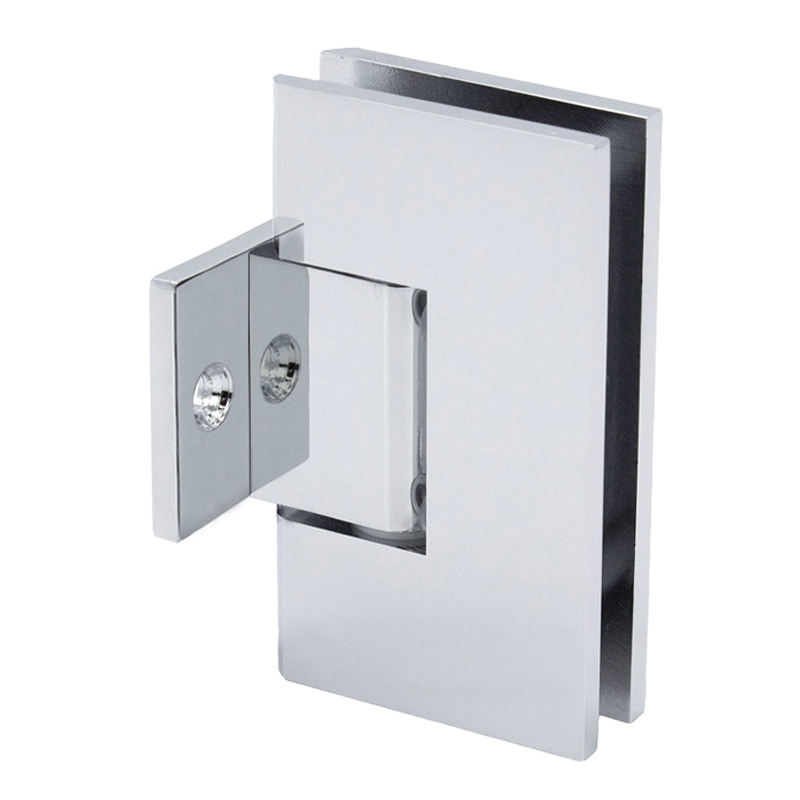

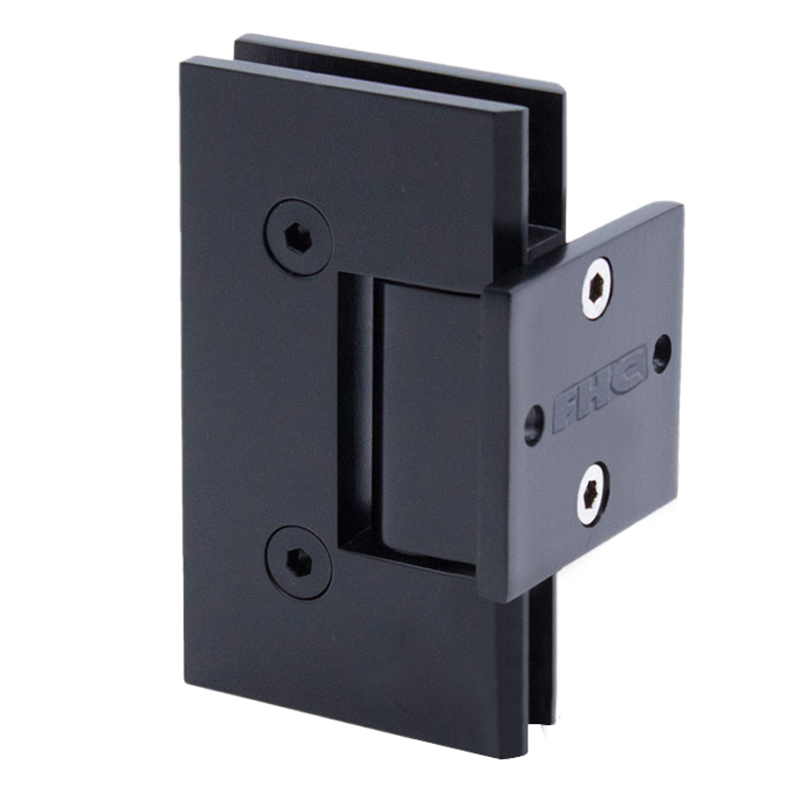

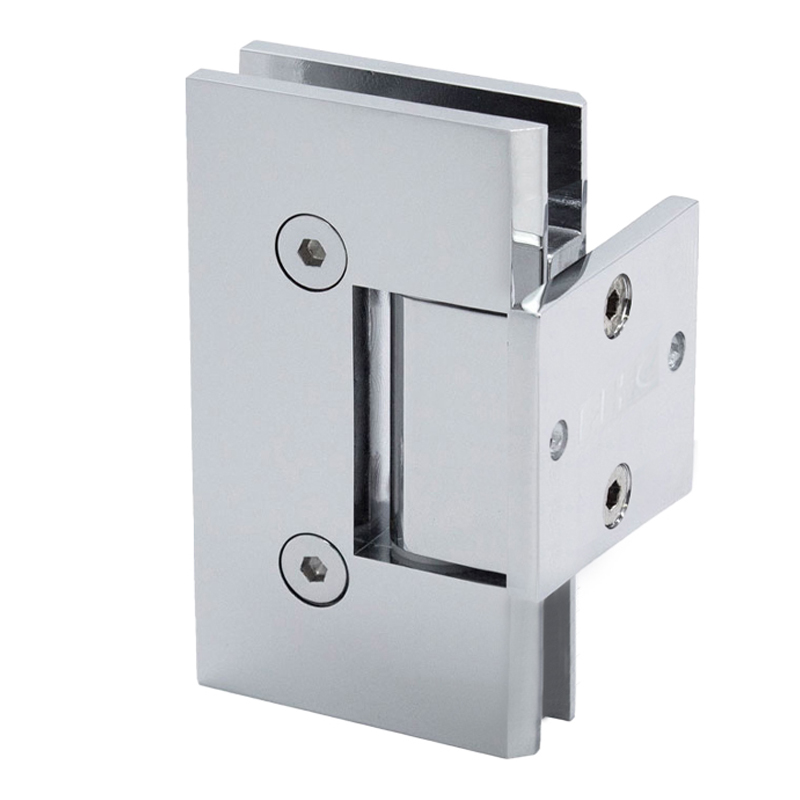

DT Venice Pony Wall Mount Hinge for 3/8″ or 1/2″ Glass
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders

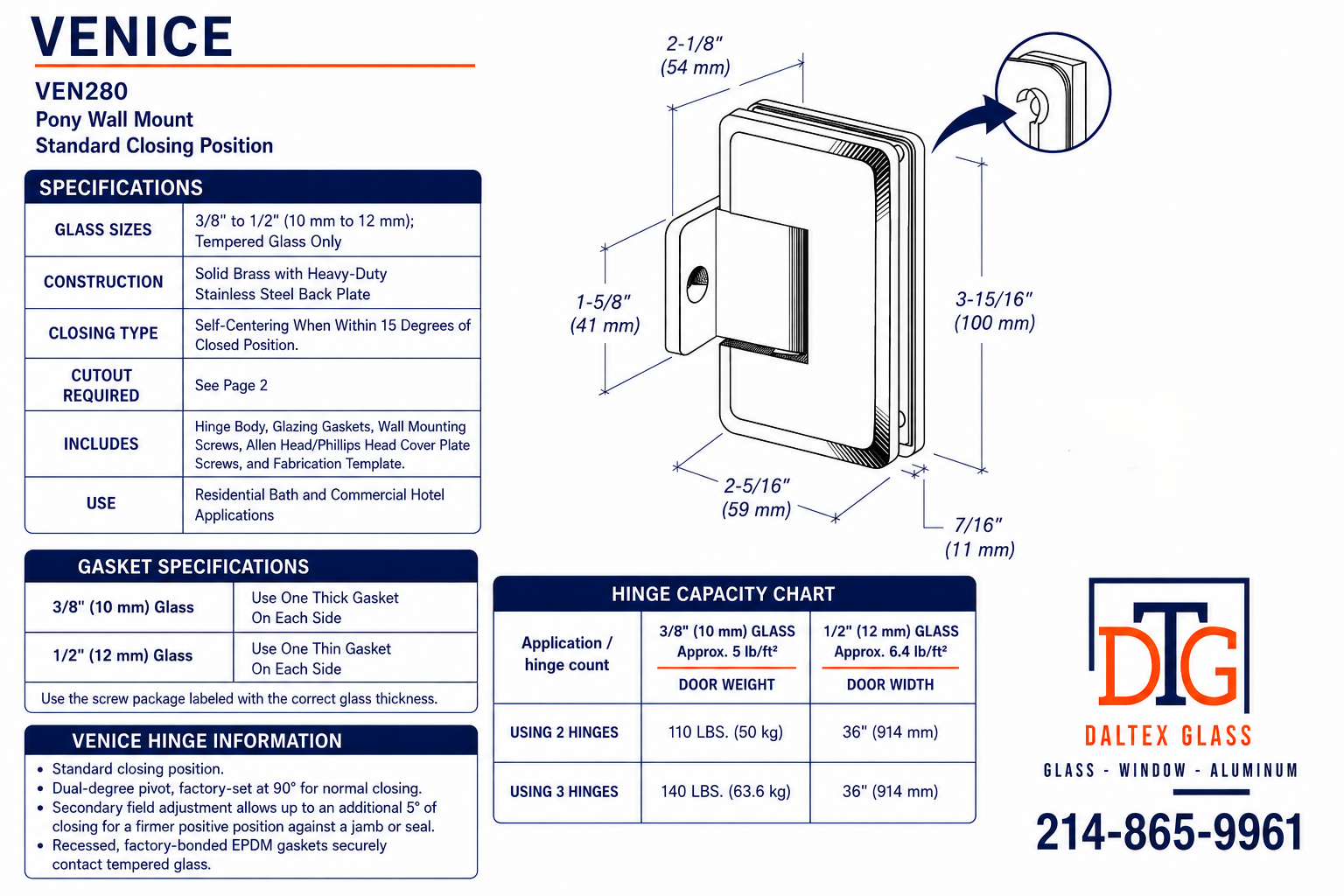

| Weight | N/A |
|---|---|
| Select Your Color/Finish | Brushed Nickel, Matte Black, Polished Chrome, Satin Brass |
| Case Quantity | 20 |
| Catalog Page | FSH24 p. 24 |
| Construction | Solid Brass with Stainless Steel Plate |

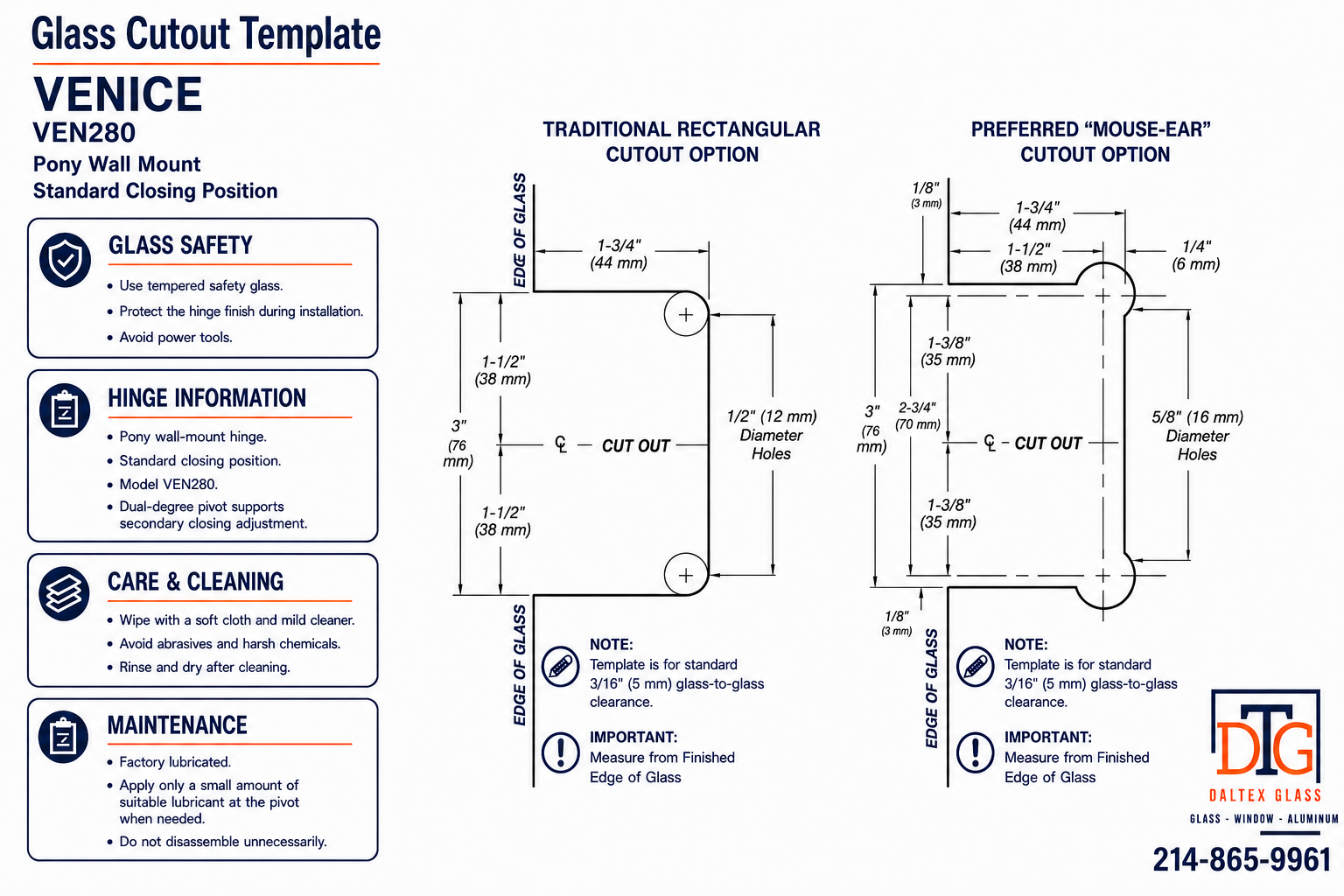

| Glass Fabrication | See Template PDF for Glass Cutouts |
| Glasss Pecifications | Tempered Glass Only |
| Glass Thickness | 3/8″ to 1/2″ (10 to 12 mm) |
| Item No | VEN280, VEN280BN, VEN280CH, VEN280MB, VEN280SB |
| Maximum Door Weight | 2 Hinges/110 lb, 3 Hinges/140 lb |
| Maximum Door Width | 36″ (2 or 3 Hinges) |
| Mounting Type | Wall Mounted |
| Plate Type | Short Back Plate |
| Product Height | 3-15/16″ |
| Product Name | DT Venice Pony Wall Mount Hinge for 3/8″ or 1/2″ Glass, DT Venice Pony Wall Mount Hinge for 3/8″ or 1/2″ Glass – Brushed Nickel, DT Venice Pony Wall Mount Hinge for 3/8″ or 1/2″ Glass – Matte Black, DT Venice Pony Wall Mount Hinge for 3/8″ or 1/2″ Glass – Polished Chrome, DT Venice Pony Wall Mount Hinge for 3/8″ or 1/2″ Glass – Satin Brass |
| Product Width | 2-5/16″ |
| Profile | Square |
| Ship Via | Ships UPS |
| Ships Air | Ships Air |
| Warnings | Not for use with Laminated Glass |
| Weight | 1.8 |
Description
Venice Pony Wall Hinge for Half-Wall Layouts
The DT Venice Pony Wall Mount Hinge joins a swinging glass shower door to a pony wall or fixed glass panel. It is a Venice series hinge in satin brass, sized for 3/8-inch or 1/2-inch glass (10 to 12 mm). The item number is VEN280SB.
A pony wall hinge is the part to use when a shower runs along a low half wall and the door has to pivot off the glass rather than a full wall. It keeps the door tied into the fixed panel for a continuous run.
Key Product Features
- Venice series pony wall hinge
- Connects the door to a pony wall or fixed panel
- Fits 3/8-inch or 1/2-inch glass (10 to 12 mm)
- Satin brass finish
- Item number VEN280SB
Finish
Satin brass gives a warm, matte gold tone that resists fingerprints and coordinates with matching fixtures.
Ordering and Shipping
Listed on FSH24 catalog page 24. Ships by UPS. Sign in to see current pricing.
