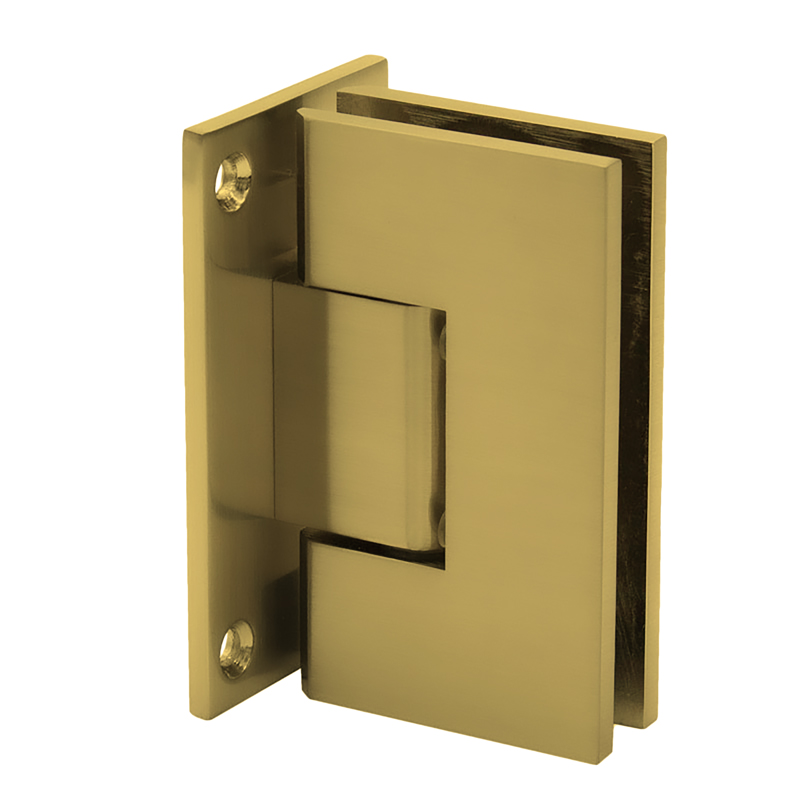

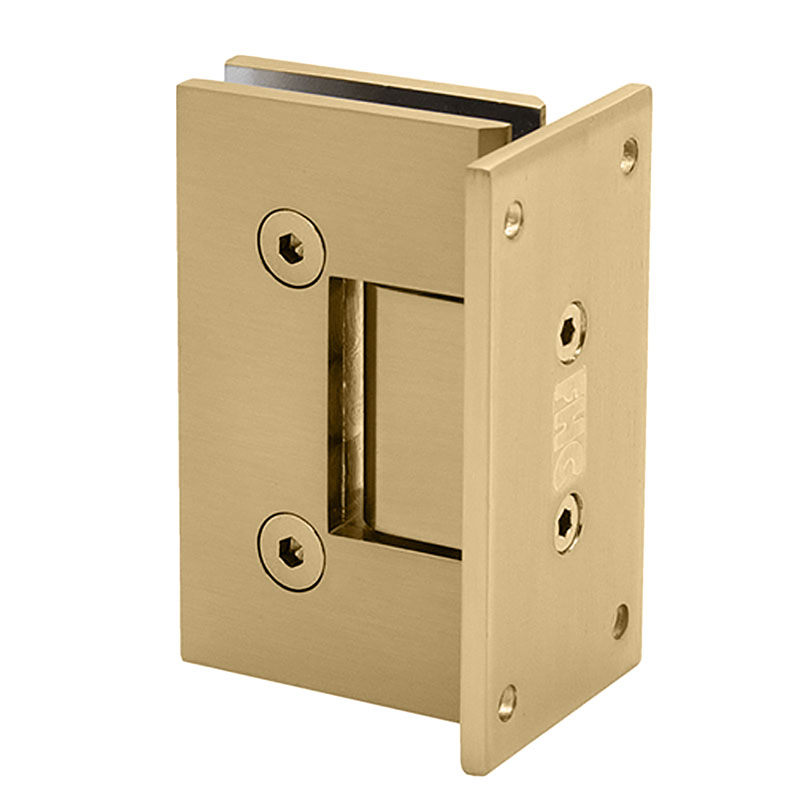

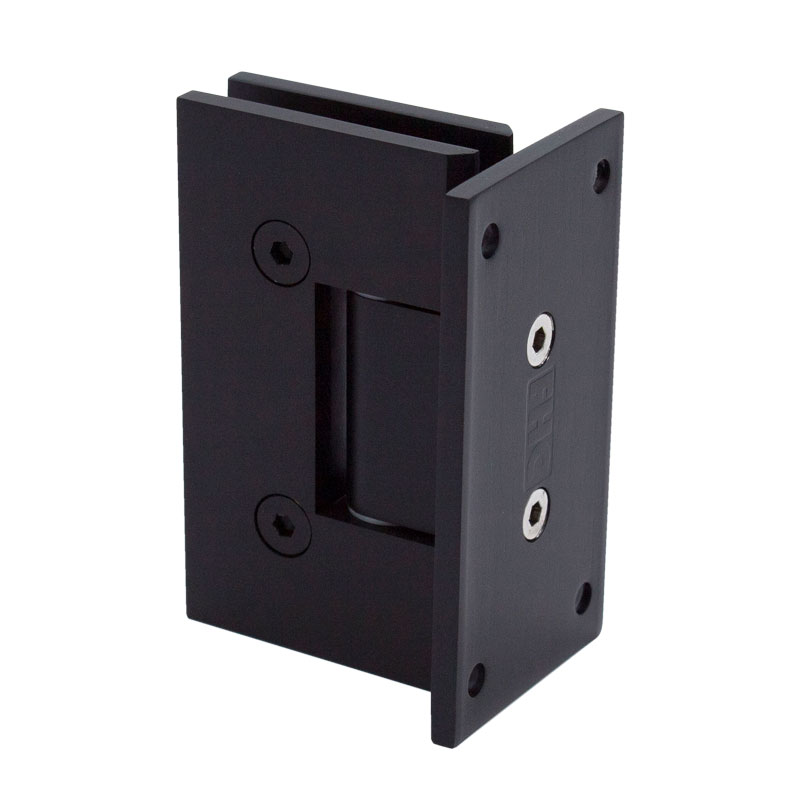

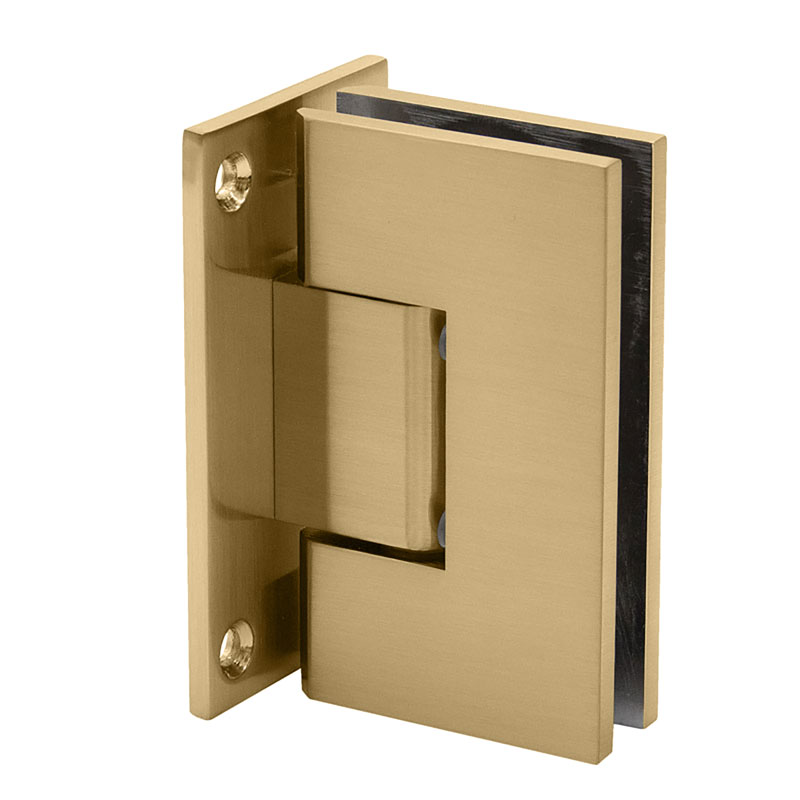

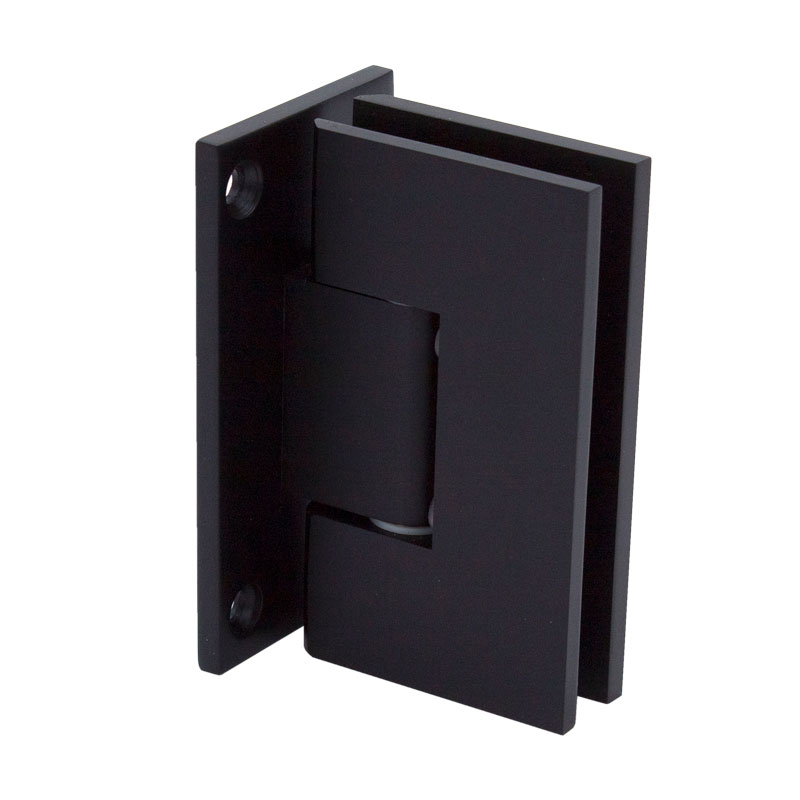

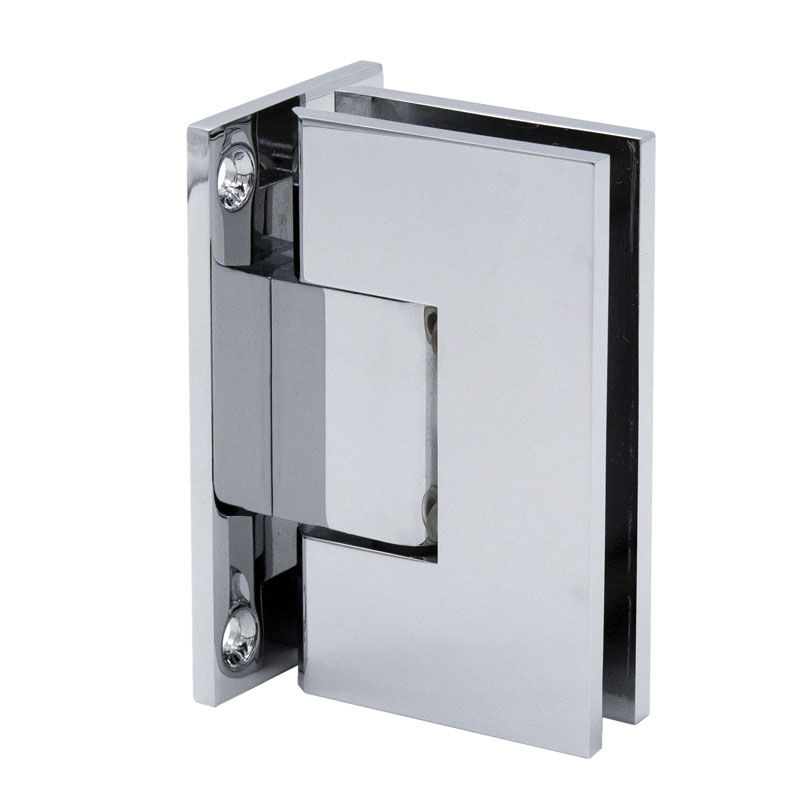

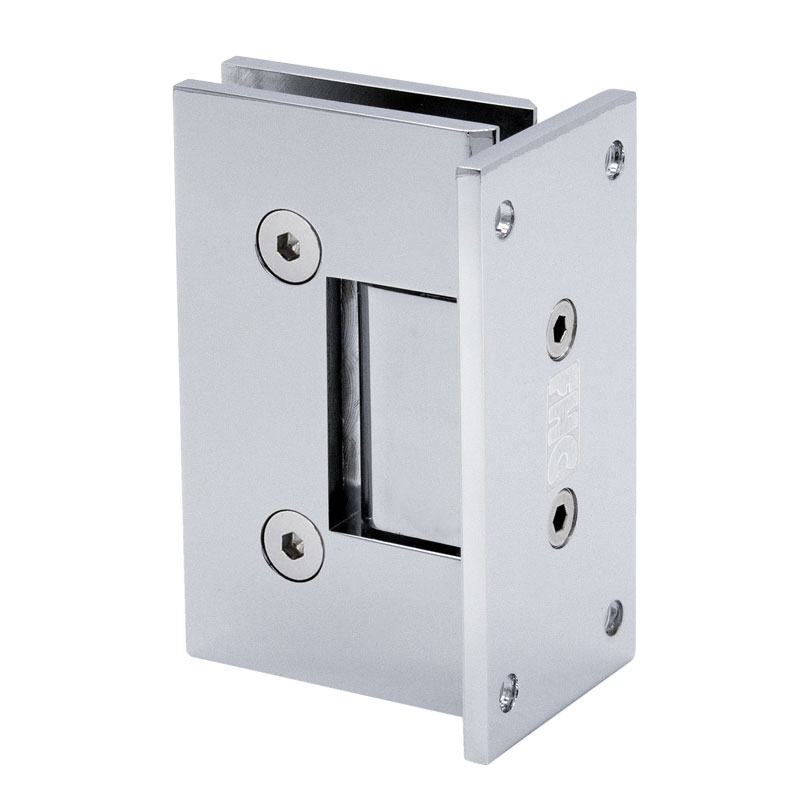

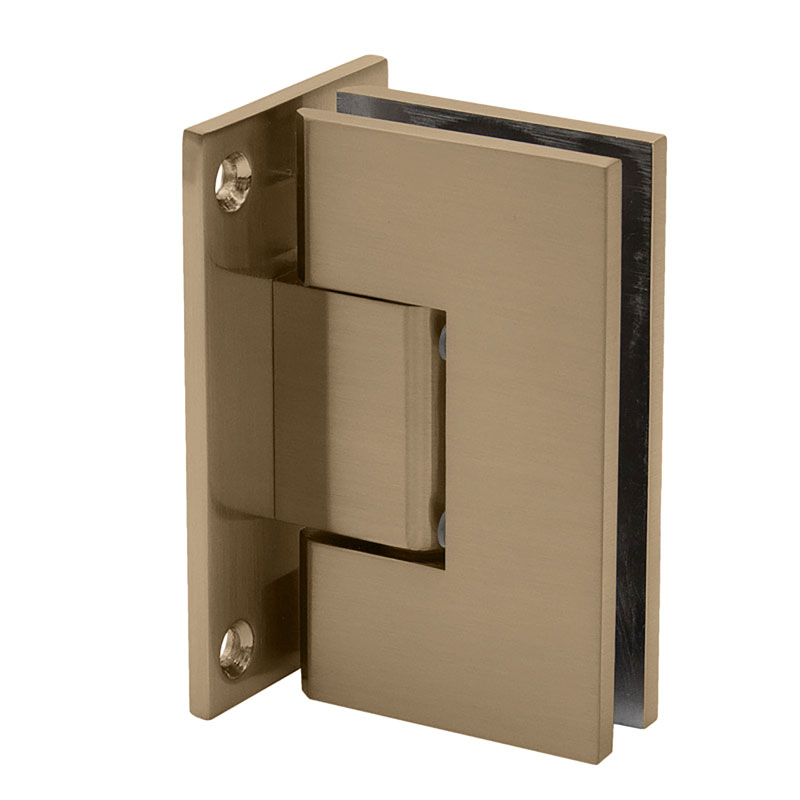

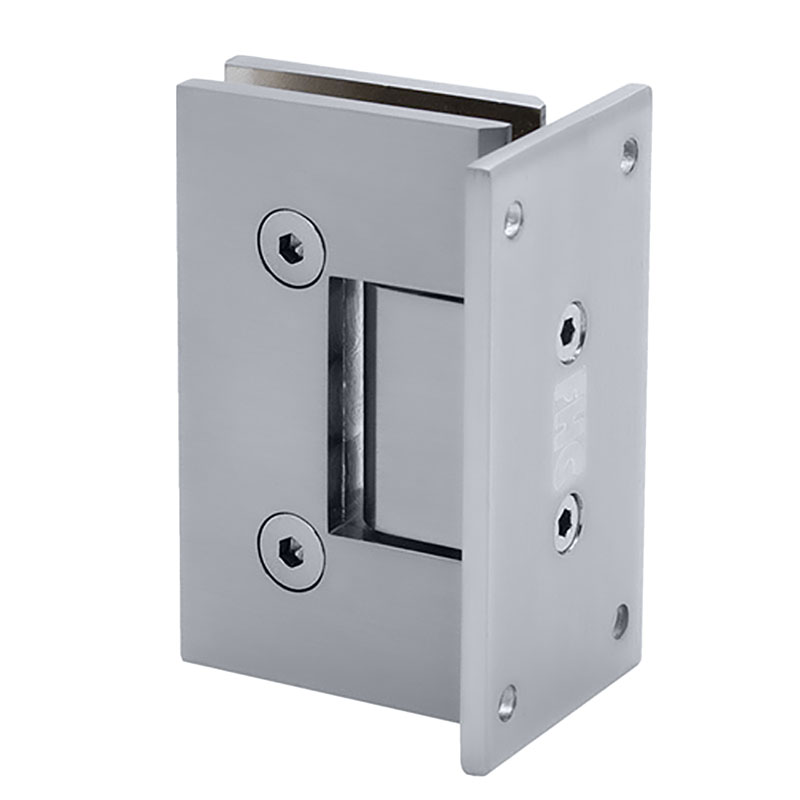

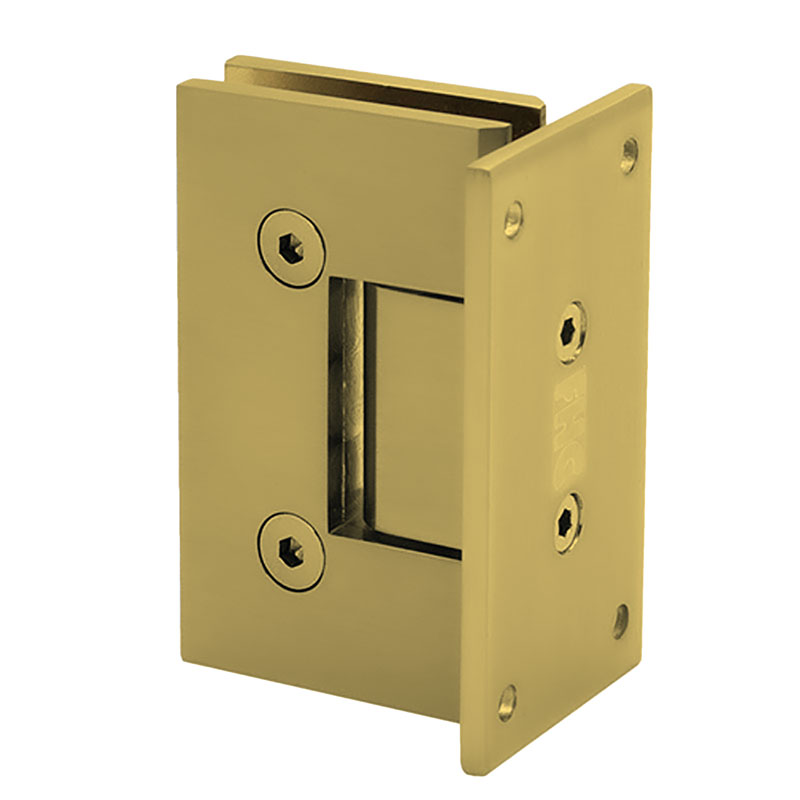

DT Venice Series Wall Mount Hinge - Full Back Plate

SKU: VENF1
15 People watching this product now!
Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

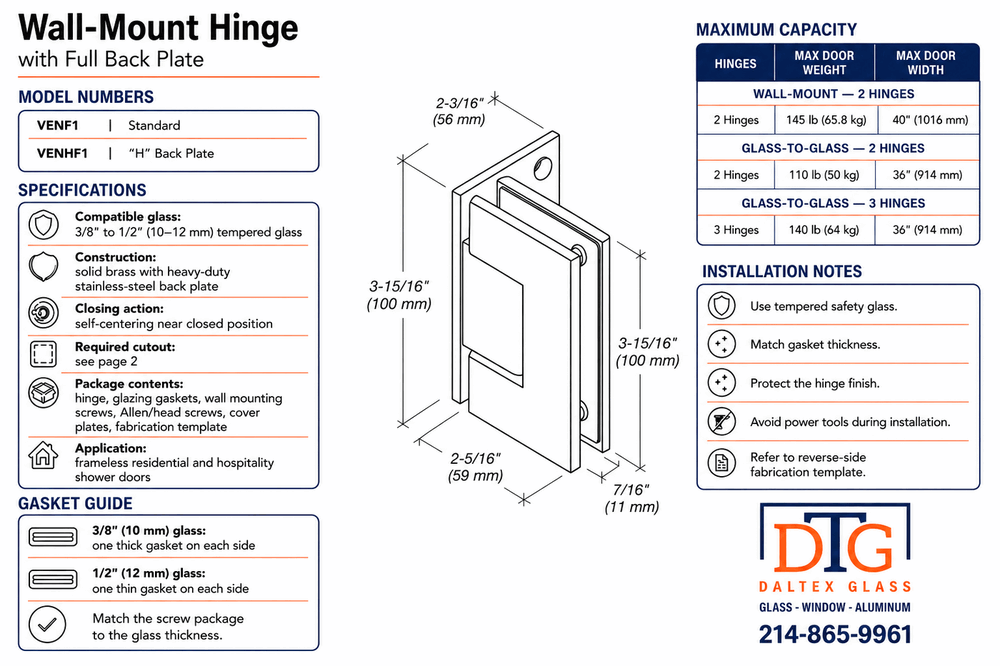

Additional information
Weight2 lbs
Select Your Color/FinishBrushed Bronze, Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Brass, Polished Chrome, Polished Nickel, Satin Brass
Case Quantity20
Catalog PageFSH24 p. 23, FSH24 p. 25
Compare ToV1E037, V1E0370RBHMGTWFP0BC50-00110RB, V1E037BBRZ, V1E037BNHMGTWFPBNC50-0011BRN, V1E037BRHMGTWFPPB, V1E037CHHMGTWFPCC50-0011BLY, V1E037MBLHMGTWFPMBC50-0011BLK, V1E037PNHMGTWFPPN, V1E037SBHMGTWFPSBC500011SAB
ConstructionSolid Brass with Stainless Steel Plate

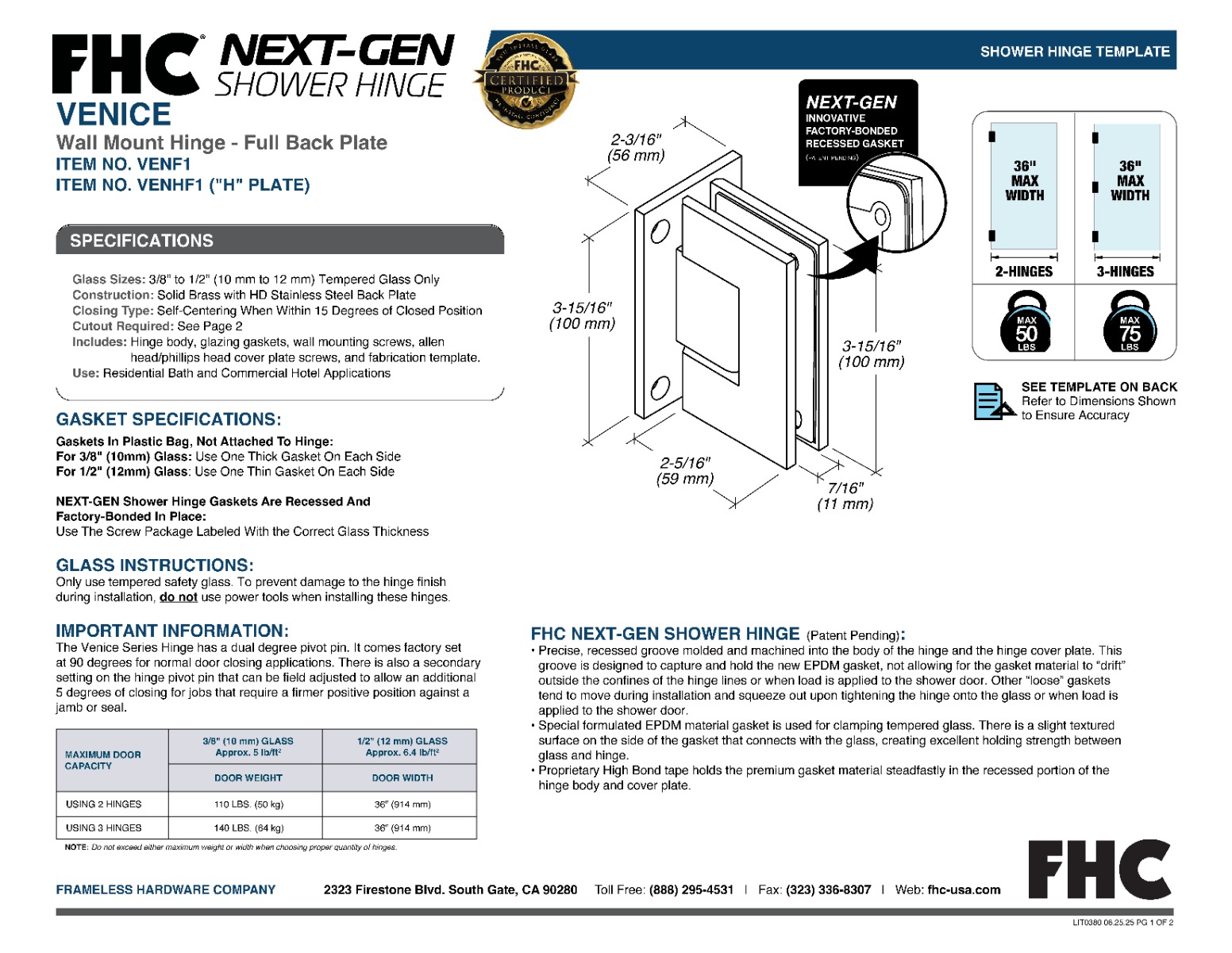

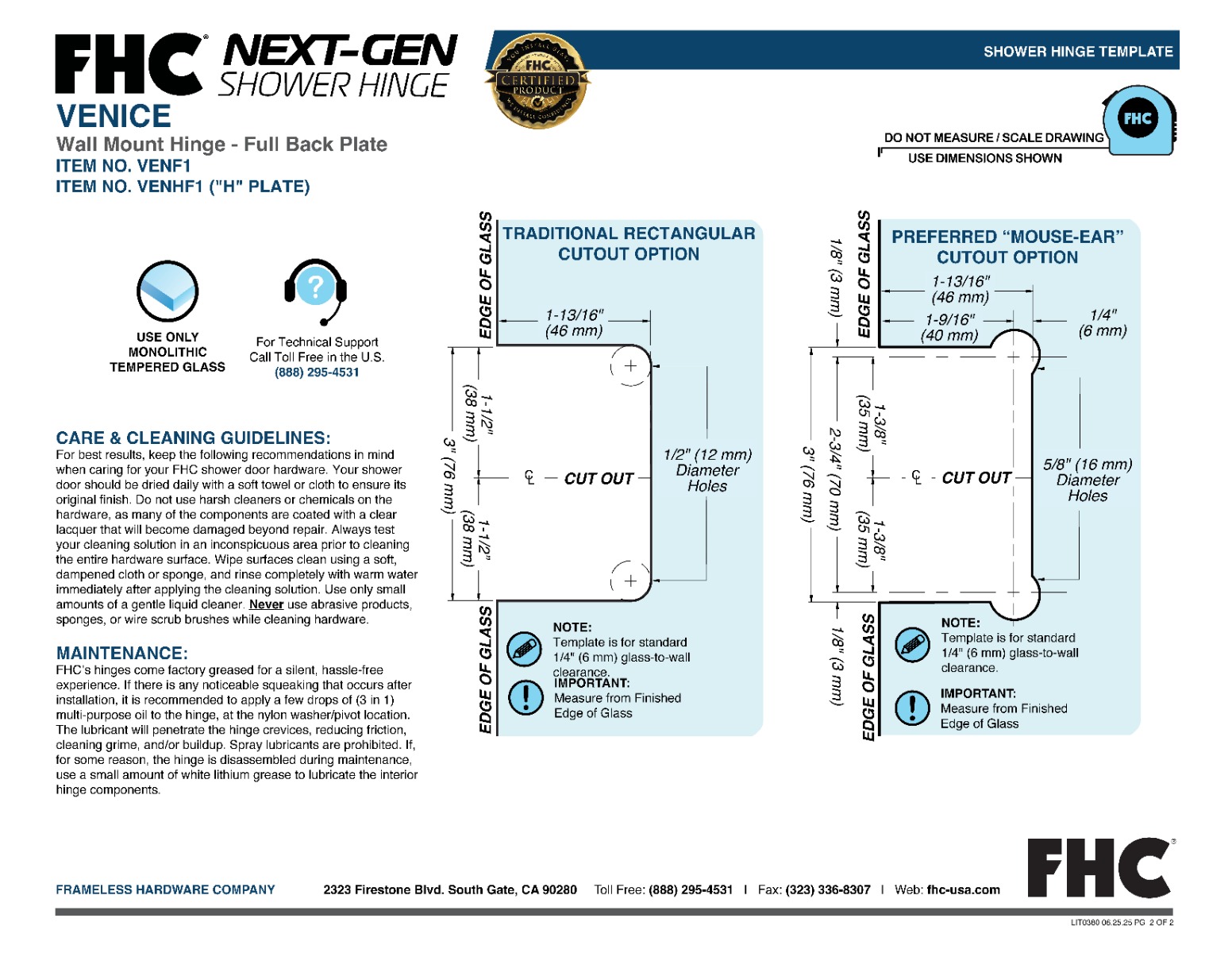

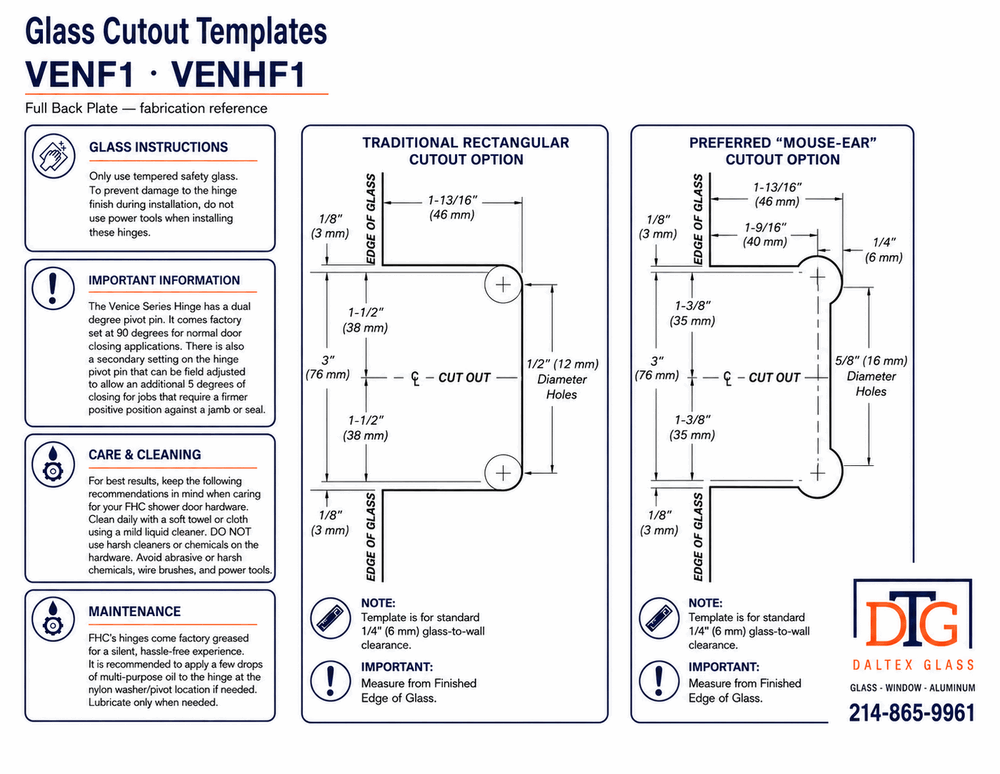

Glass FabricationSee Template PDF for Glass Cutouts
Glasss PecificationsTempered Glass Only
Glass Thickness3/8″ to 1/2″ (10 to 12 mm)
Item NoVENF1, VENF10RB, VENF1BBRZ, VENF1BN, VENF1BR, VENF1CH, VENF1MB, VENF1PN, VENF1SB
Maximum Door Weight2 Hinges/110 lb, 3 Hinges/140 lb
Maximum Door Width36″ (2 or 3 Hinges)
Mounting TypeWall Mounted
Plate TypeFull Back Plate
Product Height3-15/16″
Product NameDT Venice Series Wall Mount Hinge - Full Back Plate, DT Venice Series Wall Mount Hinge - Full Back Plate - Brushed Bronze, DT Venice Series Wall Mount Hinge - Full Back Plate - Brushed Nickel, DT Venice Series Wall Mount Hinge - Full Back Plate - Matte Black, DT Venice Series Wall Mount Hinge - Full Back Plate - Oil Rubbed Bronze, DT Venice Series Wall Mount Hinge - Full Back Plate - Polished Brass, DT Venice Series Wall Mount Hinge - Full Back Plate - Polished Chrome, DT Venice Series Wall Mount Hinge - Full Back Plate - Polished Nickel, DT Venice Series Wall Mount Hinge - Full Back Plate - Satin Brass
Product Weight2 lb
Product Width2-5/16″
ProfileSquare
Ship ViaShips UPS
Ships AirShips Air
WarningsNot for use with Laminated Glass
Weight2

Description

Description

Glass Specifications

MAXIMUM DOOR CAPACITY3/8″ (10 mm) GLASS
Approx. 5 lb./ft²
1/2″ (12 mm) GLASS
Approx. 6.4 lb./ft²
DOOR WEIGHTDOOR WIDTH
Using 2 Hinges110 LBS (50 kg)36″ (914 mm)
Using 3 Hinges140 LBS. (64 kg)36″ (914 mm)

NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.

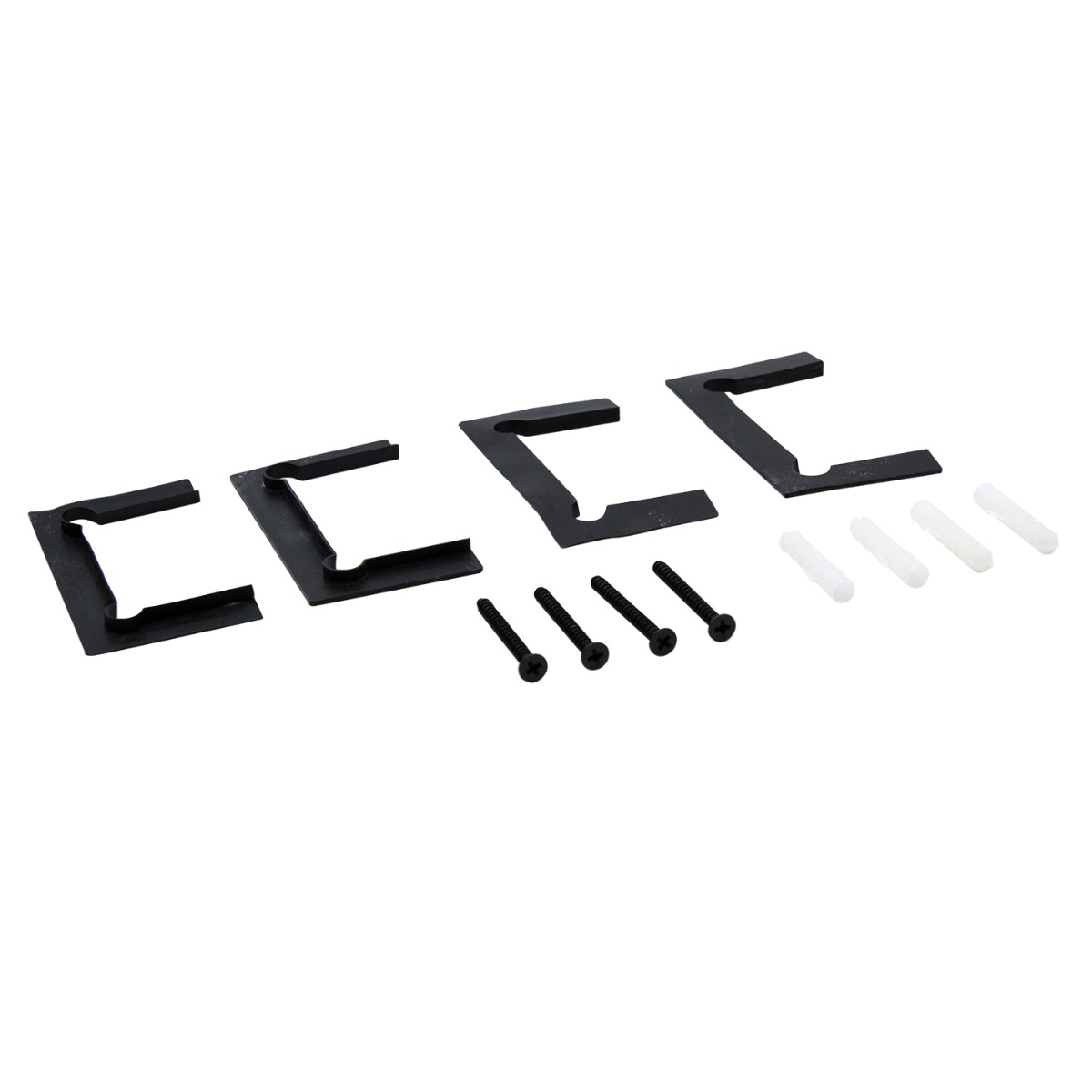

Gasket Specifications

For 3/8″ (10 mm) Glass: Use One Thick Gasket On Each Side
For 1/2″ (12 mm) Glass: Use One Thin Gasket On Each Side

Glass Instructions

Only use tempered safety glass. To prevent damage to the hinge finish during installation, do not use power tools when installing these hinges.

Overview

The Venice Series Hinge has a dual degree pivot pin. It comes factory set at 90 degrees for normal door closing applications. There is also a secondary setting on the hinge pivot pin that can be field adjusted to allow an additional 5 degrees of closing for jobs that require a firmer positive position against a jamb or seal.

Care & Cleaning Guidelines

For best results, keep the following recommendations in mind when caring for your DT shower door hardware. Your shower door should be dried daily with a soft towel or cloth to ensure its original finish. Do not use harsh cleaners or chemicals on the hardware, as many of the components are coated with a clear lacquer that will become damaged beyond repair. Always test your cleaning solution in an inconspicuous area prior to cleaning the entire hardware surface. Wipe surfaces clean using a soft, dampened cloth or sponge, and rinse completely with warm water immediately after applying the cleaning solution. Use only small amounts of liquid, gentle, cleaner. Never use abrasive products, sponges, or wire scrub brushes while cleaning hardware.

Maintenance

DT’s hinges come factory greased for a silent, hassle-free experience. If there is any noticeable squeaking that occurs after installation it is recommended to apply a few drops of (3 in 1) multi-purpose oil to the hinge, at the nylon washer/pivot location. The lubricant will penetrate the hinge crevices, reducing friction, cleaning grime, and/or buildup. Spray lubricants are prohibited. If, for some reason, the hinge is disassembled during maintenance, use a small amount of white lithium grease to lubricate the interior hinge components.

Material/Construction

Solid Brass with HD S/S Back Plate
