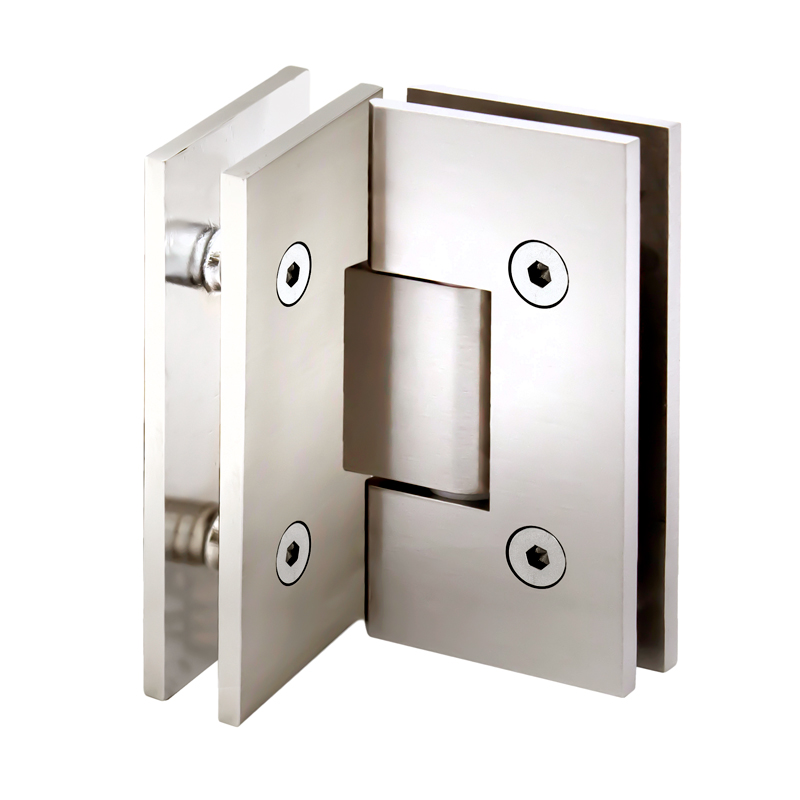

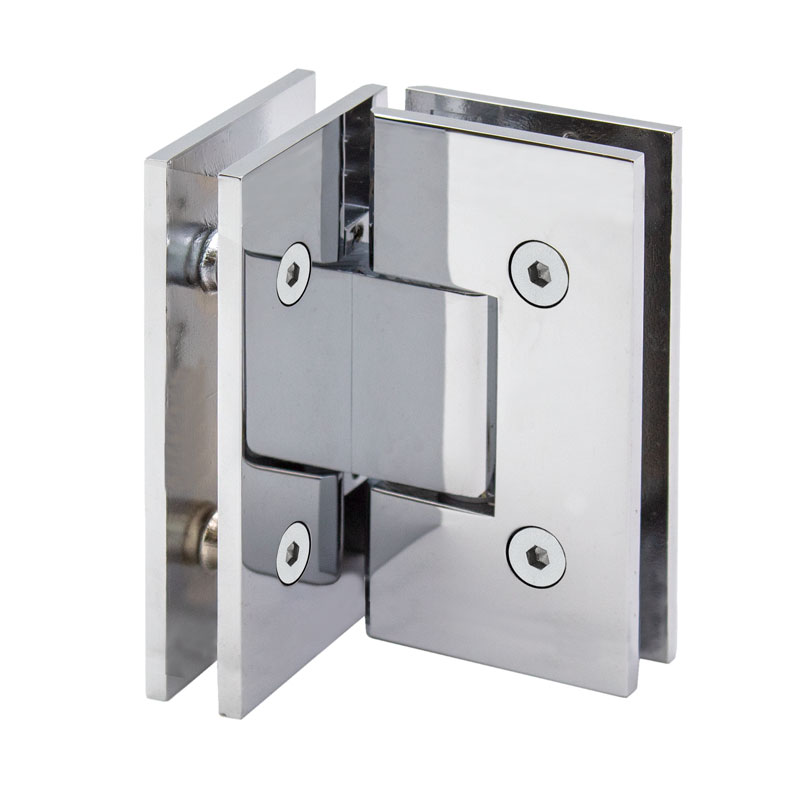

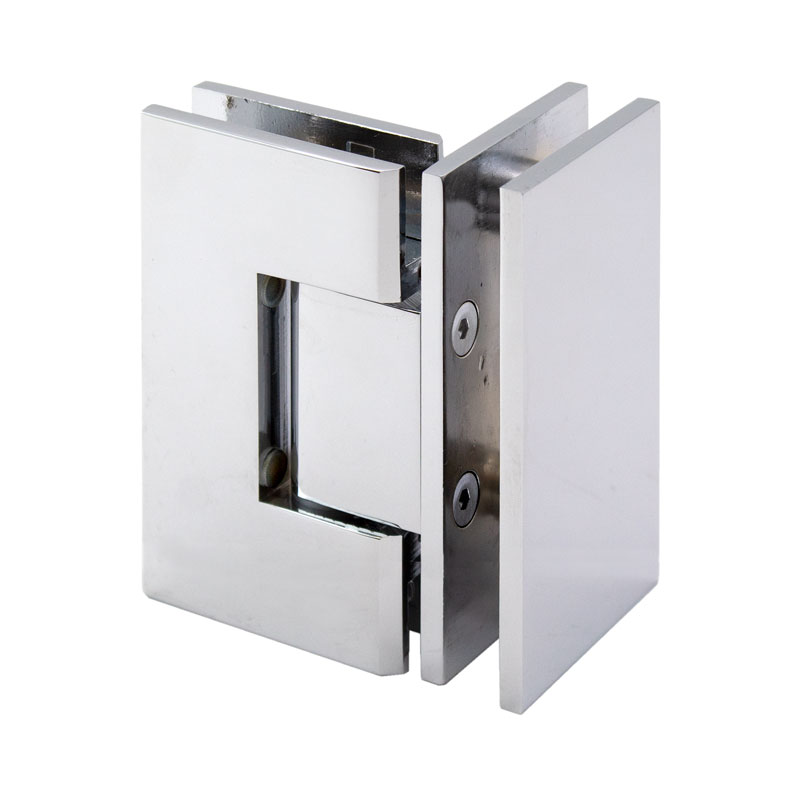

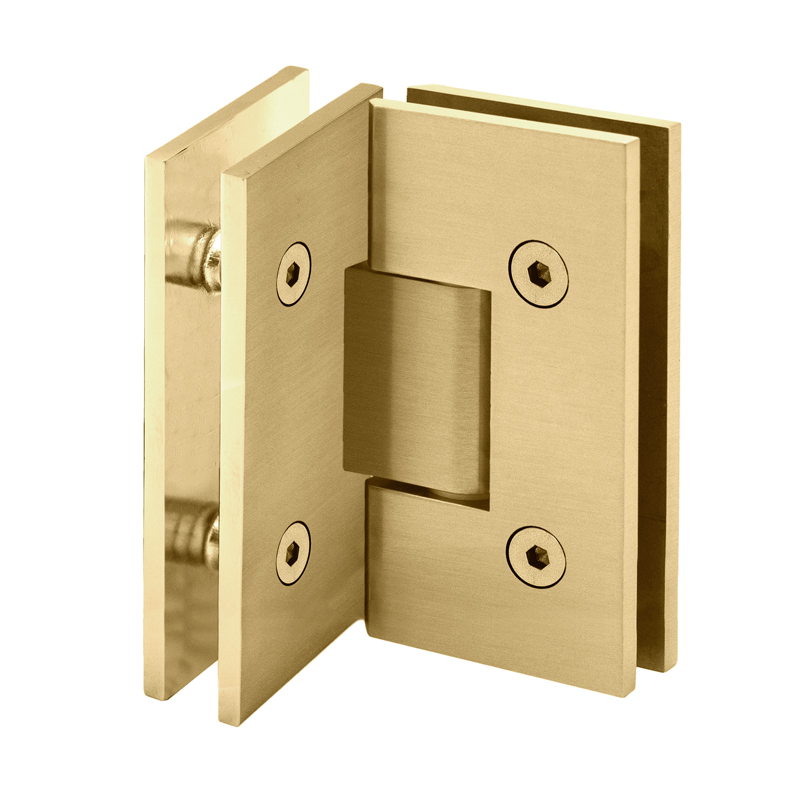

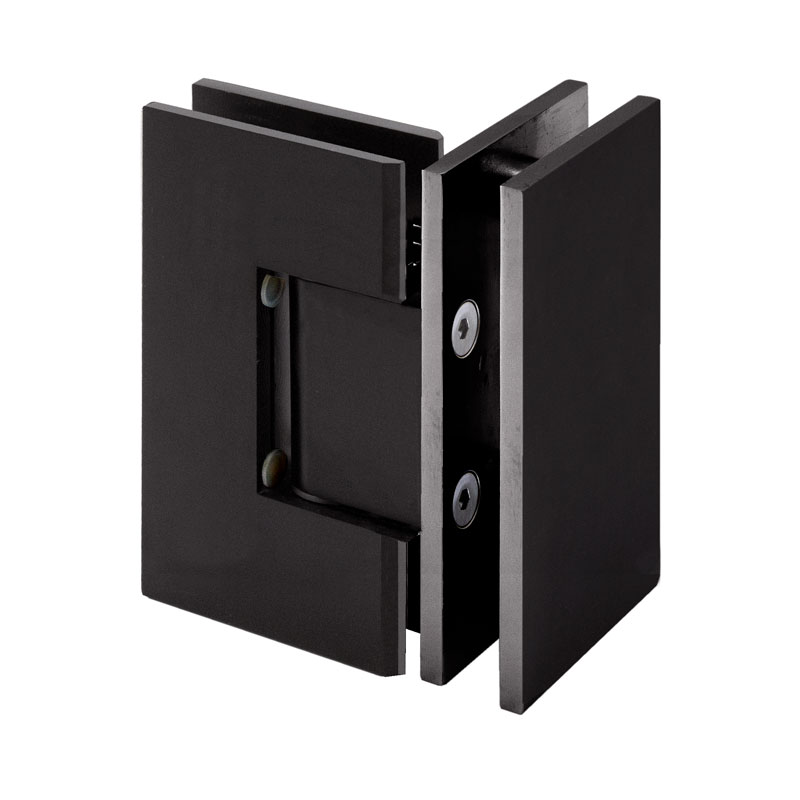

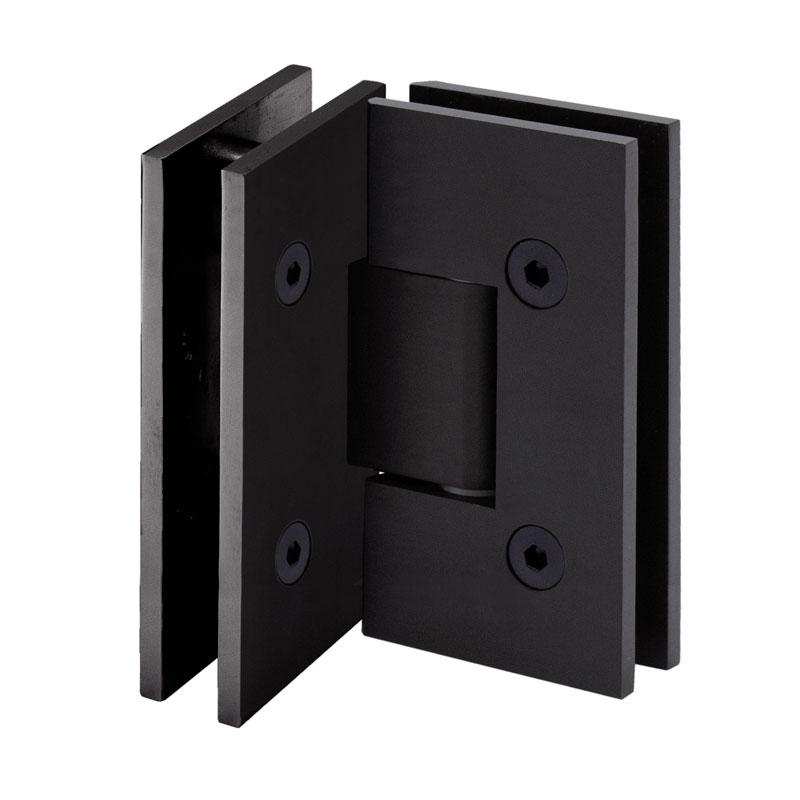

DT Venice Square Glass To Glass 90 Degree Hinge

SKU: VEN90

Login to see prices

Add to wishlist

18 People watching this product now!

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Additional information

Weight	N/A

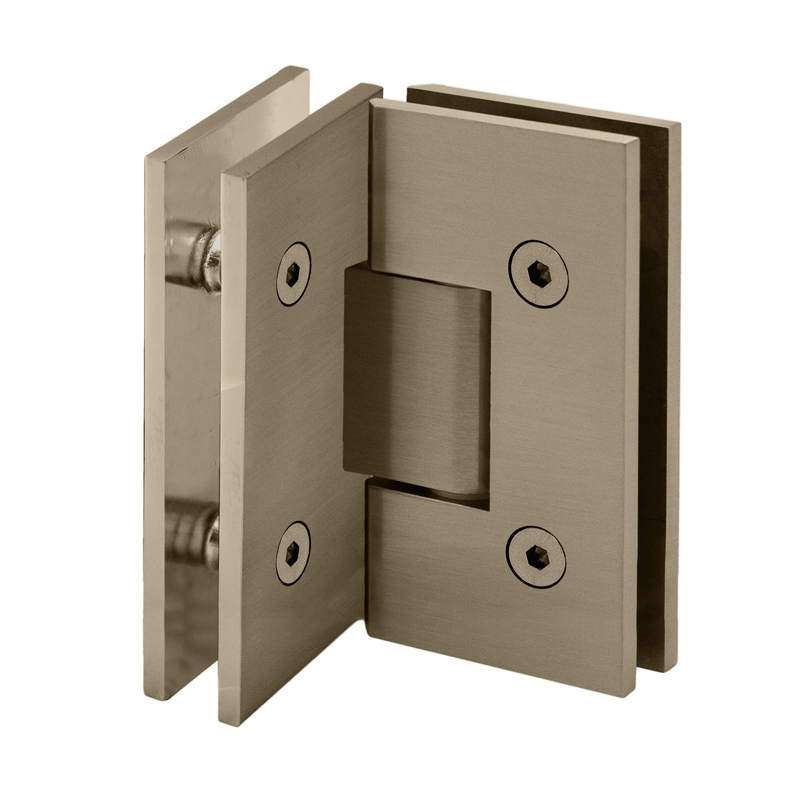

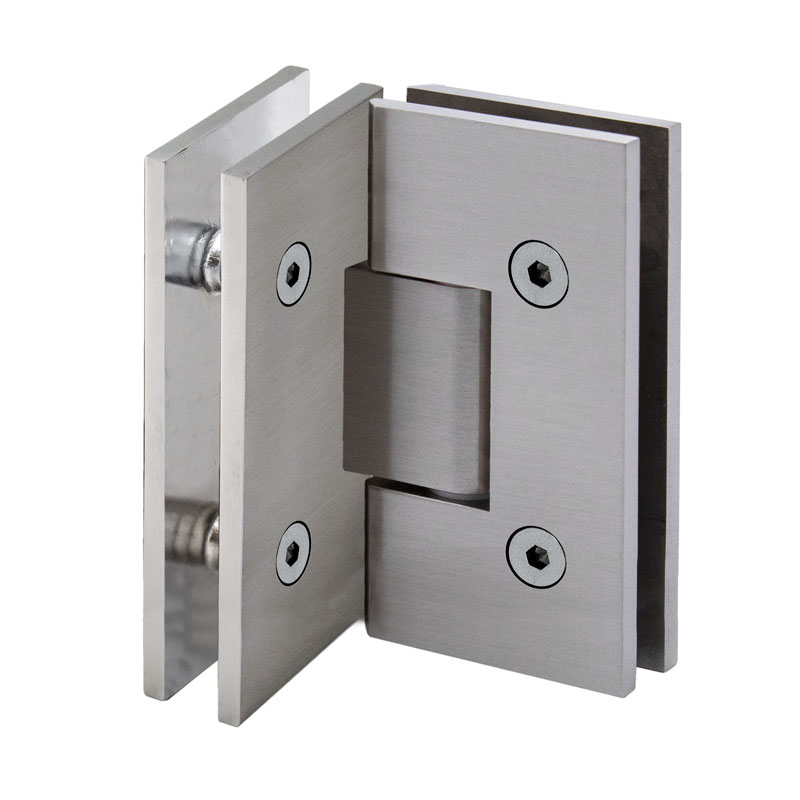

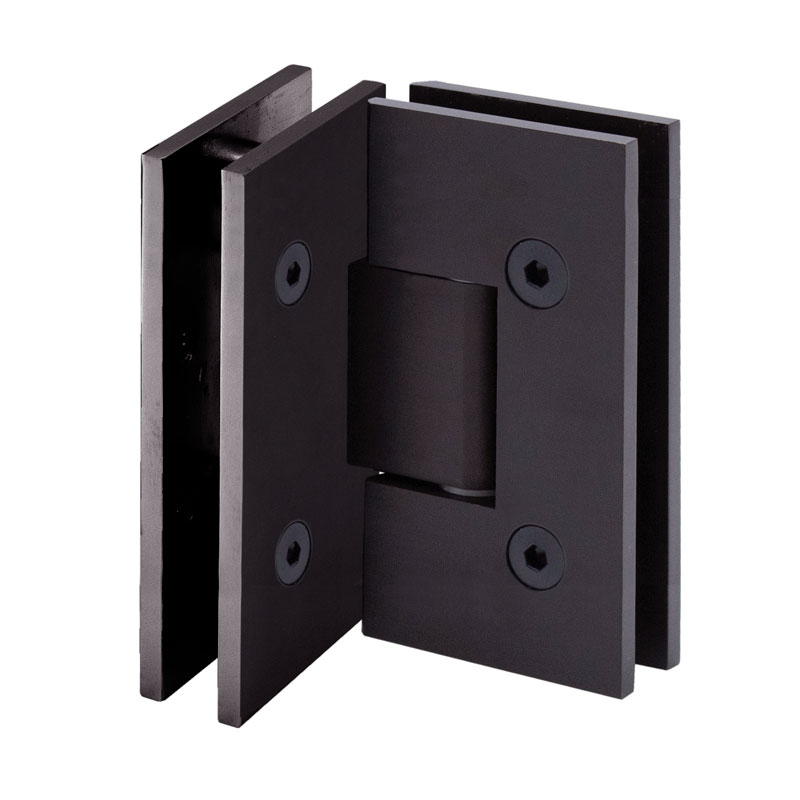

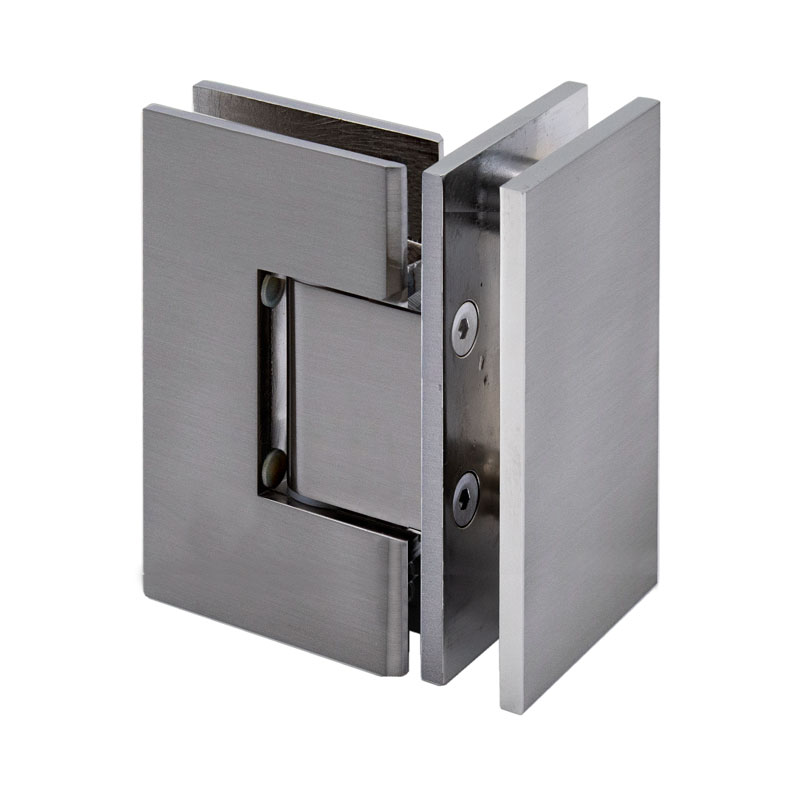

Select Your Color/Finish	Brushed Bronze, Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Chrome, Polished Nickel, Satin Brass
Case Quantity	10
Catalog Page	FSH24 p. 24
Compare To	V1E0920RB, V1E092BBRZ, V1E092BN, V1E092CH, V1E092MBL, V1E092PN, V1E092SB
Degree	90 Degree
Glass Thickness	3/8″ or 1/2″
Item No	VEN90, VEN900RB, VEN90BBRZ, VEN90BN, VEN90CH, VEN90MB, VEN90PN, VEN90SB
Material	Solid Brass
Maximum Door Width	36″ (2 or 3 Hinges)
Product Height	3-15/16″
Product Name	DT Venice Square Glass To Glass 90 Degree Hinge, DT Venice Square Glass to Glass 90 Degree Hinge – Brushed Bronze, DT Venice Square Glass To Glass 90 Degree Hinge – Brushed Nickel, DT Venice Square Glass To Glass 90 Degree Hinge – Matte Black, DT Venice Square Glass To Glass 90 Degree Hinge – Oil Rubbed Bronze, DT Venice Square Glass To Glass 90 Degree Hinge – Polished Chrome, DT Venice Square Glass to Glass 90 Degree Hinge – Polished Nickel, DT Venice Square Glass to Glass 90 Degree Hinge – Satin Brass
Product Width	2-5/16″ (Sidelite), 2-5/16″ (Door)
Profile	Square
Weight	2.5
Weight Capacity	2 Hinges/110 lb, 3 Hinges/140 lb

Description

Description

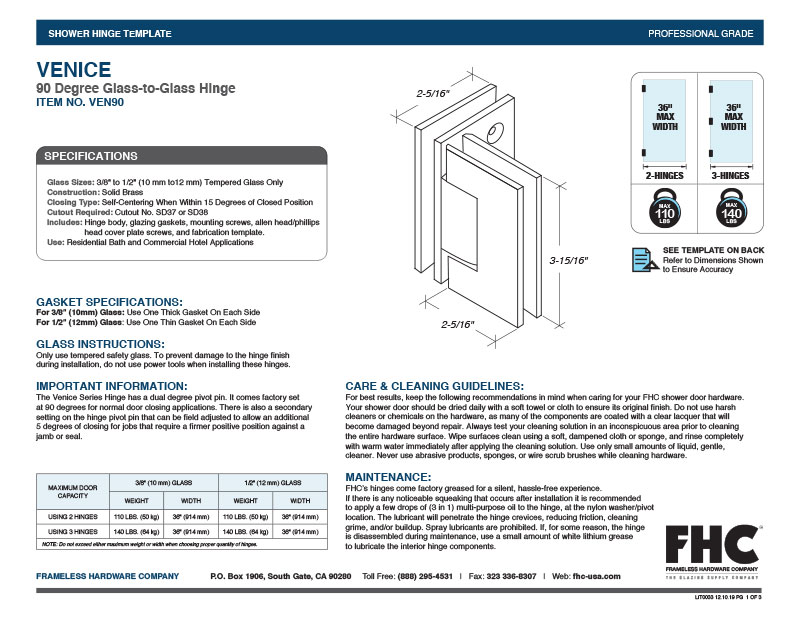

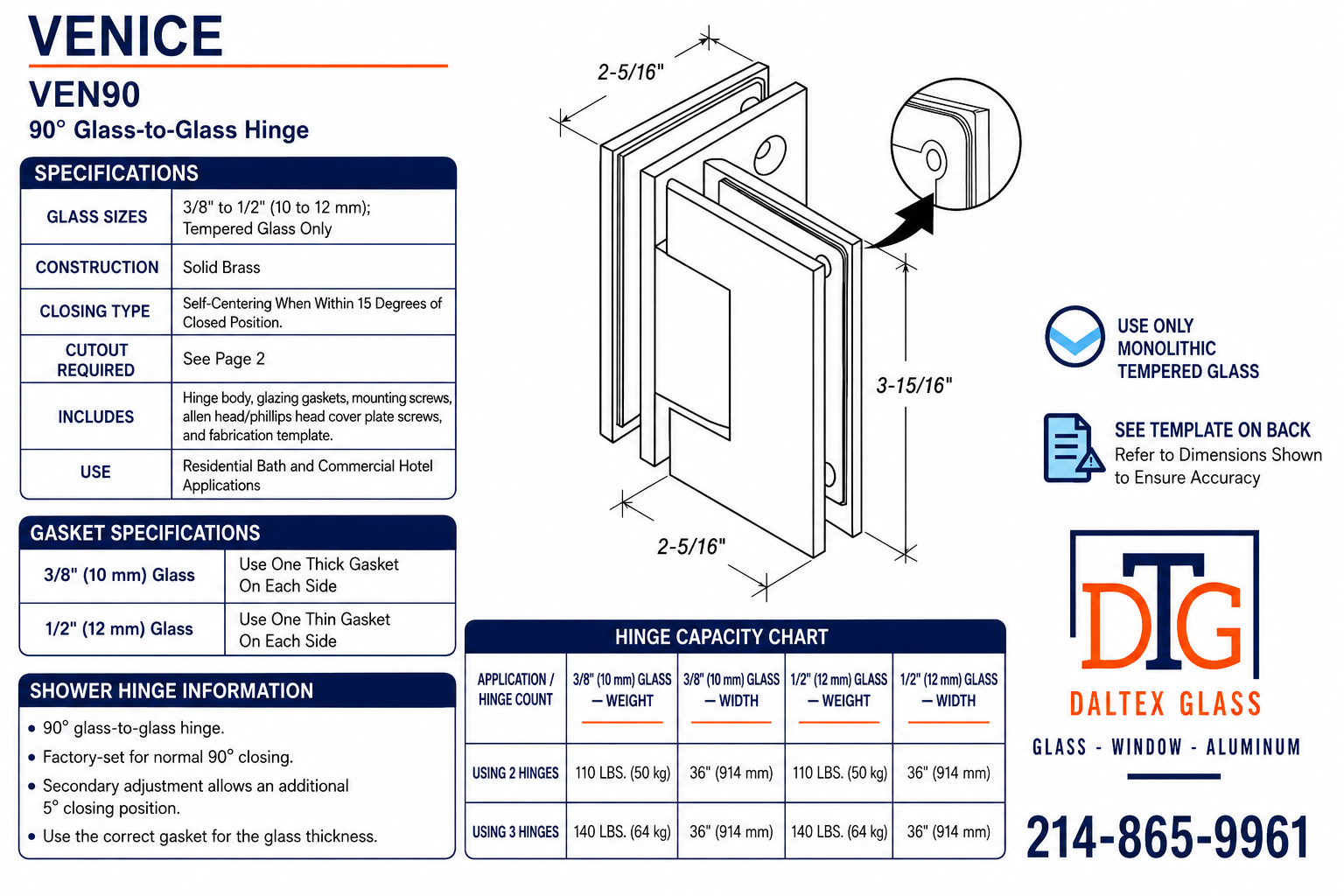

Glass Specifications

MAXIMUM DOOR CAPACITY	3/8″ (10 mm) GLASS Approx. 5 lb./ft²	1/2″ (12 mm) GLASS Approx. 6.4 lb./ft²
MAXIMUM DOOR CAPACITY	DOOR WEIGHT	DOOR WIDTH
Using 2 Hinges	110 LBS (50 kg)	36″ (914 mm)
Using 3 Hinges	140 LBS. (64 kg)	36″ (914 mm)
