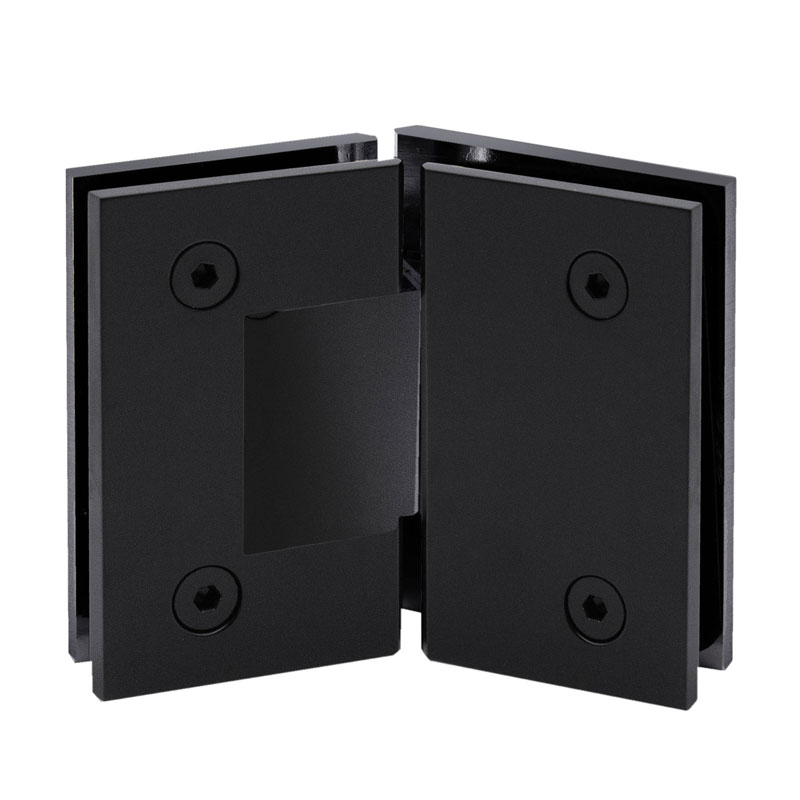

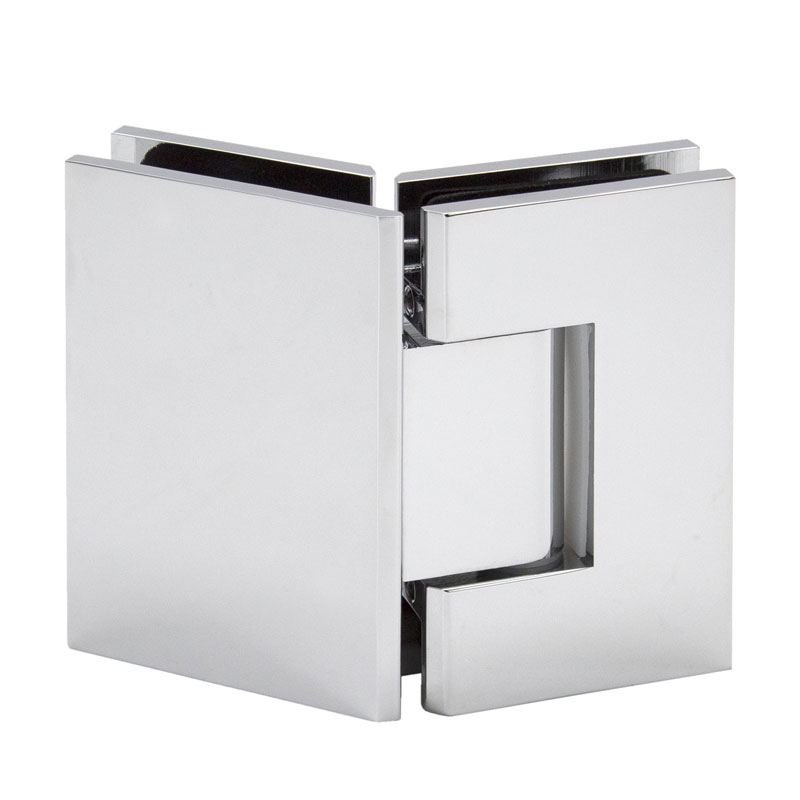

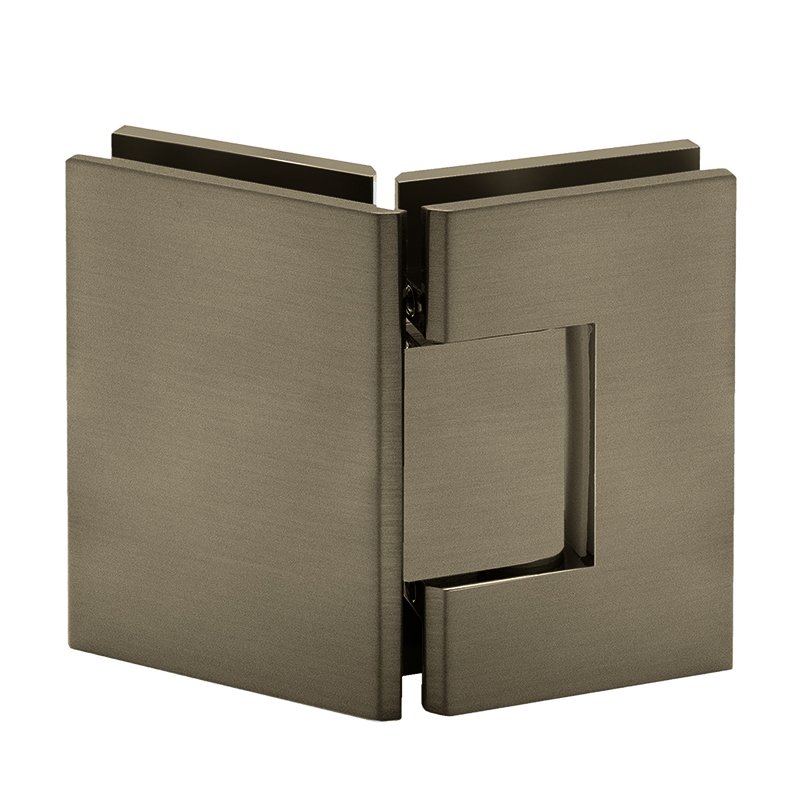

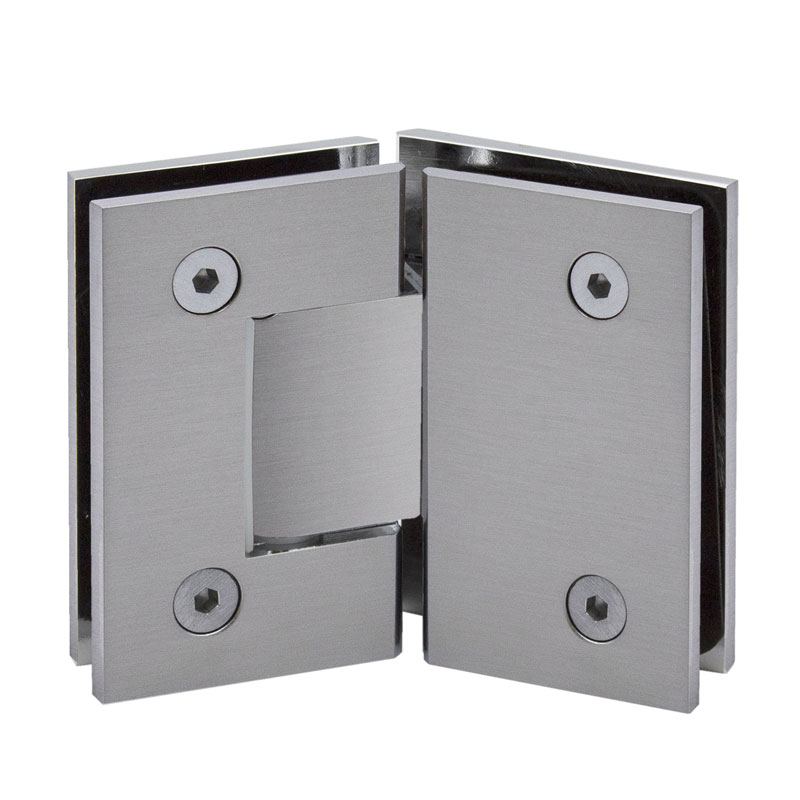

DT Glendale Series 135 Degree Glass to Glass Hinge

Name: DT Glendale Series 135 Degree Glass to Glass Hinge
SKU: GLEN135

SKU: GLEN135

12 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Track or off orders

Additional information

Weight	2 lbs
Select Your Color/Finish	Brushed Bronze, Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Chrome, Polished Nickel, Satin Brass
Case Quantity	10
Catalog Page	FSH24 p. 16
Compare To	GEN0450RBH135GTG0B, GEN045BBRZ, GEN045BNH135GTGBN, GEN045CHH135GTGC, GEN045MBLH135GTGMB, GEN045PNH135GTGPN, GEN045SBH135GTGSB, GEN135
Degree	135 Degree

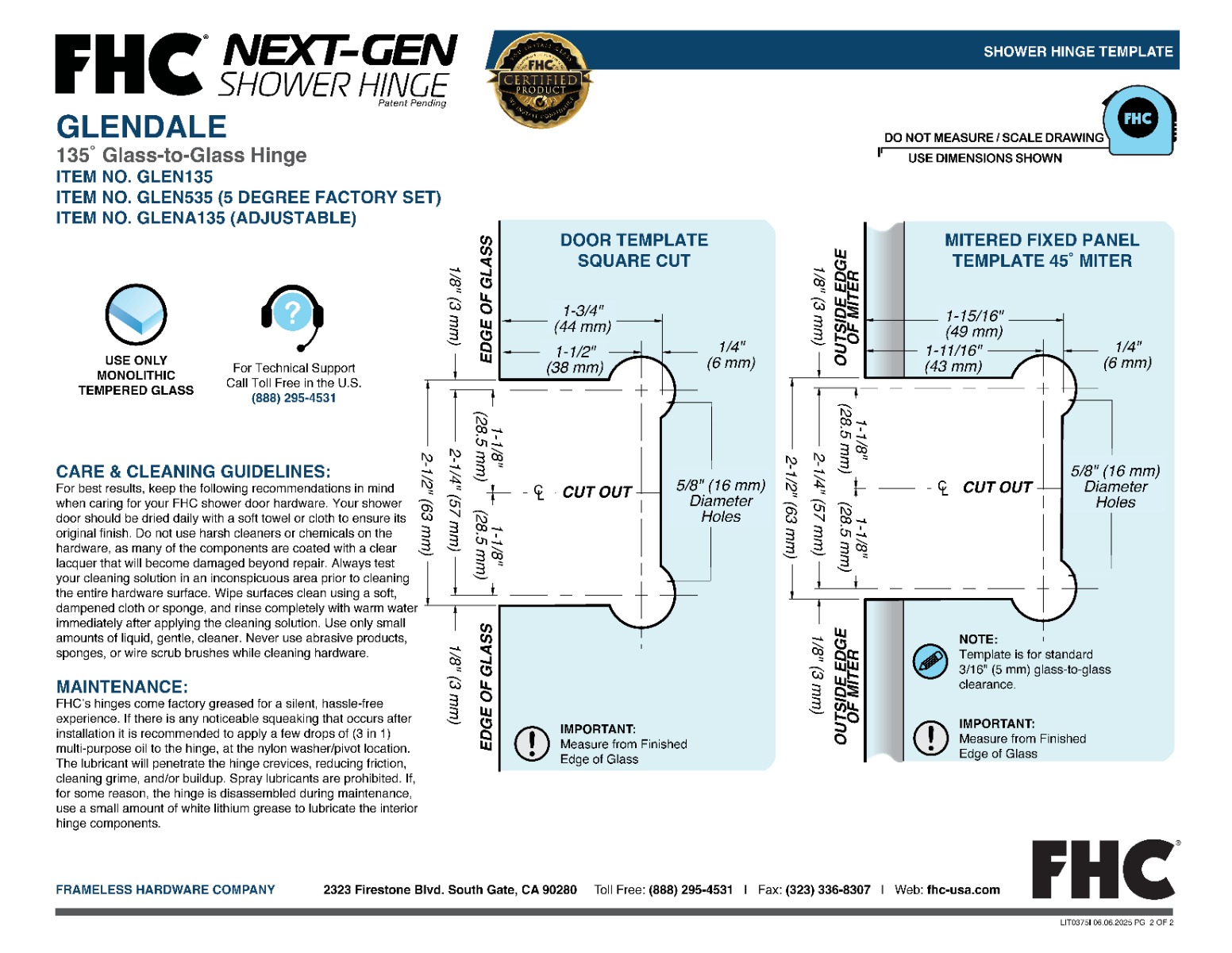

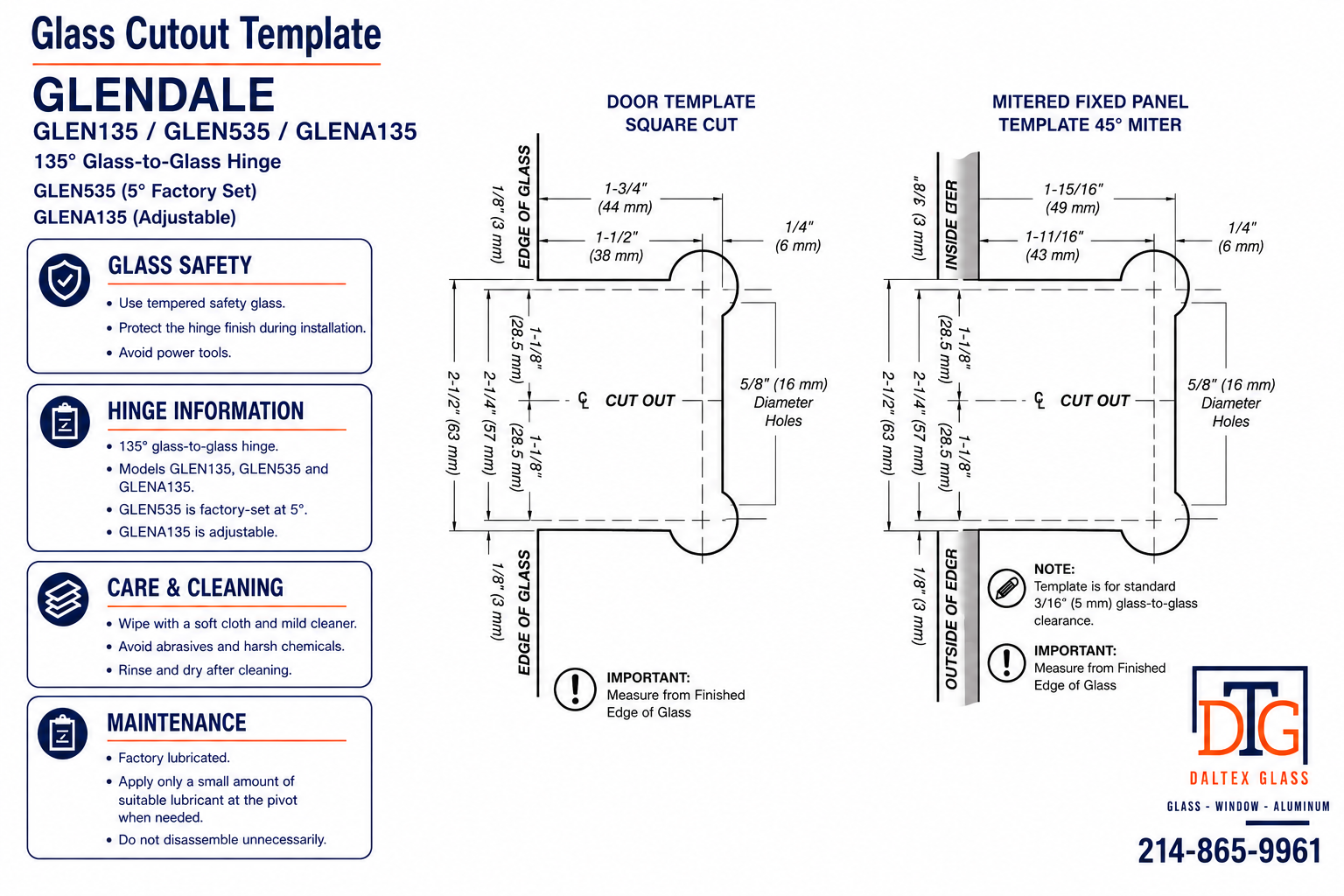

Glass Fabrication	Use DT Template SD24 For Glass Fab Template
Glass Thickness	3/8″ or 1/2″
Item No	GLEN135, GLEN1350RB, GLEN135BBRZ, GLEN135BN, GLEN135CH, GLEN135MB, GLEN135PN, GLEN135SB
Material	Solid Brass
Maximum Door Width	28″ (2 Hinges), 32″ (3 Hinges)
Product Height	3-1/2″
Product Name	DT Glendale Series 135 Degree Glass to Glass Hinge, DT Glendale Series 135 Degree Glass to Glass Hinge – Brushed Nickel, DT Glendale Series 135 Degree Glass to Glass Hinge – Matte Black, DT Glendale Series 135 Degree Glass to Glass Hinge – Oil Rubbed Bronze, DT Glendale Series 135 Degree Glass to Glass Hinge – Polished Chrome, DT Glendale Series 135 Degree Glass to Glass Hinge – Polished Nickel, DT Glendale Series 135 Degree Glass to Glass Hinge – Satin Brass, DT Glendale Square Glass-to-Glass 135 Degree Hinge – Brushed Bronze
Product Weight	2 lb
Product Width	2-9/16″ (Sidelite), 2-3/16″(Door)
Profile	Square
Ship Via	Ships UPS
Ships Air	Ships Air
Warnings	Not for use with Laminated Glass
Weight	2, 2.5
Weight Capacity	2 Hinges/80 lb, 3 Hinges/120 lb

Description

Glass Specifications

NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
