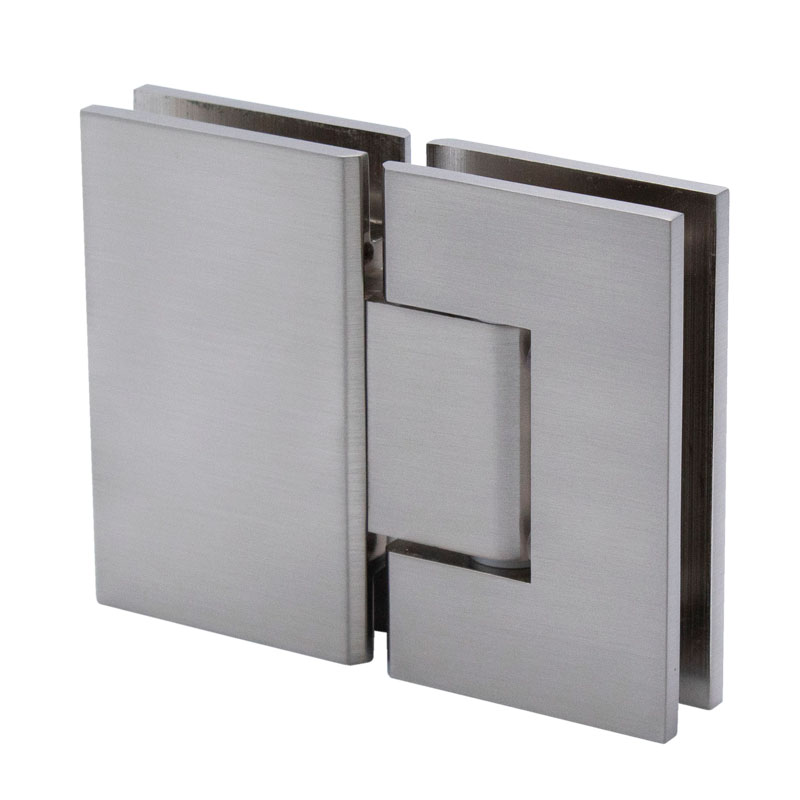

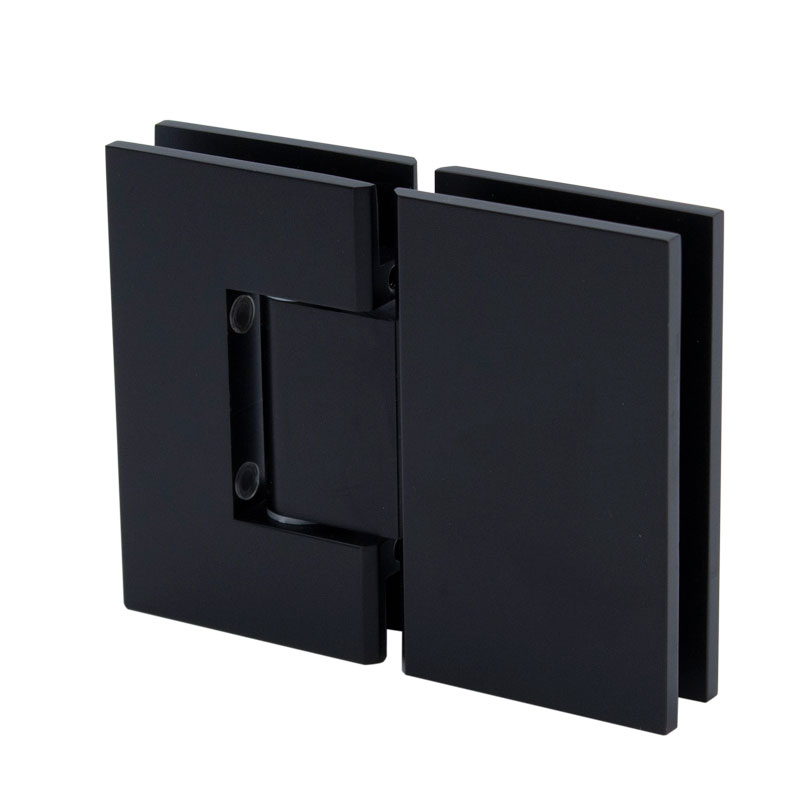

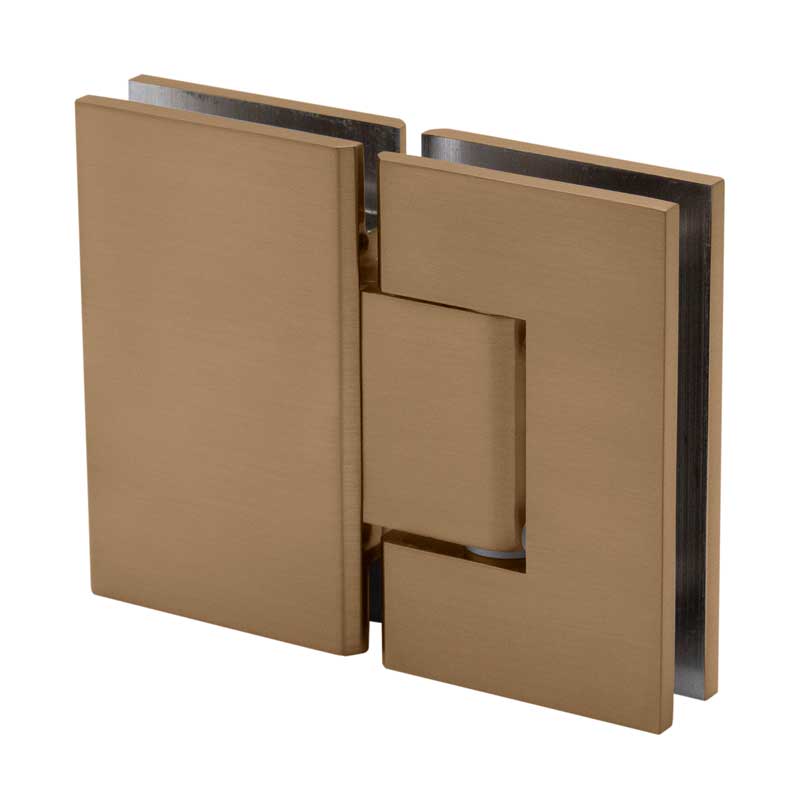

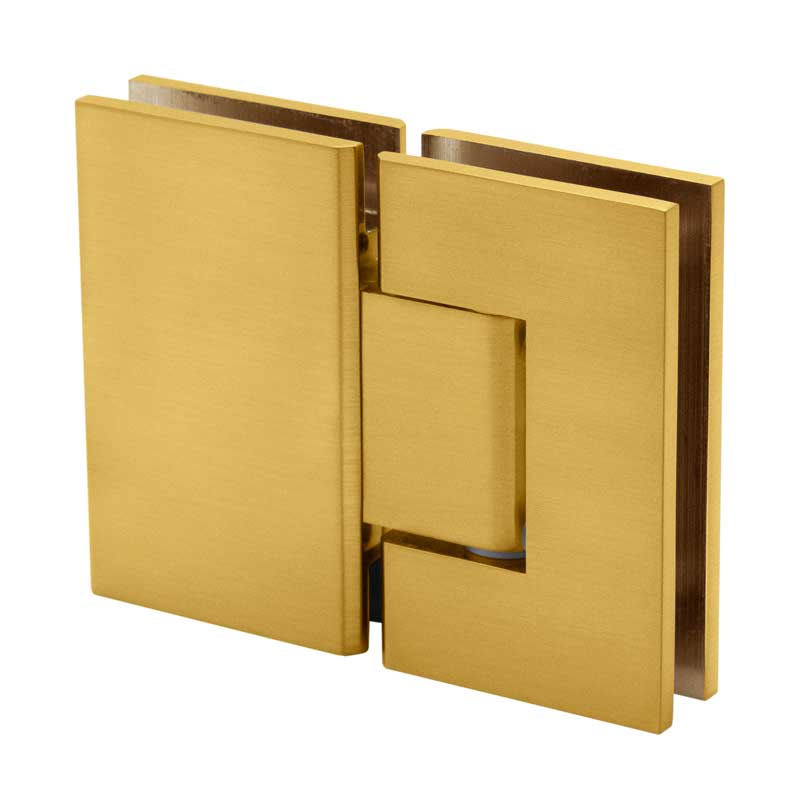

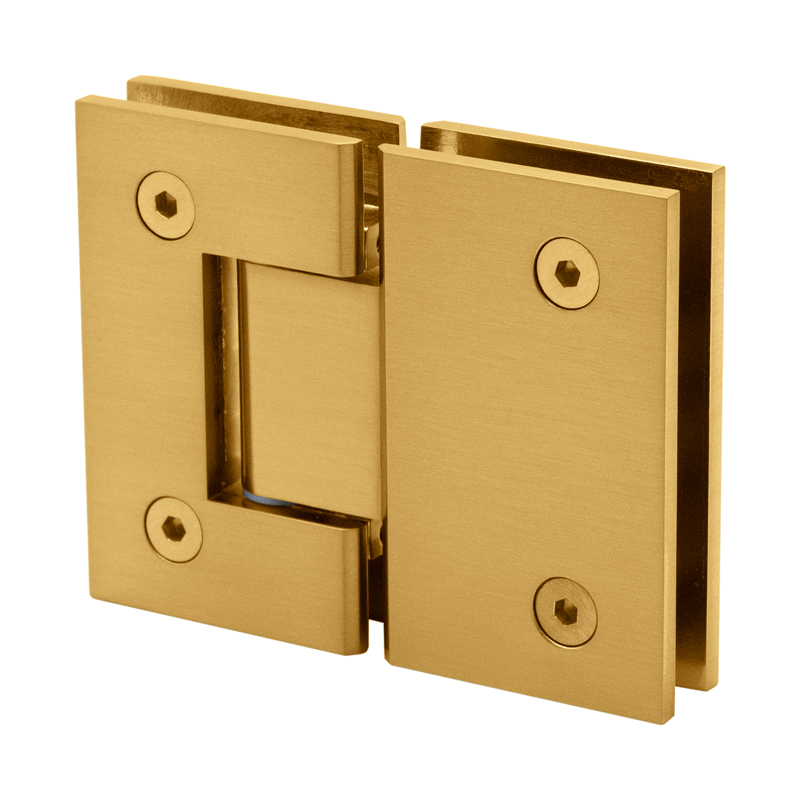

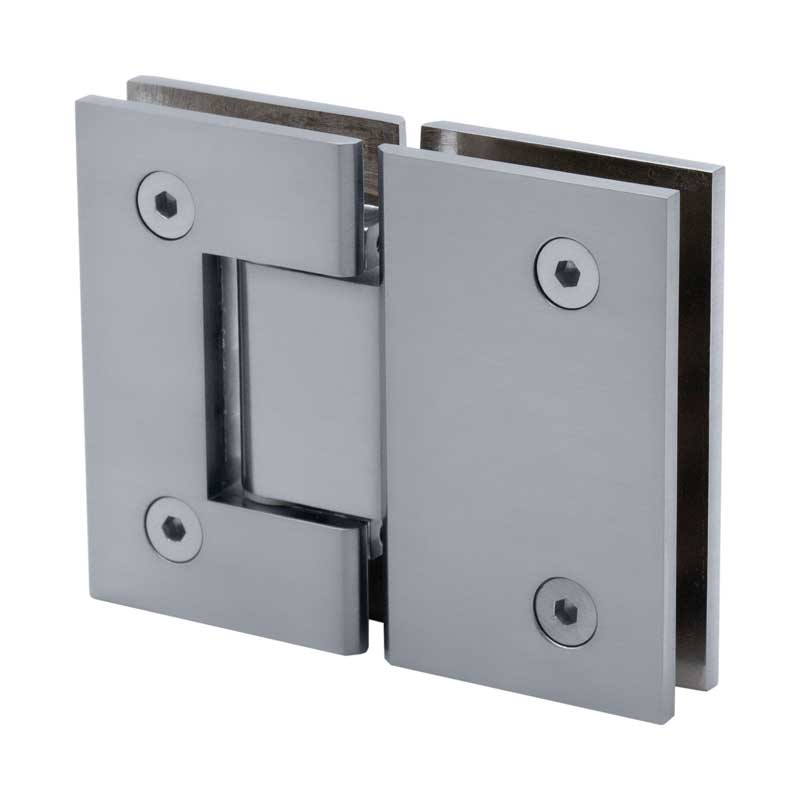

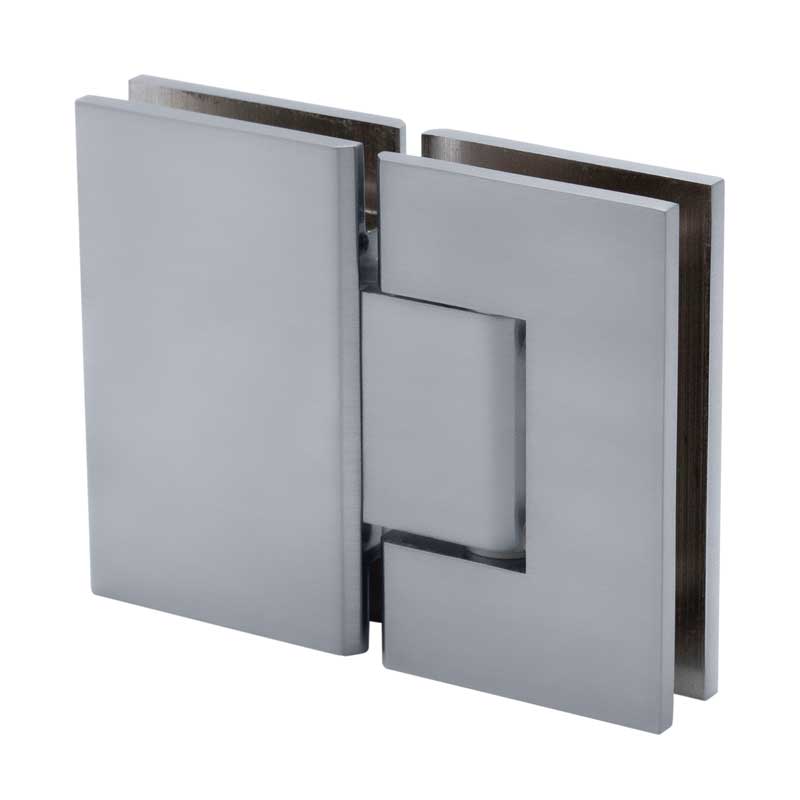

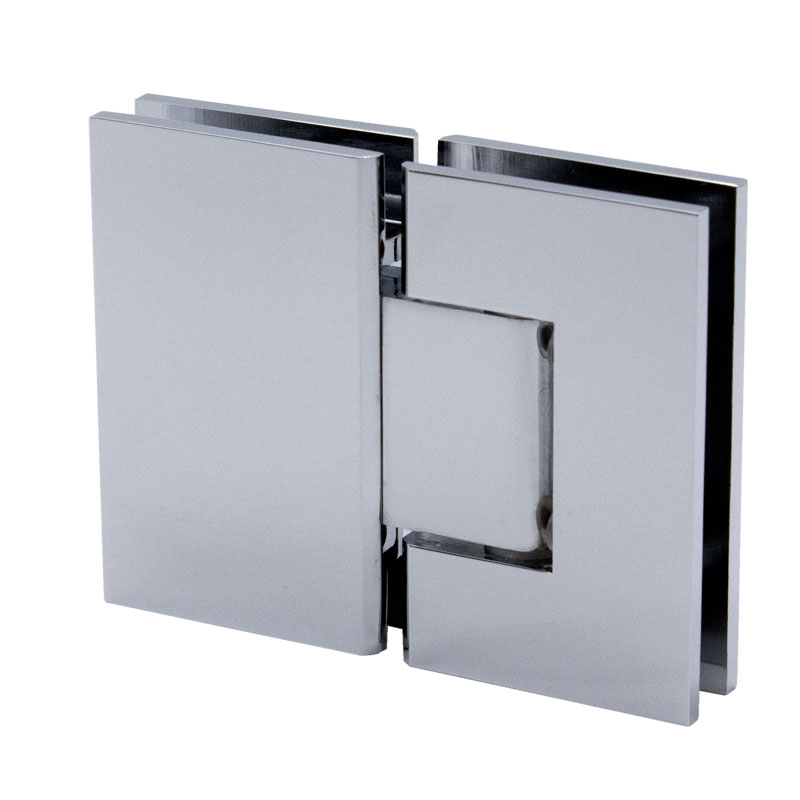

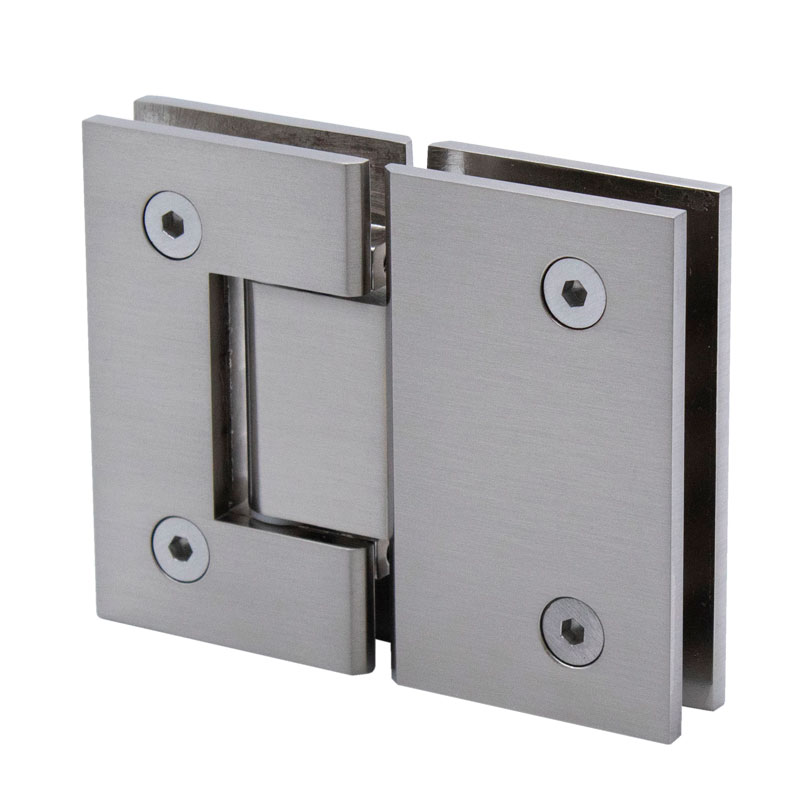

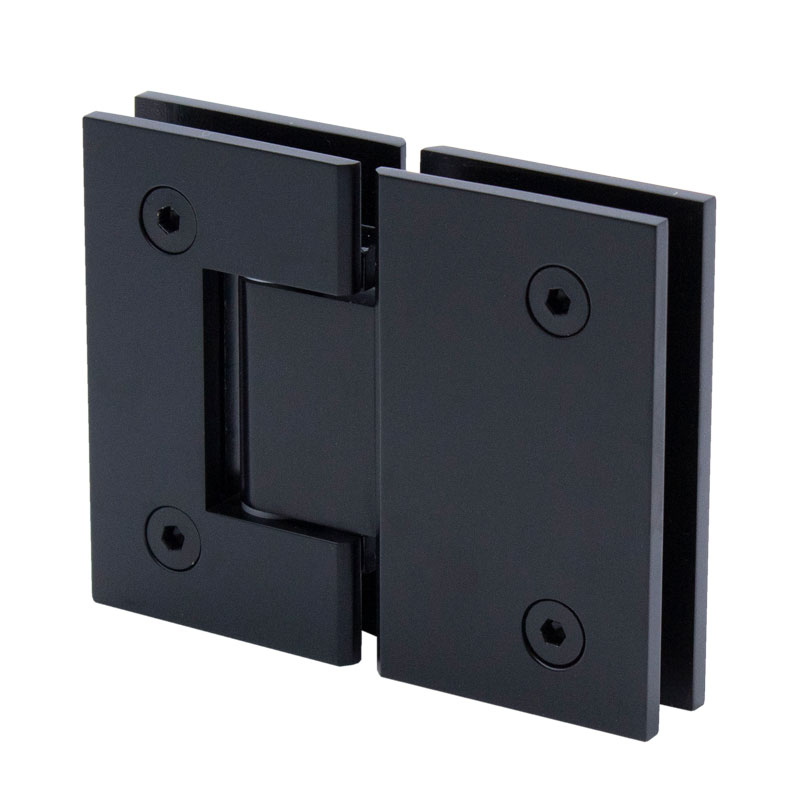

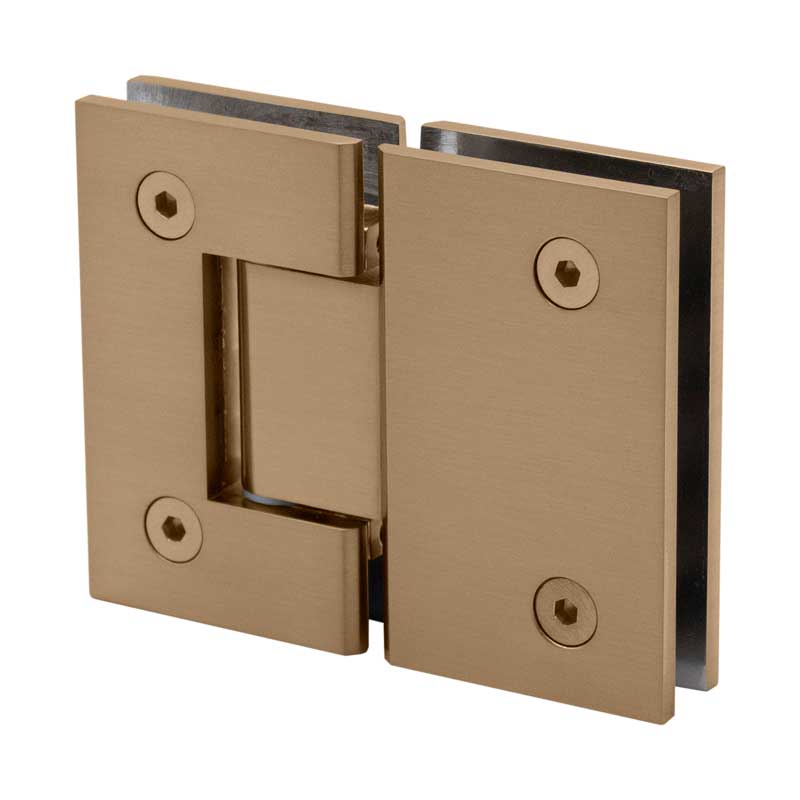

DT Glendale Series 180 Degree Glass to Glass Hinge
SKU:
GLEN180
18
People watching this product now!
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Additional information
| Weight | 2 lbs |
|---|---|
| Select Your Color/Finish | Brushed Bronze, Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Chrome, Polished Nickel, Satin Brass |
| Case Quantity | 10 |
| Catalog Page | FSH24 p. 16 |
| Compare To | GEN180, GEN1800RBH180GTG0BC5000060RB, GEN180BBRZ, GEN180BNH180GTGBNC500006BRN, GEN180CHH180GTGCC500006BLY, GEN180MBLH180GTGMBC500006BLK, GEN180PNH180GTGPN, GEN180SBH180GTGSB |
| Degree | 180 Degree |

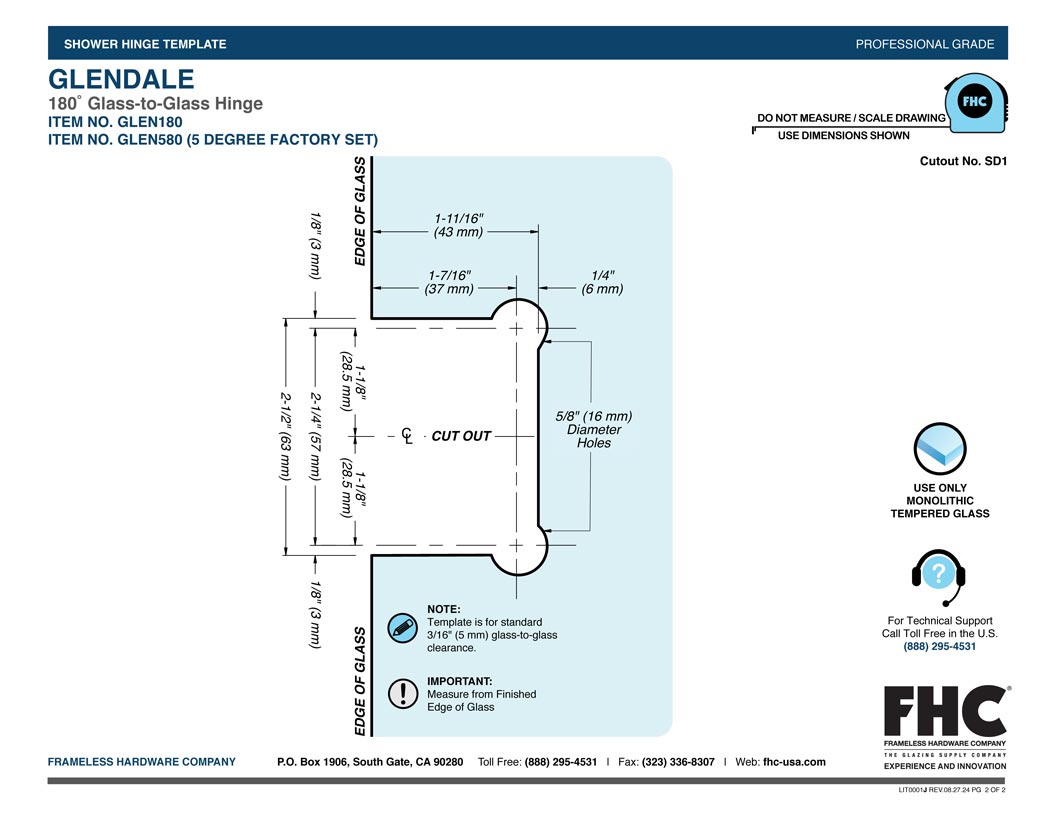

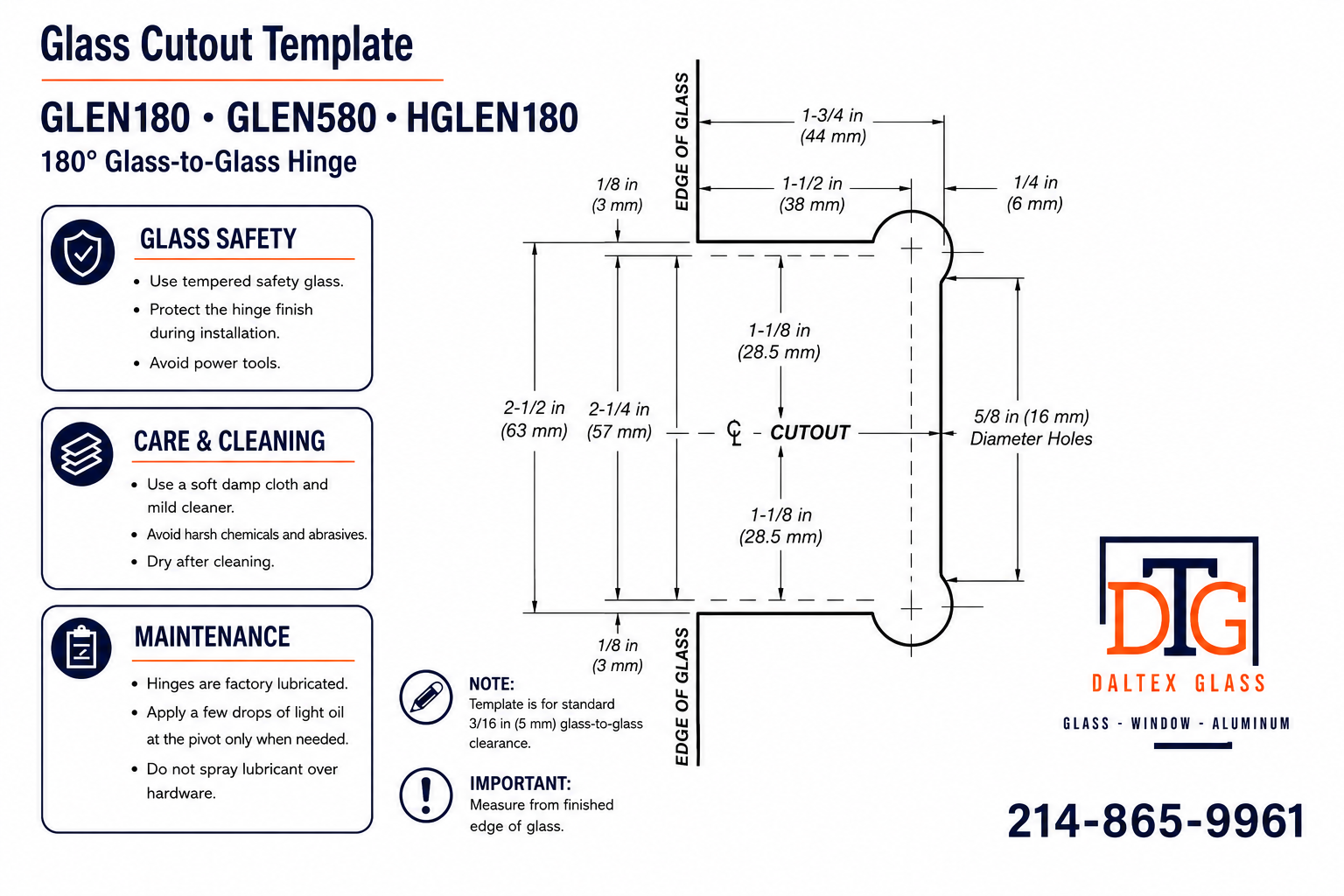

| Glass Fabrication | Use DT Template SD1 For Glass Fab Template, Use DT Template SD24 For Glass Fab Template |
| Glass Thickness | 3/8″ or 1/2″ |
| Item No | GLEN180, GLEN1800RB, GLEN180BBRZ, GLEN180BN, GLEN180CH, GLEN180MB, GLEN180PN, GLEN180SB |
| Material | Solid Brass |
| Maximum Door Width | 28″ (2 Hinges), 32″ (3 Hinges) |
| Product Height | 3-1/2″ |
| Product Name | DT Glendale Series 180 Degree Glass to Glass Hinge, DT Glendale Series 180 Degree Glass to Glass Hinge - Brushed Bronze, DT Glendale Series 180 Degree Glass to Glass Hinge - Brushed Nickel, DT Glendale Series 180 Degree Glass to Glass Hinge - Matte Black, DT Glendale Series 180 Degree Glass to Glass Hinge - Oil Rubbed Bronze, DT Glendale Series 180 Degree Glass to Glass Hinge - Polished Chrome, DT Glendale Series 180 Degree Glass to Glass Hinge - Polished Nickel, DT Glendale Series 180 Degree Glass to Glass Hinge - Satin Brass |
| Product Weight | 2 lb |
| Product Width | 2-3/16″ (Sidelite), 2-3/16″(Door) |
| Profile | Square |
| Ship Via | Ships UPS |
| Ships Air | Ships Air |
| Warnings | Not for use with Laminated Glass |
| Weight | 2, 2.5 |
| Weight Capacity | 2 Hinges/80 lb, 3 Hinges/120 lb |
Description
Description

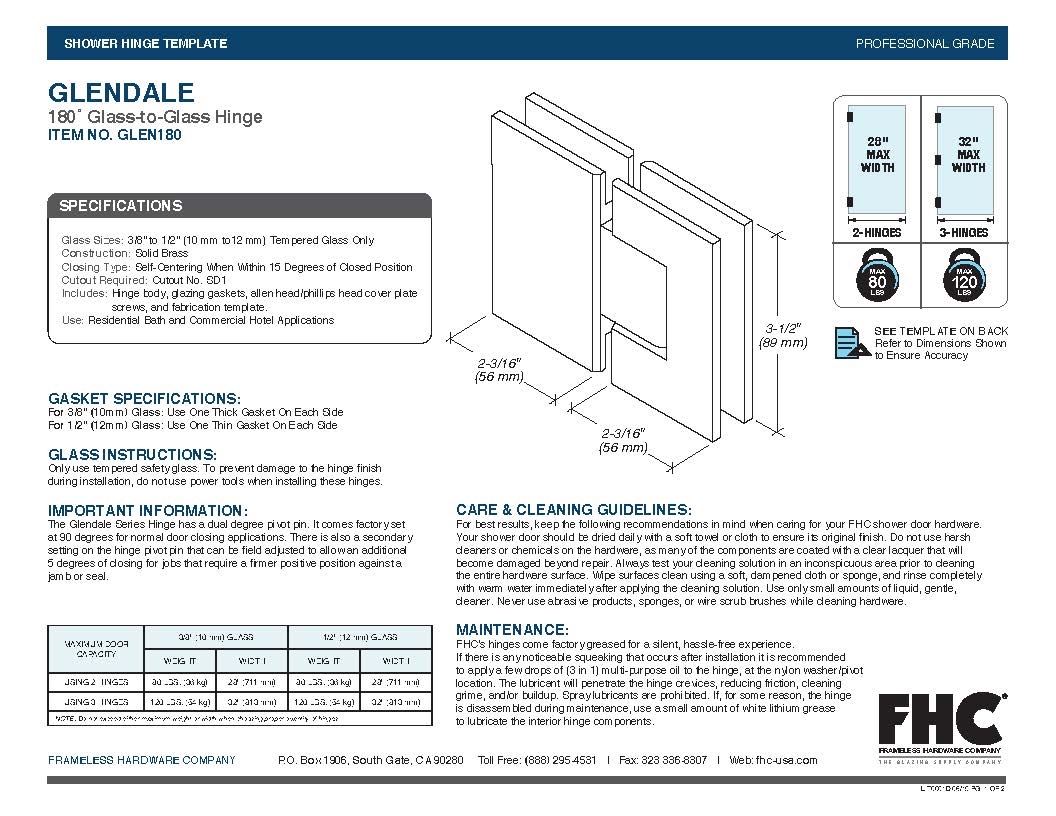

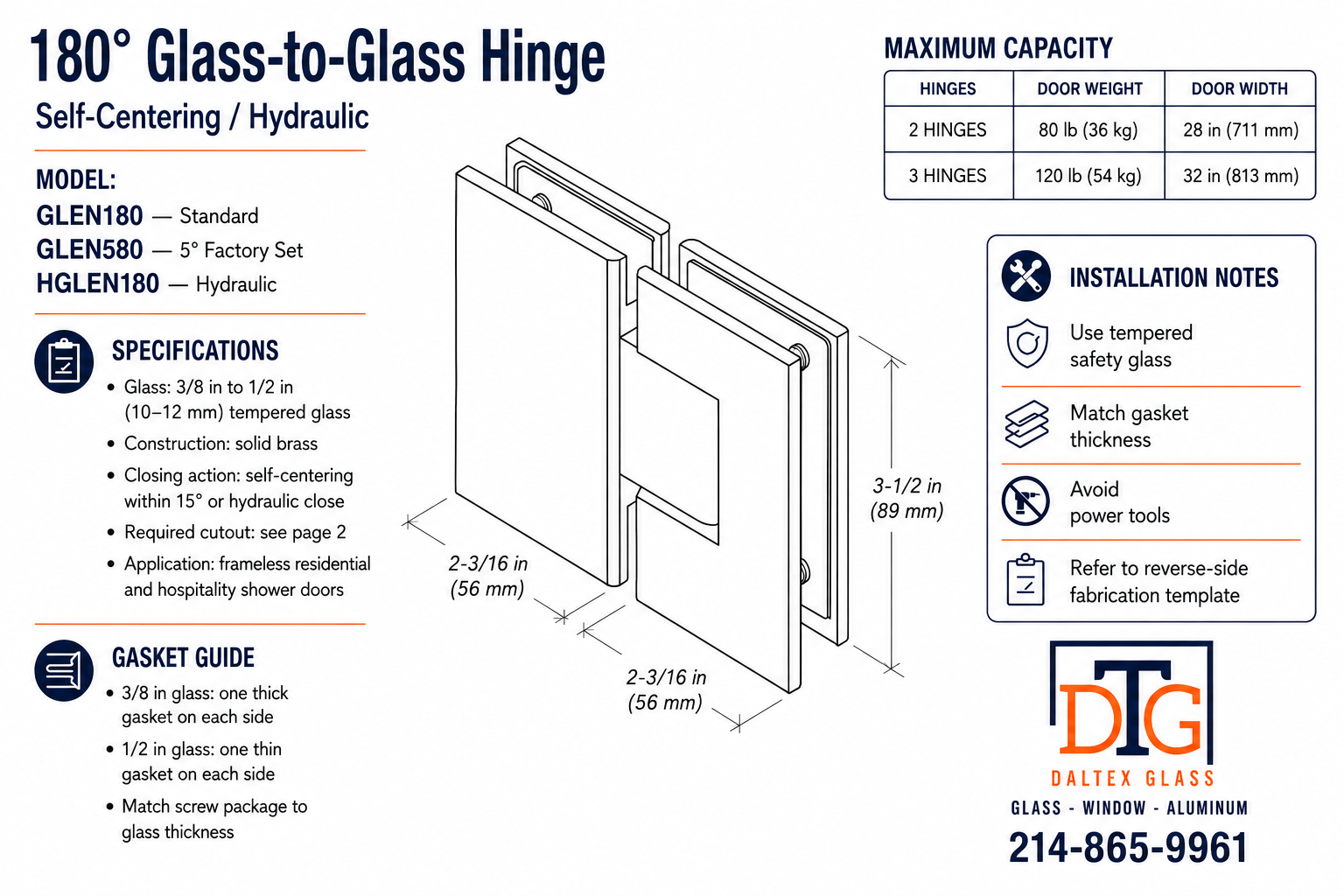

Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8″ (10 mm) GLASS Approx. 5 lb./ft² | 1/2″ (12 mm) GLASS Approx. 6.4 lb./ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 80 LBS (36 kg) | 28″ (711 mm) |
| Using 3 Hinges | 120 LBS. (54 kg) | 32″ (813 mm) |
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
