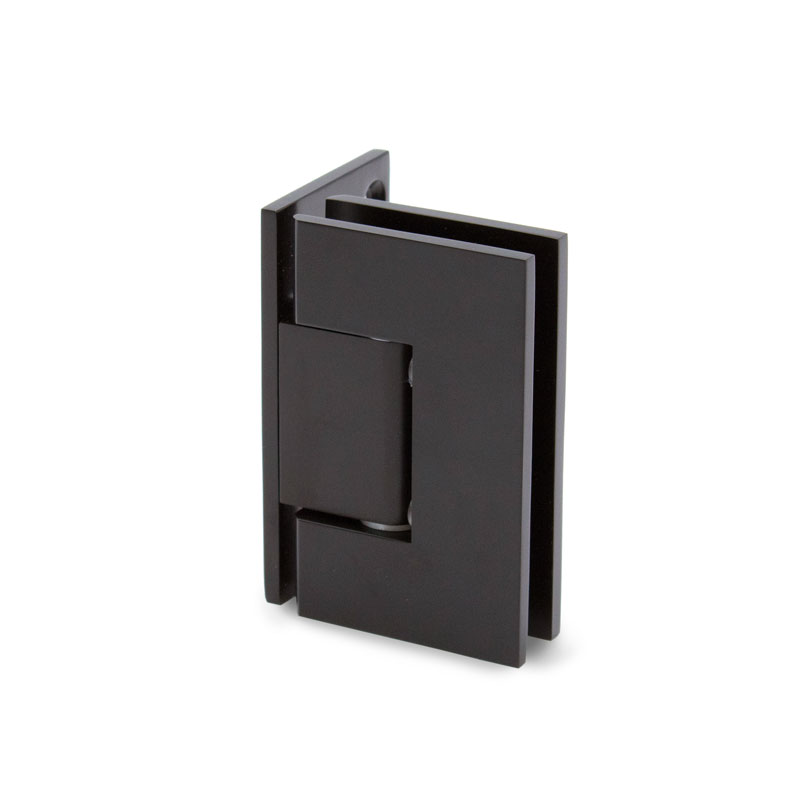

DT Jr Glendale 5 Degree Positive Wall Mount Hinge Full Offset Back Plate 1/4″ Glass
Carrier information
Payment methods
Unlimited help desk
Track or off orders
| Weight | N/A |
|---|---|
| Select Your Color/Finish | Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Chrome, Satin Brass |
| Case Quantity | 20 |
| Catalog Page | FSH24 p. 17 |
| Compare To | C5000160RB, JRG044BNH14GTWFPBNC500016BRN, JRG044CHH14GTWFPCC500016BLY, JRG044MBLH14GTWFPMBC500016BLK, JRG044SBH14GTWFPSB |
| Construction | Solid Brass |

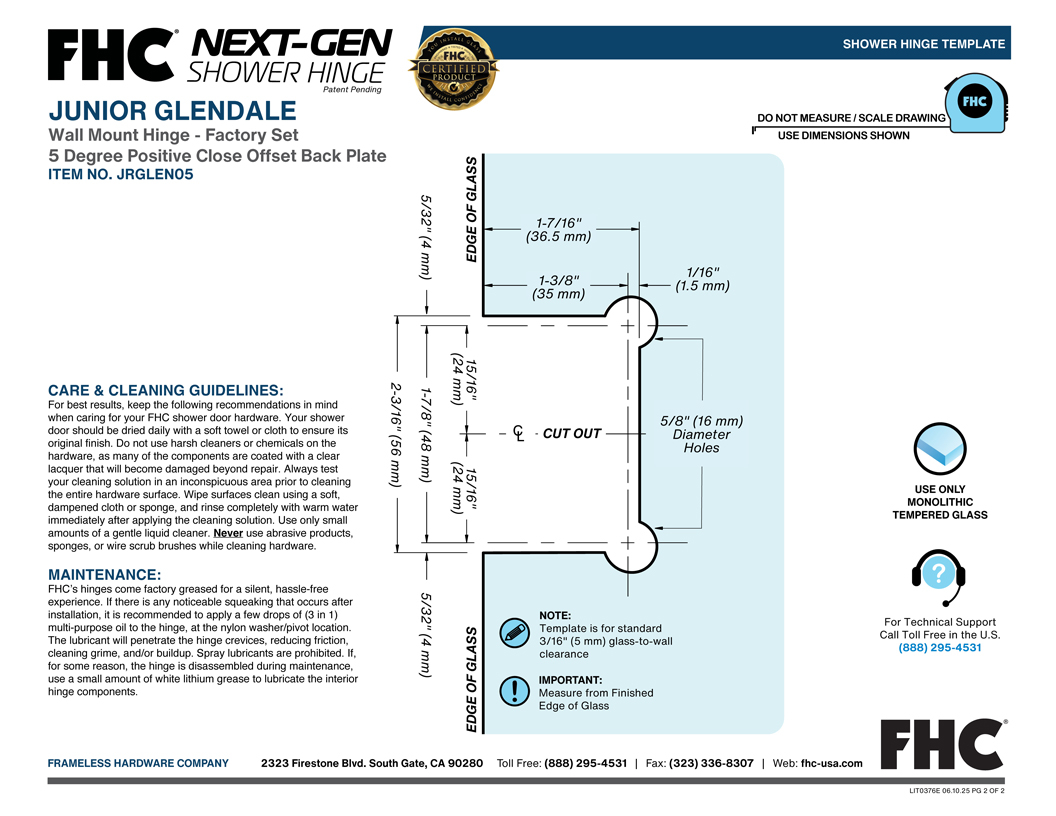

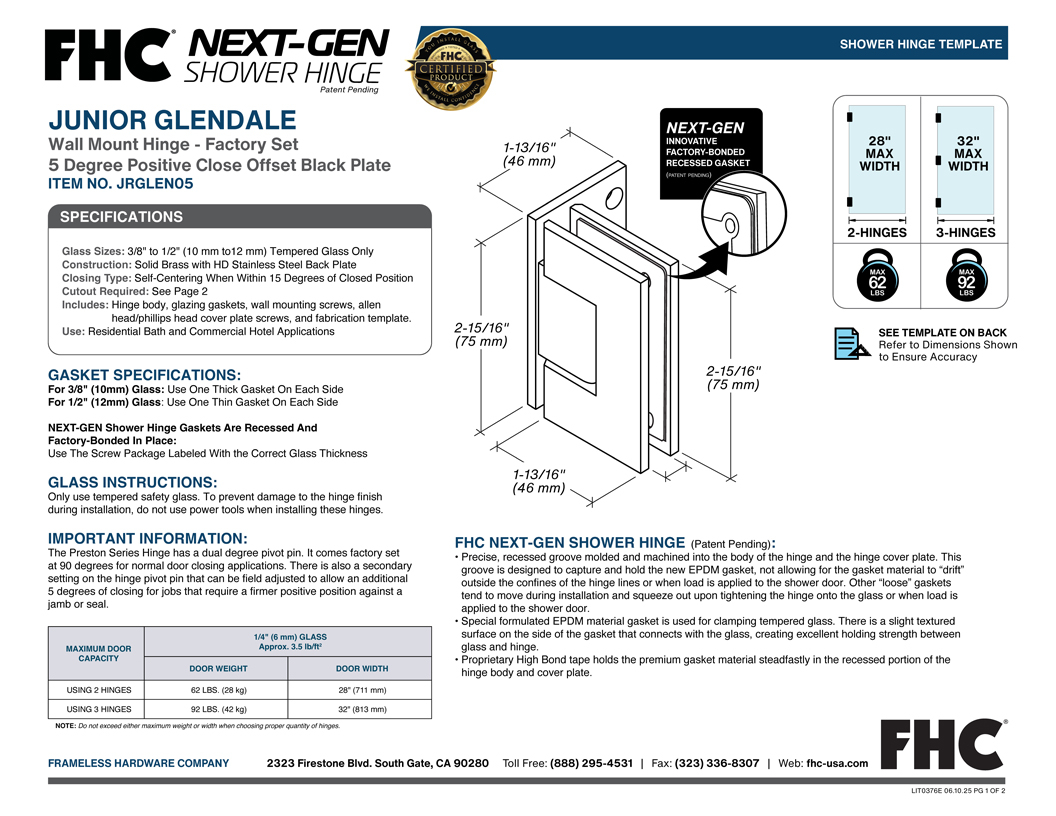

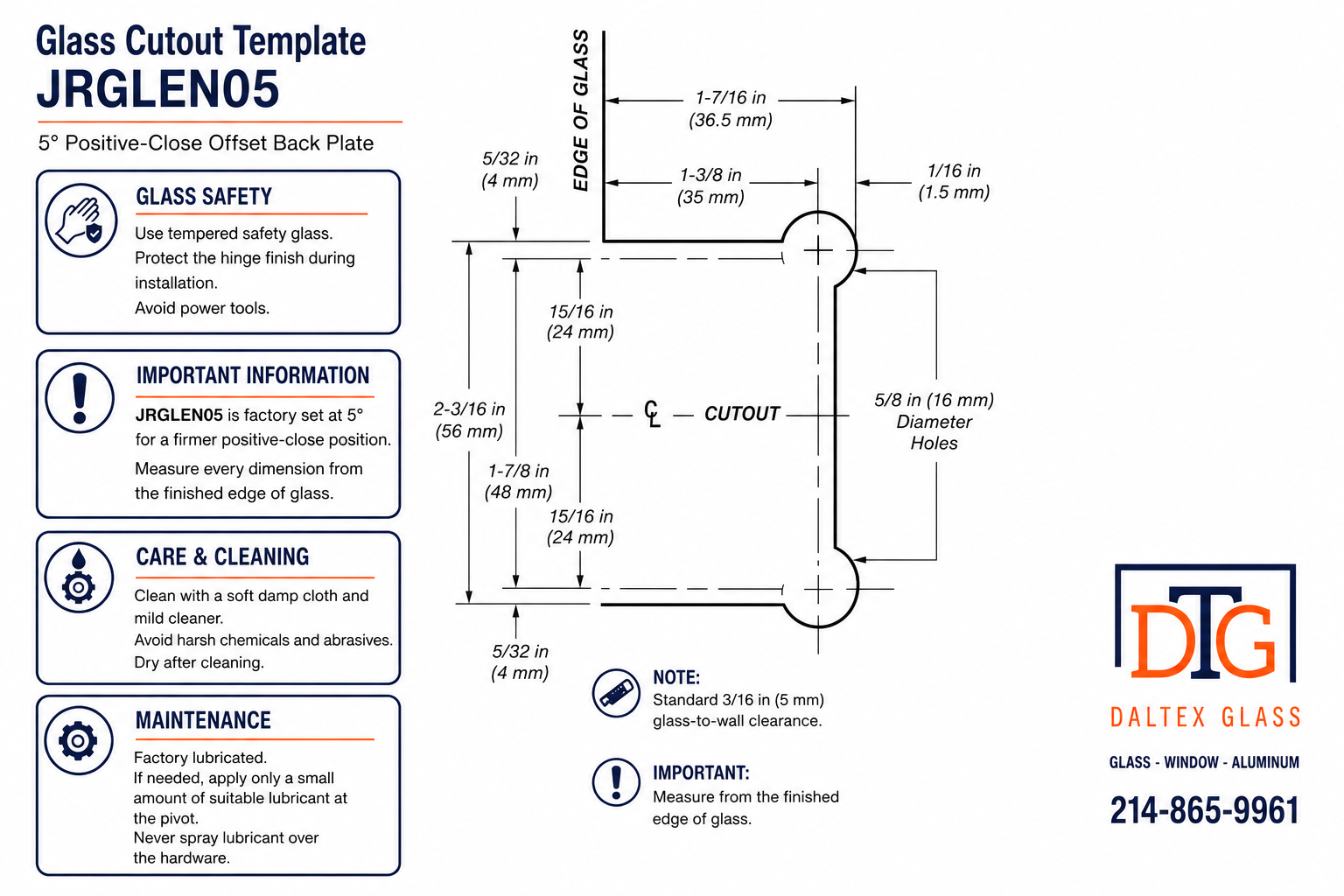

| Glass Fabrication | See Template PDF for Glass Cutouts |
| Glasss Pecifications | Tempered Glass Only |
| Glass Thickness | 1/4″ (6 mm) |
| Item No | JRGLEN05, JRGLEN050RB, JRGLEN05BN, JRGLEN05CH, JRGLEN05MB, JRGLEN05SB |
| Maximum Door Weight | 2 Hinges/55 lb, 3 Hinges/85 lb |
| Maximum Door Width | 32″ (2 Hinges), 36″ (3 Hinges) |
| Mounting Type | Wall Mounted |
| Plate Type | Offset Full Back Plate |
| Product Height | 3″ |
| Product Name | DT Jr Glendale 5 Degree Positive Wall Mount Hinge Full Offset Back Plate 1/4″ Glass, DT Jr Glendale 5 Degree Positive Wall Mount Hinge Full Offset Back Plate 1/4″ Glass - Brushed Nickel, DT Jr Glendale 5 Degree Positive Wall Mount Hinge Full Offset Back Plate 1/4″ Glass - Matte Black, DT Jr Glendale 5 Degree Positive Wall Mount Hinge Full Offset Back Plate 1/4″ Glass - Polished Chrome, DT Jr Glendale 5 Degree Positive Wall Mount Hinge Full Offset Back Plate 1/4″ Glass - Satin Brass, DT Junior Glendale 5 Degree Positive Wall Mount Hinge Full Offset Back Plate 1/4″ Glass - Oil Rubbed Bronze |
| Product Width | 1-13/16″ |
| Profile | Square |
| Ship Via | Ships UPS |
| Ships Air | Ships Air |
| Warnings | Not for use with Laminated Glass |
| Weight | 1 |
Description

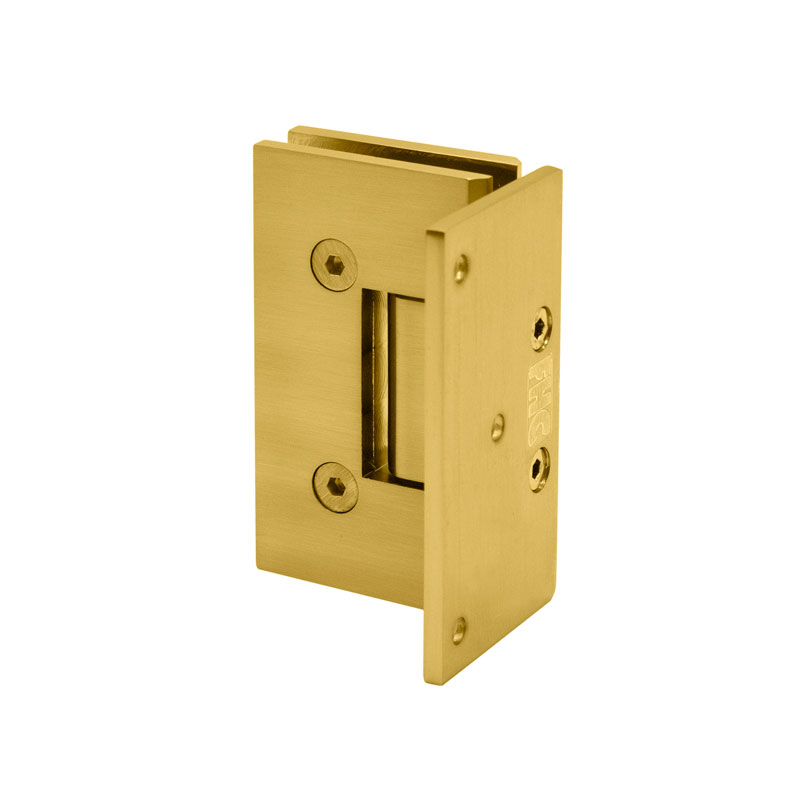

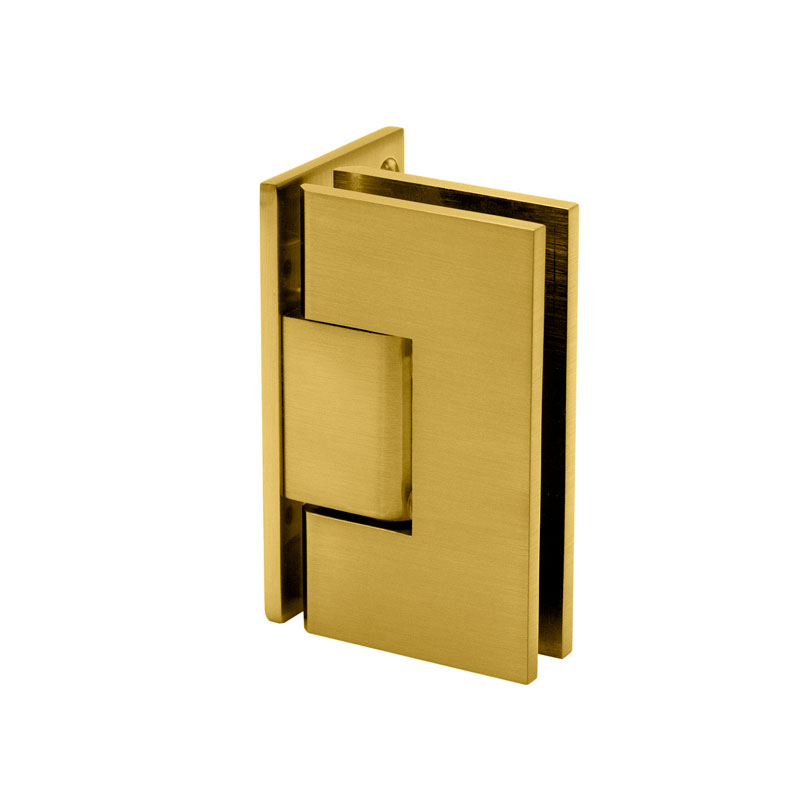

Junior Glendale Hinge for Thin 1/4-Inch Doors
The DT Jr Glendale Wall Mount Hinge is a compact Glendale series glass-to-wall hinge made for 1/4-inch glass (6 mm). It is set up with a full offset back plate, a 5-degree positive close, and a satin brass finish. The item number is JRGLEN05SB.
The Jr size fits lighter doors built from thinner 1/4-inch glass. The 5-degree positive setting nudges the door toward closed, and the full offset back plate moves it out to clear a return panel or wall step.
Key Product Features
- Glendale series Jr wall-mount hinge
- Made for 1/4-inch glass (6 mm)
- Full offset back plate for wall clearance
- 5-degree positive close
- Satin brass finish
- Item number JRGLEN05SB
Finish
Satin brass gives a warm, matte gold tone that hides fingerprints and matches coordinating hardware.
Ordering and Shipping
Listed on FSH24 catalog page 17. Ships by UPS. Sign in to see current pricing.
Prop 65 Warning: Cancer and/or Reproductive Harm. For more information visit www.p65Warnings.ca.gov
