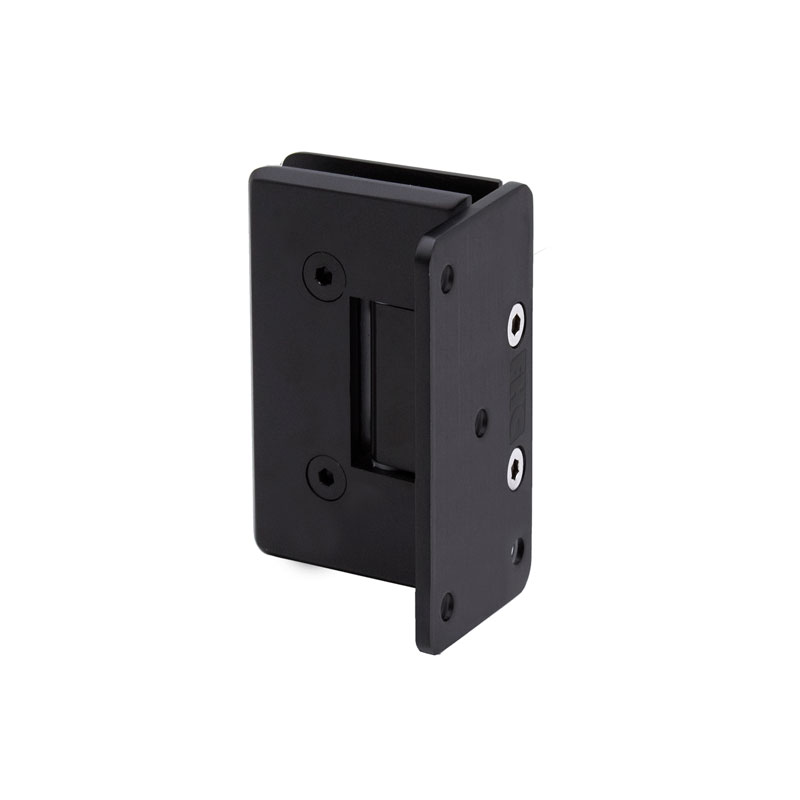

DT Jr Preston Wall Mount Hinge Full Offset Back Plate 1/4″ Glass 5 Degree Positive

Name: DT Jr Preston Wall Mount Hinge Full Offset Back Plate 1/4" Glass 5 Degree Positive
SKU: JRPRES05

SKU: JRPRES05

11 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Track or off orders

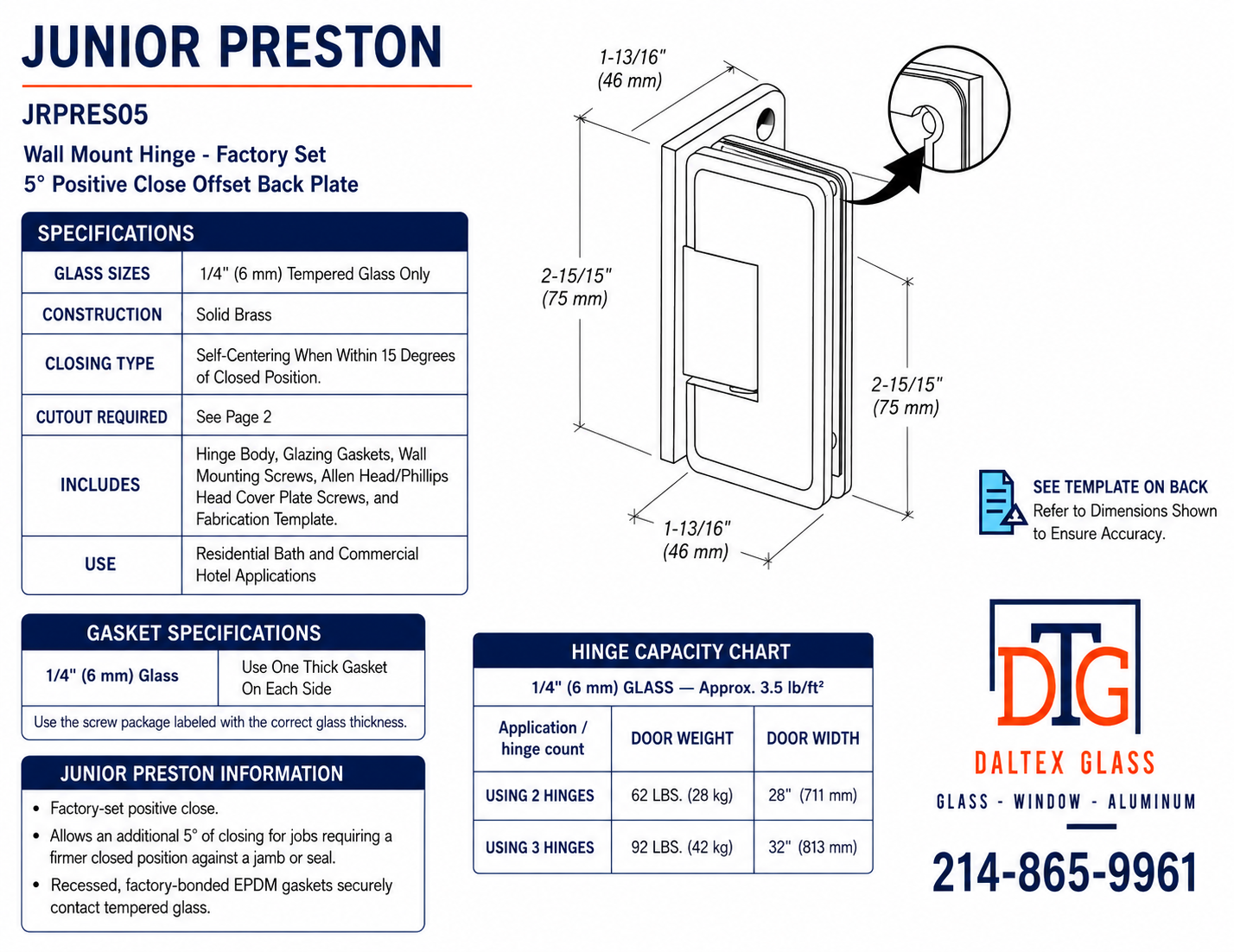

Additional information

Weight	N/A

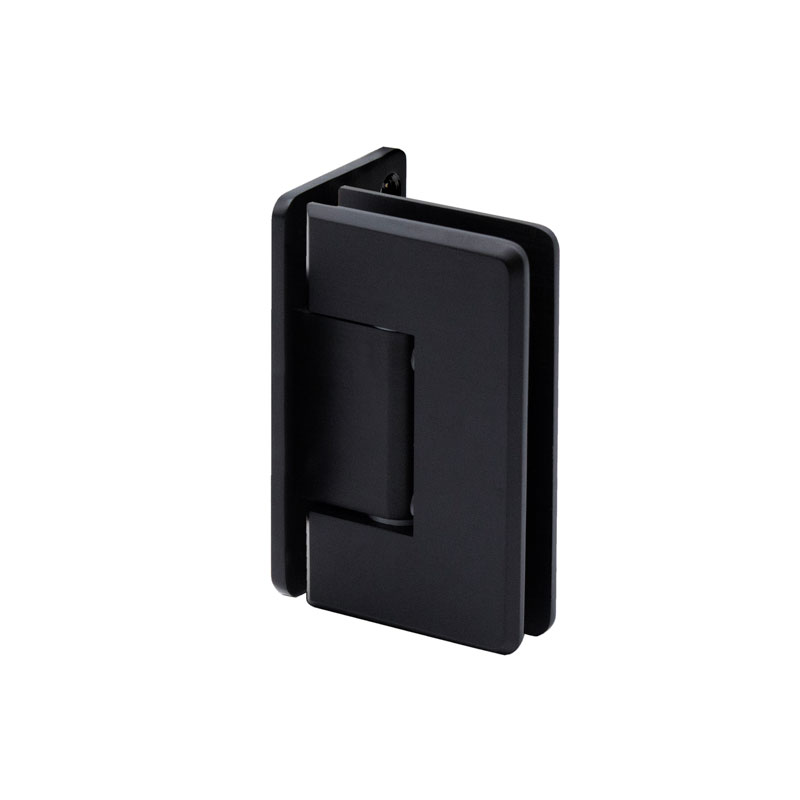

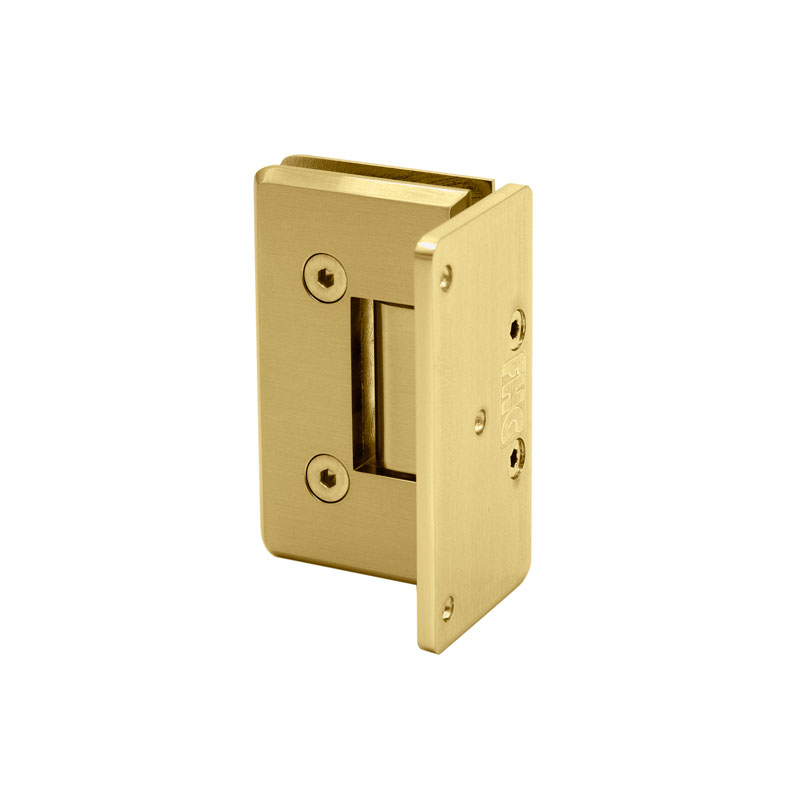

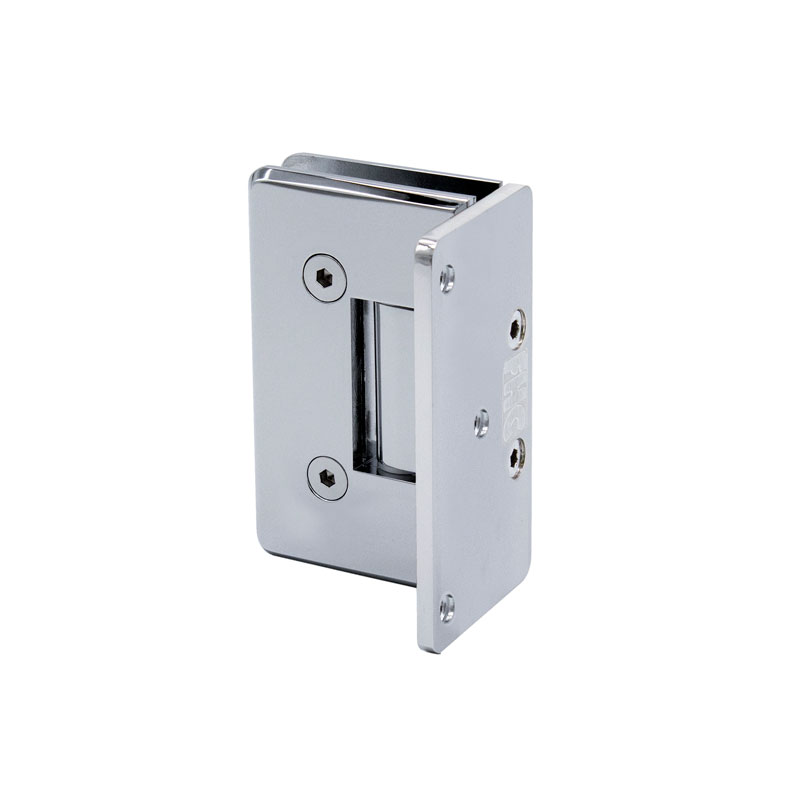

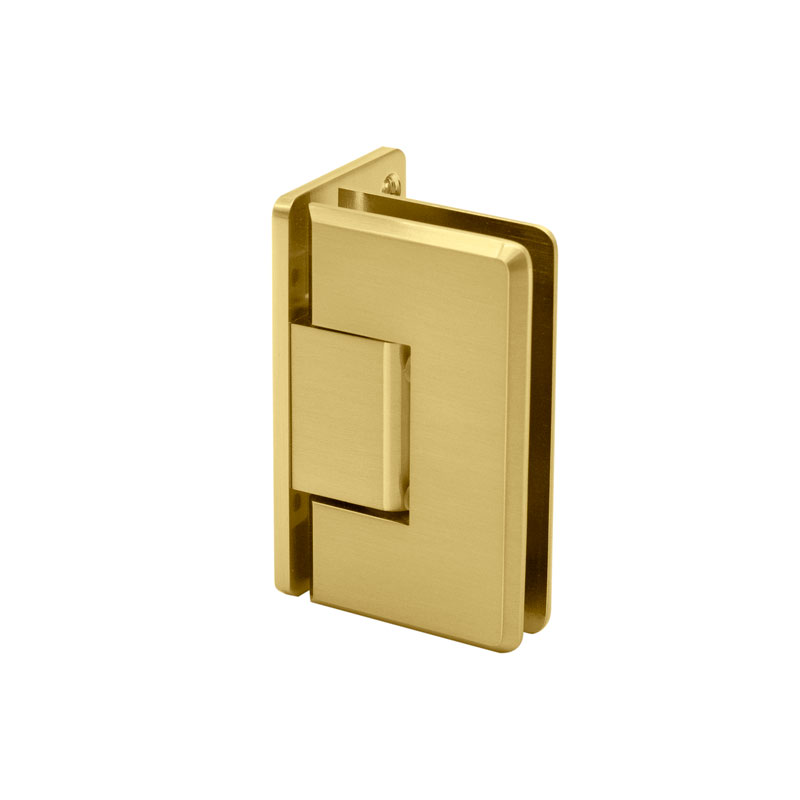

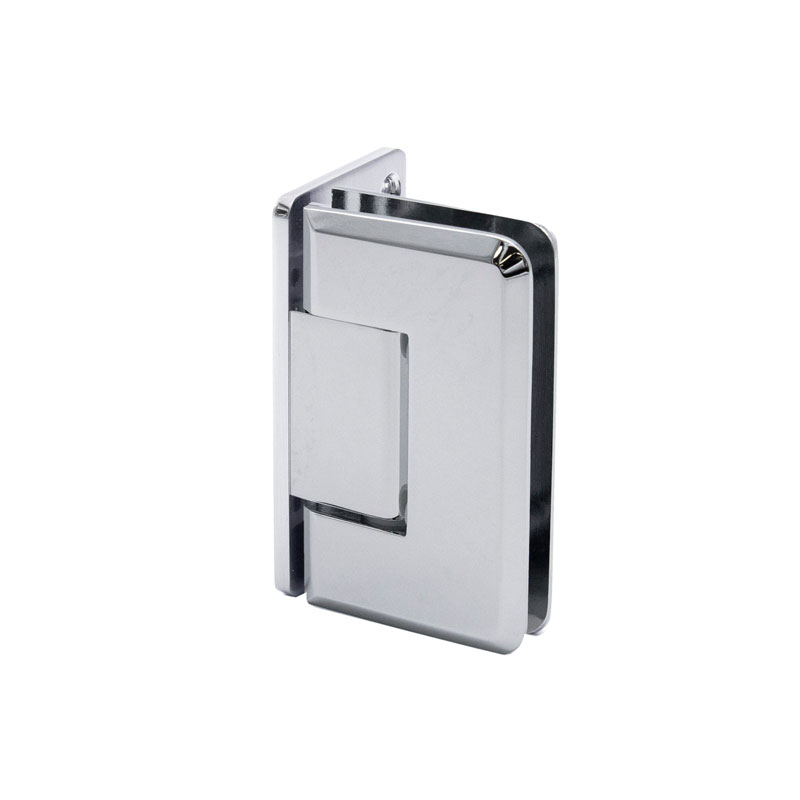

Select Your Color/Finish	Brushed Nickel, Matte Black, Polished Chrome, Satin Brass
Case Quantity	20
Catalog Page	FSH24 p. 21
Compare To	TR1044BN, TR1044CH, TR1044MBL, TR1044SB
Construction	Solid Brass

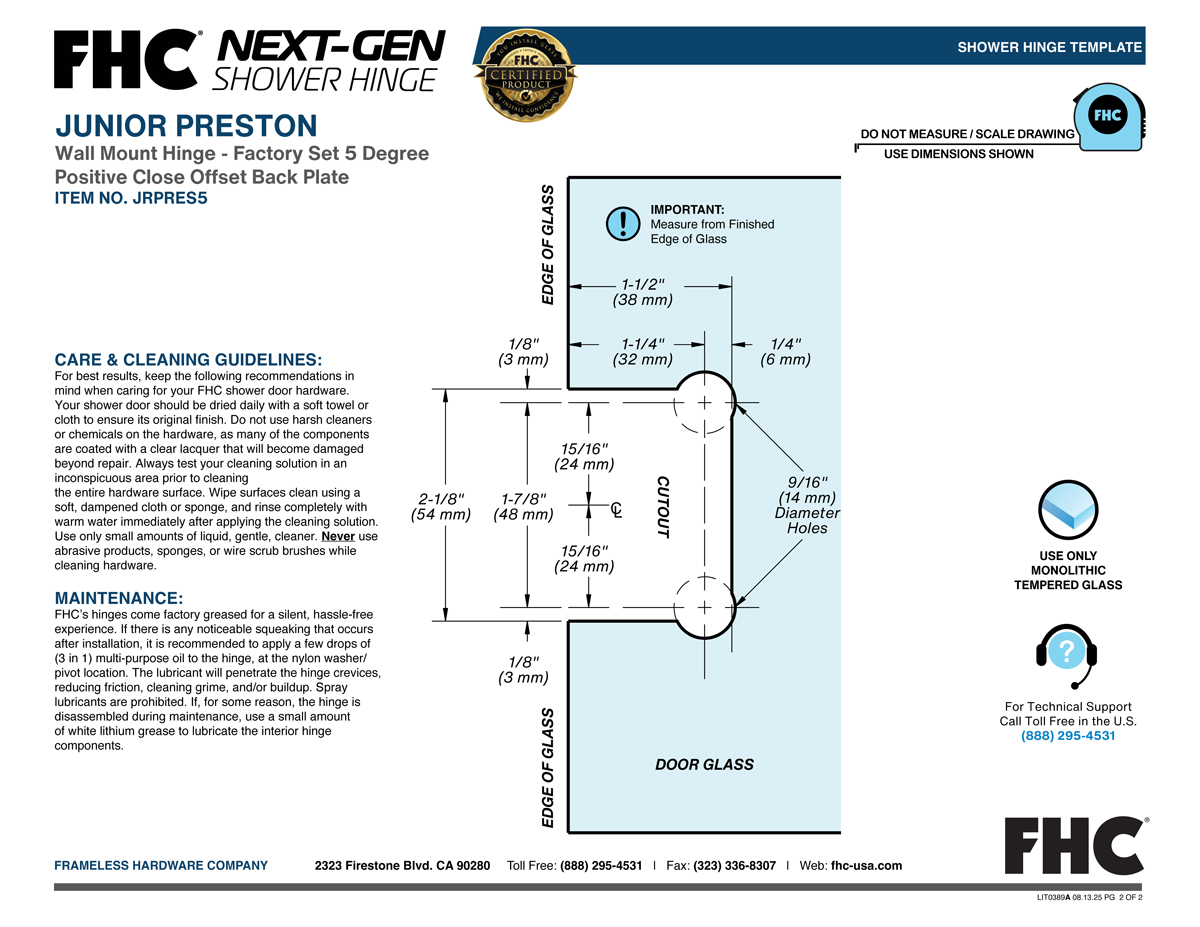

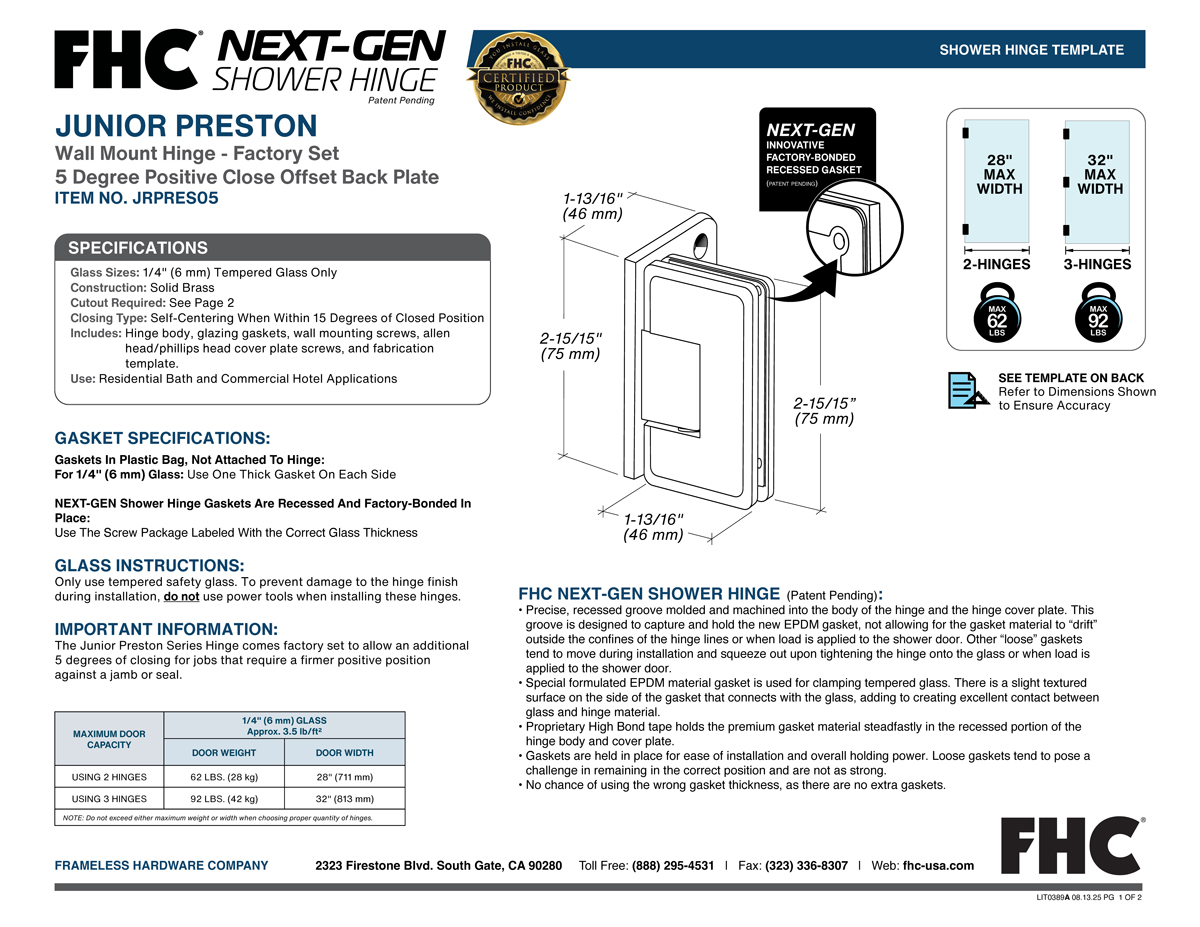

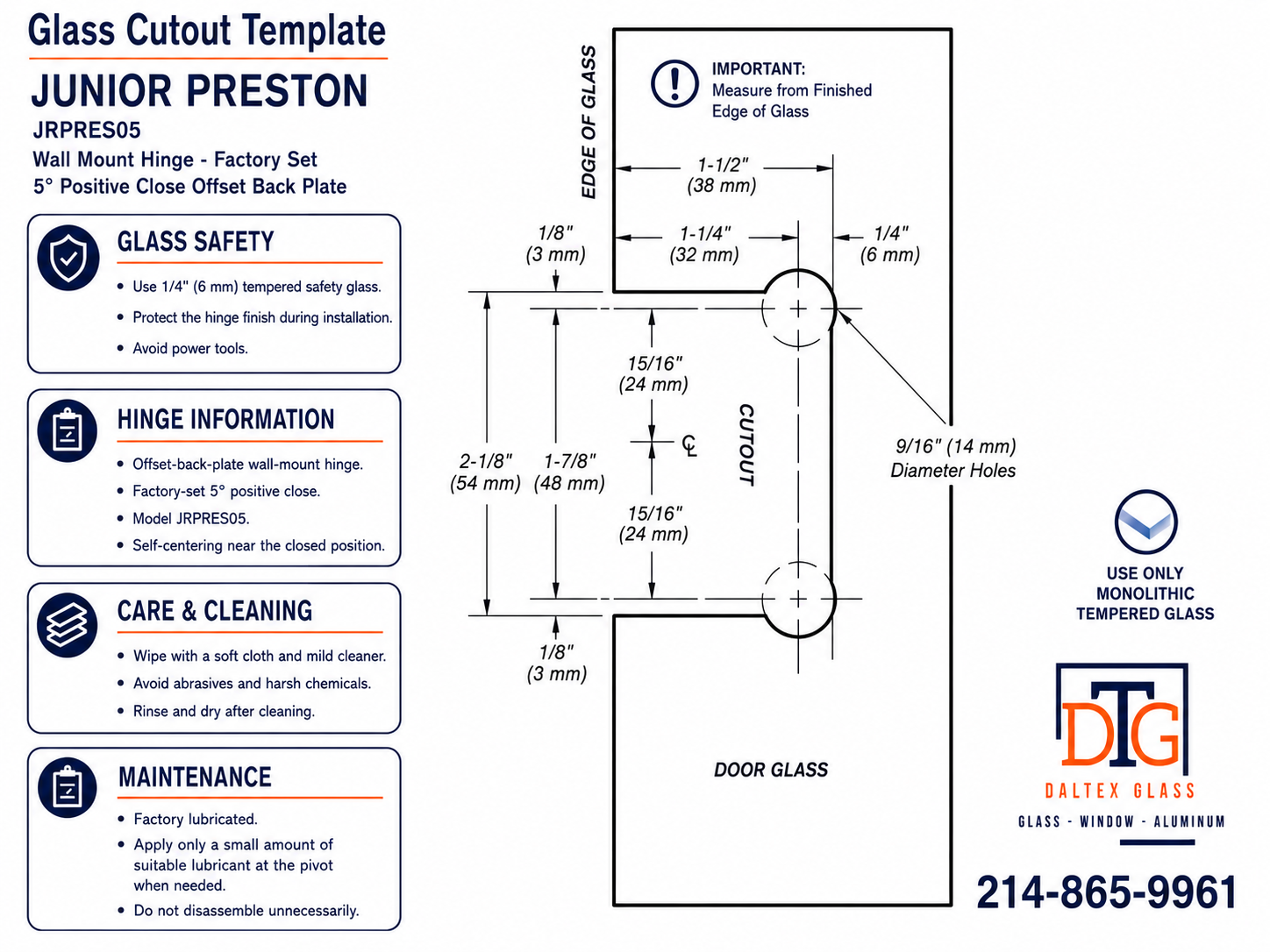

Glass Fabrication	See Template PDF for Glass Cutouts
Glasss Pecifications	Tempered Glass Only
Glass Thickness	1/4″ (6 mm)
Item No	JRPRES05, JRPRES05BN, JRPRES05CH, JRPRES05MB, JRPRES05SB
Maximum Door Weight	2 Hinges/55 lb, 3 Hinges/85 lb
Maximum Door Width	32″ (2 Hinges), 36″ (3 Hinges)
Mounting Type	Wall Mounted
Plate Type	Offset Full Back Plate
Product Height	3″
Product Name	DT Jr Preston Wall Mount Hinge Full Offset Back Plate 1/4″ Glass 5 Degree Positive, DT Jr Preston Wall Mount Hinge Full Offset Back Plate 1/4″ Glass 5 Degree Positive – Brushed Nickel, DT Jr Preston Wall Mount Hinge Full Offset Back Plate 1/4″ Glass 5 Degree Positive – Matte Black, DT Jr Preston Wall Mount Hinge Full Offset Back Plate 1/4″ Glass 5 Degree Positive – Polished Chrome, DT Jr Preston Wall Mount Hinge Full Offset Back Plate 1/4″ Glass 5 Degree Positive – Satin Brass
Product Width	1-13/16″
Profile	Beveled
Ship Via	Ships UPS
Ships Air	Ships Air
Warnings	Not for use with Laminated Glass
Weight	1

Description
