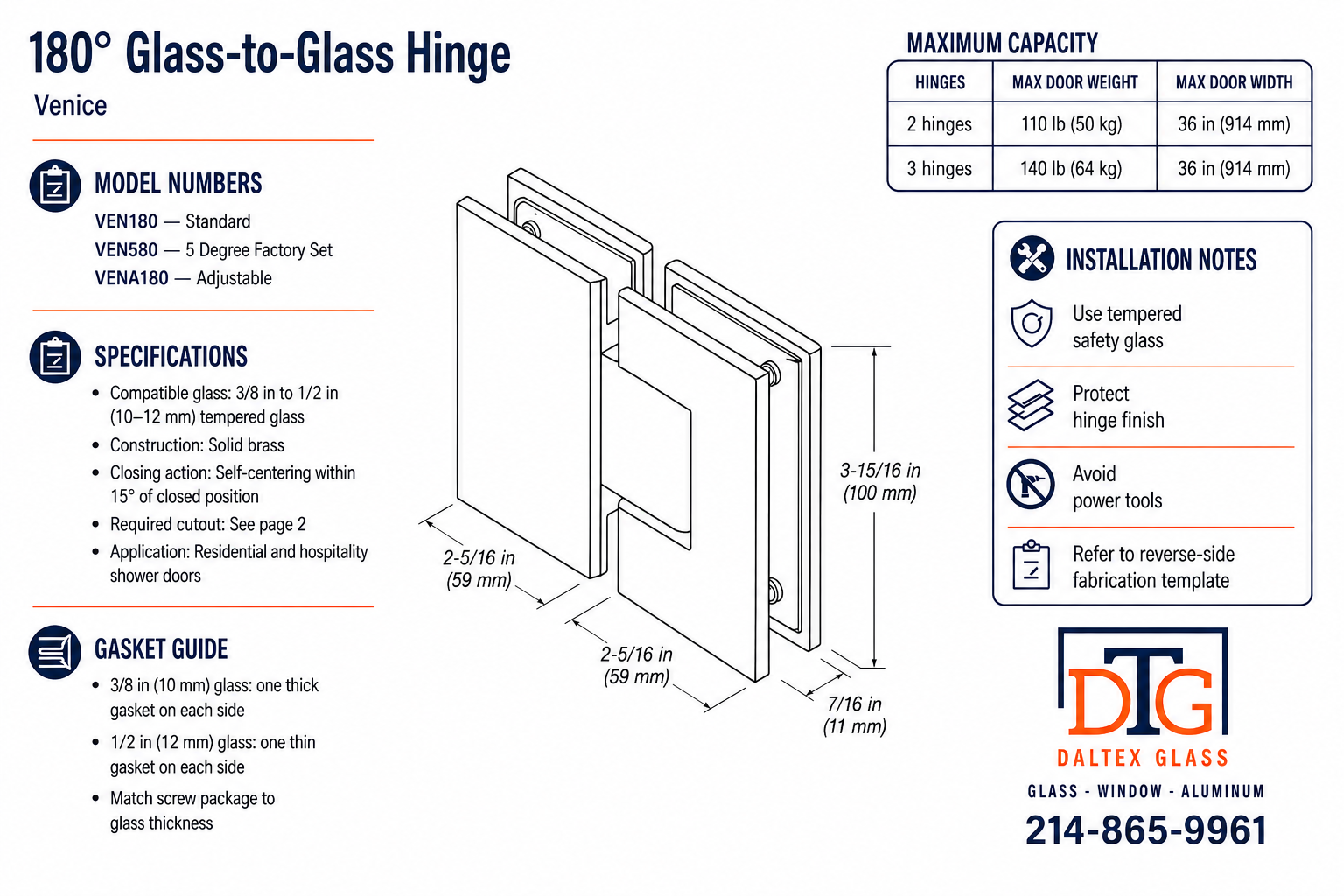

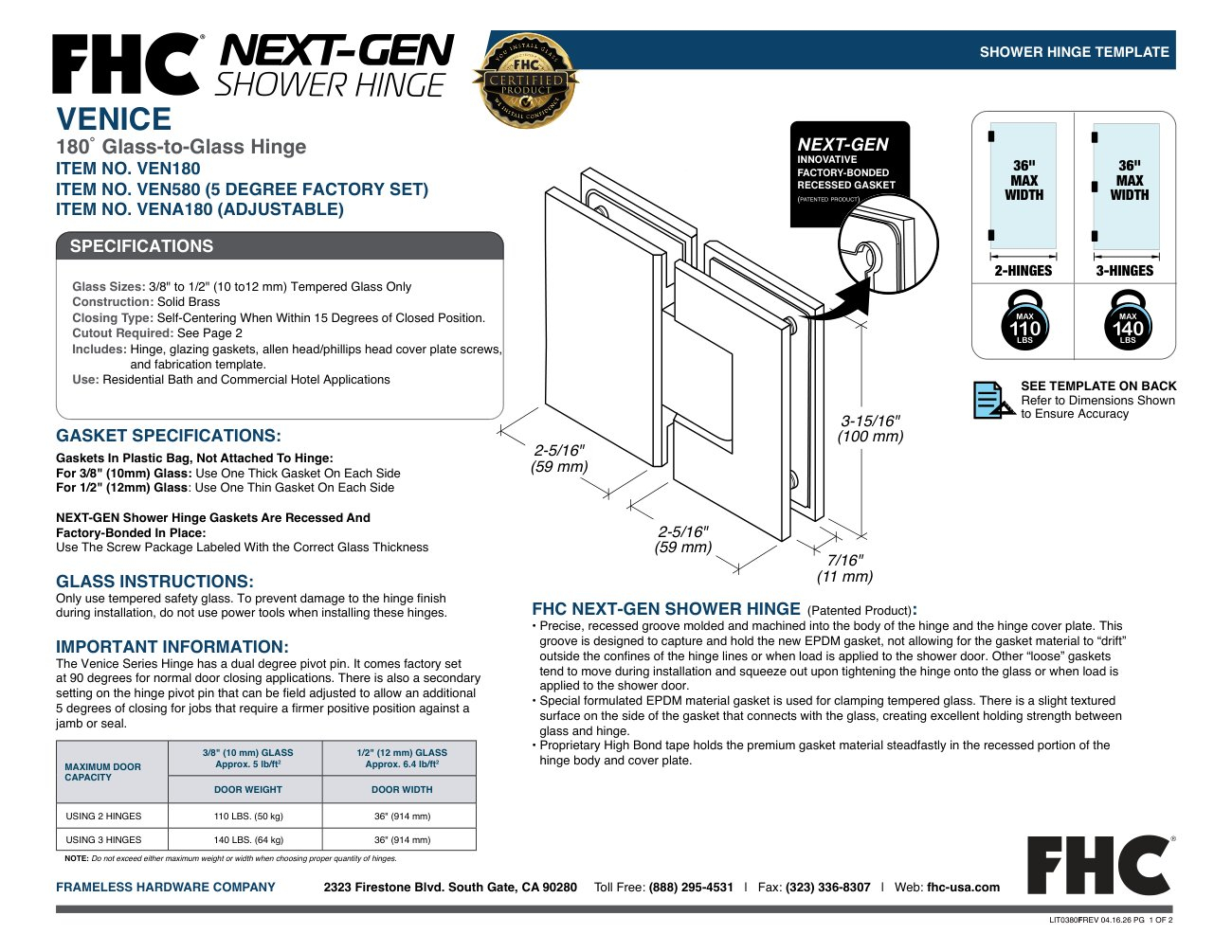

DT Venice Series 180 Degree Adjustable Glass-to-Glass Hinge for 3/8″ to 1/2″ Glass
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| Weight | N/A |
|---|---|
| Select Your Color/Finish | Brushed Nickel, Matte Black, Polished Chrome, Satin Brass |
| Case Quantity | 20 |
| Compare To | C50-0075BRN, C500075BLK, C500075BLY, C500075BRN, C500075SAB |
| Degree | 180 Degree |
| Glass Thickness | 3/8″ or 1/2″ |
| Item No | VENA180, VENA180BN, VENA180CH, VENA180MB, VENA180SB |
| Material | Solid Brass |
| Maximum Door Width | 36″ (2 or 3 Hinges) |
| Product Height | 3-15/16″ |
| Product Name | DT Venice Series 180 Degree Adjustable Glass-to-Glass Hinge for 3/8″ to 1/2″ Glass, DT Venice Series 180 Degree Adjustable Glass-to-Glass Hinge for 3/8″ to 1/2″ Glass – Brushed Nickel, DT Venice Series 180 Degree Adjustable Glass-to-Glass Hinge for 3/8″ to 1/2″ Glass – Matte Black, DT Venice Series 180 Degree Adjustable Glass-to-Glass Hinge for 3/8″ to 1/2″ Glass – Polished Chrome, DT Venice Series 180 Degree Adjustable Glass-to-Glass Hinge for 3/8″ to 1/2″ Glass – Satin Brass |
| Product Width | 2-5/16″ (Sidelite), 2-5/16″ (Door) |
| Profile | Square |
| Weight | 3 |
| Weight Capacity | 2 Hinges/110 lb, 3 Hinges/140 lb |
Description
Adjustable 180 Degree Glass-to-Glass Hinge for Thicker Panels
The DT Venice Series 180 Degree Adjustable Glass-to-Glass Hinge (item VENA180SB) connects two glass panels in a straight 180 degree line and fits 3/8-inch or 1/2-inch tempered glass. The adjustable action lets you set the door position after the hinge is mounted.
This one is built for heavier 3/8-inch and 1/2-inch doors, so it suits larger in-line enclosures where a swing panel meets a fixed panel on the same plane. Mounting to the adjacent glass keeps the run clean without a wall jamb. The Satin Brass finish matches the rest of the Venice series.
Key Product Features
- Glass-to-glass shower hinge, 180 degree in-line
- Adjustable door position after install
- Fits 3/8-inch or 1/2-inch tempered glass
- Venice series, sized for heavier doors

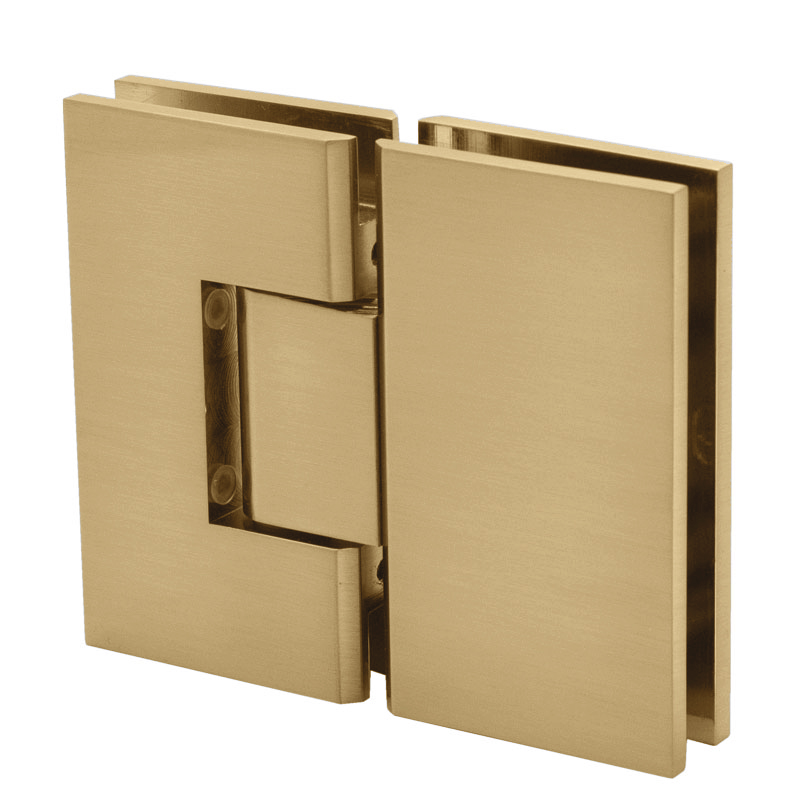

- Satin Brass finish
- Compare to C500075SAB
Finish
The Satin Brass finish is warm with a soft sheen. Wipe it down with a soft cloth and mild soap and avoid abrasives so the surface stays consistent.
Ordering and Shipping
Sign in to see current pricing.
