DT Jr Preston 90 Degree Glass-to-Glass Hinge for 1/4″ Glass
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| Weight | N/A |
|---|---|
| Select Your Color/Finish | Brushed Nickel, Matte Black, Polished Chrome, Satin Brass |
| Case Quantity | 20 |
| Catalog Page | FSH24 p. 21 |
| Compare To | TR1092BN, TR1092CH, TR1092MBL, TR1092SB |
| Degree | 90 Degree |
| Glass Thickness | 1/4″-5/16″ |
| Item No | JRPRES90, JRPRES90BN, JRPRES90CH, JRPRES90MB, JRPRES90SB |
| Material | Solid Brass |
| Maximum Door Width | 28″ (2 Hinges), 32″ (3 Hinges) |
| Product Height | 2-15/16″ |
| Product Name | DT Jr Preston 90 Degree Glass-to-Glass Hinge for 1/4″ Glass, DT Jr Preston 90 Degree Glass-to-Glass Hinge for 1/4″ Glass – Brushed Nickel, DT Jr Preston 90 Degree Glass-to-Glass Hinge for 1/4″ Glass – Matte Black, DT Jr Preston 90 Degree Glass-to-Glass Hinge for 1/4″ Glass – Polished Chrome, DT Jr Preston 90 Degree Glass-to-Glass Hinge for 1/4″ Glass – Satin Brass |
| Profile | Beveled |
| Weight | 1.2 |
| Weight Capacity | 2 Hinges/62 lb, 3 Hinges/92 lb |
Description

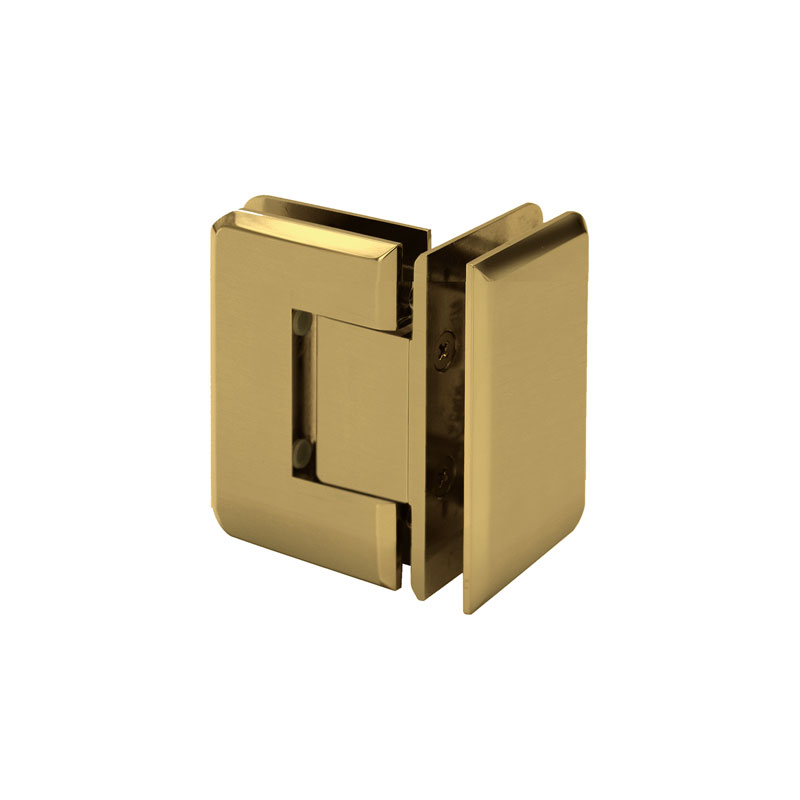

90 Degree Glass-to-Glass Hinge for 1/4-Inch Shower Doors
The DT Jr Preston 90 Degree Glass-to-Glass Hinge (item JRPRES90SB) joins two glass panels at a 90 degree corner and fits 1/4-inch to 5/16-inch glass. This is the junior Preston size, made for lighter 1/4-inch doors rather than heavy thick-glass panels.
Reach for it where a swing door meets a fixed return panel at a right angle, such as a neo or corner enclosure. Carrying the door off the adjacent glass keeps the corner frameless with no wall post. The Satin Brass finish coordinates with the rest of the Preston series.
Key Product Features
- Glass-to-glass shower hinge, 90 degree corner
- Fits 1/4-inch to 5/16-inch tempered glass
- Junior Preston size for lighter doors
- Satin Brass finish
- Compare to TR1092SB
Finish
The Satin Brass finish has a soft, warm tone. Clean it with a soft cloth and mild soap and skip abrasive pads so it wears evenly.
Ordering and Shipping
Listed on page 21 of the FSH24 catalog. Sign in to see current pricing.
