DT Jr Preston 180 Degree Glass-to-Glass Hinge for 1/4″ Glass
18
People watching this product now!
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders

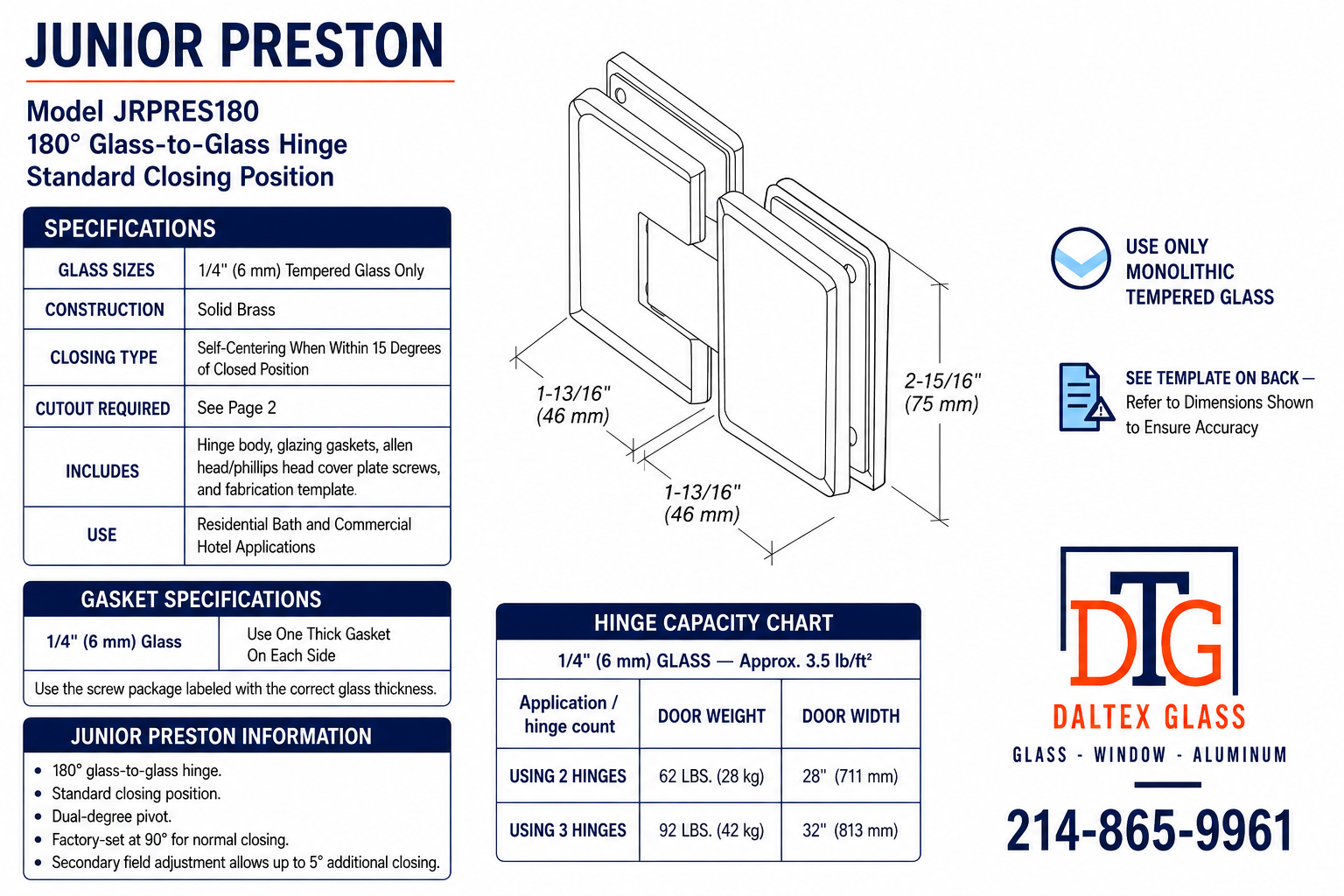

Additional information
| Weight | N/A |
|---|---|

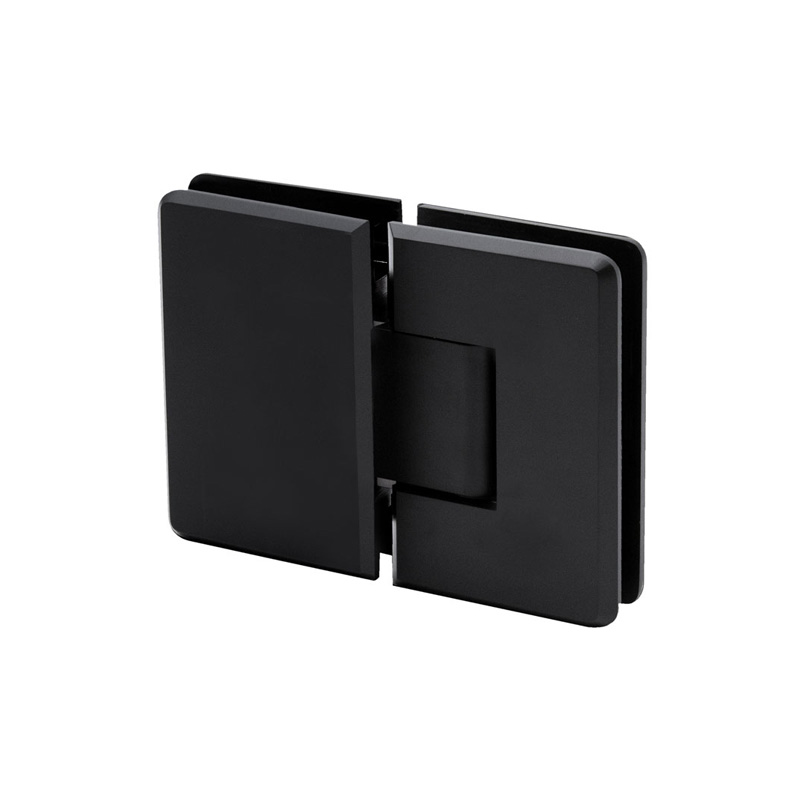

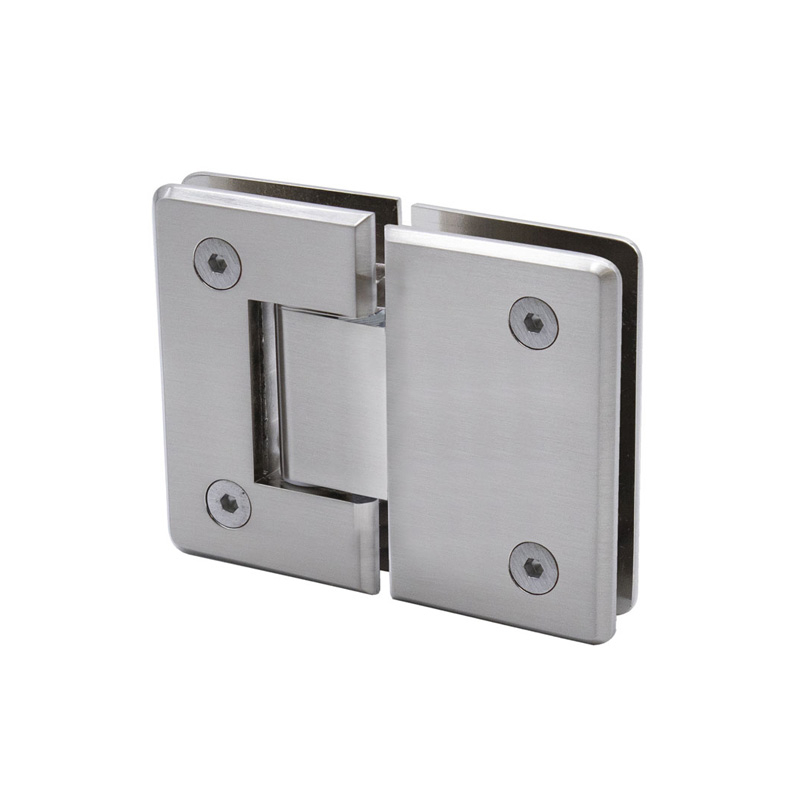

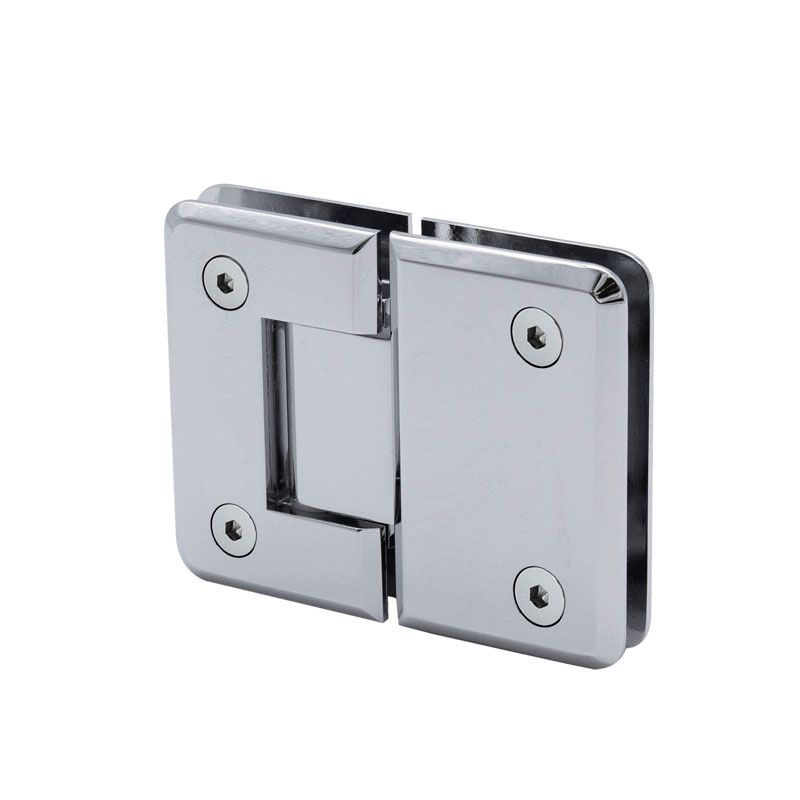

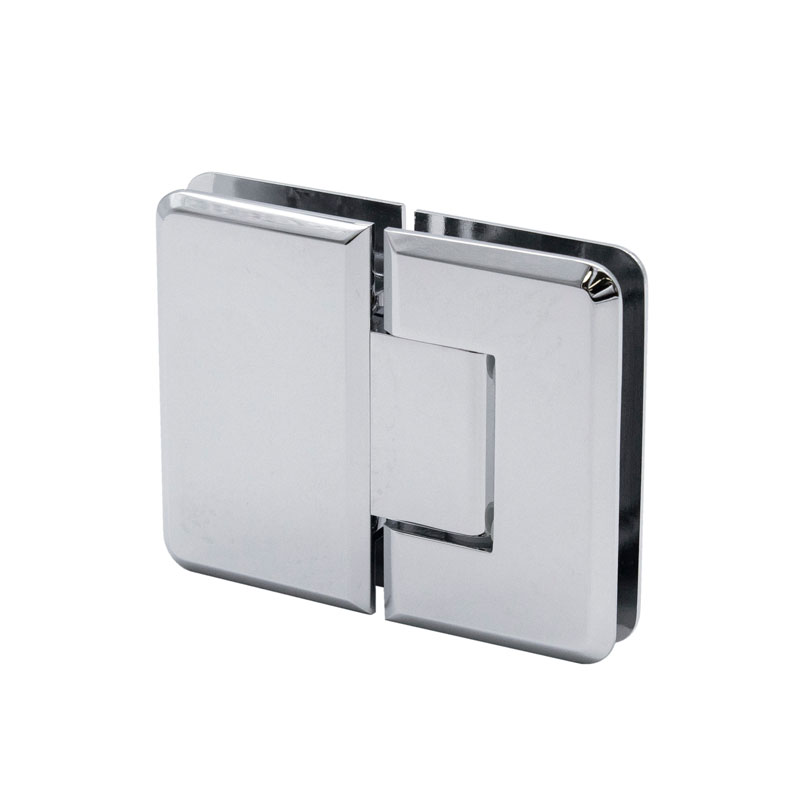

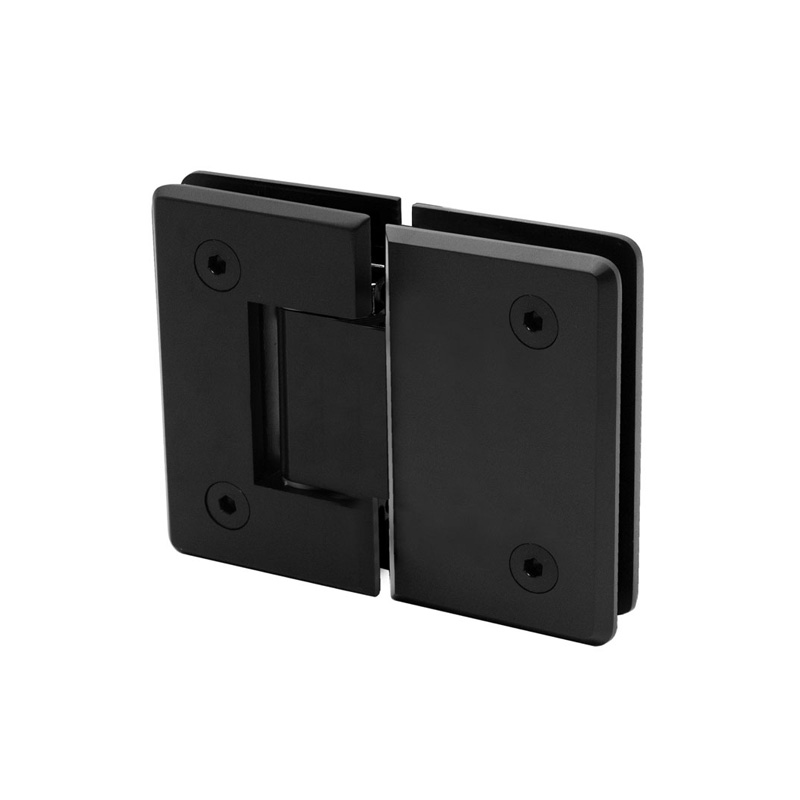

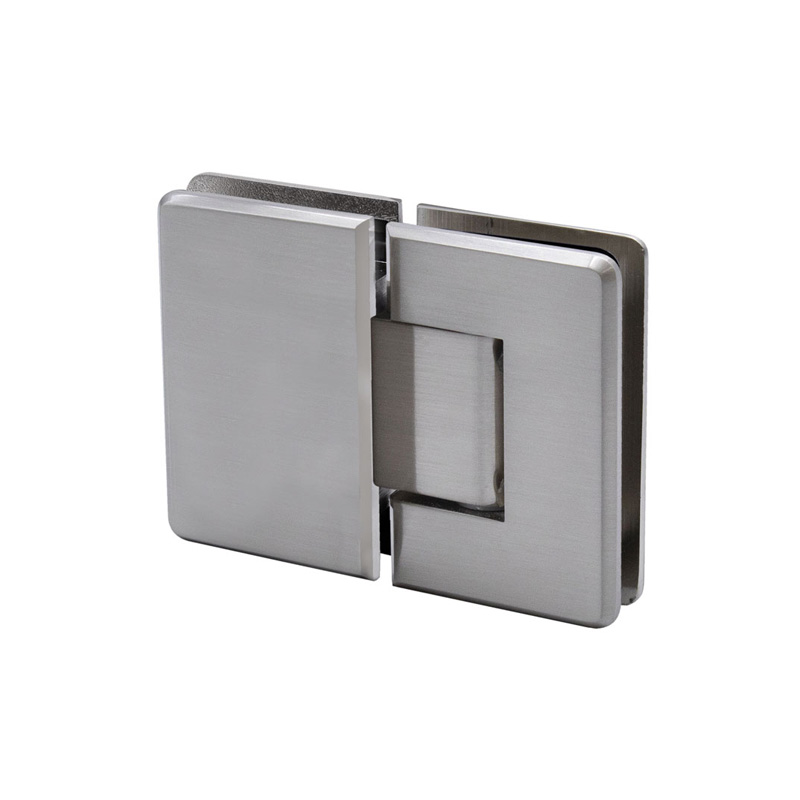

| Select Your Color/Finish | Brushed Nickel, Matte Black, Polished Chrome, Satin Brass |
| Case Quantity | 20 |
| Catalog Page | FSH24 p. 21 |
| Compare To | TR1180BN, TR1180CH, TR1180MBL, TR1180SB |
| Degree | 180 Degree |
| Glass Thickness | 1/4″-5/16″ |
| Item No | JRPRES180, JRPRES180BN, JRPRES180CH, JRPRES180MB, JRPRES180SB |
| Material | Solid Brass |
| Maximum Door Width | 28″ (2 Hinges), 32″ (3 Hinges) |
| Product Height | 2-15/16″ |
| Product Name | DT Jr Preston 180 Degree Glass-to-Glass Hinge for 1/4″ Glass, DT Jr Preston 180 Degree Glass-to-Glass Hinge for 1/4″ Glass – Brushed Nickel, DT Jr Preston 180 Degree Glass-to-Glass Hinge for 1/4″ Glass – Matte Black, DT Jr Preston 180 Degree Glass-to-Glass Hinge for 1/4″ Glass – Polished Chrome, DT Jr Preston 180 Degree Glass-to-Glass Hinge for 1/4″ Glass – Satin Brass |
| Product Width | 1-13/16″ (Sidelite), 1-13/16″(Door) |
| Profile | Beveled |
| Weight | 1.4 |
| Weight Capacity | 2 Hinges/62 lb, 3 Hinges/92 lb |
Description
180 Degree Glass-to-Glass Hinge for 1/4-Inch Shower Doors
The DT Jr Preston 180 Degree Glass-to-Glass Hinge (item JRPRES180SB) joins two glass panels in a straight, in-line run and fits 1/4-inch to 5/16-inch glass. It is the junior Preston size, matched to lighter 1/4-inch doors.
Use it where a swing door and a fixed panel sit edge to edge on the same plane, as in an in-line frameless enclosure. Mounting the door off the neighboring glass keeps the line clean without a wall jamb. The Satin Brass finish matches other Preston series parts.
Key Product Features
- Glass-to-glass shower hinge, 180 degree in-line
- Fits 1/4-inch to 5/16-inch tempered glass
- Junior Preston size for lighter doors

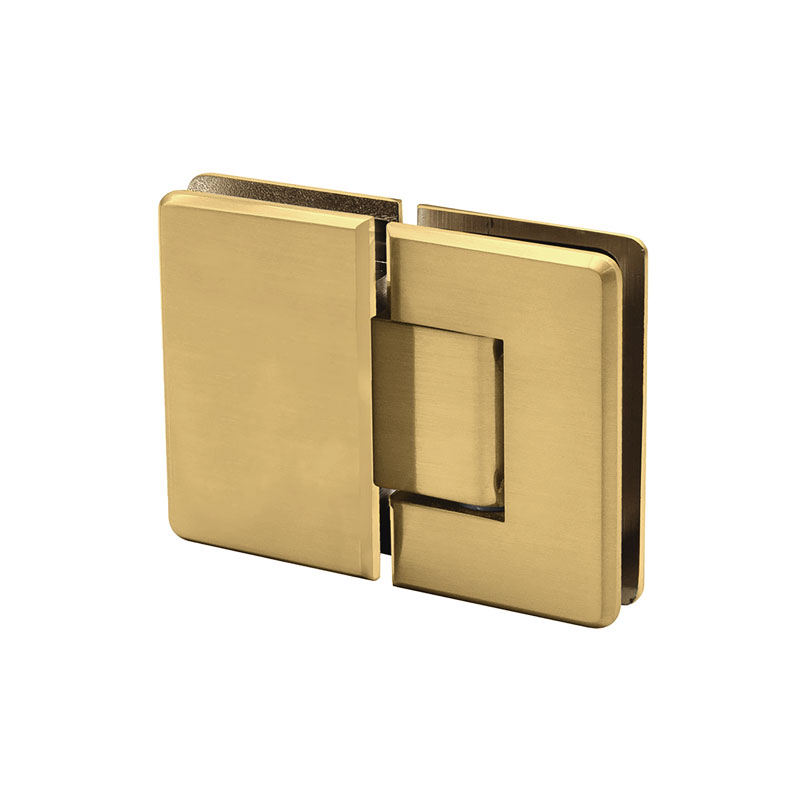

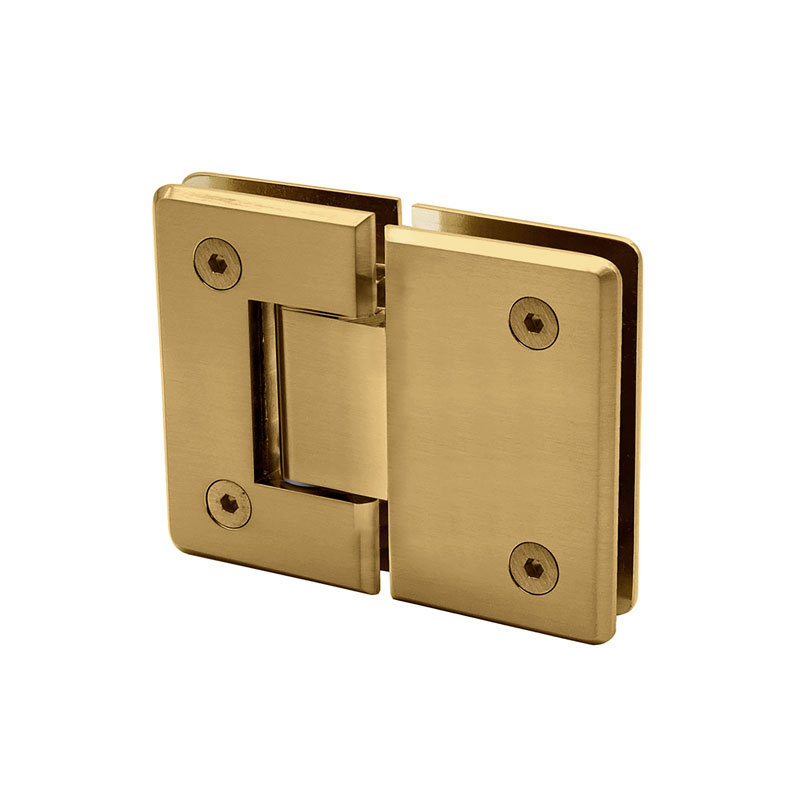

- Satin Brass finish
- Compare to TR1180SB
Finish
The Satin Brass finish is warm with a low sheen. Wipe it with a soft cloth and mild soap and avoid abrasive cleaners.
Ordering and Shipping
Listed on page 21 of the FSH24 catalog. Sign in to see current pricing.
