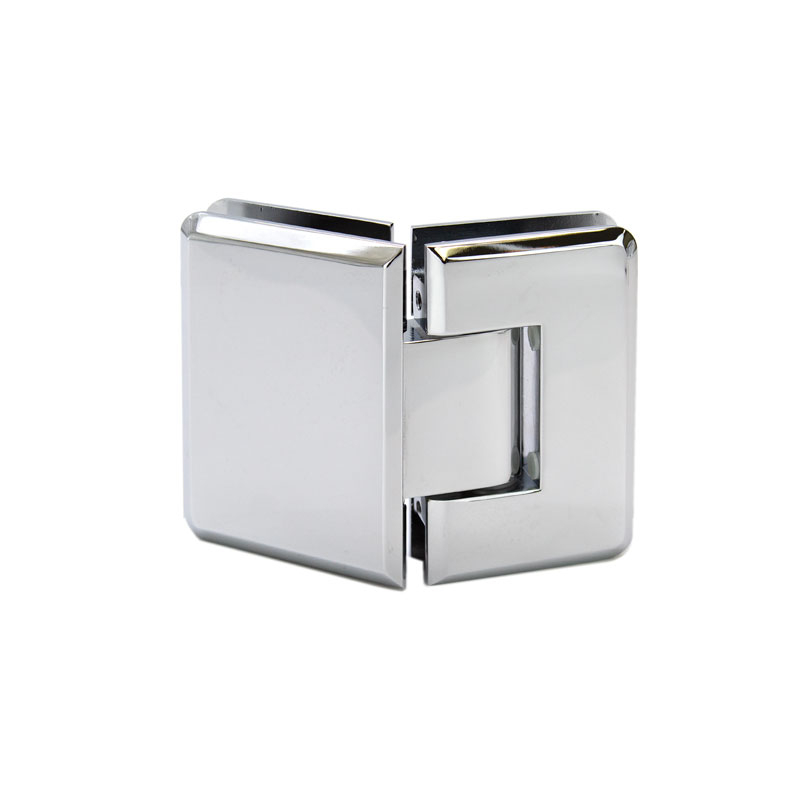

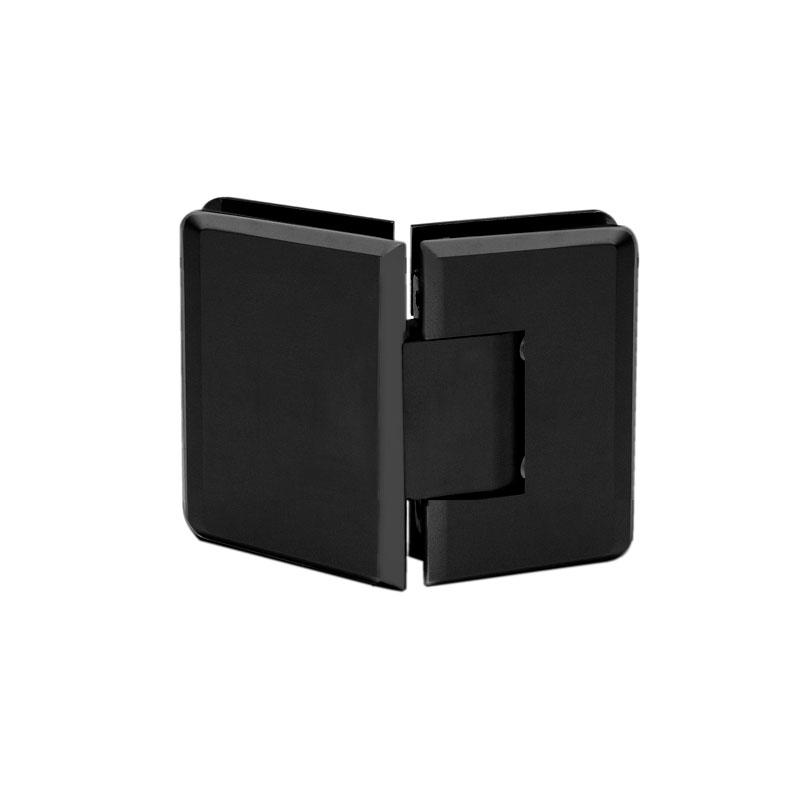

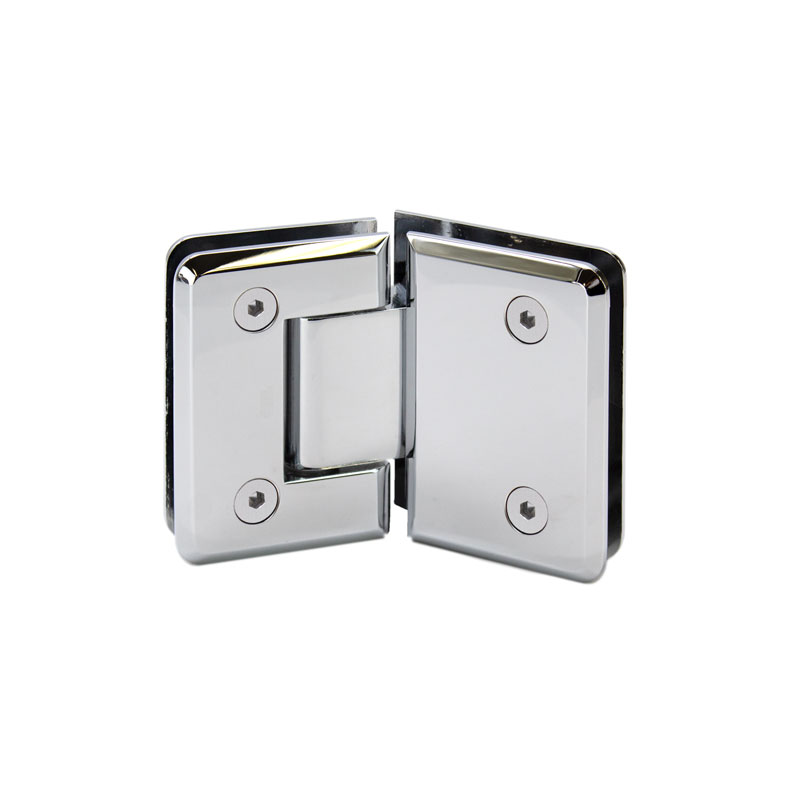

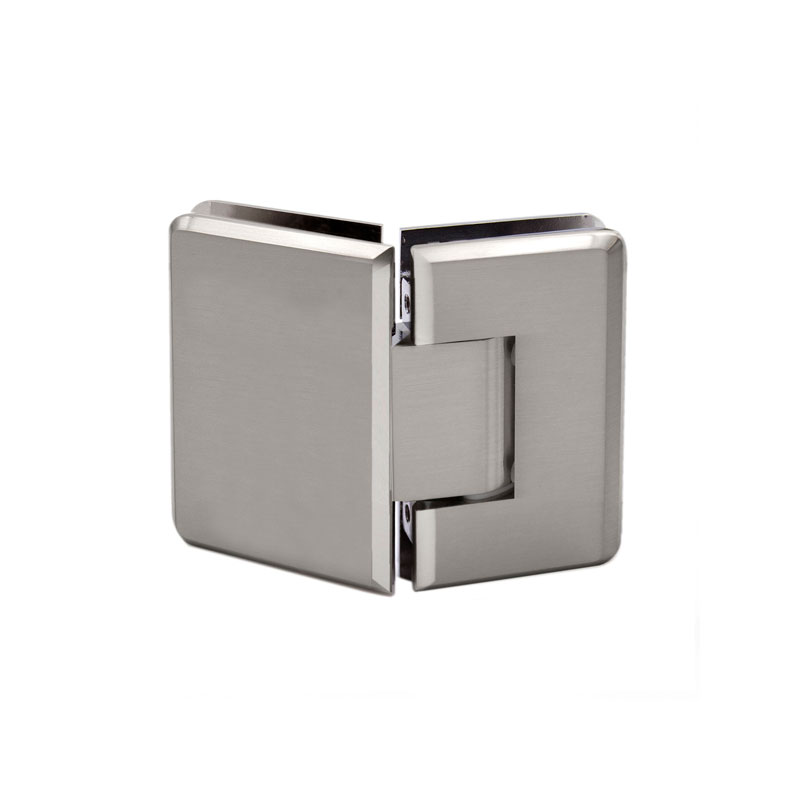

DT Jr Preston 135 Degree Glass-to-Glass Hinge for 1/4″ Glass
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| Weight | N/A |
|---|---|
| Select Your Color/Finish | Brushed Nickel, Matte Black, Polished Chrome, Satin Brass |
| Case Quantity | 20 |
| Catalog Page | FSH24 p. 21 |
| Compare To | TR1045BN, TR1045CH, TR1045MBL, TR1045SB |
| Degree | 135 Degree |
| Glass Thickness | 1/4″-5/16″ |
| Item No | JRPRES135, JRPRES135BN, JRPRES135CH, JRPRES135MB, JRPRES135SB |
| Material | Solid Brass |
| Maximum Door Width | 32″ (2 Hinges), 36″ (3 Hinges) |
| Product Height | 2-15/16″ |
| Product Name | DT Jr Preston 135 Degree Glass-to-Glass Hinge for 1/4″ Glass, DT Jr Preston 135 Degree Glass-to-Glass Hinge for 1/4″ Glass – Brushed Nickel, DT Jr Preston 135 Degree Glass-to-Glass Hinge for 1/4″ Glass – Matte Black, DT Jr Preston 135 Degree Glass-to-Glass Hinge for 1/4″ Glass – Polished Chrome, DT Jr Preston 135 Degree Glass-to-Glass Hinge for 1/4″ Glass – Satin Brass |
| Product Width | 2-1/16″ (Sidelite), 1-3/4″(Door) |
| Profile | Beveled |
| Weight | 1.4 |
| Weight Capacity | 2 Hinges/55 lb, 3 Hinges/85 lb |
Description

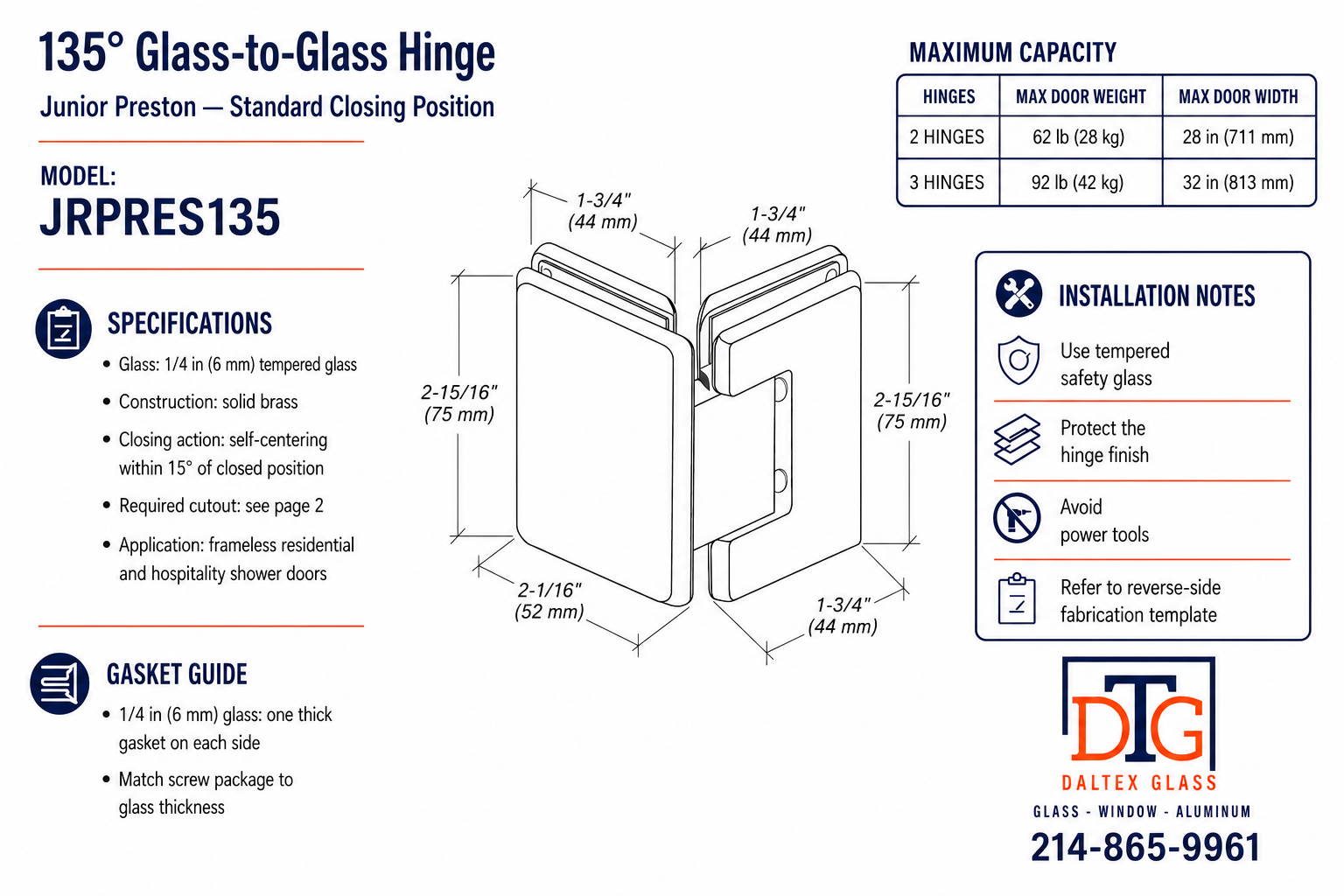

135 Degree Glass-to-Glass Hinge for 1/4-Inch Shower Doors
The DT Jr Preston 135 Degree Glass-to-Glass Hinge (item JRPRES135SB) joins two glass panels at a 135 degree angle and fits 1/4-inch to 5/16-inch glass. This junior Preston size is meant for lighter 1/4-inch doors.
The 135 degree layout suits angled or neo-angle enclosures where two panels meet at an obtuse corner rather than a square one. Because the door hangs off the adjacent glass, the corner stays frameless with no wall post. The Satin Brass finish coordinates with the Preston series.
Key Product Features
- Glass-to-glass shower hinge, 135 degree angle
- Fits 1/4-inch to 5/16-inch tempered glass
- Junior Preston size for lighter doors
- For angled and neo-angle enclosures
- Satin Brass finish
- Compare to TR1045SB
Finish
The Satin Brass finish has a warm, soft look. Clean it with a soft cloth and mild soap and keep abrasives away so it stays even.
Ordering and Shipping
Listed on page 21 of the FSH24 catalog. Sign in to see current pricing.
