DT Junior Glendale 90 Degree Glass-to-Glass Hinge for 1/4″ Glass
20
People watching this product now!
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Additional information
| Weight | N/A |
|---|---|

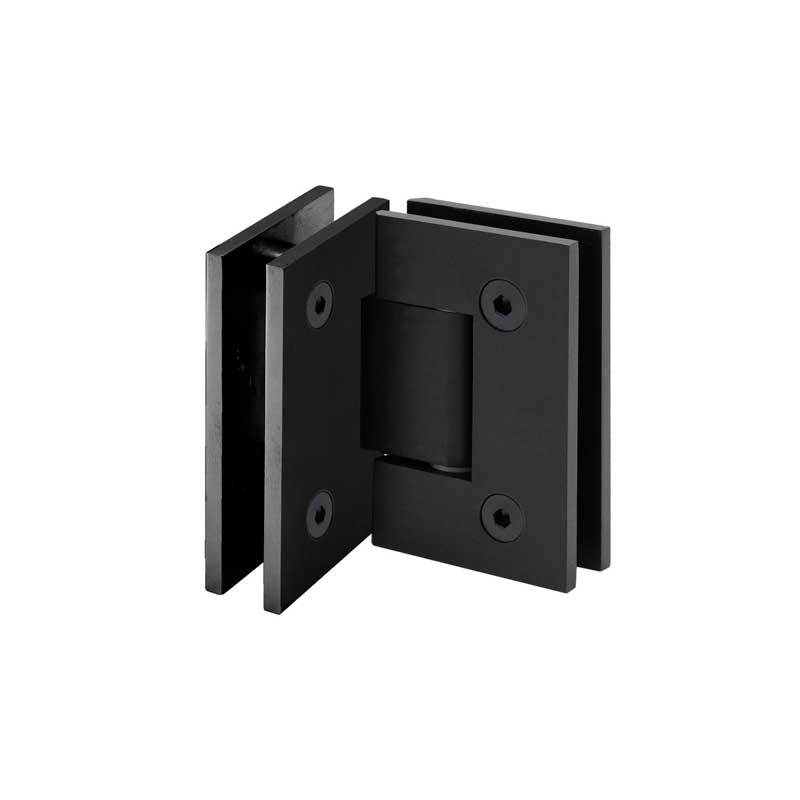

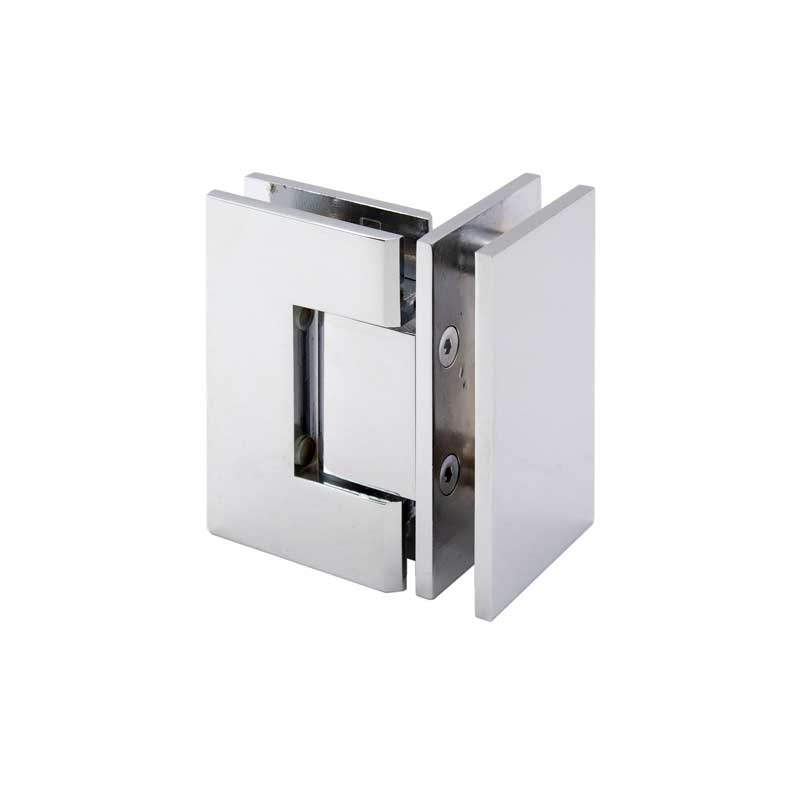

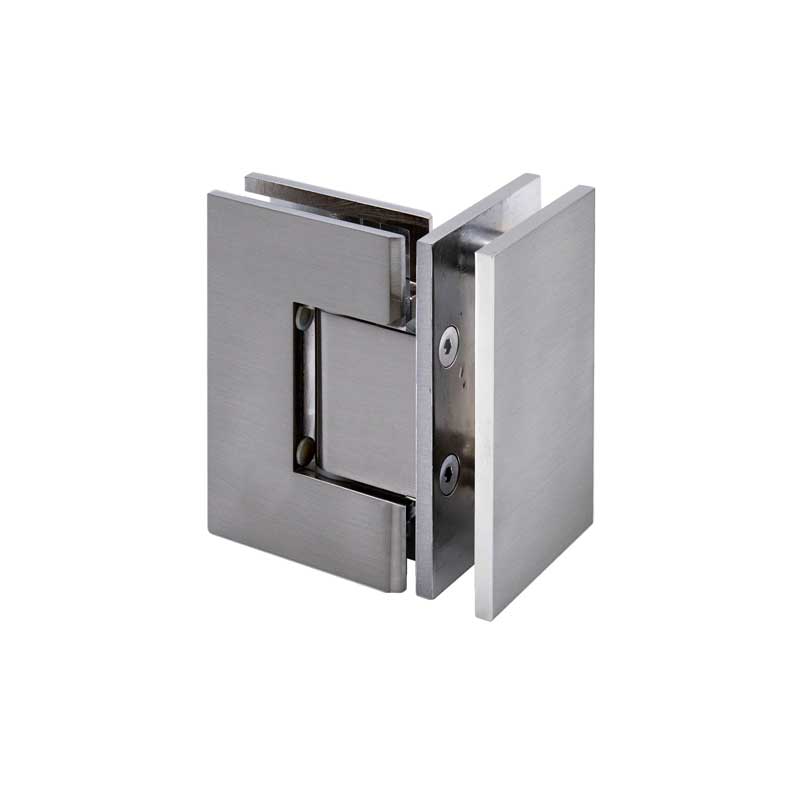

| Select Your Color/Finish | Brushed Nickel, Matte Black, Polished Chrome, Satin Brass |
| Case Quantity | 20 |

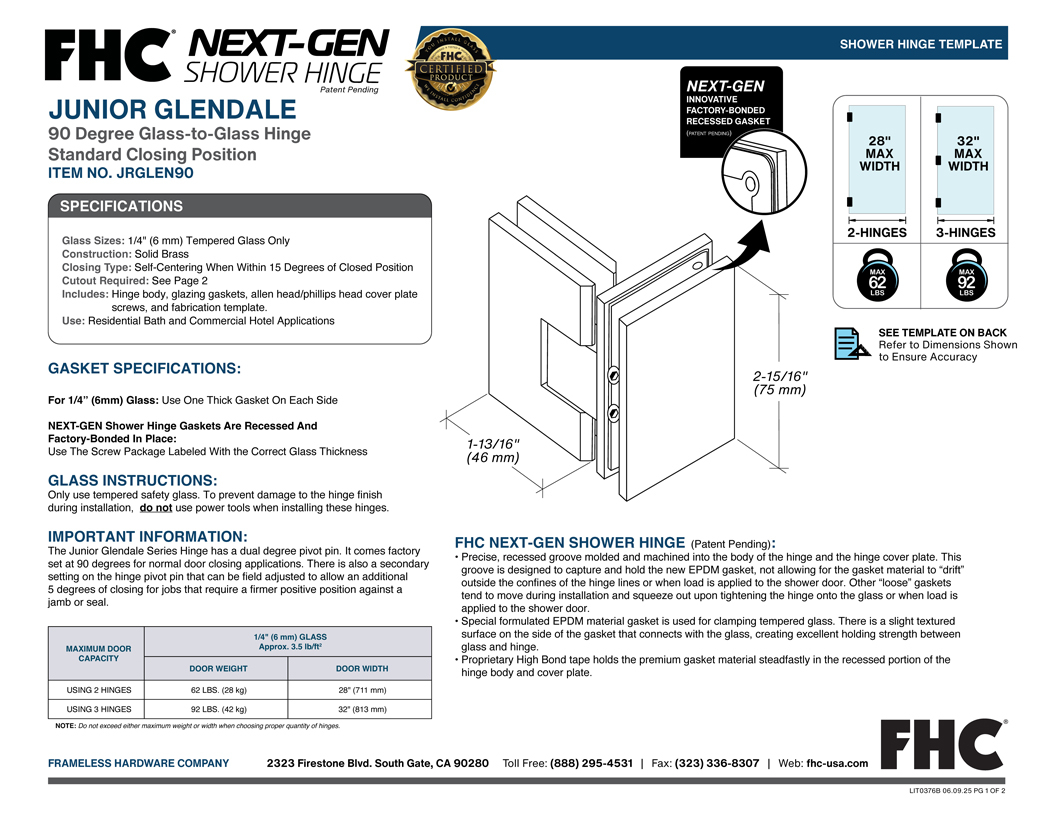

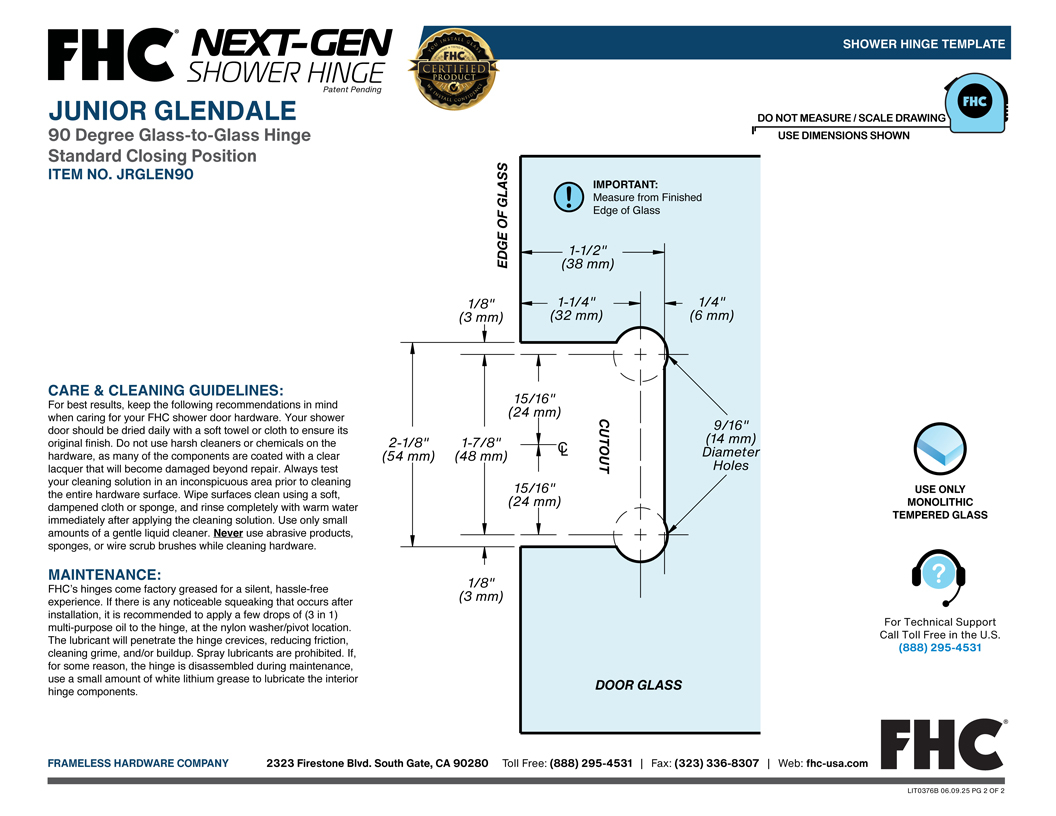

| Catalog Page | FSH24 p. 17 |
| Compare To | JRG092BN, JRG092CH, JRG092MBL, JRG092SB |
| Degree | 90 Degree |
| Glass Thickness | 1/4″-5/16″ |
| Item No | JRGLEN90, JRGLEN90BN, JRGLEN90CH, JRGLEN90MB, JRGLEN90SB |
| Material | Solid Brass |
| Maximum Door Width | 28″ (2 Hinges), 32″ (3 Hinges) |
| Product Height | 2-15/16″ |
| Product Name | DT Junior Glendale 90 Degree Glass-to-Glass Hinge for 1/4″ Glass, DT Junior Glendale 90 Degree Glass-to-Glass Hinge for 1/4″ Glass – Brushed Nickel, DT Junior Glendale 90 Degree Glass-to-Glass Hinge for 1/4″ Glass – Matte Black, DT Junior Glendale 90 Degree Glass-to-Glass Hinge for 1/4″ Glass – Polished Chrome, DT Junior Glendale 90 Degree Glass-to-Glass Hinge for 1/4″ Glass – Satin Brass |
| Profile | Square |
| Weight | 1.2 |
| Weight Capacity | 2 Hinges/62 lb, 3 Hinges/92 lb |
Description
90 Degree Glendale Glass-to-Glass Hinge for 1/4-Inch Glass
The DT Junior Glendale 90 Degree Glass-to-Glass Hinge (item JRGLEN90SB) connects two glass panels at a right angle and fits 1/4-inch to 5/16-inch glass. It is the junior Glendale size, built for lighter 1/4-inch doors.
Use it where a swing door meets a fixed return at 90 degrees, such as a corner or neo enclosure. The door hangs off the neighboring glass, so the corner stays frameless without a wall post. The Satin Brass finish matches the rest of the Glendale series.
Key Product Features
- Glass-to-glass shower hinge, 90 degree corner
- Fits 1/4-inch to 5/16-inch tempered glass
- Junior Glendale size for lighter doors

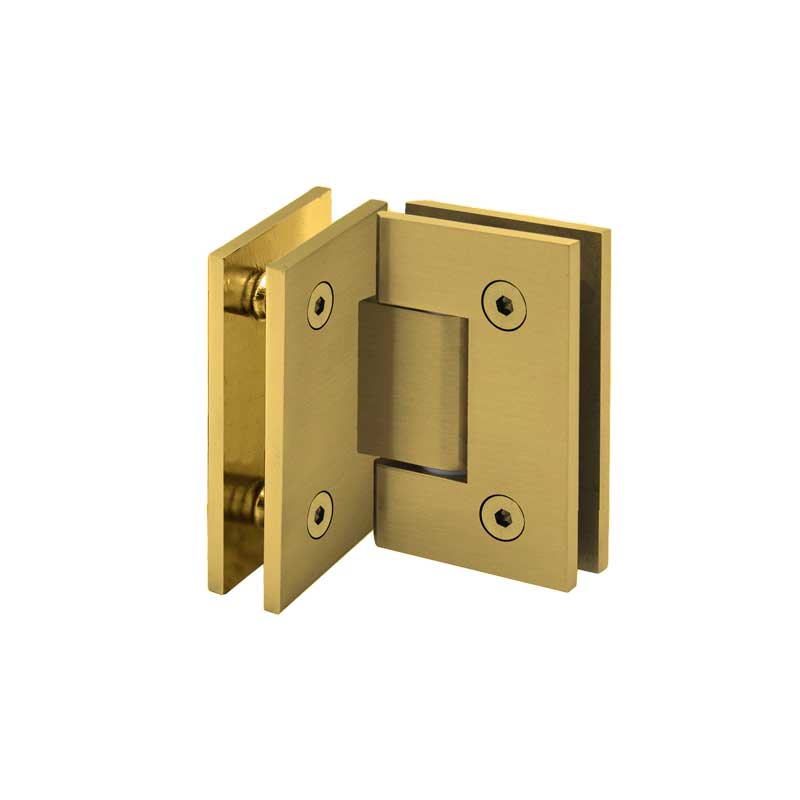

- Satin Brass finish
- Compare to JRG092SB
Finish
The Satin Brass finish has a warm, low-shine surface. Wipe it with a soft cloth and mild soap and avoid abrasive pads.
Ordering and Shipping
Listed on page 17 of the FSH24 catalog. Sign in to see current pricing.
