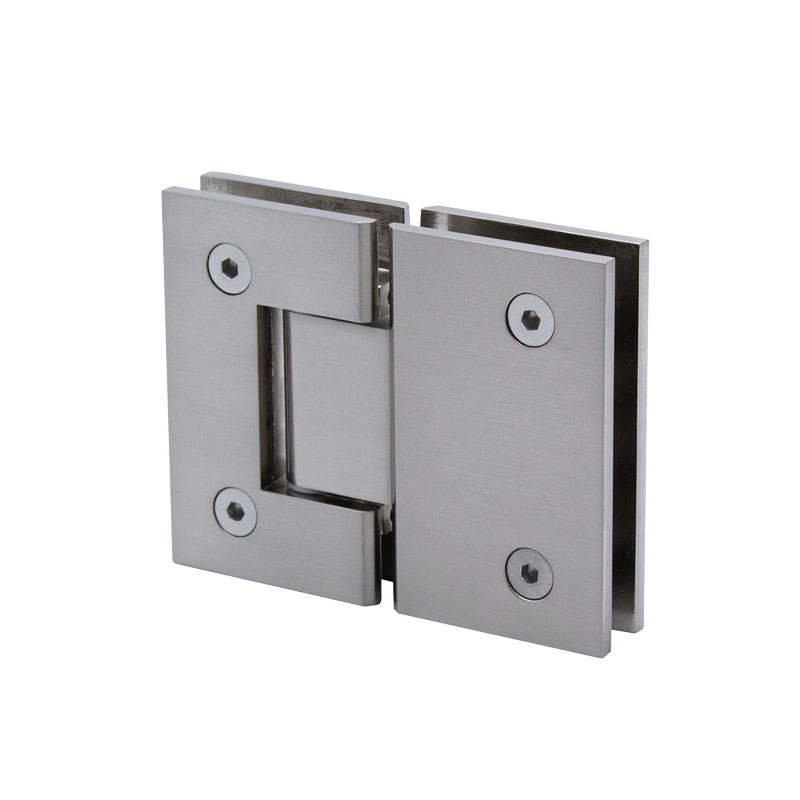

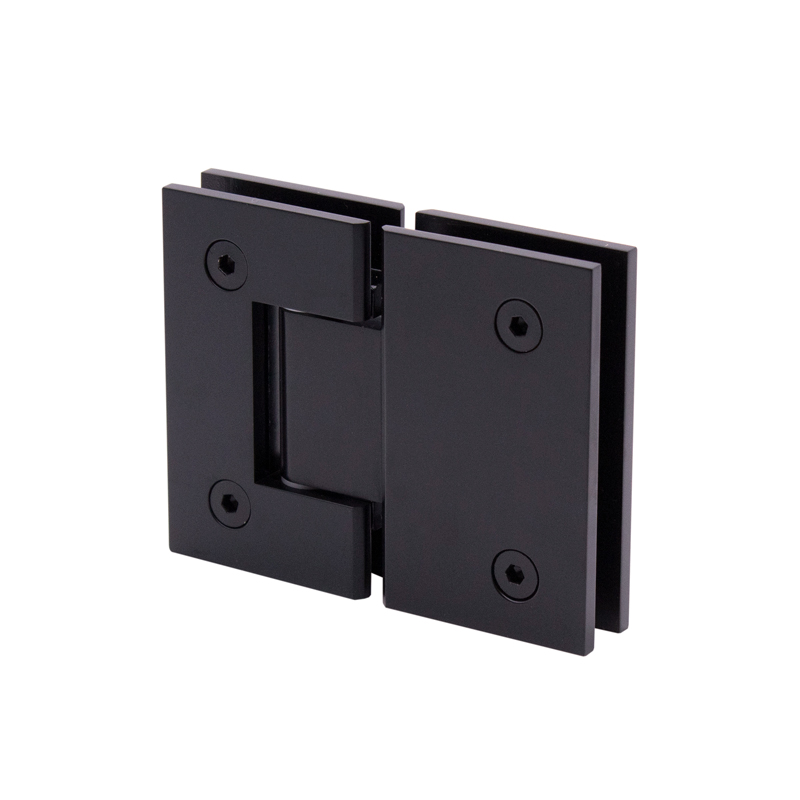

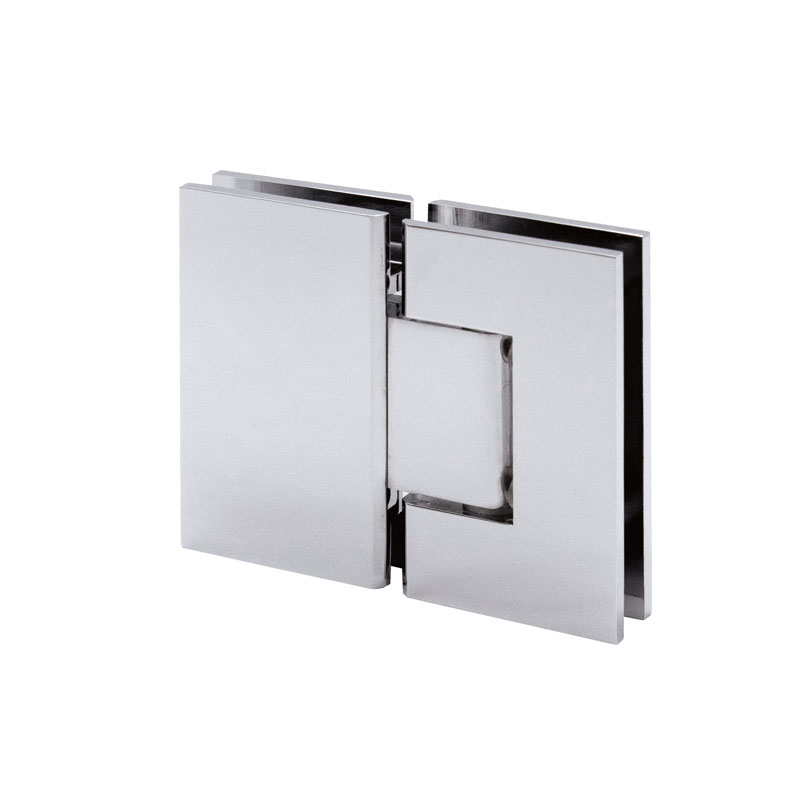

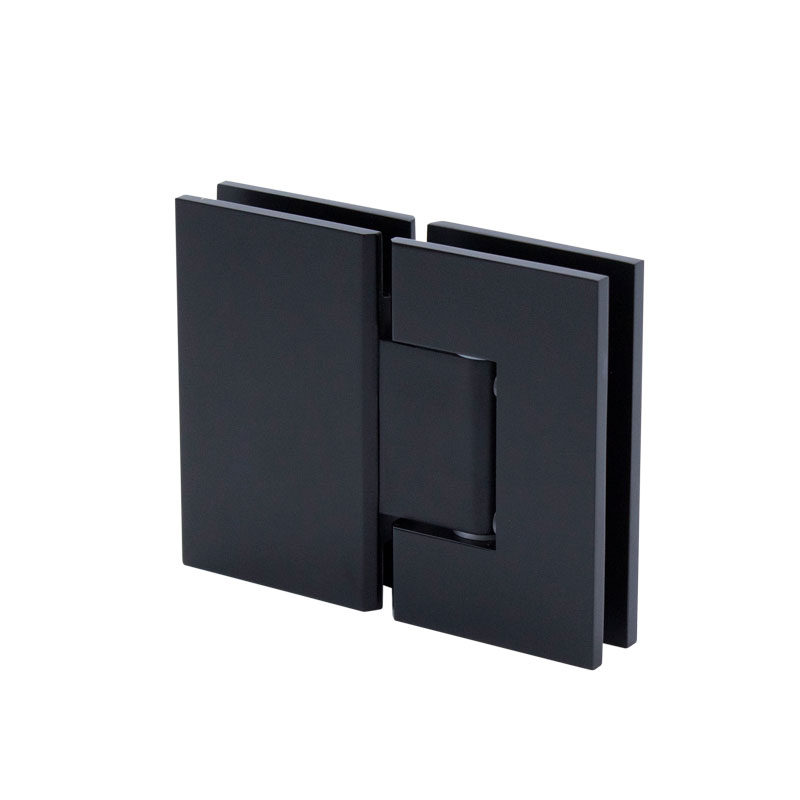

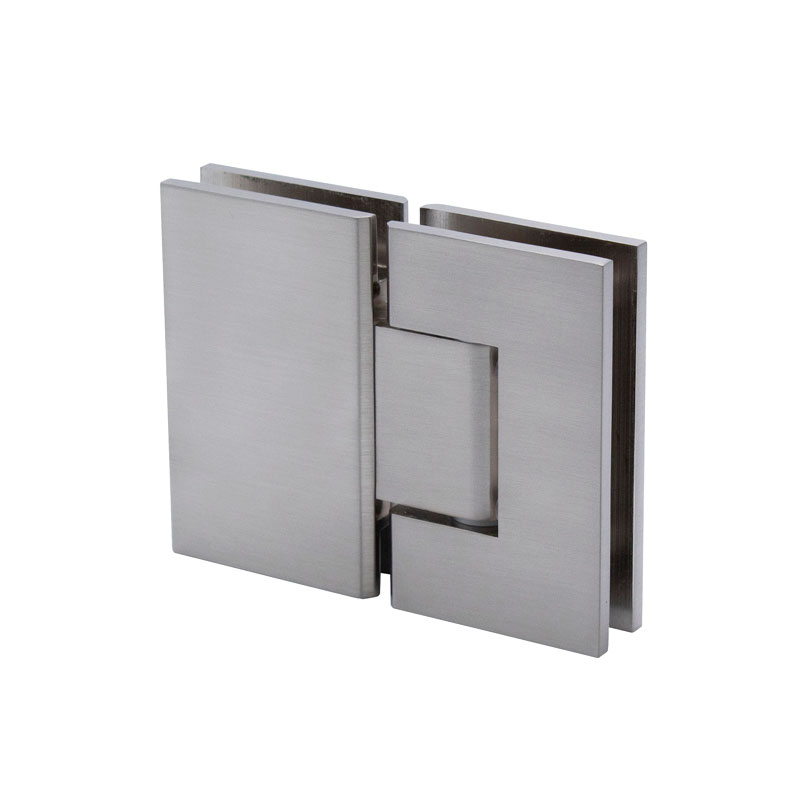

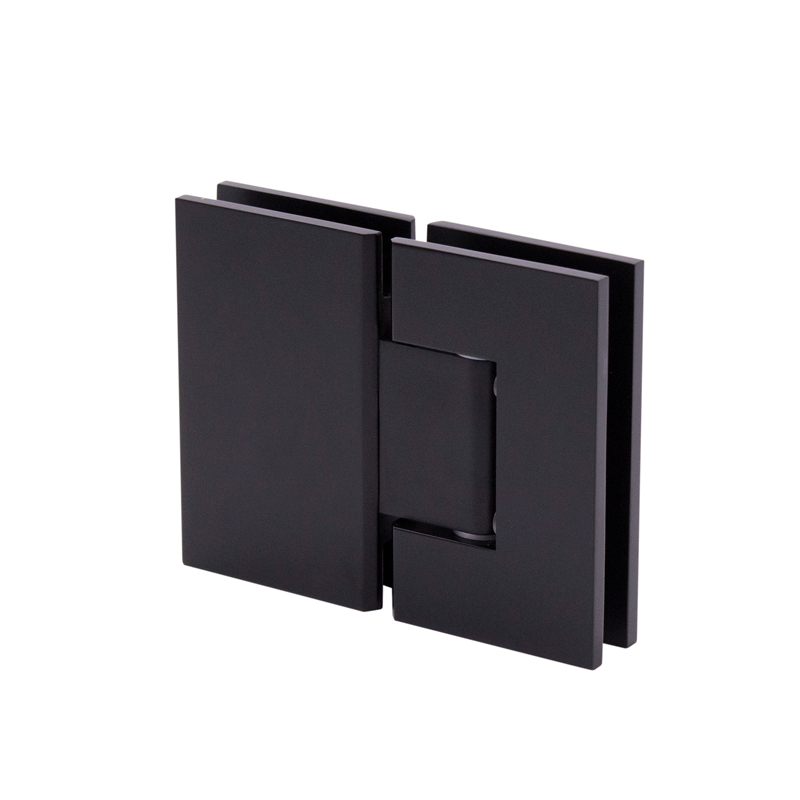

DT Jr Glendale 180 Degree Glass-to-Glass Hinge for 1/4″ Glass
SKU:
JRGLEN180
17
People watching this product now!
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders

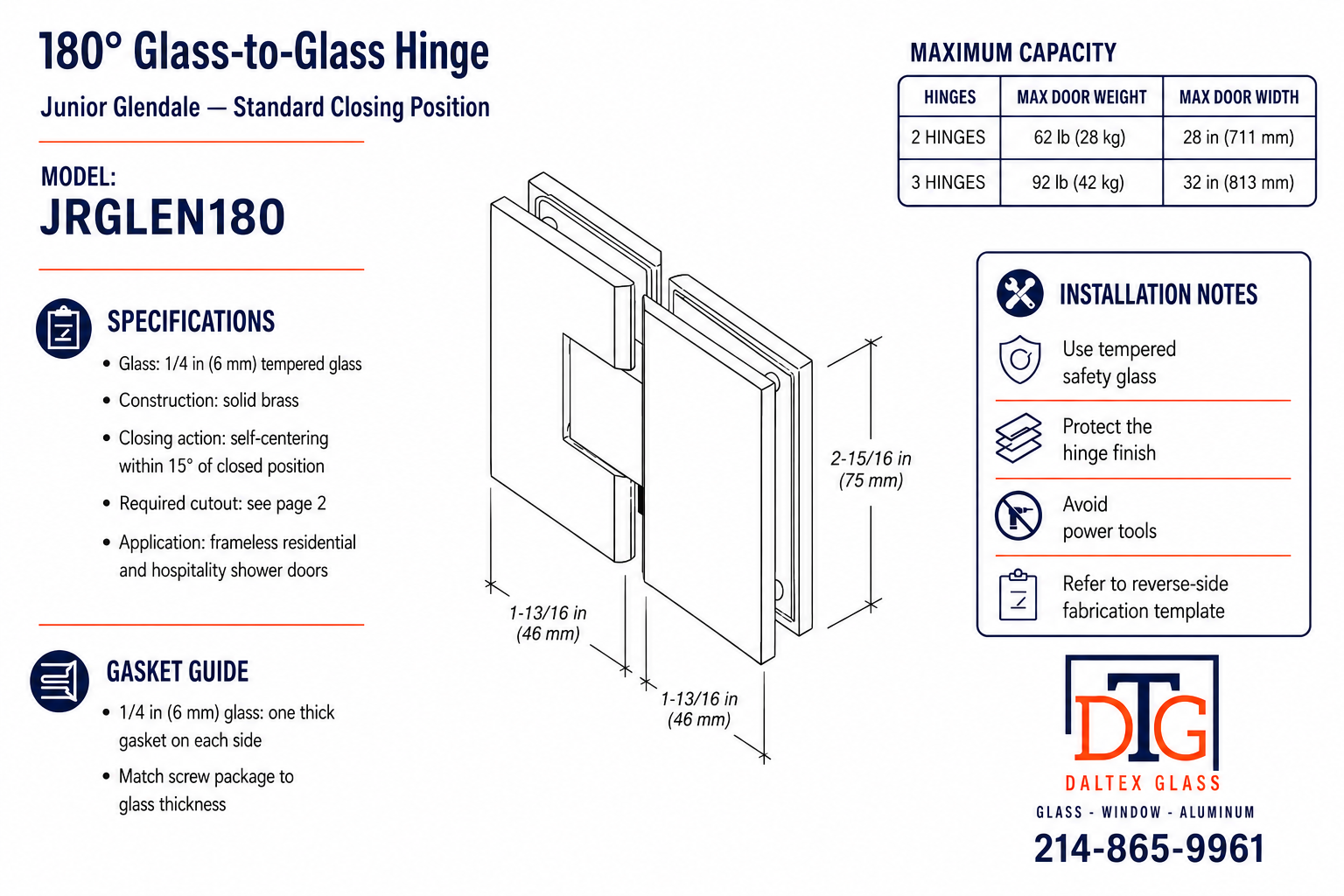

Additional information
| Weight | N/A |
|---|---|
| Select Your Color/Finish | Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Chrome, Satin Brass |
| Case Quantity | 20 |

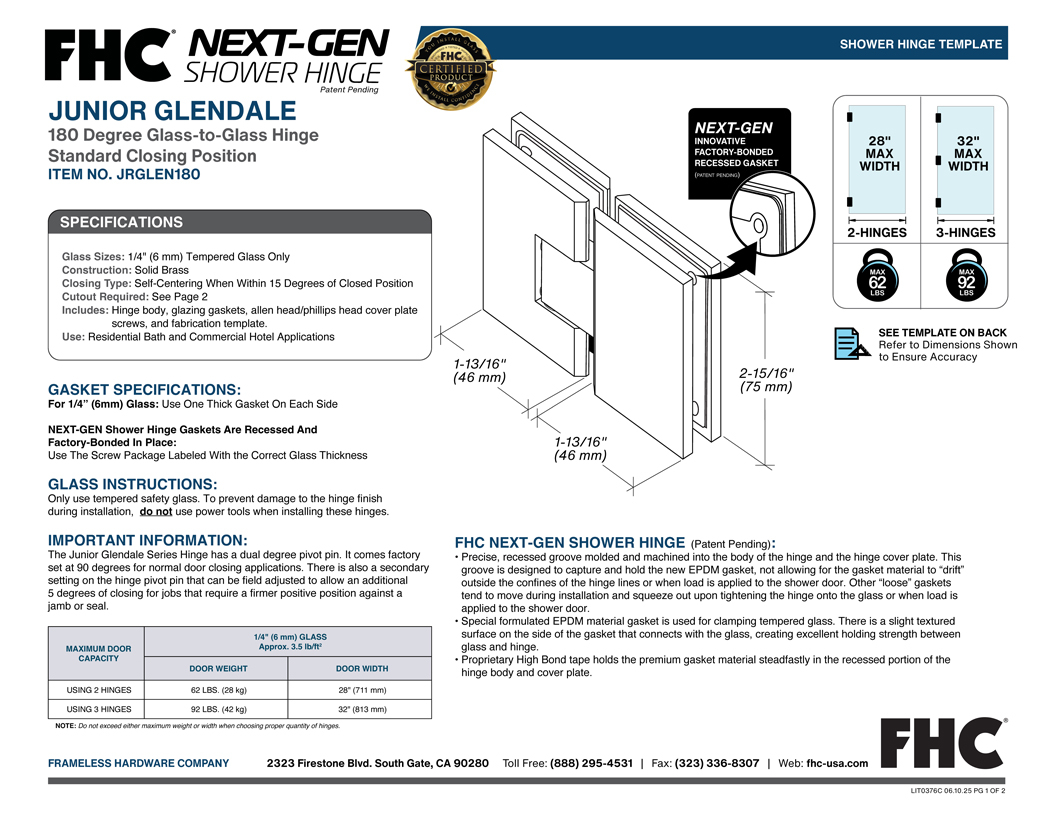

| Catalog Page | FSH24 p. 17 |
| Compare To | JRG1800RB, JRG180BN, JRG180CH, JRG180MBL, JRG180SB |
| Degree | 180 Degree |
| Glass Thickness | 1/4″-5/16″ |
| Item No | JRGLEN180, JRGLEN1800RB, JRGLEN180BN, JRGLEN180CH, JRGLEN180MB, JRGLEN180SB |
| Material | Solid Brass |
| Maximum Door Width | 28″ (2 Hinges), 32″ (3 Hinges) |
| Product Height | 2-15/16″ |
| Product Name | DT Jr Glendale 180 Degree Glass-to-Glass Hinge for 1/4″ Glass, DT Jr Glendale 180 Degree Glass-to-Glass Hinge for 1/4″ Glass - Brushed Nickel, DT Jr Glendale 180 Degree Glass-to-Glass Hinge for 1/4″ Glass - Matte Black, DT Jr Glendale 180 Degree Glass-to-Glass Hinge for 1/4″ Glass - Polished Chrome, DT Jr Glendale 180 Degree Glass-to-Glass Hinge for 1/4″ Glass - Satin Brass, DT Junior Glendale 180 Degree Glass-to-Glass Hinge for 1/4″ Glass - Oil Rubbed Bronze |
| Product Width | 1-13/16″ (Sidelite), 1-13/16″(Door) |
| Profile | Square |
| Weight | 1.5 |
| Weight Capacity | 2 Hinges/62 lb, 3 Hinges/92 lb |
Description
180 Degree Glendale Glass-to-Glass Hinge for 1/4-Inch Glass

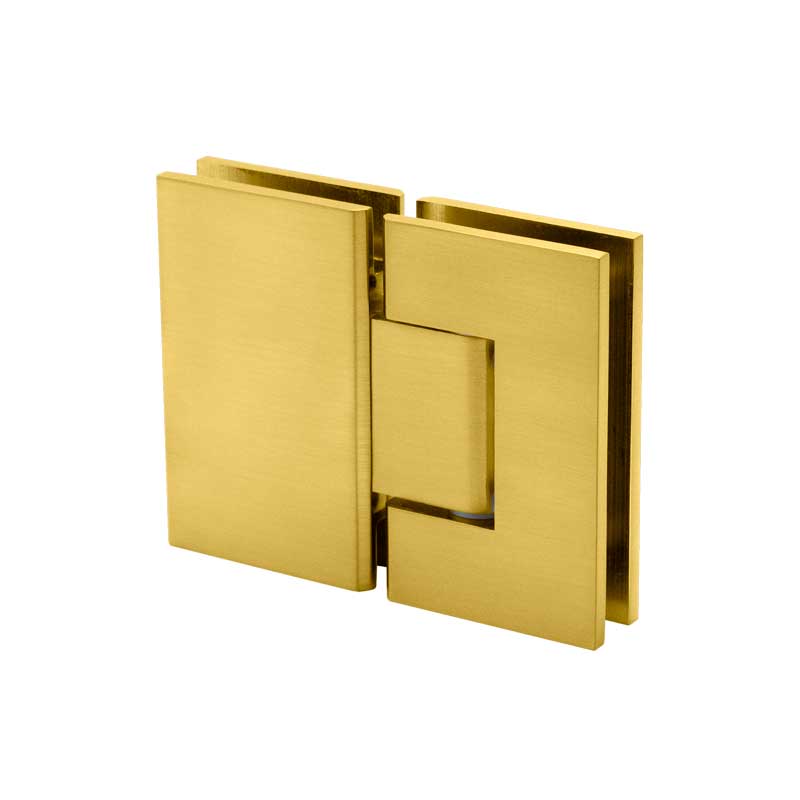

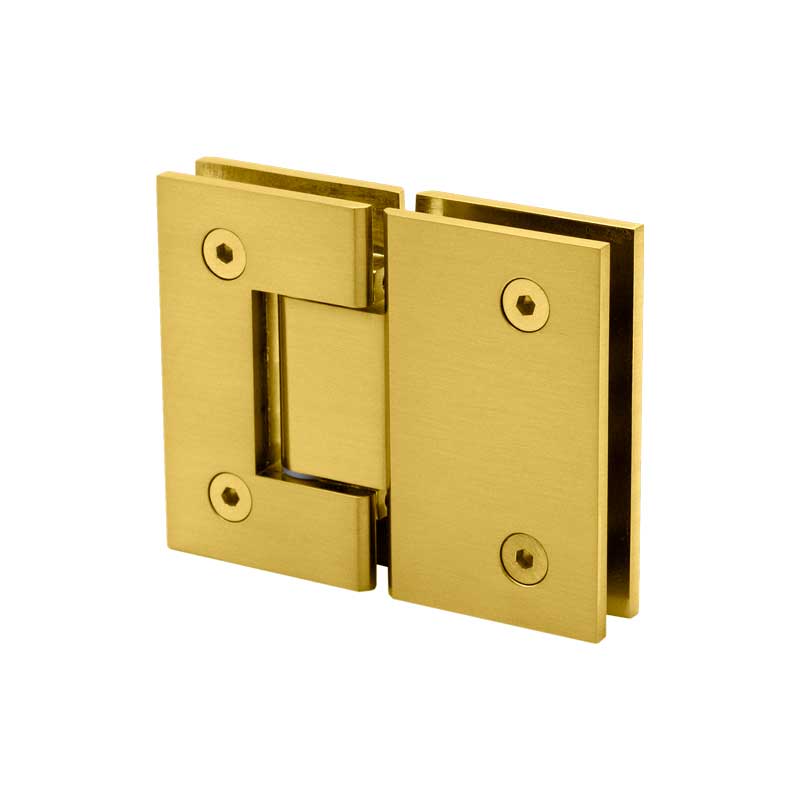

The DT Jr Glendale 180 Degree Glass-to-Glass Hinge (item JRGLEN180SB) joins two glass panels in a straight in-line run and fits 1/4-inch to 5/16-inch glass. This is the junior Glendale size, matched to lighter 1/4-inch doors.
It works where a swing door and a fixed panel sit edge to edge on the same plane, as in an in-line frameless enclosure. Hanging the door off the adjacent glass keeps the run clean with no wall jamb. The Satin Brass finish ties in with the Glendale series.
Key Product Features
- Glass-to-glass shower hinge, 180 degree in-line
- Fits 1/4-inch to 5/16-inch tempered glass
- Junior Glendale size for lighter doors
- Satin Brass finish
- Compare to JRG180SB
Finish
The Satin Brass finish is warm with a soft sheen. Clean it with a soft cloth and mild soap and keep abrasives away.
Ordering and Shipping
Listed on page 17 of the FSH24 catalog. Sign in to see current pricing.
