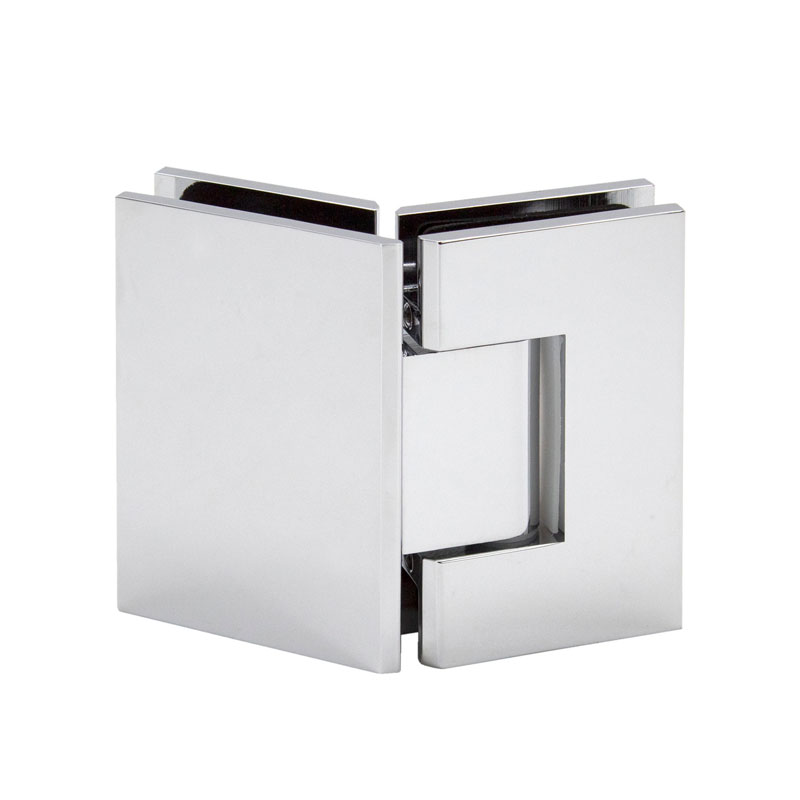

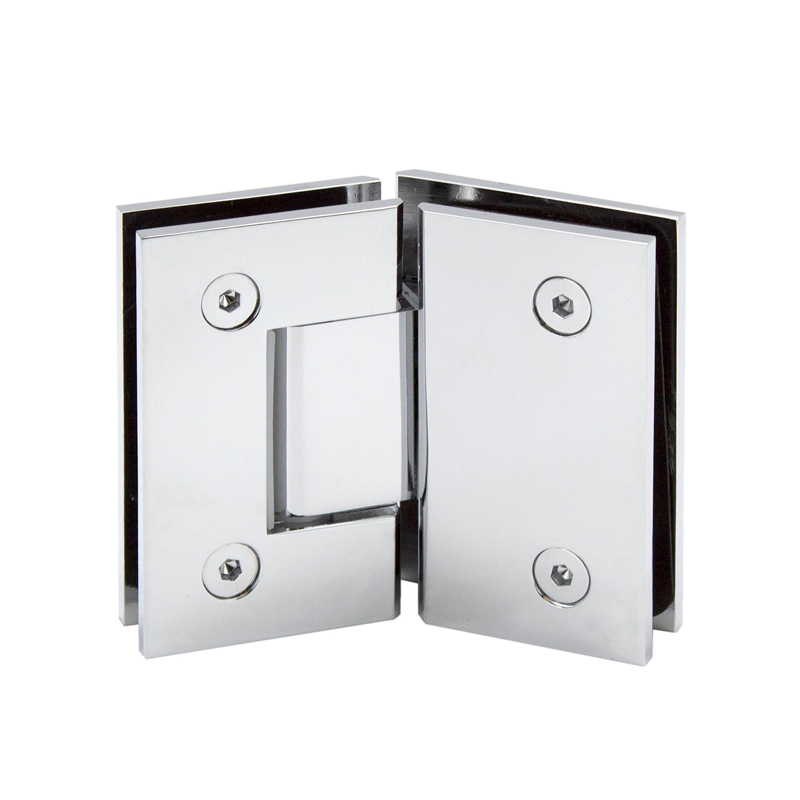

DT Jr Glendale 135 Degree Glass-to-Glass Hinge for 1/4″ Glass
11
People watching this product now!
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders

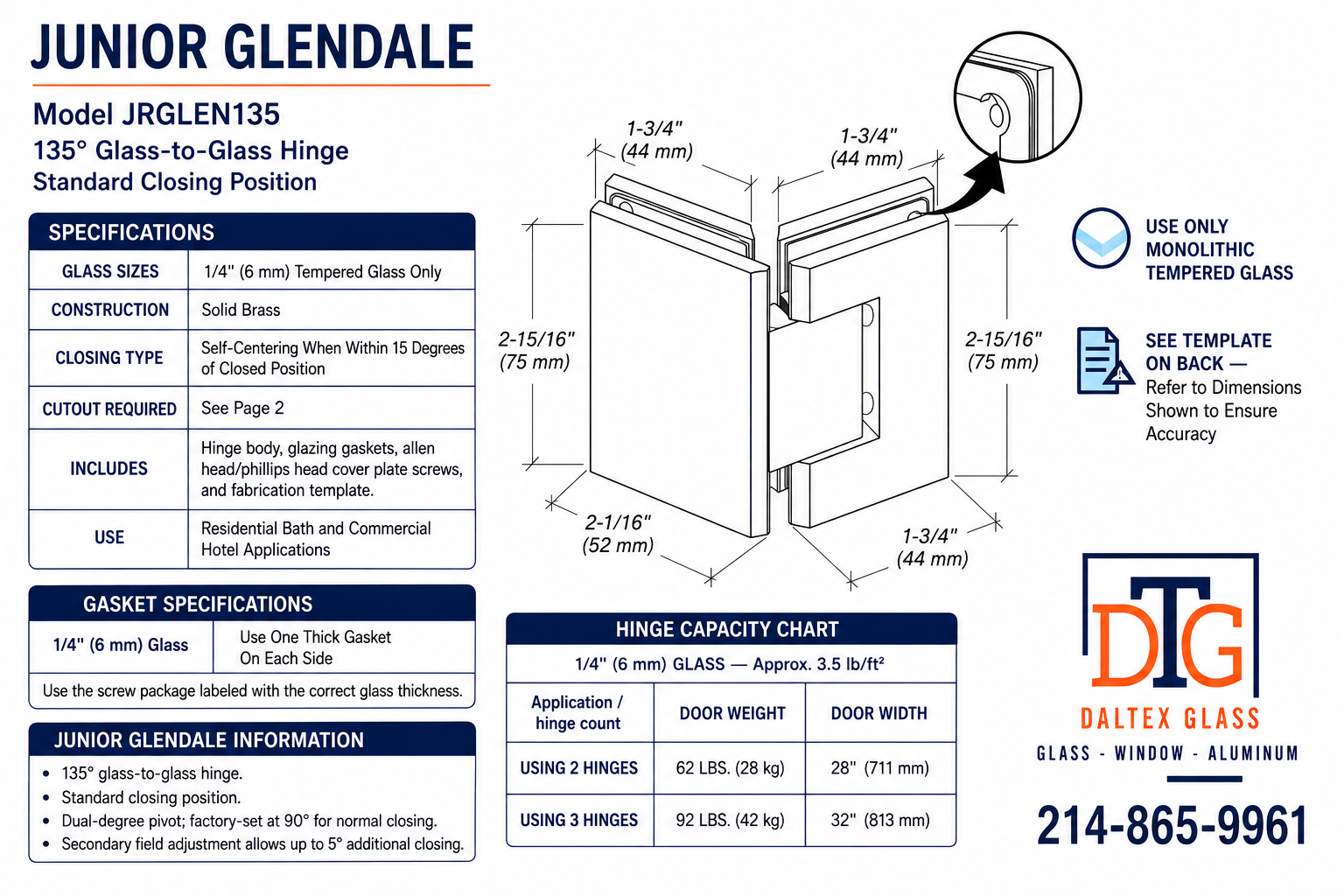

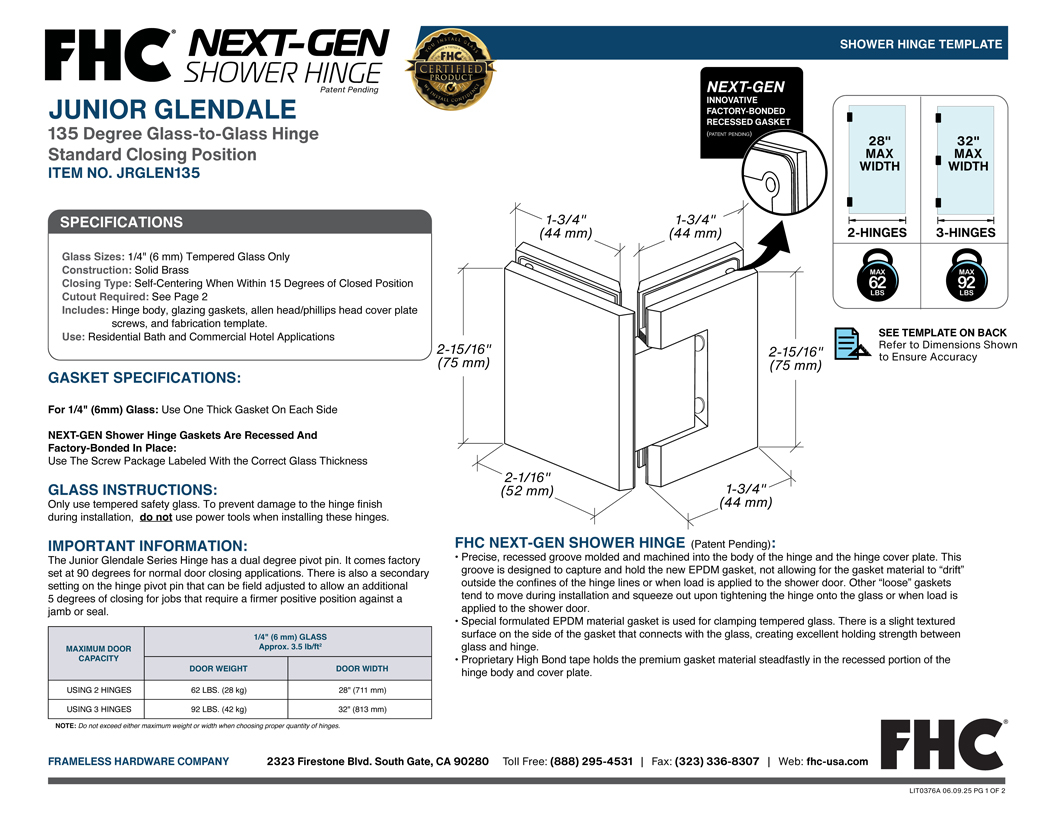

Additional information
| Weight | N/A |
|---|---|

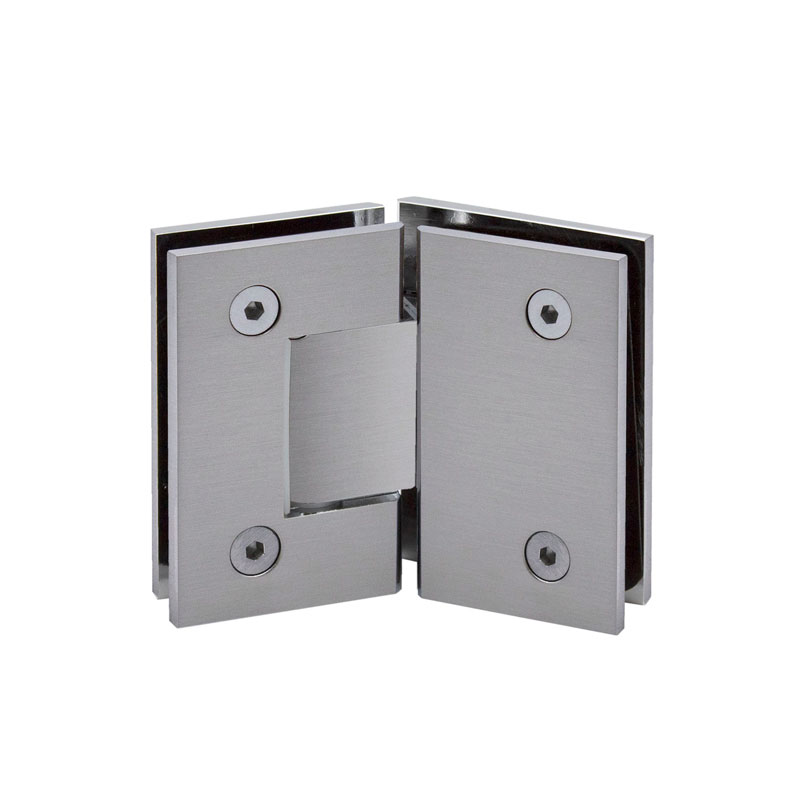

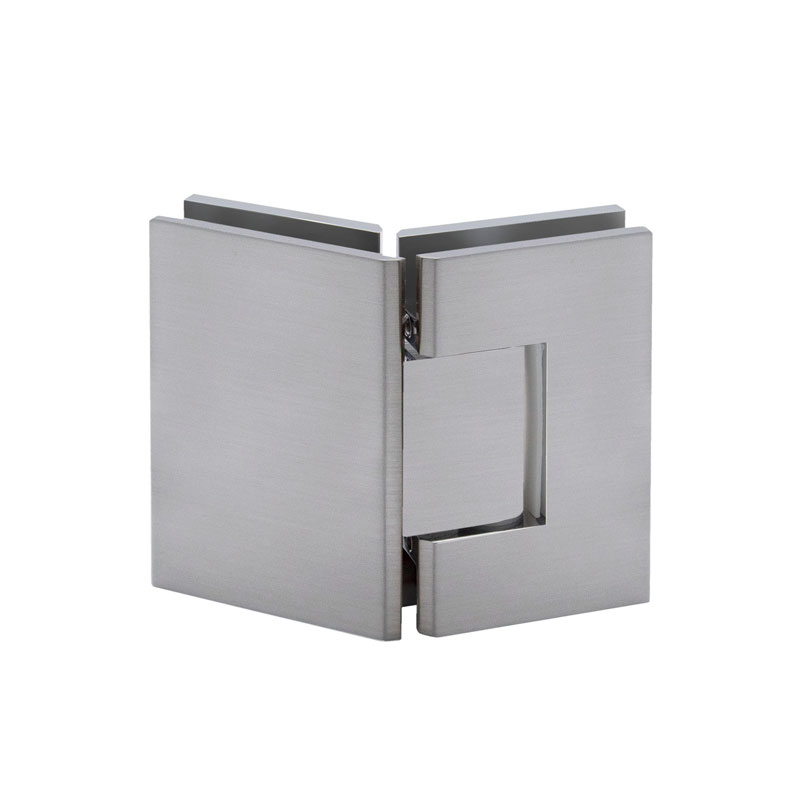

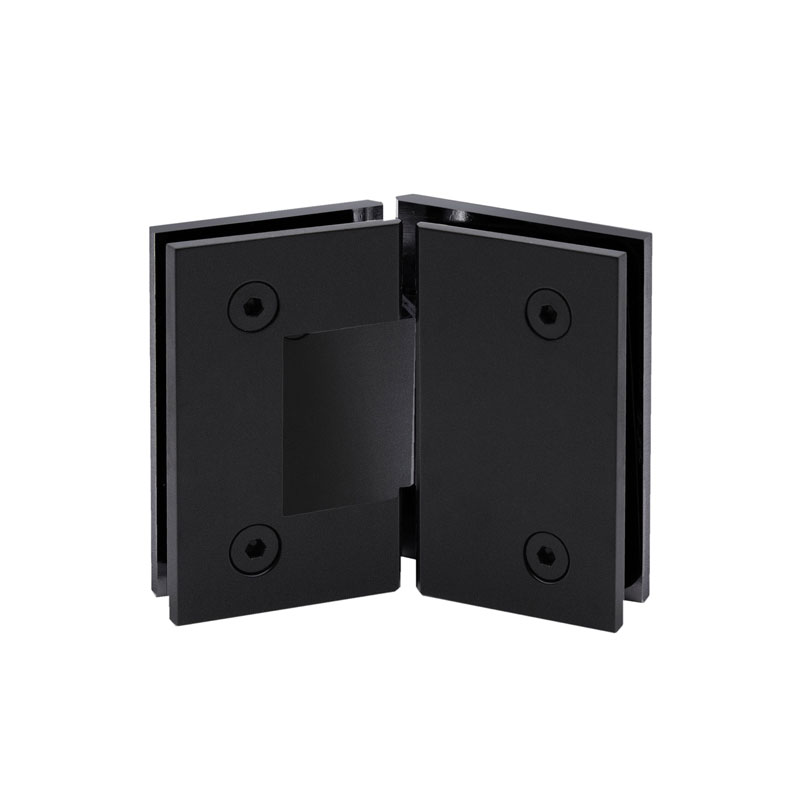

| Select Your Color/Finish | Brushed Nickel, Matte Black, Polished Chrome, Satin Brass |
| Case Quantity | 20 |
| Catalog Page | FSH24 p. 17 |
| Compare To | JRG045BN, JRG045CH, JRG045MBL, JRG045SB |
| Degree | 135 Degree |
| Glass Thickness | 1/4″-5/16″ |
| Item No | JRGLEN135, JRGLEN135BN, JRGLEN135CH, JRGLEN135MB, JRGLEN135SB |
| Material | Solid Brass |
| Maximum Door Width | 32″ (2 Hinges), 36″ (3 Hinges) |
| Product Height | 2-15/16″ |
| Product Name | DT Jr Glendale 135 Degree Glass-to-Glass Hinge for 1/4″ Glass, DT Jr Glendale 135 Degree Glass-to-Glass Hinge for 1/4″ Glass – Brushed Nickel, DT Jr Glendale 135 Degree Glass-to-Glass Hinge for 1/4″ Glass – Matte Black, DT Jr Glendale 135 Degree Glass-to-Glass Hinge for 1/4″ Glass – Polished Chrome, DT Jr Glendale 135 Degree Glass-to-Glass Hinge for 1/4″ Glass – Satin Brass |
| Product Width | 2-1/16″ (Sidelite), 1-3/4″(Door) |
| Profile | Square |
| Weight | 1.5 |
| Weight Capacity | 2 Hinges/55 lb, 3 Hinges/85 lb |
Description
135 Degree Glendale Glass-to-Glass Hinge for 1/4-Inch Glass
The DT Jr Glendale 135 Degree Glass-to-Glass Hinge (item JRGLEN135SB) connects two glass panels at a 135 degree angle and fits 1/4-inch to 5/16-inch glass. It is the junior Glendale size, built for lighter 1/4-inch doors.
The 135 degree geometry fits angled and neo-angle enclosures where panels meet at an obtuse corner. The door hangs off the neighboring glass, keeping the corner frameless with no wall post. The Satin Brass finish matches the Glendale series.
Key Product Features
- Glass-to-glass shower hinge, 135 degree angle
- Fits 1/4-inch to 5/16-inch tempered glass
- Junior Glendale size for lighter doors
- For angled and neo-angle enclosures

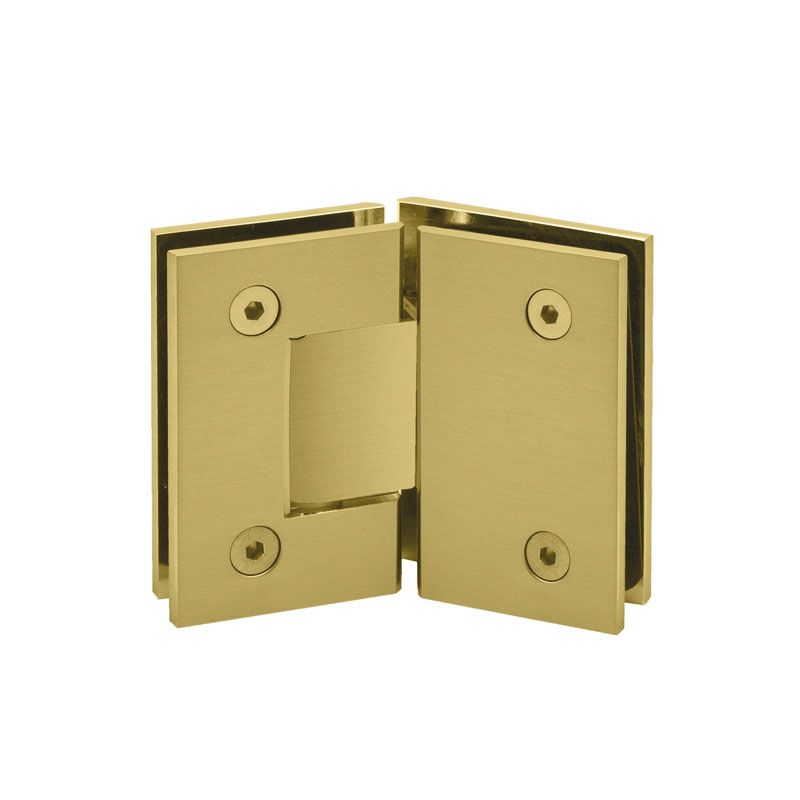

- Satin Brass finish
- Compare to JRG045SB
Finish
The Satin Brass finish has a warm, low-shine look. Wipe it with a soft cloth and mild soap and avoid abrasive cleaners.
Ordering and Shipping
Listed on page 17 of the FSH24 catalog. Sign in to see current pricing.
