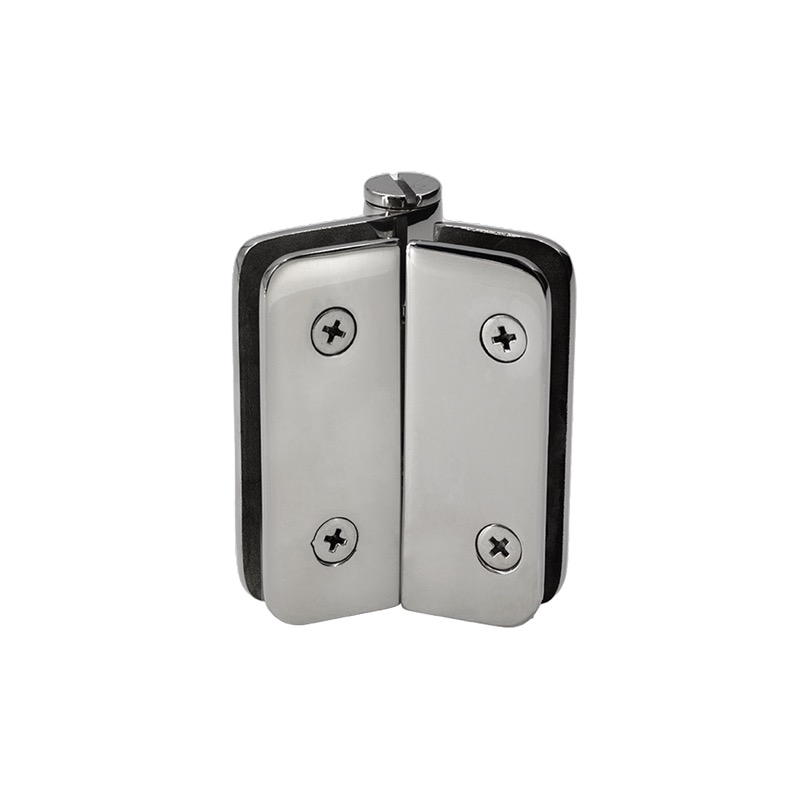

DT Zephyr Glass-to-Glass Inline Outswing Hinge for 3/8″ Glass
20
People watching this product now!
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Additional information
| Weight | N/A |
|---|---|

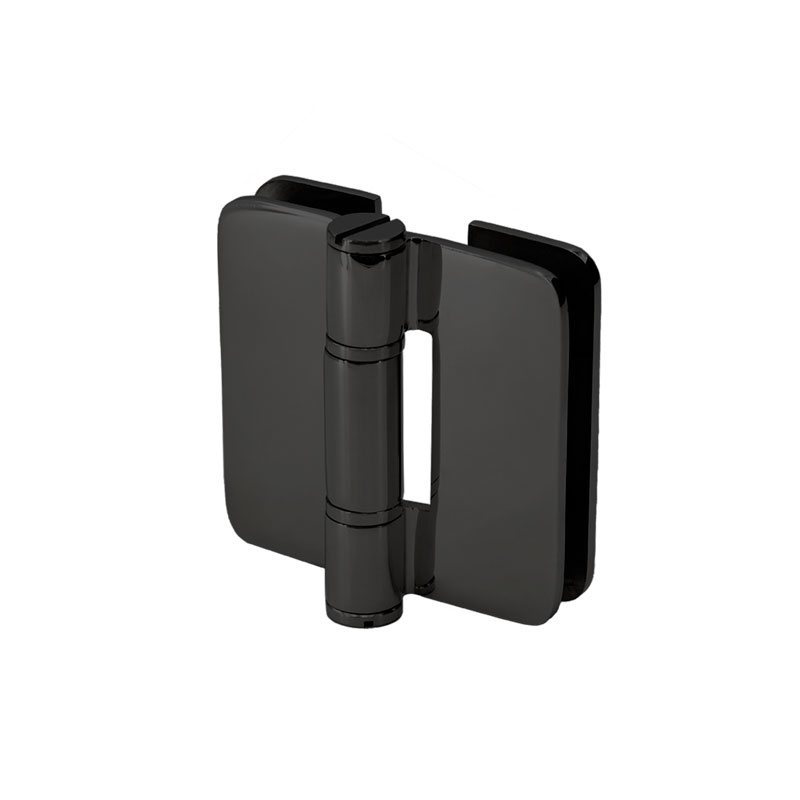

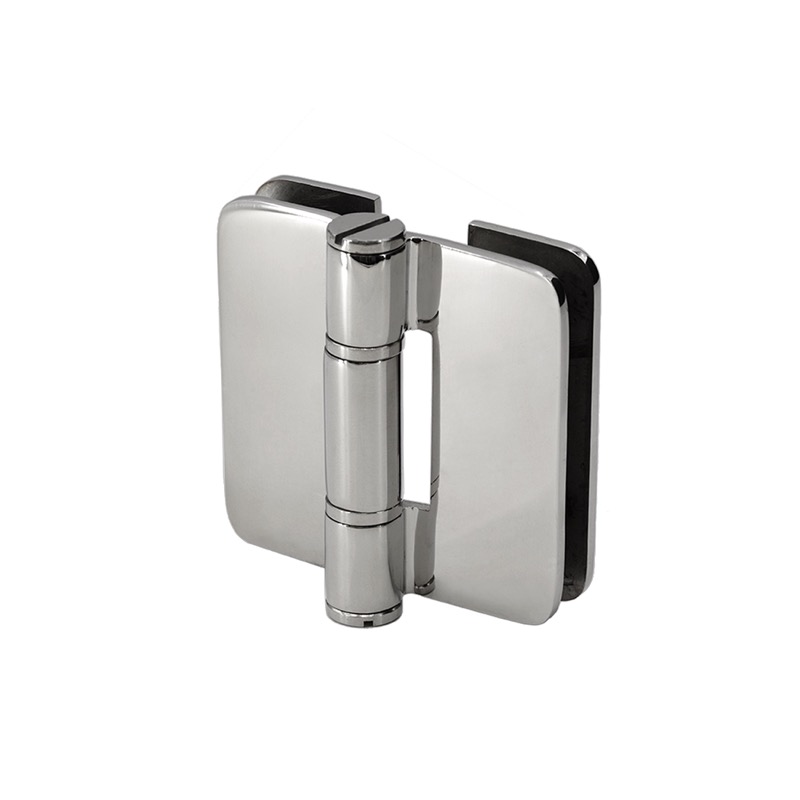

| Select Your Color/Finish | Brushed Stainless, Matte Black, Polished Stainless, Satin Brass |
| Case Quantity | 20 |

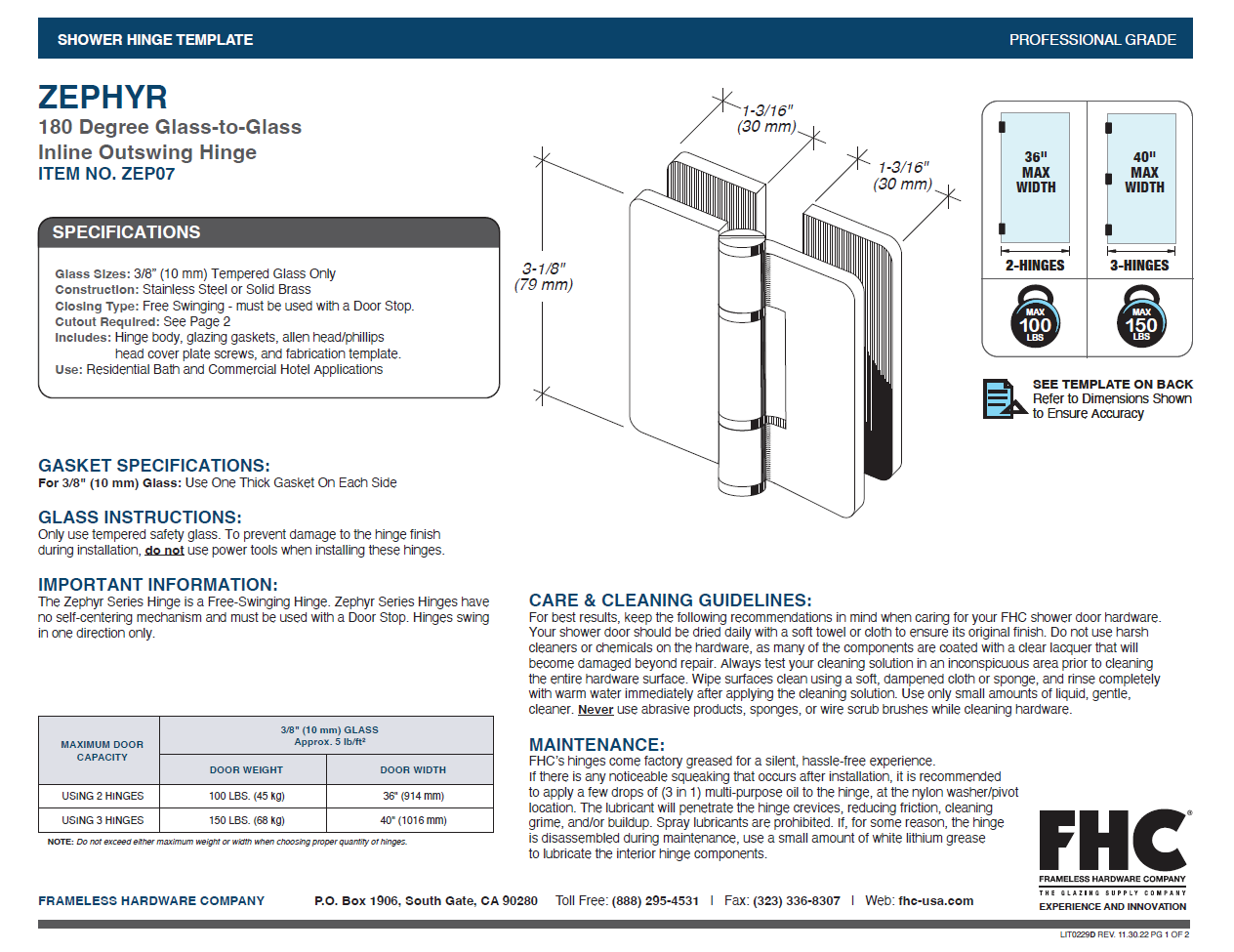

| Catalog Page | FSH24 p. 43, FSH24 p. 45 |
| Compare To | ZUR07BSH1180GTG0BS, ZUR07MBL, ZUR07PSH1180GTG0PS, ZUR07SB |
| Degree | 180 Degree |
| Glass Thickness | 3/8″ |
| Item No | ZEP07, ZEP07BS, ZEP07MB, ZEP07PS, ZEP07SB |
| Material | Stainless Steel |
| Maximum Door Width | 36″ (2 Hinges), 40″ (3 Hinges) |
| Product Height | 3-1/8″ |
| Product Name | DT Zephyr Glass-to-Glass Inline Outswing Hinge for 3/8″ Glass, DT Zephyr Glass-to-Glass Inline Outswing Hinge for 3/8″ Glass – Brushed Stainless, DT Zephyr Glass-to-Glass Inline Outswing Hinge for 3/8″ Glass – Matte Black, DT Zephyr Glass-to-Glass Inline Outswing Hinge for 3/8″ Glass – Polished Stainless, DT Zephyr Glass-to-Glass Inline Outswing Hinge for 3/8″ Glass – Satin Brass |
| Product Width | 1-3/16″ (Sidelite), 1-3/16″ (Door) |
| Weight | 1.1 |
| Weight Capacity | 2 Hinges/100 lb, 3 Hinges/150 lb |
Description
In-Line Outswing Glass-to-Glass Hinge for 3/8-Inch Glass
The DT Zephyr Glass-to-Glass Inline Outswing Hinge (item ZEP07SB) joins two 3/8-inch glass panels in a straight in-line run and lets the door swing outward. It is part of the Zephyr series and fits 3/8-inch tempered glass.
Choose this hinge for an in-line enclosure where the door should open out only. Mounting off the adjacent fixed panel keeps the layout frameless without a wall jamb. The Satin Brass finish coordinates with other Zephyr series hardware.
Key Product Features
- Glass-to-glass shower hinge, in-line
- Outswing action
- Fits 3/8-inch tempered glass
- Zephyr series design

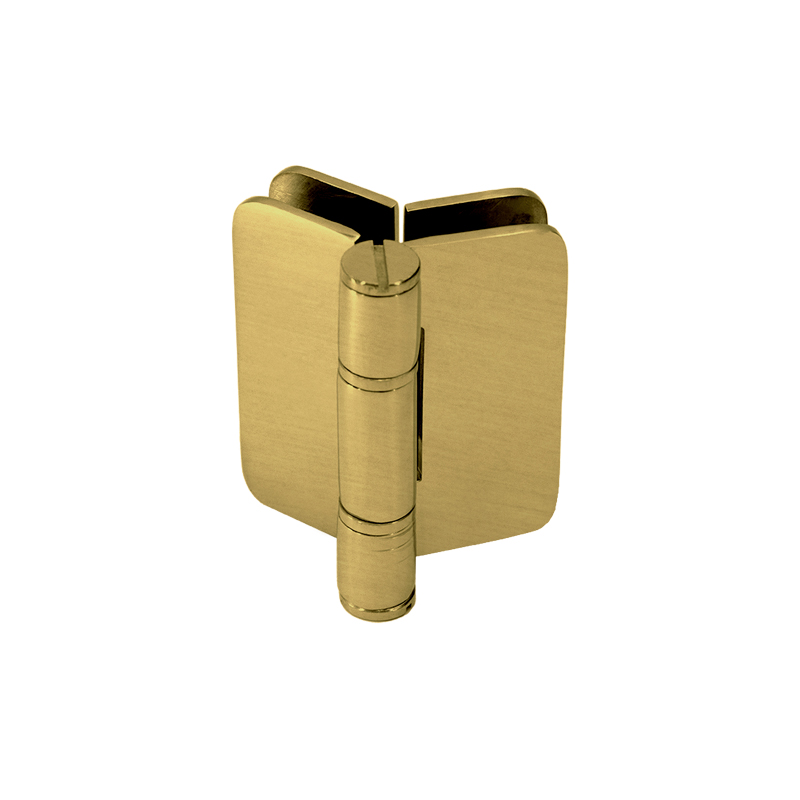

- Satin Brass finish
- Compare to ZUR07SB
Finish
The Satin Brass finish is warm with a soft sheen. Clean it with a soft cloth and mild soap and keep abrasive pads away.
Ordering and Shipping
Listed on page 45 of the FSH24 catalog. Sign in to see current pricing.
