Shower Door Hardware: A Complete Guide to Every Component

Read with AIAsk your favorite assistant to summarize this article for you.

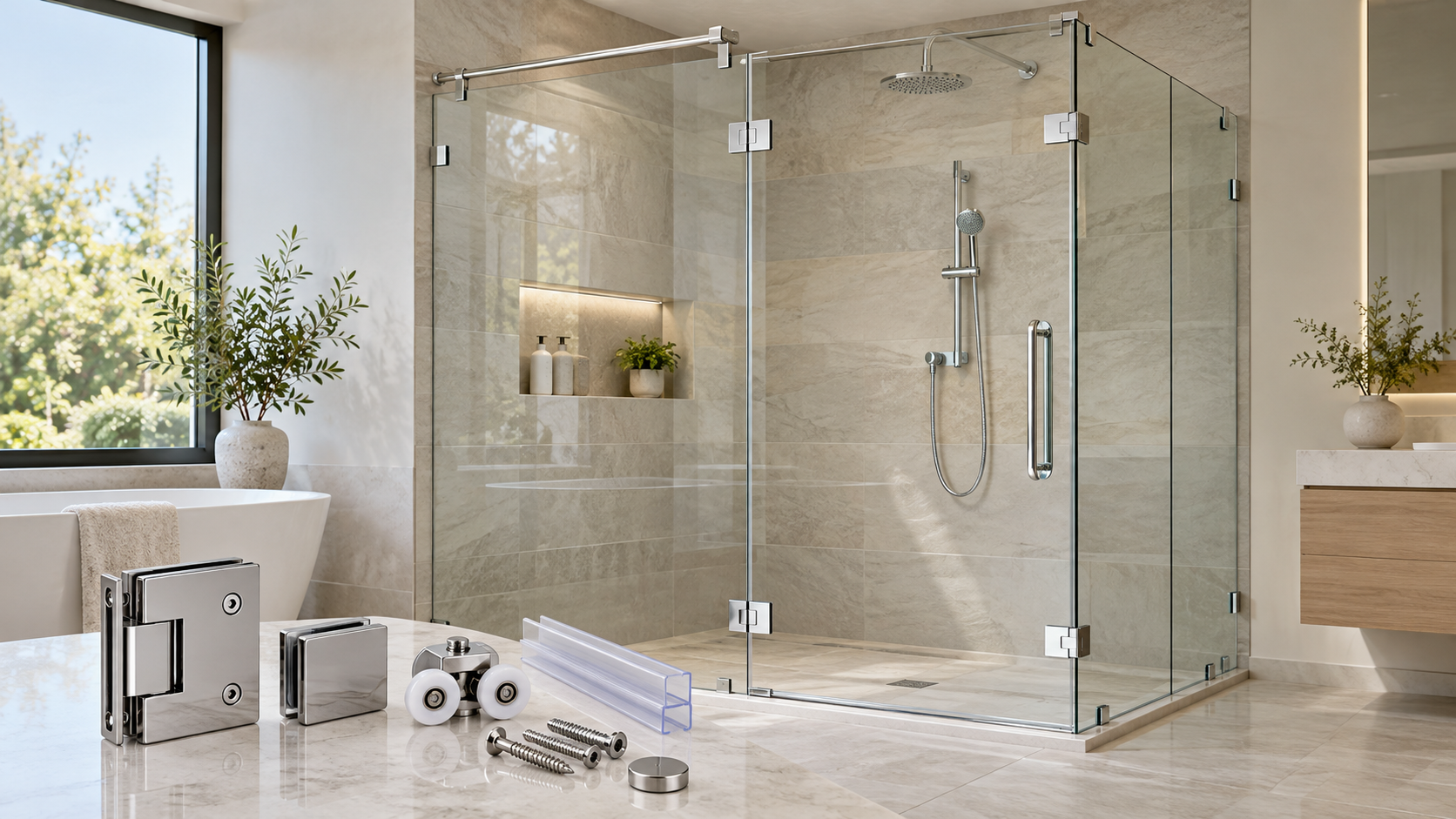

Shower door hardware includes every mechanical, structural and water-control component used to install and operate a glass shower enclosure. Hinges, handles, clamps, channels, tracks, rollers, support bars, seals and fasteners all affect how safely the enclosure functions.

Choosing these parts is not simply a matter of matching finishes. Each component must be compatible with the enclosure style, glass thickness, door weight, mounting surface and required glass cutouts.

This guide explains the major types of shower door hardware, what each component does and what to check before buying replacement parts or planning a new enclosure.

Why Shower Door Hardware Matters

Glass panels provide the enclosure, but the hardware carries the load and controls movement. A beautiful hinge or handle is only suitable if it meets the technical requirements of the installation.

Correct hardware helps:

• Support the weight of tempered glass
• Keep panels properly aligned
• Control door movement
• Reduce leaks and splashing
• Protect the edges of the glass
• Maintain adequate clearances
• Improve the enclosure’s appearance
• Extend the service life of the door

Undersized, incompatible or poorly installed hardware can cause sagging, loose panels, damaged seals and unwanted contact between glass and hard surfaces.

Main Shower Door Hardware Components

A complete enclosure may use only a few components or an entire coordinated hardware system. The exact combination depends on whether the shower door is hinged, sliding, framed, semi-frameless or fully frameless.

1. Shower Door Hinges

Hinges support a swinging glass door and allow it to open and close. They are among the most load-sensitive parts of a shower enclosure.

Common hinge configurations include:

Wall-to-Glass Hinges

Wall-to-glass hinges connect the door directly to a wall or jamb. The mounting surface must contain suitable structural backing because tile and drywall alone are not designed to support a heavy glass door.

Glass-to-Glass Hinges

Glass-to-glass hinges connect a door to an adjacent fixed glass panel. The fixed panel must be properly supported because it receives part of the door’s load.

Pivot Hinges

Pivot hardware supports the door at the top and bottom rather than along one vertical edge. It may be suitable when side-wall conditions make conventional hinges impractical.

Continuous Hinges

A continuous hinge extends along most of the door height. It distributes the load across a larger area and is commonly found in framed or semi-frameless systems.

Before selecting hinges, check:

• Maximum door weight
• Maximum door width
• Approved glass thickness
• Opening angle
• Wall-to-glass or glass-to-glass configuration
• Required glass cutout
• Self-centering position
• Manufacturer-approved hinge quantity

Adding another hinge does not automatically increase capacity. The complete installation must follow the manufacturer’s load and spacing requirements. Daltex offers a range of shower hardware for different glass configurations.

2. Pivot Hardware

Pivot systems allow a shower door to rotate from pivot points located near the top and bottom of the panel.

A pivot door may rotate from the edge or from a point several inches inside the glass. An offset pivot can create a different swing path, which may be helpful in a bathroom with limited clearance.

A typical pivot system may include:

• Top pivot
• Bottom pivot
• Floor or curb-mounted base
• Header or top support
• Pivot bushings
• Adjustment screws
• Protective gaskets

The top and bottom pivot points must remain precisely aligned. The installer must also protect the waterproofing system when hardware is anchored near a curb or floor.

3. Glass Clamps

Glass clamps secure stationary panels without covering the entire glass edge. They are commonly used in frameless shower enclosures because their small profile preserves an open appearance.

Common clamp styles include:

• Wall-mounted clamps
• Floor-mounted clamps
• Ceiling-mounted clamps
• Glass-to-glass clamps
• Square clamps
• Beveled clamps

Some clamps require holes or notches in the glass. Others hold the panel with pressure and protective gaskets. Never assume two clamps with similar dimensions use the same glass preparation.

The clamp specifications should confirm:

• Glass thickness
• Required hole or notch
• Mounting orientation
• Fastener type
• Edge clearance
• Load and panel-size limitations

4. U-Channels

A U-channel is a narrow metal profile that holds the edge of a fixed glass panel. It can be mounted along a wall, curb, floor or ceiling.

U-channels provide continuous support and may accommodate minor variations in the opening more effectively than individual clamps. They also hide the panel edge and mounting fasteners.

Benefits of U-channels include:

• Continuous glass support
• Clean installation lines
• Fewer exposed fasteners
• Easier alignment of some fixed panels
• A coordinated transition between glass and tile

The channel width must match the glass thickness and gasket or setting material specified by the manufacturer.

5. Headers

A header is a horizontal structural member installed across the top of an enclosure. It may connect walls, fixed panels and doors as one supported system.

Headers are commonly used when:

• The opening is wide
• Multiple panels require stabilization
• A pivot door needs top support
• The enclosure design creates significant lateral movement
• The manufacturer requires a header for the selected configuration

Headers are functional structural parts. They should not be removed merely to make an enclosure look more frameless unless an approved support system replaces them.

6. Support Bars and Stabilizer Bars

Support bars brace fixed glass panels that might otherwise flex or move. They are especially useful for large return panels, inline panels and enclosures with minimal metal framing.

Common configurations include:

• Wall-to-glass bars
• Glass-to-glass bars
• Ceiling-to-glass supports
• Corner stabilizer bars
• Adjustable support arms

A support bar should be selected according to panel size, attachment angle and mounting conditions. Its purpose is to stabilize the glass, not to correct an improperly sized panel or weak base connection.

7. Shower Door Handles

Handles provide a safe and comfortable way to operate the door. Their hole spacing and glass compatibility are more important than appearance alone.

Popular handle styles include:

Pull Handles

Pull handles have gripping surfaces on both sides of the glass. They are available in many lengths and profiles.

Ladder Pulls

Ladder pulls extend farther from the glass and can create a bold architectural appearance. Some models incorporate a towel bar.

Back-to-Back Knobs

Knobs require less space than long pull handles and may work well in smaller enclosures.

Finger Pulls and Edge Pulls

These low-profile options are often used on sliding doors where a projecting handle could interfere with panel overlap.

Before ordering a replacement handle, measure the center-to-center distance between the existing holes. Also confirm the glass thickness, handle projection and clearance from adjacent panels.

8. Towel Bars and Combination Handles

A towel bar may be mounted independently or combined with a door pull. These components should be designed specifically for tempered glass and installed with the correct gaskets.

Longer accessories place more leverage on their mounting points. Users should not lean on, hang from or use a towel bar as a grab bar unless it is specifically designed, rated and installed for that purpose.

9. Sliding Door Tracks

Sliding shower doors operate along top, bottom or combined track systems. The track determines the travel path and supports or guides the moving panels.

Common systems include:

• Framed bypass tracks
• Semi-frameless sliding tracks
• Frameless top-hung systems
• Barn-style exposed roller systems
• Single-sliding door systems
• Double-sliding door systems

Track compatibility depends on the complete system. A replacement track should match the rollers, guides, stops, glass thickness and door weight.

Mixing components from different product systems can create unsafe clearances or prevent anti-jump features from working correctly.

10. Rollers and Hangers

Rollers allow sliding glass panels to move along a track. In top-hung systems, the rollers may carry most or all of the door’s weight.

Roller assemblies can include:

• Wheels
• Bearings
• Hangers
• Axles
• Adjustment screws
• Decorative covers
• Anti-jump devices
• Glass gaskets

A roller that looks similar to the original may still have a different axle size, mounting hole, offset or weight rating. For replacement work, compare the complete assembly rather than matching the wheel diameter alone.

11. Bottom Guides

Bottom guides keep a sliding panel aligned while allowing it to move. They may be mounted on a curb, floor or fixed panel.

The guide must match:

• Glass thickness
• Panel overlap
• Track position
• Required clearance
• Door travel direction

A loose, cracked or incorrectly positioned guide can allow the bottom of the panel to swing. This may bring glass edges into contact with tile, metal or another glass panel.

12. Stops, Bumpers and Anti-Jump Devices

Stops control how far a sliding or swinging door can travel. Bumpers cushion contact, while anti-jump devices help prevent a sliding panel from lifting off its intended path.

These parts may be small, but they are essential to the safe operation of the system.

Do not operate a sliding door with missing anti-jump devices or damaged stops. Replace them with components approved for the original hardware system.

13. Shower Door Sweeps

A shower door sweep attaches to the bottom edge of the glass and helps direct water back into the enclosure.

Common sweep designs include:

• Straight bottom sweeps
• Drip-rail sweeps
• Double-fin sweeps
• Bulb seals
• Angled deflectors
• Snap-on vinyl sweeps

The correct sweep depends on glass thickness, gap size, door movement and curb position. An oversized sweep can drag heavily and interfere with closing. An undersized sweep may leave a gap that allows water to escape.

Sweeps are wear components and usually require periodic replacement. Appropriate shower door replacement parts should be selected by profile and dimensions rather than appearance alone.

14. Vertical Jamb Seals

Jamb seals close the vertical gap between a door and an adjacent wall or panel. They may include a flexible fin, bulb or angled blade.

Common applications include:

• Hinge-side protection
• Strike-side water control
• Door-to-fixed-panel gaps
• Corner enclosures
• Inline enclosures

The seal must face the correct direction. If installed backward, it may catch on the door or direct water outside the shower.

15. Magnetic Seals

Magnetic seals use paired profiles to help two door edges or a door and fixed panel meet consistently.

They are common on:

• Corner entry showers
• Neo-angle enclosures
• Bi-fold systems
• Double-door enclosures

Polarity, profile shape, glass thickness and closing angle must all match. A magnetic seal cannot compensate for severely misaligned glass or failing hinges.

16. Thresholds and Water Dams

A threshold is a low metal profile installed beneath the door. It helps direct water toward the shower interior.

Thresholds are particularly helpful when:

• The curb has minimal inward slope
• The gap beneath the door is relatively large
• Water reaches the opening during normal use
• A sweep alone does not provide adequate control

Frameless shower enclosures manage water rather than creating a fully watertight compartment. Proper curb slope, showerhead placement and seal selection all contribute to water control.

17. Gaskets, Setting Blocks and Spacers

Glass should not make direct contact with unprotected metal. Gaskets, blocks and spacers cushion the glass and help distribute pressure.

These parts may be made from:

• Rubber
• Vinyl
• Neoprene
• Plastic
• Manufacturer-specific composite materials

Do not replace a gasket with random rubber, cardboard or excessive sealant. Incorrect material thickness can change clamp pressure and hardware alignment.

18. Fasteners and Mounting Hardware

Fasteners attach hinges, clamps, channels, tracks and support bars to the surrounding structure.

A hardware package may include:

• Machine screws
• Set screws
• Wood screws
• Masonry anchors
• Wall plugs
• Washers
• Cover plates
• Thread-locking products

The correct fastener depends on what lies behind the finished surface. Wood blocking, metal framing, masonry and approved structural anchors require different attachment methods.

Decorative cover plates should never be mistaken for structural support. The fastener beneath the cover must reach an appropriate substrate.

19. Framed Shower Door Components

Framed shower doors use metal profiles around much of the glass perimeter. Components may include:

• Vertical jambs
• Top and bottom tracks
• Header rails
• Door frames
• Corner posts
• Vinyl glazing strips
• Rollers
• Guides
• Latches
• Fasteners

Replacement parts for framed systems are often model-specific. Brand name, approximate installation date, profile measurements and clear photographs can help identify the correct component.

20. Frameless Shower Door Components

Frameless enclosures use thicker glass and limited visible metal. Typical components include:

• Heavy-glass hinges
• Glass clamps
• U-channels
• Support bars
• Handles
• Sweeps
• Jamb seals
• Thresholds

Because there is less framing to control alignment, measurements and glass fabrication must be precise. The holes and cutouts for frameless hardware are normally completed before the glass is tempered.

Tempered glass cannot be safely drilled or cut after fabrication. If a replacement hinge requires a different cutout, new glass may be necessary.

How to Choose the Right Shower Door Hardware

Identify the Enclosure Type

First determine whether the enclosure is framed, semi-frameless or frameless. Then identify whether the door swings, pivots, slides or folds.

Hardware intended for one system may not be compatible with another.

Confirm the Glass Thickness

Common glass thicknesses vary by enclosure type. Never estimate thickness from appearance. Measure accurately or consult the original specifications.

Hinges, clamps, channels, seals and handles must accept the exact glass thickness.

Check Door Weight and Width

A hinge or roller system may have both a maximum weight and a maximum width. Width matters because a wider panel creates greater leverage on the hardware.

Both limits must be satisfied.

Match Existing Holes and Cutouts

For replacement hardware, compare:

• Hole diameter
• Hole spacing
• Cutout shape
• Cutout dimensions
• Distance from the glass edge
• Hardware orientation

A close visual match is not sufficient. Detailed manufacturer drawings should be used whenever possible.

Verify the Mounting Surface

Wall-mounted components need suitable backing. Before installation, determine whether the fasteners will connect to wood, metal framing, masonry or another approved structural material.

Check Swing and Clearance

Confirm that the door can move without striking:

• A toilet
• Vanity hardware
• Towel bars
• Adjacent glass
• Tile
• The showerhead
• The bathroom entry door

Hardware placement should also allow enough room for seals and handles.

Choose a Suitable Material and Finish

Shower hardware is regularly exposed to water, humidity and cleaning chemicals. Common base materials include brass, stainless steel, aluminum and engineered plastics.

Chrome, matte black, brushed nickel, brass and bronze describe the visible finish. They do not necessarily identify the material beneath it.

For a coordinated bathroom, compare physical finish samples when possible. Finish names can vary among manufacturers.

Can You Replace Shower Door Hardware Without Replacing the Glass?

Yes, shower door hardware can often be replaced while keeping the existing glass, but only when the new component matches the glass preparation and system requirements.

Replacement is more likely to work when:

• The glass is not chipped or cracked
• The replacement uses the same holes and cutouts
• The glass thickness is supported
• The new hardware meets the door’s weight and width
• The mounting structure remains secure
• Compatible gaskets and fasteners are available

New glass may be required if the cutouts do not match, the panel is damaged or the new enclosure configuration requires different fabrication. Professional glass repair and replacement can help determine which parts of an enclosure can be retained.

Common Shower Door Hardware Buying Mistakes

Choosing by Finish Alone

Matching matte black or brushed nickel does not establish compatibility. Technical dimensions and load ratings come first.

Assuming Hardware Is Universal

Most shower door hinges, rollers, handles and seals are not universal. Even similar-looking parts may use different holes, offsets or profiles.

Ignoring Glass Preparation

Tempered glass cannot be modified like wood or acrylic. Hardware must match the existing fabrication.

Using Wall Anchors Without Structural Support

Heavy glass hardware may require solid blocking or another approved structural attachment. Standard drywall anchors are not automatically suitable.

Mixing Unapproved Components

Tracks, rollers, guides and stops are often engineered as a complete system. Mixing brands or product lines can change alignment and safety performance.

Reusing Damaged Gaskets

Compressed, split or hardened gaskets may no longer protect the glass or maintain correct pressure.

Overtightening Fasteners

Excessive pressure can damage gaskets, distort hardware or create stress around glass holes and cutouts.

Signs That Shower Door Hardware Needs Attention

Inspect the enclosure if you notice:

• A door that sags or rubs
• Loose handles
• Hinges that shift or click
• Corrosion or finish failure
• Cracked or missing gaskets
• Rollers that drag or wobble
• A sliding panel that lifts
• Repeated water leakage
• Torn or discolored seals
• Contact between glass and metal
• Chipped glass near a mounting point

Stop using the door if the glass is cracked, a structural component is loose or the panel no longer follows its intended path.

Shower Door Hardware Maintenance

Routine care can extend hardware life and make emerging problems easier to identify.

• Wipe hardware dry after showering.
• Clean with a soft cloth and a manufacturer-approved product.
• Avoid abrasive pads and harsh chemicals.
• Remove mineral deposits before they become severe.
• Inspect screws, seals and gaskets periodically.
• Replace worn sweeps before they split or harden.
• Keep sliding tracks free from soap residue and debris.
• Do not hang excessive weight from handles or towel bars.
• Have sagging doors or moving fixed panels inspected professionally.

Do not loosen structural fasteners while the glass is unsupported.

When to Use a Complete Hardware Kit

A complete kit can simplify compatibility when building a new enclosure. Kits may include coordinated hinges, clamps, a handle, a support bar and installation accessories.

However, “complete” does not always mean the kit contains every part required for a specific opening. Check whether glass, fasteners, seals, thresholds and structural supports are included.

For custom layouts, individually selected components may provide better results than a general-purpose kit. The hardware should be planned together with the glass dimensions and fabrication drawings for custom shower enclosures.

Frequently Asked Questions

What hardware is needed for a frameless shower door?

A frameless hinged door commonly requires hinges or pivot hardware, a handle, a bottom sweep and one or more jamb seals. Fixed panels may also require clamps, U-channels or support bars.

Are shower door hinges universal?

No. Hinges vary by glass thickness, weight capacity, door width, mounting configuration, opening angle and glass cutout.

Can shower door handles be replaced?

Yes, if the replacement handle matches the existing hole spacing, hole diameter, glass thickness and required clearances.

What holds a frameless shower panel in place?

Fixed panels may be secured with clamps, U-channels, support bars or a combination of these components.

What is the difference between a sweep and a seal?

A sweep usually attaches to the bottom of the door. A seal generally closes a vertical gap between the door, wall or adjacent panel.

Do frameless shower doors need a threshold?

Not every enclosure requires one, but a threshold can improve water control when the opening, curb slope or shower spray pattern makes leakage more likely.

Can I drill new holes in an existing tempered shower door?

No. Drilling or cutting tempered glass after fabrication can cause it to break. Replacement hardware must match the existing holes and cutouts, or the glass must be replaced.

How do I identify an unknown shower door part?

Record the enclosure brand, glass thickness, part dimensions, hole spacing and mounting position. Take photographs of the complete enclosure and both sides of the component before removing it.

Should all shower hardware finishes come from the same manufacturer?

Using one finish collection usually produces the closest visual match. Products from different manufacturers may have slightly different color, gloss and texture even when the finish names are identical.

Final Thoughts

Every shower door component has a specific job. Hinges and pivots carry moving glass, clamps and channels secure fixed panels, tracks and rollers control sliding doors, and sweeps and seals manage water.

The safest selection process begins with the enclosure configuration, exact glass thickness, panel dimensions, hardware load limits and existing glass preparation. Finish and style should be considered only after those requirements are satisfied.

When the glass is heavy, the mounting structure is uncertain or the original hardware cannot be identified, professional measurement and installation are the safest options.
